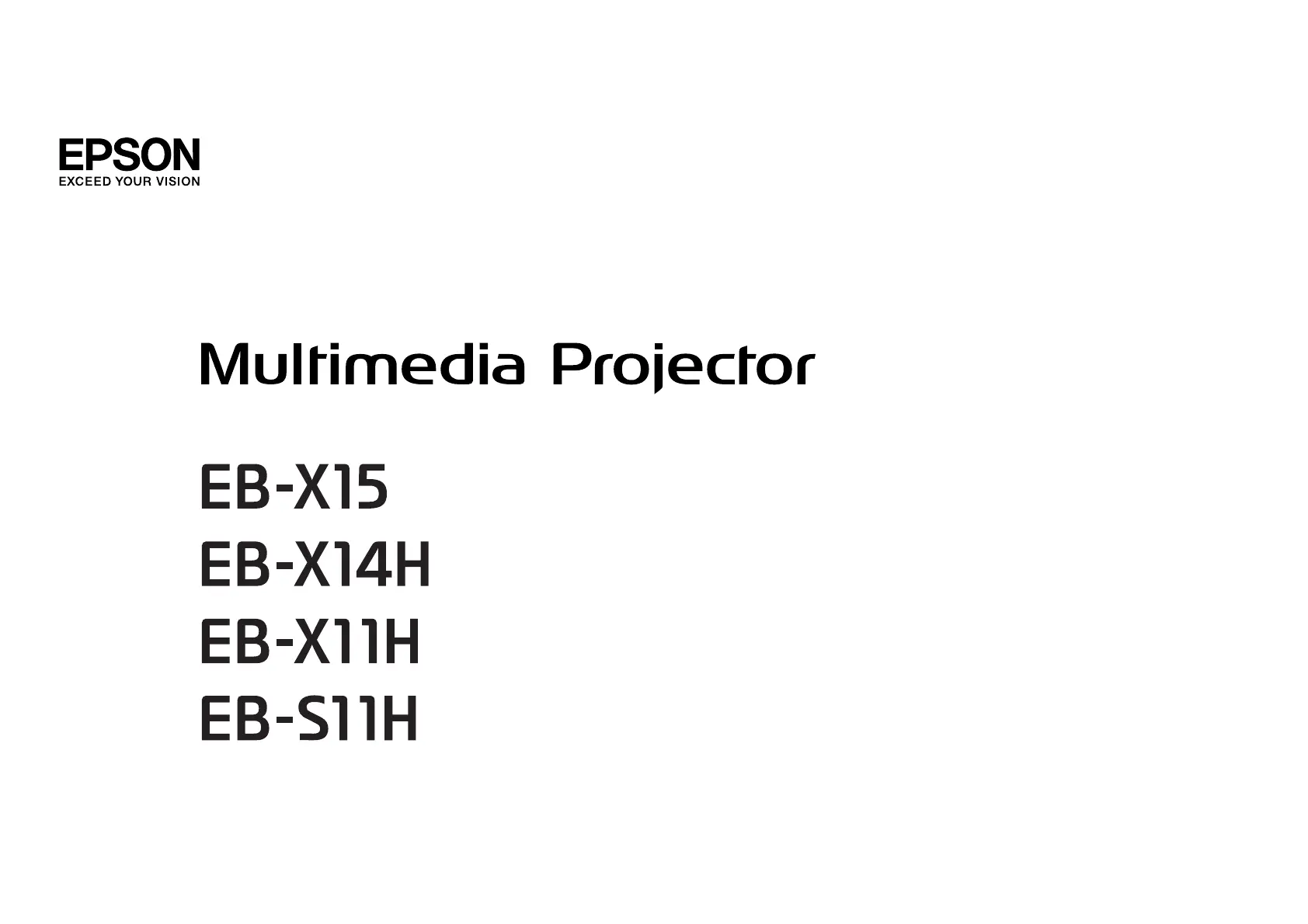

Side 1/103

User’s Guide

Notations Used in This Guide

• Safety indications

The documentation and the projector use graphical symbols to show how to use the projector safely.

Please understand and respect these caution symbols in order to avoid injury to persons or property.

Warning

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

Caution

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

• General information indications

Attention

Indicates procedures which may result in damage or injury if sufficient care is not taken.

Indicates additional information and points which may be useful to know regarding a topic.

s Indicates a page where detailed information regarding a topic can be found.

Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary"

section of the "Appendix".

s "Glossary" p.98

[Name] Indicates the name of the buttons on the remote control or the control panel.

Example: [Esc] button

Menu Name Indicates Configuration menu items.

Example:

Select Brightness from Image.

Image - Brightness

Notations Used in This Guide ........................ 2

Introduction

Projector Features .......................................... 7

List of Functions by Model........................................7

Quick and Easy Set up, Projection, and Storage..........................7

Connecting with a USB cable and projecting (USB Display)................7

Detecting projector movements and automatically correcting image distortion

(EB-X15 only)............................................... 7

Horizontal keystone adjuster (EB-X15 only)...........................8

Useful Functions for Projecting Images ................................8

Making the most of the remote control.............................8

Enhanced security functions ..................................... 8

Part Names and Functions ................................... 9

Front/Top................................................... 9

Rear .......................................................10

Base ......................................................11

Control Panel................................................12

Remote Control...............................................13

Replacing the remote control batteries............................. 15

Remote control operating range .................................16

Preparing the Projector

Installing the Projector ..................................... 18

Installation Methods ...........................................18

Installation methods .........................................18

Screen Size and Approximate Projection Distance.......................19

Connecting Equipment ..................................... 20

Connecting a Computer.........................................20

Connecting Image Sources .......................................22

Connecting External Equipment...................................24

Basic Usage

Projecting Images ......................................... 26

From Installation to Projection .....................................26

Automatically Detect Input Signals and Change the Projected Image (Source Search)

..........................................................27

Switching to the Target Image by Remote Control.......................28

Projecting with USB Display......................................28

System requirements ......................................... 28

Connecting for the first time....................................29

Uninstalling...............................................30

Adjusting Projected Images ................................ 32

Correcting Keystone Distortion.................................... 32

Correcting automatically......................................32

Correcting manually.........................................33

Adjusting the Image Size ........................................36

Adjusting the Image Position .....................................36

Adjusting the Horizontal Tilt ......................................37

Correcting the Focus...........................................37

Adjusting the Volume..........................................37

Selecting the Projection Quality (Selecting Color Mode)...................37

Setting Auto Iris..............................................38

Changing the Aspect Ratio of the Projected Image ......................39

Changing methods ..........................................39

Changing the aspect mode .....................................39

Useful Functions

Projection Functions ....................................... 42

Hiding the Image and Sound Temporarily (A/V Mute).....................42

Freezing the Image (Freeze)......................................42

Pointer Function (Pointer) ........................................43

Enlarging Part of the Image (E-Zoom)................................44

Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse) . . . . . . 45

Saving a User's Logo........................................... 46

Contents

Produkspesifikasjoner

Merke:	Epson
Kategori:	videoprosjektor
Modell:	EB-X14H
Produkttype:	Standard stråleprojektor
Innebygd skjerm:	Nei
Vekt:	2300 g
Bredde:	295 mm
Dybde:	228 mm
Høyde:	77 mm
Støynivå:	37 dB
Strømkilde:	AC
Bruksanvisning:	Ja
Plassering:	Desktop
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Opprinnelsesland:	China
Pakkevekt:	3800 g
Matrisestørrelse:	0.55 "
Antall USB 2.0-porter:	1
DVI-port:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	1
Hodetelefonutganger:	1
Full HD:	Nei
HDCP:	Nei
3D:	Nei
Antall per pakke:	1 stykker
On Screen Display (OSD):	Ja
Forhåndsinnstilte moduser:	Cinema, Dynamic, Presentation, sRGB, Vivid photo
Kontrastforhold:	3000:1
Produkter per pall:	78 stykker
AC-inngangsspenning:	220 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Produkter per pallelag:	6 stykker
Produkter per pall (Storbritannia):	78 stykker
Produkter per pallelag (Storbritannia):	6 stykker
Pallebredde (Storbritannia):	1000 mm
Strømforbruk (standby):	0.47 W
Projektorens lysstyrke:	3000 ANSI lumen
Projektoroppløsning:	XGA (1024x768)
Produktfarge:	Hvit
Pakkedybde:	359 mm
Pakkehøyde:	160 mm
Pakkebredde:	339 mm
Naturlig sideforhold:	4:3
Støttede grafikkoppløsninger:	1024 x 768 (XGA), 1920 x 1080 (HD 1080)
Analogt signalformatsystem:	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Kabler inkludert:	AC, VGA
Visningsteknologi:	3LCD
Skjermstørrelsekompabilitet:	30 - 300 "
Projeksjonsavstand:	1.8 - 2.17 m
Hjørnesteinsrettelse, horisontal:	±30 °
Hjørnesteinsrettelse, vertikal:	±30 °
Støynivå (økonomisk funksjon):	29 dB
Zoomfunksjon:	Ja
Brennviddeområde:	17 - 20 mm
Zoom-type:	Manuell
RS-232-port:	1
Lyskildens tjenestetid:	4000 timer
Lyskildetype:	Lampe
Strømforbruk (vanlig bruk):	270 W
Støttede videofunksjoner:	1080i, 1080p, 480i, 480p, 720p
Antall VGA (D-Sub)-porter:	3
Mikrofon, linje-inn-støpsel:	Ja
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Lampetype:	E-TORL
OSD-språk:	ARA, BUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, NOR, POL, POR, RUM, RUS, SLK, SLV, SWE, THA, TUR, UKR
Antall S-Video-innganger:	1
Ethernet/bredbåndsforbindelse:	Nei
RMS-rangert strøm/utgangseffekt:	2 W
Lampens effekt:	200 W
Lyskildens tjenestetid (økonomisk modus):	5000 timer
Blenderåpning rekkevidde:	1.58 - 1.72
Projeksjonsfaktor:	1.48 - 1.77:1
Kabellåsport:	Ja
Kabellåstype:	Kensington
Zoom-forhold:	1.2:1
Støttede forhold:	4:3
Strømforbruk, strømsparing:	223 W
Plugg inn og spill:	Ja
Pallens bruttolengde:	1200 mm
Pallens bruttobredde:	800 mm
Pallens bruttohøyde:	2230 mm
Pallelengde (Storbritannia):	1200 mm
Pallehøyde (Storbritannia):	2230 mm
Projektor lysstyrke (økonomisk funksjon):	2400 ANSI lumen
