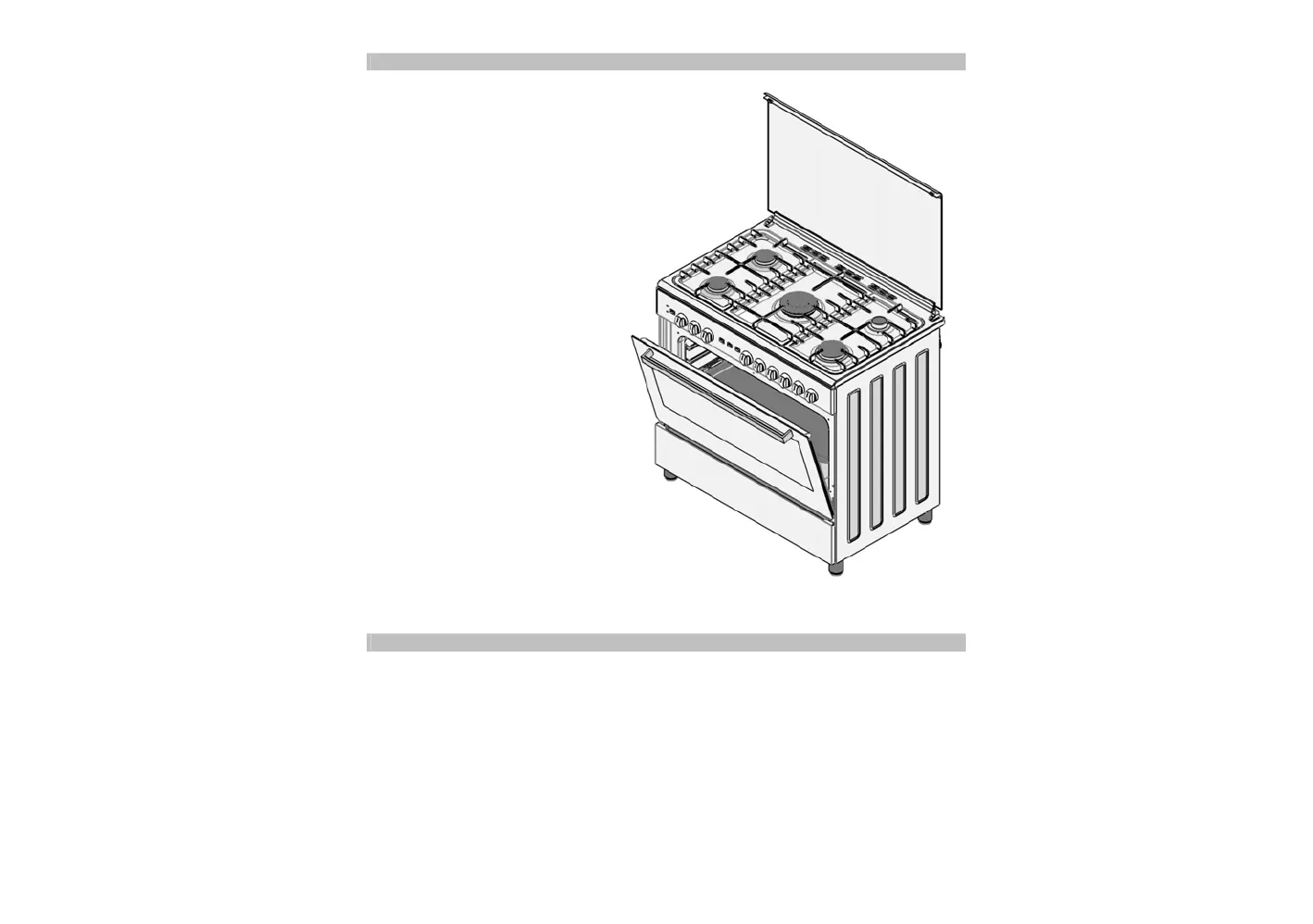

90x60 FREE STANDING GAS-

ELECTRIC COOKER

INSTRUCTION MANUAL

Dear User,

It is our ultimate desire that you achieve the best performance from our product, which

has been passed through meticulous quality control checks and is manufactured in

modern facilities.

To this effect, we recommend that you read the entire guide carefully before operating

the product and keep it as a reference.

All our appliances are only for domestic use, not for commercial use.

ATTENTION!

THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE

REGULATIONS IN FORCE AND ONLY USED IN A WELL VENTILATED

LOCATION. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING

THIS APPLIANCE.

TABLE OF CONTENTS

Part 1

Index

Part 2

Installation of your oven

Part 3

Installation of the oven feet

Part 4

Technical features of your oven

Part 5

Nozzle change operation

Part 6

Important warnings

Part 7

Descriptions of the control panel

Part 8

Descriptions of the oven section

Part 9

Using the burner groups

Part 10

Using oven section

Part 11

Using the grill deflector sheet

Part 12

Maintenance and cleaning

Part 13

If your oven does not operate

INSTALLATION OF YOUR OVEN

Electrical Connection and Security

1. Your cooker is adjusted in compliance with 220-240 V for mono phase or 220-240 V / 380-415 V for three

phase and 16 or 32 Ampere electric supply. If the mains is different from these values, contact your

authorized service.

2. Electrical connection of the oven should only be made by the sockets with earth system installed in

compliance with the regulations. If there is no proper socket with earth system in the place where the oven

will be installed, immediately contact a qualified electrician. Manufacturer shall never be responsible from

the damages that will arise because of the sockets connected to the appliance with no earth system.

3. Electrical cable should not touch the hot parts of the appliance.

4. For disconnection from the supply mains having a contact separation in all poles that provide full

disconnection, must be incorporated in fixed wiring in according with the wiring rules.

Gas Connection and Security

1. Before your appliance is connected to the gas supply, ensure that the gas category and pressure

specifications shown in the data plate corresponds with your gas supply. If necessary call authorized

service for adjusting to gas category.

2. This appliance shall be installed in accordance with the regulations in force and only used in a well

ventilated space. Read the instructions before installing or using this appliance. In the interest of safety this

appliances must be installed and / or serviced by a competent person as stated in the gas safety regulations

current editions.

3. The appliance must not be installed in a room without a window or other controllable opening. If is

installed in a room without a door which opens directly to the outside, a permanent opening is required.

The air circulation should be 2 m3/h per kW of burners.

4. The gas connection should be performed from the right or left. For this reason, change the hose nozzle,

plug and the seals.

5. Please use flexible hose for gas connection.

6. If you make a connection with a flexible metal hose, locate a seal between the main gas pipes.

7. The inner diameter of the flexible hose, which the butane hose nozzle is connected, should be 6mm for the

house-type gas tubes. The inner diameter of the flexible hose, which the natural hose nozzle is connected,

should be 15mm.The hose should tightly be fitted to the hose nozzle by squeezing with a clamp. The hose

should be replaced before its last expiry date.

8. Caution! Make the oven connection to the gas inlet valve, the hose length must be short and be sure that

there is no leakage. The flexible hose used should not be longer than 125 cm for safety.

9. RE-INSPECT THE GAS CONNECTION.

10. When placing your oven to its location, ensure that it is at the counter level. Bring it to the counter level by

adjusting the feet if necessary.

DO NOT MAKE GAS HOSE and ELECTRICAL CABLE OF YOUR OVEN GO THROUGH THE HEATED

AREAS, ESPECIALLY THROUGH THE REAR SIDE OF THE OVEN. DO NOT MOVE GAS

CONNECTED OVEN. SINCE THE FORCING SHALL LOOSEN THE HOSE, GAS LEAKAGE MAY

OCCUR.

INSTALLATION OF THE OVEN FEET

In order to install the oven feet;

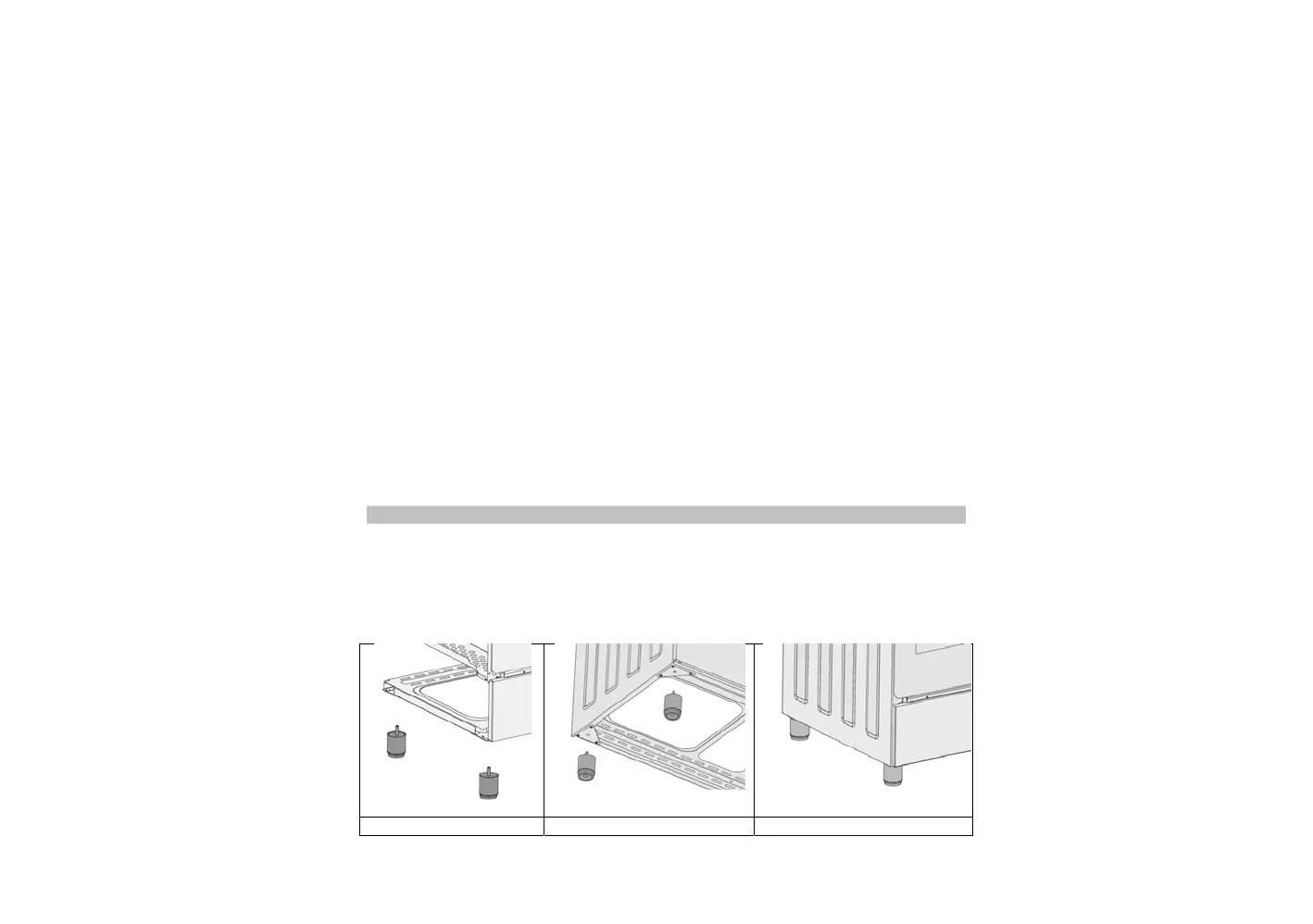

1. Foot attachment lath is installed on the oven from the bottom of the oven as shown in Figure 1. Nuts are

centered on these lathes in order to screw feet (Figure 2). Complete the feet installation process by

screwing the feet to the nuts (Figure 3).

2. You can balance your oven by turning the screwed feet according to the surface type you are using.

3. If your oven has plastic food as in Figure-4 you can adjust your ovens height from these feet as turned

clockwise or anticlockwise.

Figure 1 Figure 2 Figure 3 Figure 4

Produkspesifikasjoner

Merke:	Exquisit
Kategori:	Komfyr
Modell:	GE 9106.1 T
Produkttype:	Frittstående komfyr
Vekt:	71000 g
Bredde:	900 mm
Dybde:	634 mm
Høyde:	845 mm
Antall funksjoner:	8
Antall brennere/kokesoner:	5
Ovn strømkilde:	Elektrisk
Antall ovner:	1
Antall gassbrennere:	5
Kontrollposisjon:	Front
Pakkevekt:	79000 g
Sertifisering:	CE
Innebygd lys:	Ja
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 Hz
Grill:	Ja
Produktfarge:	Black, Stainless steel
Pakkedybde:	685 mm
Pakkehøyde:	885 mm
Pakkebredde:	955 mm
Kontrolltype:	Buttons, Rotary
Wok-brenner:	Ja
Strøm:	15.6 A
Ovn størrelse:	Stor
Ovnposisjon:	Bunn
Ovn nettokapasitet:	100 l
Ovnsdør materiale:	Glass
Benke type:	Gass
Brenner / kokeområde 1 posisjon:	Bakre høyre side
Brenner / kokeområde 1 strømkilde:	Gass
Brenner / kokeområde 1 type:	Liten (fingerbøl)
Brenner / kokeområde 1 strøm:	900 W
Brenner / kokeområde 2 posisjon:	Foran til venstre
Brenner / kokeområde 2 strømkilde:	Gass
Brenner / kokeområde 2 type:	Liten (fingerbøl)
Brenner / kokeområde 2 strøm:	1700 W
Brenner / kokeområde 3 posisjon:	Bak til venstre
Brenner / kokeområde 3 strømkilde:	Gass
Brenner / kokeområde 3 type:	Liten (fingerbøl)
Brenner / kokeområde 3 strøm:	1700 W
Tilkoplingsverdi (gass):	10750 W
Energiforbruk (konvensjonell):	1.17 kWh
Energiforbruk (tvunget konveksjon):	1.23 kWh
Bunn-varme:	Ja
Topp varme:	Ja
Ovndør åpning:	Nedfallsåpning
Justerbare bein:	Ja
Håndtaksfarge:	Rustfritt stål
Tittevindu:	Ja
Topp- og bunnvarme:	Ja
Bakeplate:	Ja
Innsidig belegg:	Emalje
Brenner / kokeområde 4 strømkilde:	Gass
Brenner / kokeområde 4 type:	Stor
Brenner / kokeområde 4 strøm:	2900 W
Lett å rengjøre (kokeplate):	Ja
Ovn termostatintervall:	40 - 240 °C
Tilkoplingsverdi (elektrisk):	3590 W
Lett å bruke:	Ja
Brenner / kokeområde 4 posisjon:	Fremre høyre side
Brenner / kokesone 4 diameter:	100 mm
Brenner / kokesone 3 diameter:	75 mm
Kokeplatelokk:	Ja
Brenner / kokesone 1 diameter:	55 mm
Brenner / kokesone 2 diameter:	75 mm
Lett å rengjøre (stekeovn):	Ja
Ovnens indre belegg:	Emalje
