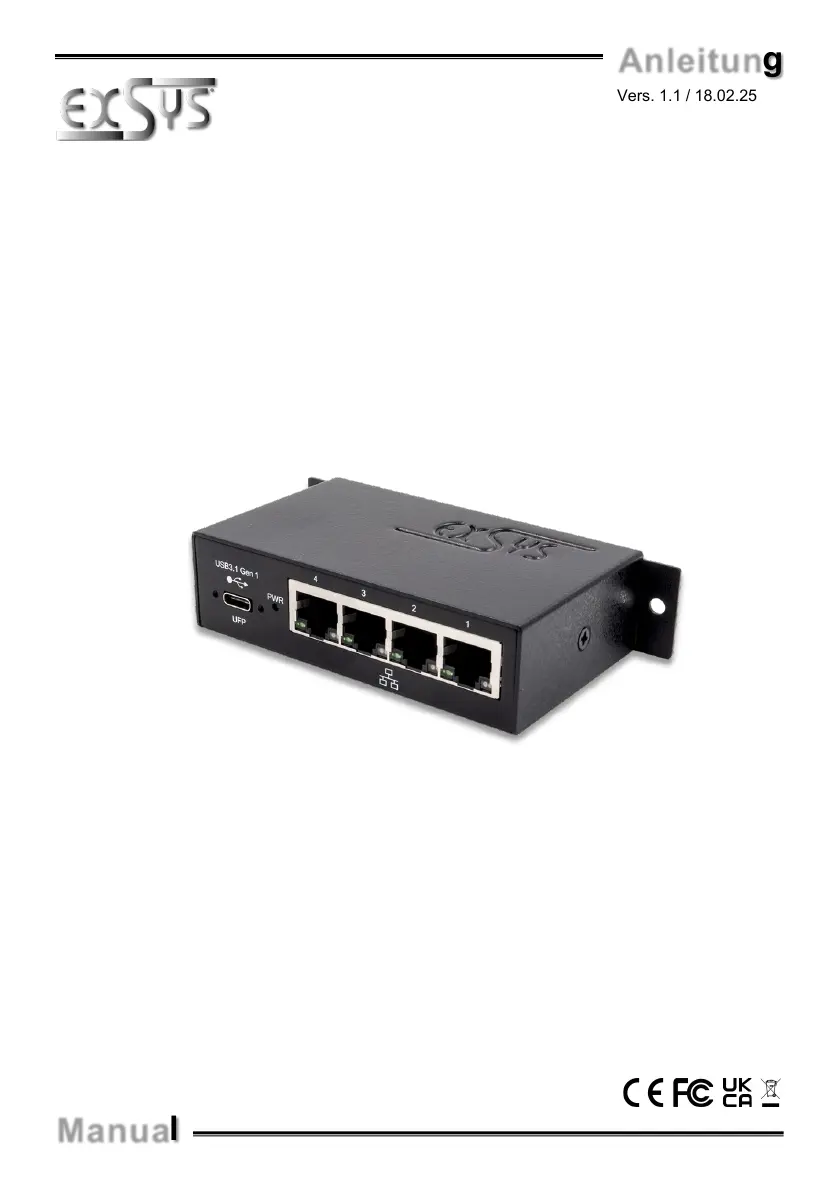

USB 3.2 Gen 1 to 4-Port Gigabit Ethernet

Metal case

EX-1330M

USB 3.2 Gen 1 zu 4-Port Gigabit Ethernet

Metallgehäuse

Vers. 1.1 / 18.02.25

Anleitung

Manual

Schweiz:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Deutschland:

EXSYS Vertriebs GmbH

Industriestraße 8

61449 Steinbach

www.exsys.de

Italia:

EXSYS Italia Srl

Via Belvedere, 45/B

I-22100 Como

www.exsys.it

Deutsch EX-1330M

1. Beschreibung ···································································································· 3

2. Lieferumfang ····································································································· 3

3. Aufbau, Anschlüsse & LED ················································································ 4-6

3.1 Aufbau························································································································ 4

3.2 Anschlüsse & LED ········································································································ 5

3.3 DIP-Schalter ················································································································ 6

4. Hardware Installation ·························································································· 7

5. Treiber Installation ··························································································· 7-8

6. Reinigung ········································································································· 8

7. Technische Daten ······························································································ 9

8. Technische Zeichnung ························································································ 9

1. Description ······································································································ 10

2. Extent of Delivery ······························································································ 10

3. Layout, Connections & LED ··········································································· 11-13

3.1 Layout ······················································································································· 11

3.2 Connections & LED ····································································································· 12

3.2 DIP-Switch ················································································································· 13

4. Hardware Installation ························································································· 14

5. Driver Installation ························································································· 14-15

6. Cleaning ········································································································· 15

7. Technical Information ························································································ 16

8. Technical Drawing ···························································································· 16

Inhaltsverzeichnis

Index

EX-1330M Deutsch

Mit dem USB-C Netzwerk-Adapter EX-1330M können Windows-, Linux- oder MAC-Computer/

Notebooks über den USB 3.2 Gen 1 Ausgang gleichzeitig in vier 10/100/1000Mbps Netzwerke

eingebunden werden. Er kann parallel zu einer bestehenden Netzwerkkarte installiert werden und

stellt vier zusätzliche 1Gigabit Ausgänge zur Verfügung. Alle vier Ethernet Ports können einzeln

aktiviert und deaktiviert werden. Die Installation ist sehr einfach, ohne dass das System geöffnet

werden muss. Der EX-1330M verfügt über ein kompaktes Metallgehäuse mit DIN-Rail Kit für die

Montage an einer 35 mm Hutschiene.

Merkmale:

• Kompatibel zu USB 1.1, 2.0, 3.0/3.1/3.2 Gen 1

• Unterstützt 100/1000/10000 Base-T Ethernet

• Unterstützt Auto-MDI/MDI-X Auto (für Cross over Kabel)

• EEE (Energy Efficient Ethernet)

• Wake-on-LAN und Remote Wake-up

Bevor Sie den EX-1330M an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt der

Lieferung:

• EX-1330M

• USB 3.2 Gen 1 cable

• DIN-Rail Kit

• Manual

1. Beschreibung

2. Lieferumfang

Produkspesifikasjoner

Merke:	EXSYS
Kategori:	lyd / video konverterer
Modell:	EX-1330M
Vekt:	380 g
Bredde:	114.7 mm
Dybde:	57 mm
Høyde:	26.2 mm
LED-indikatorer:	Ja
Sertifisering:	CE, FCC, RoHS
Antall per pakke:	1 stykker
Nettverksstandard:	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Vertsgrensesnitt:	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Auto MDI/MDI-X:	Ja
Jumbo rammer:	16000
Antall porter:	5
Produktfarge:	Sort
Kabler inkludert:	USB Type-A til USB Type-C
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	4
Driftstemperatur (T-T):	0 - 55 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 75 °C
Kroppsmateriale:	Metall
Støttede Windows operativsystemer:	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Ethernet-grensesnittype:	Gigabit Ethernet
Relativ luftfuktighet under drift (H-H):	5 - 95
Støttede Mac operativsystemer:	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Støttede Linux operativsystemer:	Ja
Antall USB 3.2 Gen 1 (3.1 Gen 1) Type-C-porter:	1
Grensesnitt (hub):	RJ-45
Overføringshastighet (Mbps):	1000 Mbit/s
Jumbo Frames-støtte:	Ja
Full tosidig:	Ja
DIN-skinnesett medfølger:	Ja
