WPD 100 AV Series Wallplates • Installation Guide

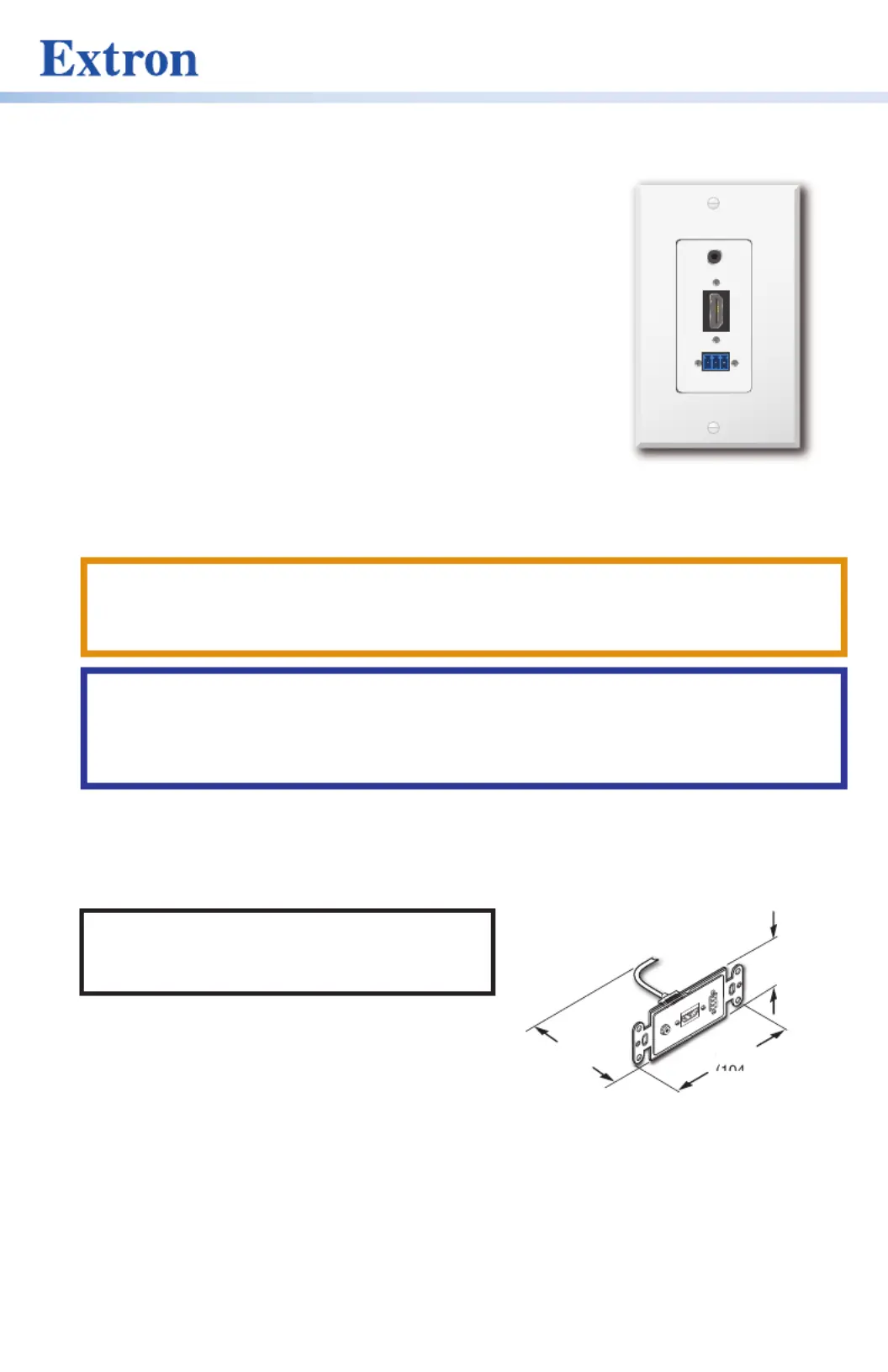

The Extron WPD 100 AV Series Wallplates are one-gang
pass-through wallplates with rear mounted audio connectors,

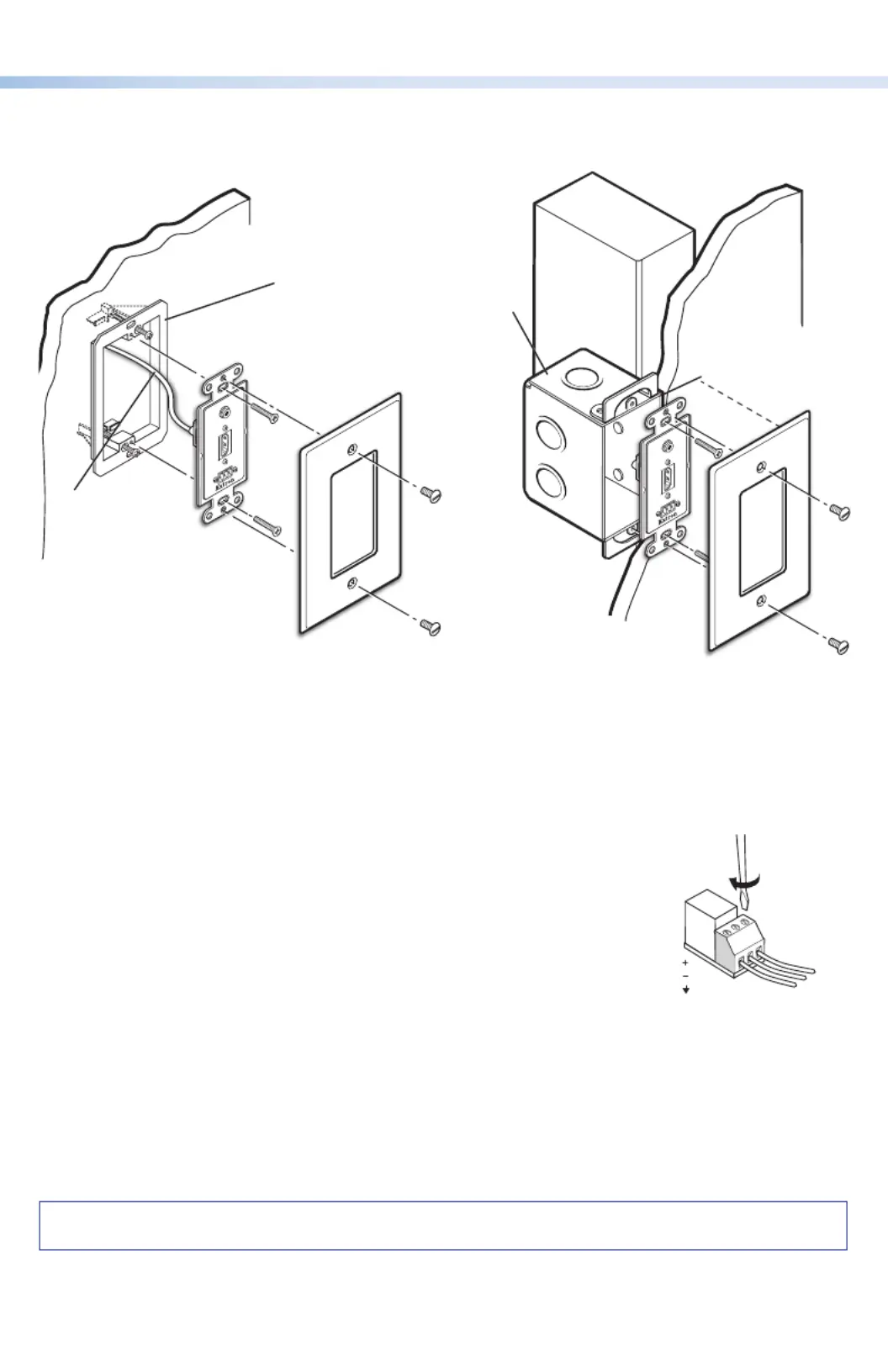

control connectors, and video cable pigtails. All models can be
installed in US standard one-gang junction boxes, and include a
decorator-style frame.
A B
HDMI
C
e
Planning - Check the Proposed Installation Location
Before starting the installation, t is important that you do the following: i
CAUTION:
• Failure to check the items listed below may result in personal injury.
• La non-vérification des éléments listés ci-dessous peut provoquer des blessures.
ATTENTION:
• Failure to check the items listed below may result in property damage.
• La non-vérification des éléments listés ci-dessous peut provoquer des dommages
matériels.
Ensure there are no utility cables or pipes at the intended location that may be damaged
or cause injury when installing the module.
Check that the installation meets the local and state regulatory requirements, including
building, electrical, and safety codes, and UL and ADA accessibility requirements.
NOTE: During installation, ensure the space
behind the module is sufficient for cable
bend radius and cable management.
Minimum Bend Radius
"
(104 mm)
2.40"
(60 mm)
1.60"
(41 mm)
4
.1
0"
e
HDMI
A B C
