Feelworld LUT7 Bruksanvisning

Feelworld skjerm LUT7

Les nedenfor 📖 manual på norsk for Feelworld LUT7 (17 sider) i kategorien skjerm. Denne guiden var nyttig for 2 personer og ble vurdert med 4.8 stjerner i gjennomsnitt av 1.5 brukere

Last ned PDF

Side 1/17

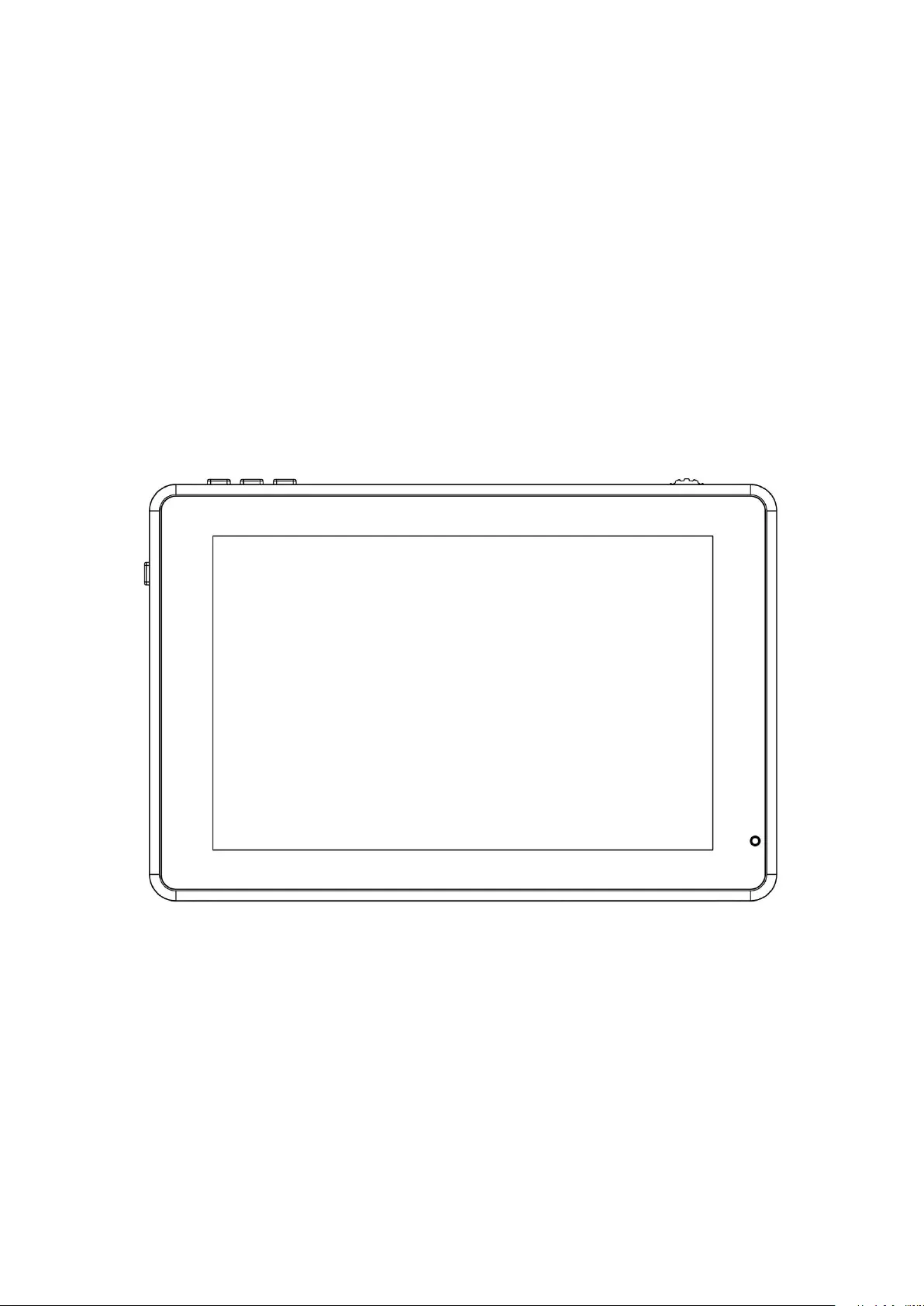

7″ 3D LUT Touchscreen Monitor

2200nits Daylight Viewable

User Manual

Product Overview

Thank you for using our 7 inch ultra bright touch screen monitor.

This monitor has SDI (optional), HDMI input and output, auxiliary

power output, touch screen menu operation, HDR monitoring and

support user 3D LUT upload and other features. Advanced features

include Parade, Vector, Histogram, Audio Meter, Focus Assist,

False Color, Zebra Exposure, Pixel to Pixel, Center Marker, Safety

Marker, Marker Mat, Monochrome, Image Freeze, Zoom,

Anamorphic etc. It is an ideal, portable and lightweight viewfinder

and video monitor.

The monitor is equipped with dual battery plates; you can use the

power adapter supply or use the external battery for power supply.

To insure the best use of the unit, please read the

user’s manual carefully

CAUTION

1. Please avoid the heavy impact and drop onto the ground when

move the product.

2. The screen of this product is made of glass.Keep away from

injury if the screen is broken.

3. Keep the product away from the heat source, and avoid the

prolonged exposures to the sun as the LCD screen will be

damaged.

4. Please do NOT use chemical solutions to clean this product.

Please wipe the monitor with a clean soft cloth to maintain the

brightness of the surface.

5. No adjustable components are in the monitor. Please do not take

apart or repair the unit by yourself, to avoid the damage of the product.

Produkspesifikasjoner

Merke:	Feelworld
Kategori:	skjerm
Modell:	LUT7
Vekt:	460 g
Bredde:	190 mm
Dybde:	126 mm
Høyde:	27 mm
Berøringsskjerm:	Ja
Skjermteknologi:	IPS
Inngangsspenning:	7 - 24 V
HDMI inn:	1
HDMI-utgang:	Ja
Skjermoppløsning:	1920 x 1200 piksler
Produktfarge:	Sort
Type strømforsyning:	Batteri/DC
Pakkedybde:	76 mm
Pakkehøyde:	158 mm
Pakkebredde:	222 mm
Skjermdiagonal:	7 "
LED-baklys:	Ja
Driftstemperatur (T-T):	-20 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-30 - 60 °C
Lysstyrke for skjerm:	2200 cd/m²
Størrelseforhold:	16:9
