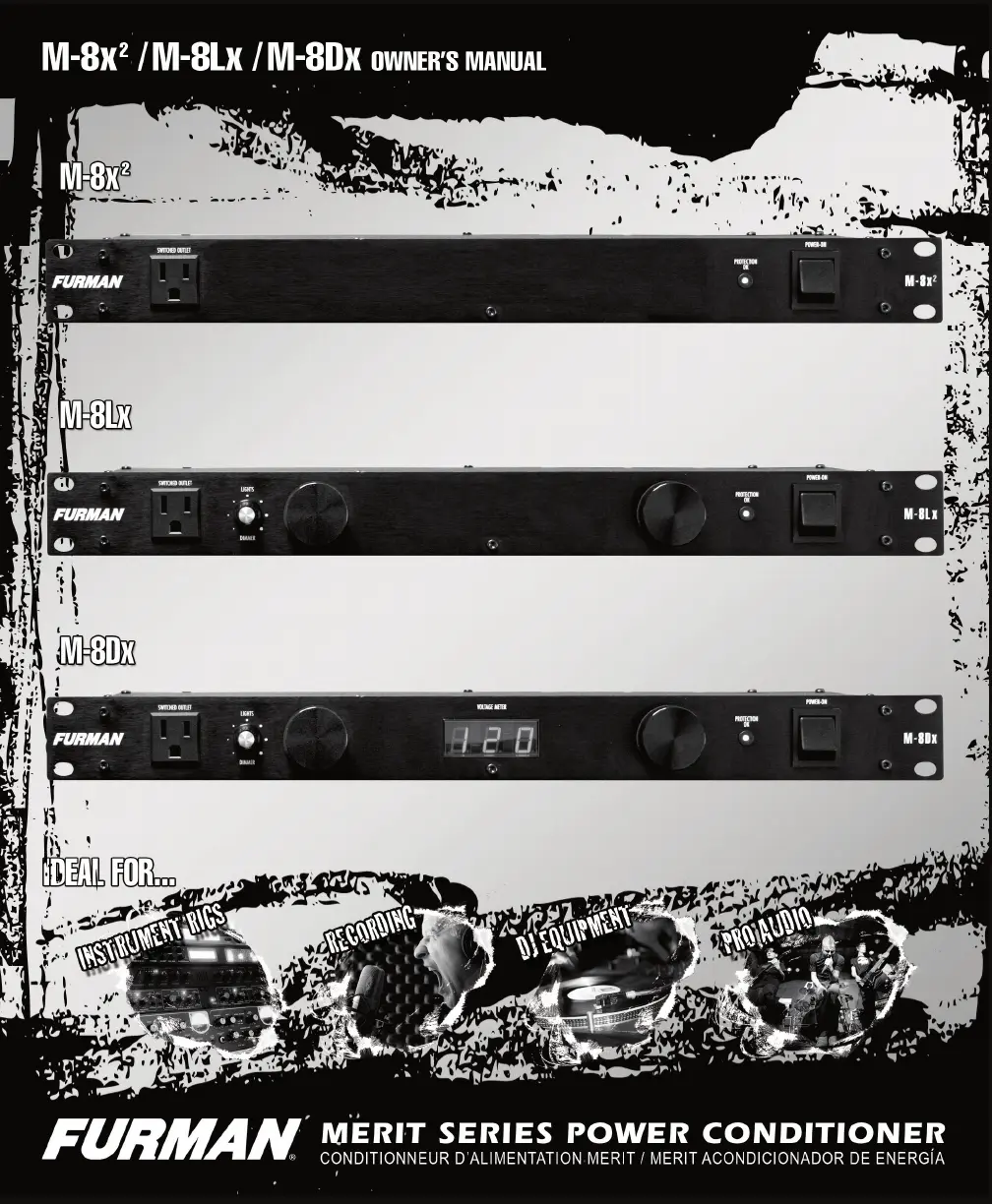

MERIT SERIES PowER CondITIonERS • EnGLISH
1
MERIT SERIES PowER CondITIonERS • EnGLISH
1
M-8x
2
FEATURES
AC noise ltering to reduce radio frequency and electromagnetic interference (RFI/EMI)•
Spike & surge protection ensures equipment stays safe and your power stays clean•
“Protection OK” indicator•
8 rear panel outlets and 1 front panel convenience outlet•
15 amp rating, with circuit breaker•
Three year warranty•
M-8Lx FEATURES
AC noise ltering to reduce radio frequency and electromagnetic interference (RFI/EMI)•
Spike & surge protection ensures equipment stays safe and your power stays clean•
“Protection OK” indicator•
8 rear panel outlets, with front panel convenience outlet•
15 amp rating, with circuit breaker•
Two retractable incandescent light xtures with dimmer control for convenient rack illumination•
Three year warranty•
M-8Dx FEATURES
AC noise ltering to reduce radio frequency and electromagnetic interference (RFI/EMI)•
Spike & surge protection ensures equipment stays safe and your power stays clean•
“Protection OK” indicator•
8 rear panel outlets, with front panel convenience outlet•
15 amp rating, with circuit breaker•
Two retractable incandescent light xtures with dimmer control for convenient rack illumination•
Digital voltmeter displays incoming line voltage•
Three year warranty•
MERIT SERIES PowER CondITIonERS • EnGLISH
2
INTRODUCTION
Thank you for purchasing a Furman Merit Series
Power Conditioner, and congratulations on your
choice. The Merit Series power conditioners fea-
ture excellent surge protection as well as RFI /
EMI AC noise filtration.
SAFETY INFORMATION
To obtain best results from your Furman Merit
Series unit, please read this manual carefully be-
fore using.
Warnings:
To reduce the risk of electrical shock, do not ex-
pose this equipment to rain or moisture. Danger-
ous high voltages are present inside the enclo-
sure. Do not remove the covers. Refer servicing
to qualified personnel only.
The lightning flash with an arrowhead symbol is
intended to alert the user to the presence of un-
insulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
CAUTION:
This equipment shall be connected to a 20 Am-
pere rated receptacle of the branch circuit. The
total current drawn from the receptacles of this
equipment is 15 Amperes maximum, and no in-
dividual receptacle shall draw more than 12 Am-
peres.
Important Safety Guidelines:
(Please read prior to installation)
1. Please read and observe all safety and op-
erating instructions before installing your Merit
Series unit. Retain these instructions for future
reference.
2. Your Merit Series unit should not be used near
water – for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement,
near a swimming pool, etc.
3. Do not place your Merit Series unit near heat
sources such as radiators, heat registers, stoves,
or other appliances that produce heat.
4. The Merit Series units should only be con-
nected to a 120 VAC, 60Hz, 15 amp grounded
electrical outlet. Do not defeat the ground or
change polarization of the power plug.
5. Route the power cord and other cables so that
they are not likely to be walked on, tripped over,
or stressed. Pay particular attention to the con-
dition of the cords and cables at the plugs, and
the point where they exit your Merit Series unit.
To prevent risk of fire or injury, damaged cords
and cables should be replaced immediately.
6. Clean your Merit Series unit with a damp cloth
only. Do not use solvents or abrasive cleaners.
Never pour liquid on or into the unit.
7. If any of the following events occur, contact
Furman Customer Service immediately at
1-707-763-1010.
Your unit might require service if:
• The power supply cord or the plug has been
frayed, kinked, or cut.
• Objects have fallen or liquid has spilled into the
unit.
• The unit has been exposed to rain or other
moisture.
• The unit does not appear to operate normally.
• The unit has been dropped, or the enclosure
has been damaged.
MERIT SERIES PowER CondITIonERS • EnGLISH
3
• The retractable lights have failed.
• Protection OK indicator is not lit.
8. Your Merit Series unit requires that a safety
ground be present for proper operation. Any
attempt to operate the unit without a safety
ground is considered improper operation and
could invalidate the warranty.
9. Do not attempt to service your Merit Series
unit beyond what is described in this manual. All
other servicing should be referred to qualified
service personnel.
FEATURES
M-8x
2
The M-8x
2
power conditioner provides 9 switched
outlets for powering equipment. It not only pro-
tects anything plugged into it from spikes and
surges, but also has a built in AC noise filter to
rid the system of RFI / EMI interference. This
allows equipment to function better and last lon-
ger.
M-8Lx
In addition to features of the M-8x
2
, the M-8Lx
features incandescent rack lights and increased
AC filtering. A dimmer control for the rack lights
allows the user to adjust the level of illumina-
tion.
M-8Dx
In addition to all the features of the M-8Lx, the
M-8Dx offers a laboratory precision digital me-
ter that displays incoming voltage in 1-volt steps.
The voltmeter’s accuracy is ±2 volts.
OPERATION
Retractable Rack Lights and Dimmer Control:
The M-8Lx and M-8Dx utilize a dimmer control
for the two retractable front panel light tubes.
The dimmer knob controls the brightness of
both light fixtures. Turn it clockwise to increase
brightness; turn it counter-clockwise to decrease
brightness. When the lights are not in use, we
recommend pushing the fixtures all the way into
the chassis (engaging the off switches) to better
maximize the life of the bulbs.
On/Off Rocker Switch:
The front panel on/off rocker switches power on
and off to all outlets (including the front panel
outlet) as well as the retractable lights. This 15
amp capacity power switch is specifically de-
signed to stand up to the enormous high inrush
current demands of many power amplifiers.
Circuit Breaker:
If you are not getting any power to the outlets
even though the unit is switched on, the circuit
breaker might have tripped. To reset the circuit
breaker, push the round reset button located on
the rear panel.
Protection OK Indicator:
Although Furman’s Ground Contamination Free
Surge Suppression rarely requires servicing,
nature has a way of occasionally creating elec-
trical forces that are beyond the capabilities of
any transient voltage surge suppressor device
to absorb without some degree of damage. In
the instance that this occurs, the “Protection
OK” LED indicator will turn off. If this happens,
Furman’s surge suppression circuit is compro-
mised. The unit must be returned to Furman
Sound for repair.
