Universal Fixed Bracket for 8.8 in.
Waketower Can Speakers Installation
Instructions
Important Safety Information
WARNING
Failure to follow these warnings and cautions could result in
personal injury, damage to the vehicle or vessel, or poor product
performance.
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before
beginning to install this product.
CAUTION
Continuous exposure to sound pressure levels over 100 dBA
may cause permanent hearing loss. The volume is typically too
loud if you cannot hear people speaking around you. Limit the
amount of time you listen at high volume. If you experience
ringing in your ears or muffled speech, stop listening and have
your hearing checked.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
It is strongly recommended that you have your audio system
installed by a professional installer to ensure optimum
performance.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation, go
to www.fusionentertainment.com for product support.
What's In the Box
• Two universal waketower brackets
• Two silicon grommets
• Plastic inserts to adjust for the waketower pole diameter
These inserts allow the brackets to attach securely to a
waketower with a pipe diameter from 33.4 mm (1.31 in.) to
63.5 mm (2.5 in.). See the specifications for a complete list of
compatible pipe diameters.
• Eight hex screws and washers for securing the brackets to
the speakers and the waketower
Tools Needed
• Drill and 12 mm (
1
/
2
in.) drill bit
• 6 mm hex driver or hex key
• Scissors or knife
• Wire strippers
• Solder and heat-shrink tubing for wire connections
NOTE: For customized installations, additional tools and
materials may be needed.
Mounting the Bracket
You can mount FUSION
®
Waketower Can speakers (sold
separately) to a waketower using the included brackets.
1
If necessary, mark the locations on the waketower where you
plan to mount the speakers.
2
If necessary, drill a 12 mm (
1
/
2
in.) cable pass-through holes
in the bottom of the waketower pipe.
3
If necessary, route the speaker and LED power wires (not
included) through the waketower to the mounting locations.
4
If necessary, starting with one mounting location, place the
included silicon grommet onto the hole in the bottom of the
waketower pipe.
The grommet protects the speaker cable from sharp edges
on the waketower pipe.
5
Select the appropriate plastic spacer to mount the bracket to
the waketower pipe.
6
Push each half of the spacer into the base and top of the
bracket.
The spacer halves should fit securely into each half of the
bracket.
7

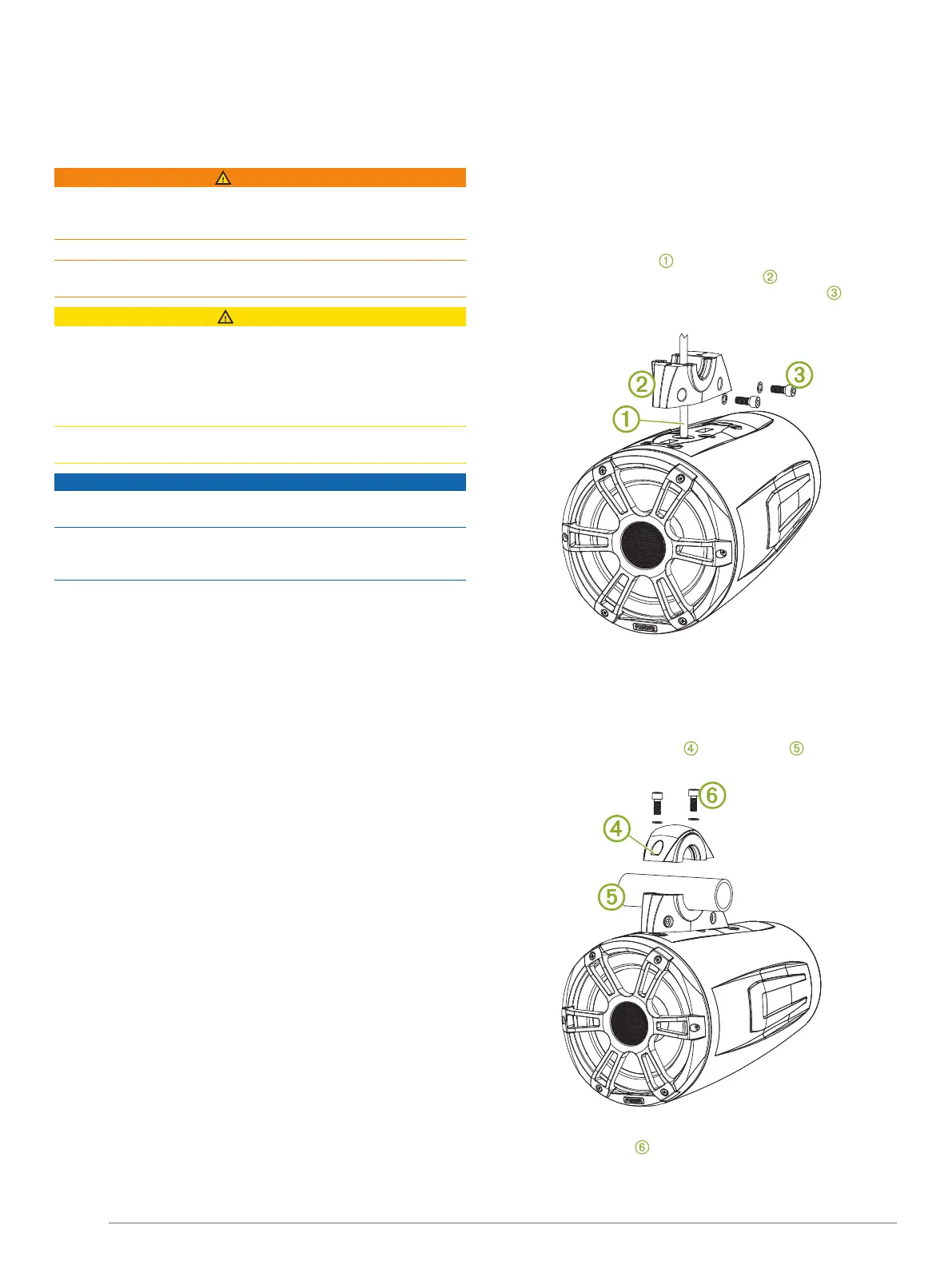

Feed the speaker cable from the FUSION Waketower Can
speaker through the base of the bracket , and attach the
bracket to the speakers using the included screws with a
6 mm hex driver or hex key.
8
Using the installation instructions provided with the FUSION
Waketower Can speakers, connect the speaker and LED
wires.
9
Feed the connected wires through the pass-through hole and
grommet into the waketower pipe.
10
Place the top of the bracket over the pipe , and hold it
against the base of the bracket.
11
Attach the top of the bracket to the base of the bracket using
the included screws with a 6 mm hex driver or hex key.
12
Repeat these steps for additional brackets.
2 Installation Instructions
Specifications
Material Bracket: aluminum alloy
Grommet: silicon
Spacer: plastic
Supported
waketower pipe
sizes
33.4 mm (1.31 in.), 42.2 mm (1.66 in.), 48.3 mm
(1.90 in.), 50.8 mm (2.00 in.), 57.2 mm (2.25 in.),
60.3 mm (2.37 in.), and 63.5 mm (2.50 in.) outer
diameter using the included spacers

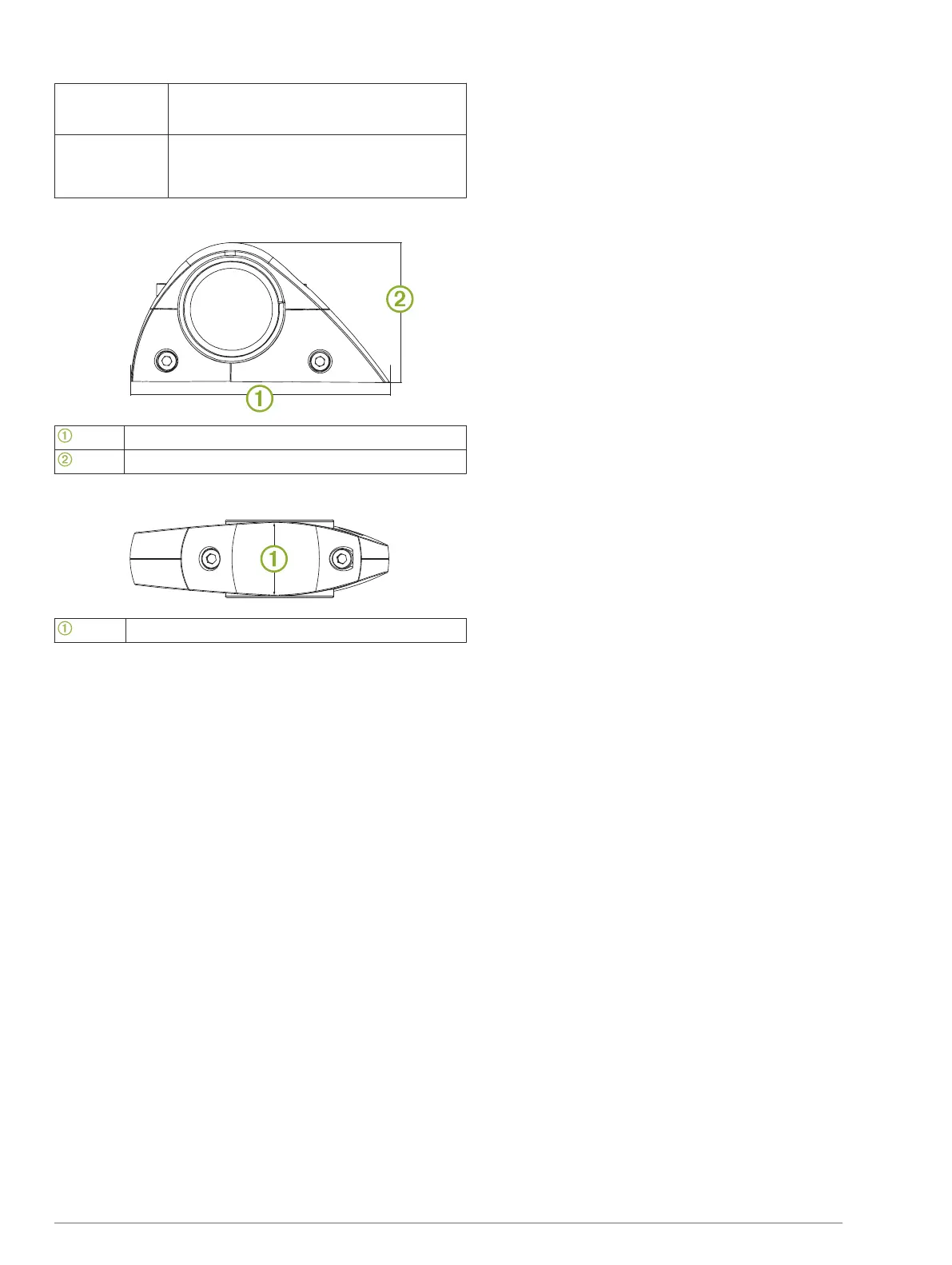

Bracket Side Dimensions
174 mm (6
7
/
8
in.)
94 mm (3
3
/
4
in.)
Bracket Top Dimensions
52 mm (2
1
/
16
in.)
Installation Instructions 3
