Side 1/9

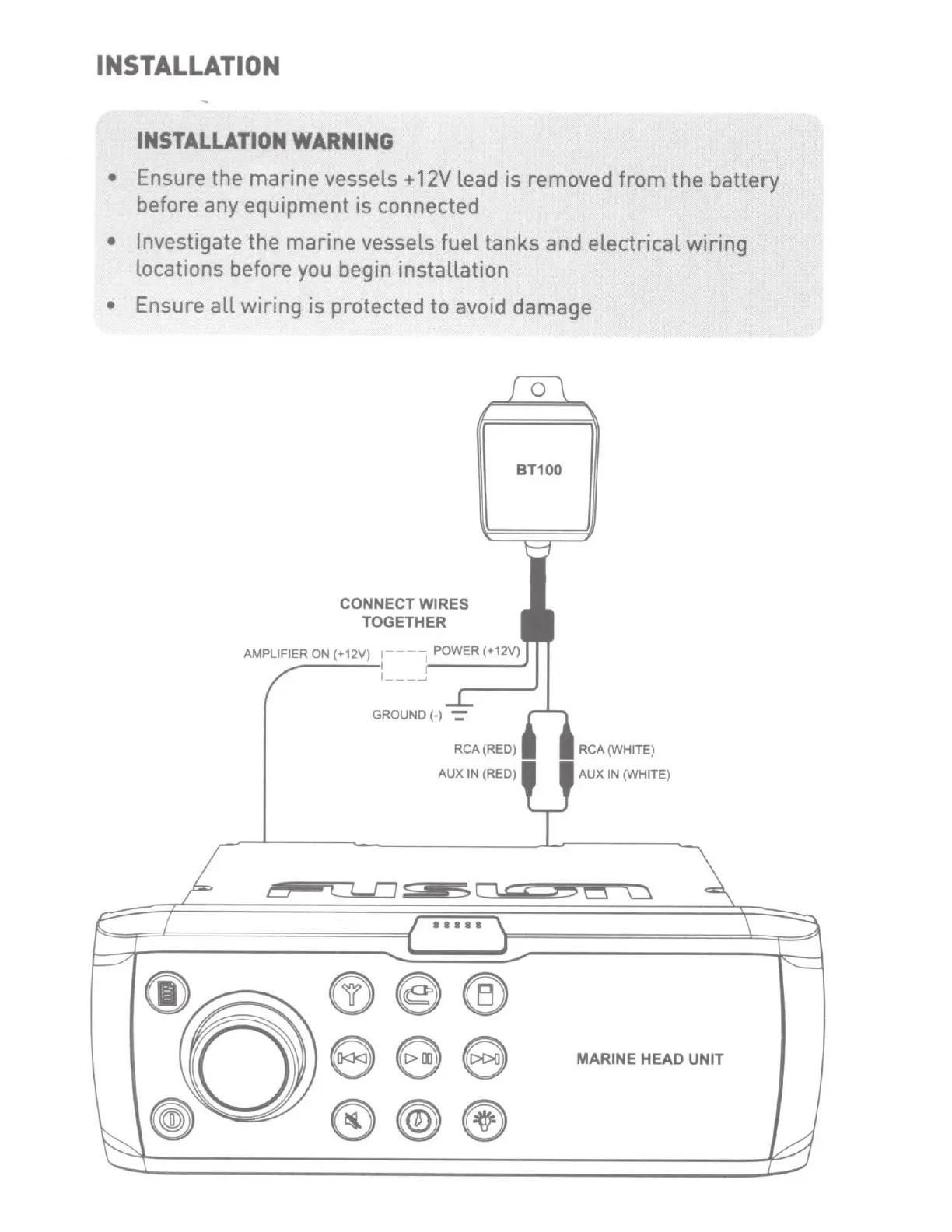

INSTALLATION
INSTALLATION
WARNING
•
Ensure the marine vessels
+
12V
lead is removed
from
the battery
before any equipment is connected
• Investigate
the marine vessels
fuel
tanks and electrical wiring
locations before you begin installation
•
Ensure
all
wiring is protected to avoid damage
CONNECT
WIRES
TOGETHER
BT100
AMPLIFIER ON (+12V)
,---
POWER (+12V)
'-----'
L...J,_._Iil"'f'(/.1
0 e
RCA(REO)
AUXIN
(RED)
®®®
eee
®®®
RCA
(WHITE)
AUX
IN (WHITE)
MARINE
HEAD
UNIT
FUSION

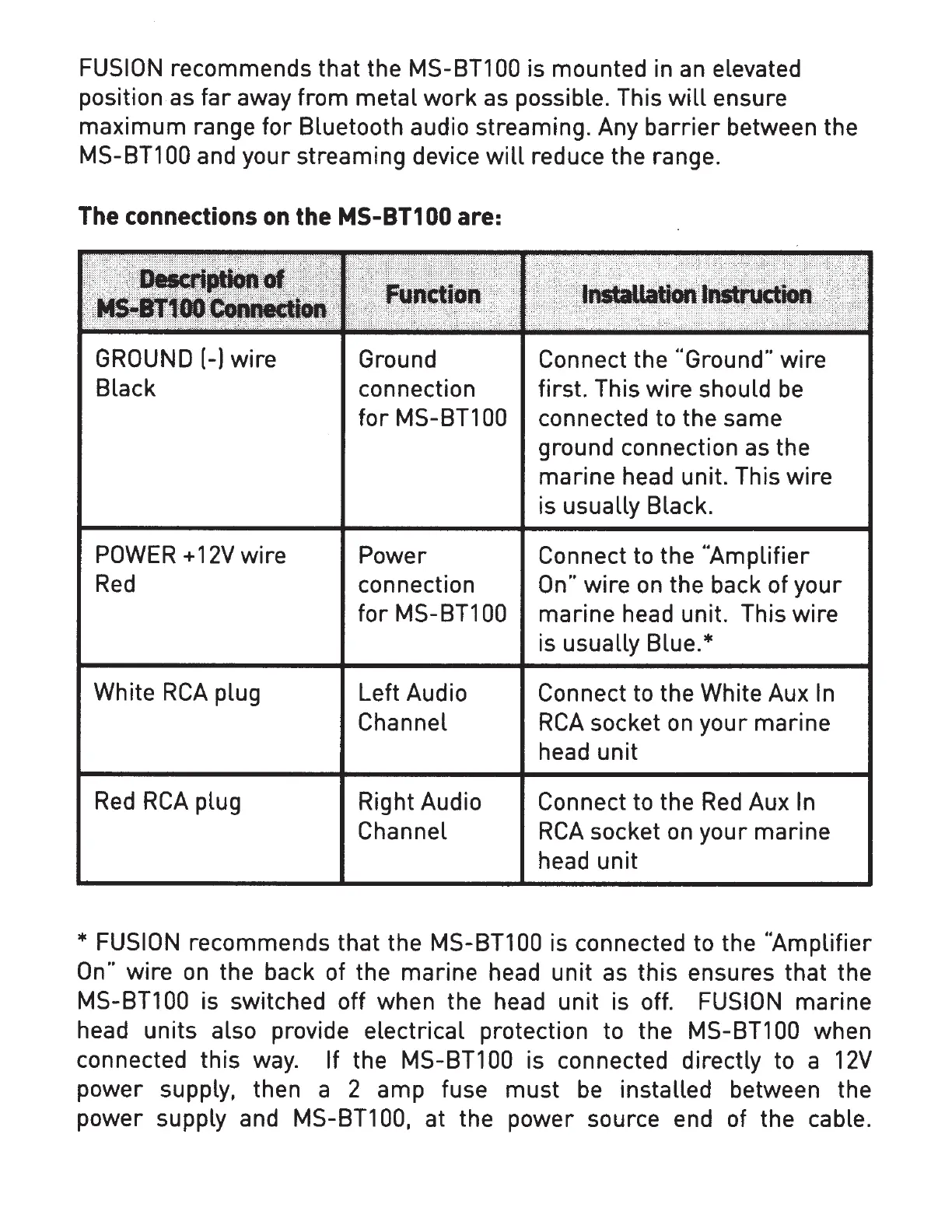

recommends
that
the MS-BT1
00
is mounted in an elevated
position
as
far away from
metal
work
as possible. This
will
ensure
maximum range
for
Bluetooth audio streaming. Any
barrier
between the
MS-BT1
00
and your streaming device
will
reduce the range.
The
connections
on
the
MS-BT1
00
are:
GROUND(-) wire
Ground
Connect
the "Ground"
wire
Black
connection first. This wire should
be
for
MS-BT1
00
connected to the same
ground connection as the
marine head unit. This wire
is usually Black.
POWER
+
12V
wire Power
Connect
to the
"Amplifier
Red
connection
On"
wire
on
the back of your
for
MS-BT1
00
marine head unit. This wire
is usually Blue.*
White
RCA
plug Left Audio
Connect
to the White
AuxIn
Channel
RCA
socket
on
your marine
head unit
Red
RCA
plug
Right Audio
Connect
to the
Red
Aux
In
Channel
RCA
socket
on
your
marine
head unit
*
FUSION
recommends that the MS-BT1
00
is connected to the
"Amplifier
On" wire
on
the back of the marine head unit as this ensures that the
MS-BT1
00
is switched off when the head unit is off.
FUSION
marine
head units also provide electrical protection to the MS-BT1
00
when
connected this
way.
If
the MS-BT1
00
is connected directly to a 12V
power supply, then a 2 amp fuse
must
be installed between the
power supply and MS-BT1
00,
at the power source end of the cable.
