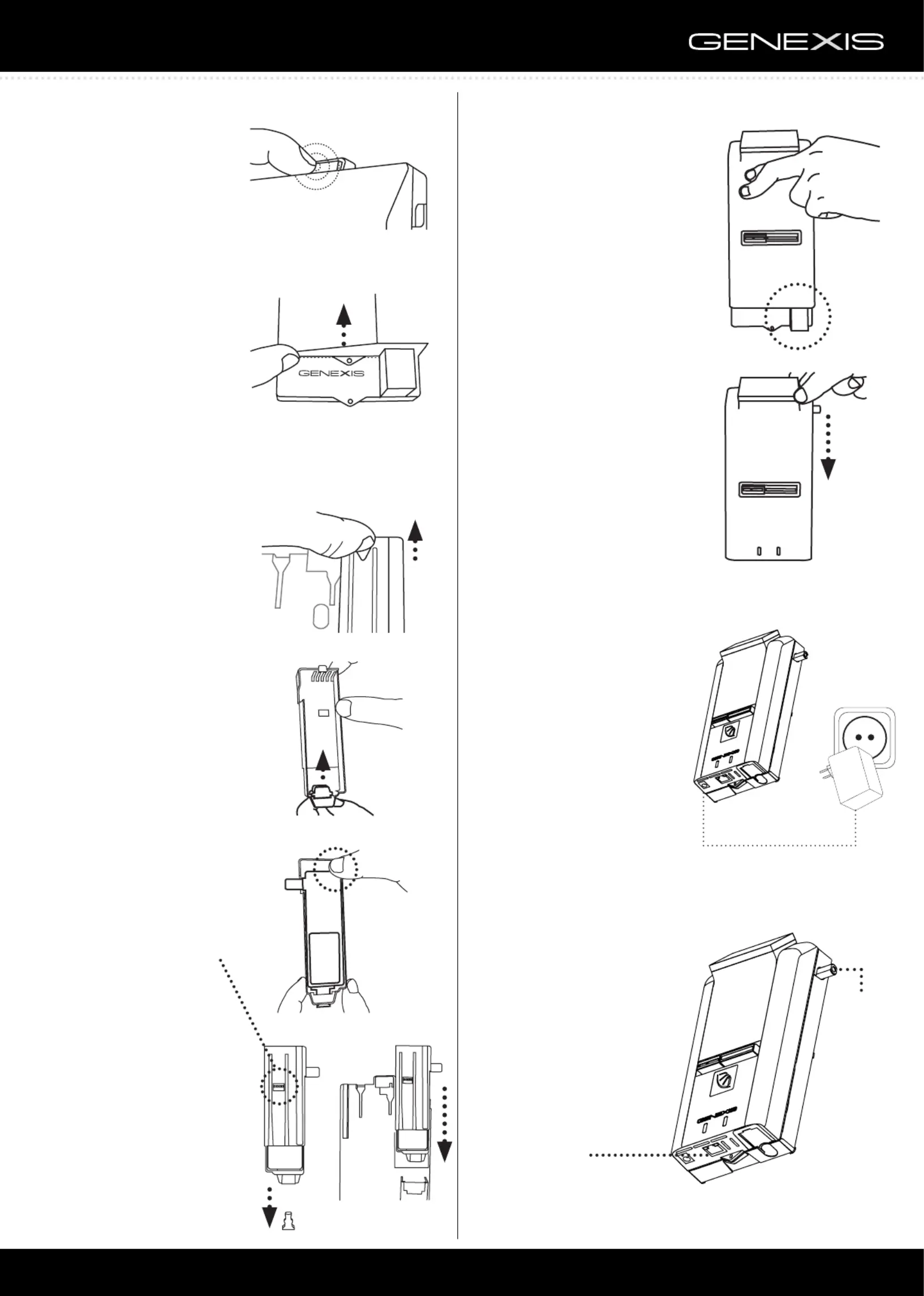

Hybrid Element installation manual
Applicable for the following products: Element-P1022, Element-P1090
1. Removing dummy cover
• Push and hold the unlocking
button.
• Move the dummy cover vertically
until it is even with the marked
line and take it off.
2. Preparation and
installation of the CATV
receiver (optional, not available on
Element-P1090)
• Remove the CATV drawer from the
base plate.
• Remove the dust cap from the
CATV drawer.
• Place the CATV receiver inside the
CATV drawer. Push gently until
you hear an audible ‘click’. Make
sure the electrical connector of
the CATV receiver sticks through
the CATV drawer (a).
• Remove the dust cap from the
CATV receiver. (a)
• Slide the CATV drawer back in the
FTU and push downwards until
you hear an audible ‘click’. (b)
3. Installation of the Hybrid
Element
• Remove the protection cap from
the Element fiber connector.
• Carefully position the Hybrid
Element on top of the Fiber
Termination Unit. The bottom of
the Element should match the
marked line on the FTU.
• Install the Hybrid Element by
gently pushing the front part,
while sliding it down until the
FTU is covered and you hear an
audible ‘click’.
• The Hybrid Element is now
correctly installed.
Hybrid Element connector
numbering
4. Powering of the Hybrid
Element
• Connect the 12V plug of the
supplied adapter to the Hybrid
Element and connect the adapter
to a power socket.
www.genexis.eu Rev. 0
Click!
Click!
Hybrid Live! slot
(Not available on
Element-P1090)
CATV
connector
(optional)
Ethernet port 1
(LAN1)
a. b.
