Grandstream GXV-3611_LL Bruksanvisning

Grandstream Sikkerhetskamera GXV-3611_LL

Les nedenfor 📖 manual på norsk for Grandstream GXV-3611_LL (34 sider) i kategorien Sikkerhetskamera. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/34

Grandstream Networks, Inc.

GXV3611 User Manual

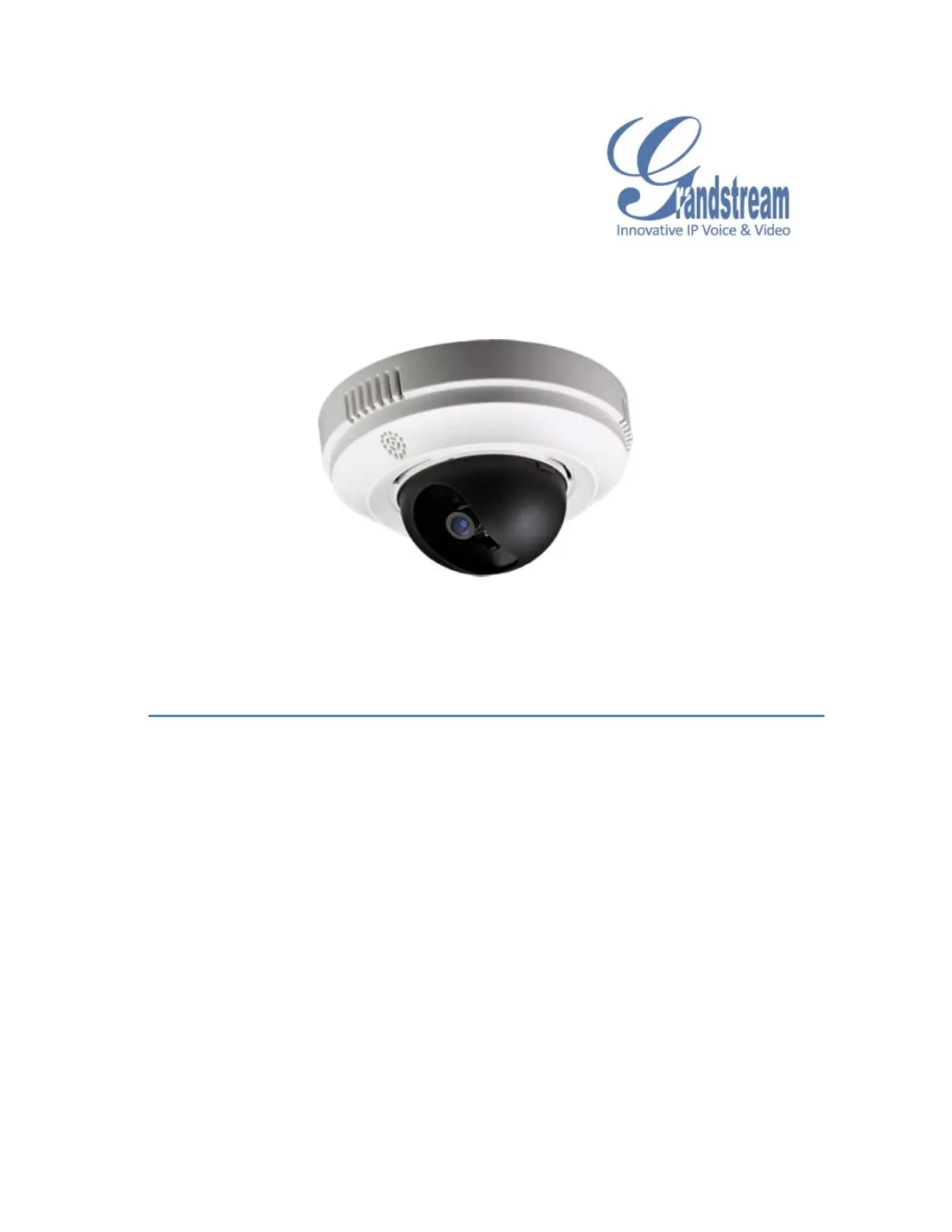

GXV3611 Mini IP Dome Camera

Firmware 1.0.4.6 Page 2 of 34

Grandstream Networks, Inc. 09/2010

Safety Instructions

These instructions are intended to assist users with the operation of the GXV3611 and also to

instruct on how to avoid dangerous situations or damage to the device.

Warnings: Serious injury or death may be caused if any of the warnings below are neglected.

Cautions: Injury or damage to the equipment may occur if any of the following caution

messages are neglected.

Warnings Follow these safeguards to prevent

serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with DC 12V according to the IEC60950-1 standard. Please refer to the technical

specifications for more details.

Do not use a third-party power adapter or power cord

When the device is installed on the wall or ceiling, make sure that it is firmly attached.

Notice：

Make sure that the power supply voltage is correct before using the camera.

Do not drop the device or expose it to physical shock.

Do not expose the device to temperatures outside the range of -10

C to +60

C when the

device is in operation.

Do not expose the device to damp/wet conditions or high electromagnetism radiation.

To avoid heat accumulation, make sure that your operating environment has proper

ventilation.

Do not attempt to open, disassemble, or modify the device

A few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according

to their average life time. The average life time varies from the differences between operating

environments and usage history. Regular maintenance checks are recommended for all

users. Please contact your dealer for more details.

Notice：

The smoke detector in the GXV 3611 mini dome camera is not intended to replace any smoke

GXV3611 Mini IP Dome Camera

Firmware 1.0.4.6 Page 3 of 34

Grandstream Networks, Inc. 09/2010

detector alarm system. The smoke detector does not comply with the National Alarm and

Signaling Code, nor does it provide any form of visual or audible signal to alert the premises

dwellers. You must not replace any existing smoke alarm system with this product.

Produkspesifikasjoner

Merke:	Grandstream
Kategori:	Sikkerhetskamera
Modell:	GXV-3611_LL
Vekt:	430 g
Bredde:	138 mm
Dybde:	138 mm
Høyde:	86 mm
Bruksanvisning:	Ja
GPS:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	680 x 512 piksler
Diameter:	138 mm
Strømkildetype:	PoE
HTTPS-kryptering:	Ja
Optisk zoom:	- x
Kablingsteknologi:	10/100Base-T(X)
Støttede nettverksprotokoller:	TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, SIP
PTZ-kontroll:	Ja
Dag/natt-modus:	Nei
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Bildefrekvens:	30 fps
Sensortype:	CMOS
Produktfarge:	Hvit
Vippevinkelområde:	0 - 180 °
Støttede grafikkoppløsninger:	160 x 120,320 x 240,640 x 480 (VGA)
Analogt signalformatsystem:	NTSC, PAL
Kabler inkludert:	BNC, LAN (RJ-45)
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 45 °C
nattsyn:	Nei
Formfaktor:	Kuppel
CCD-sensorstørrelse:	1/4 "
IP-adressefiltrering:	Ja
Signal-til-støy-forhold (SNR):	82 dB
Modell/Type:	IP-sikkerhetskamera
DC utgangsstrøm:	2 A
Panoreringsomfang:	0 - 180 °
DC-inngangskontakt:	Ja
Sikkerhetsalgoritmer:	HTTPS
Minimumsbelysning:	0.05 lx
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Videoopptaksgrensesnitt:	BNC
Støttede plasseringer/plasseringer som kan benyttes:	Innendørs
Montasjetype:	Tak
Videoformat som støttes:	H.264, M-JPEG, MPEG4
Strøm over Ethernet (PoE):	Ja
Fast fokalobjektiv:	4.5 mm
Videobasert bevegelsesdeteksjon:	Ja
Alarminngang/-utgang:	Ja
RS-485-port:	1
