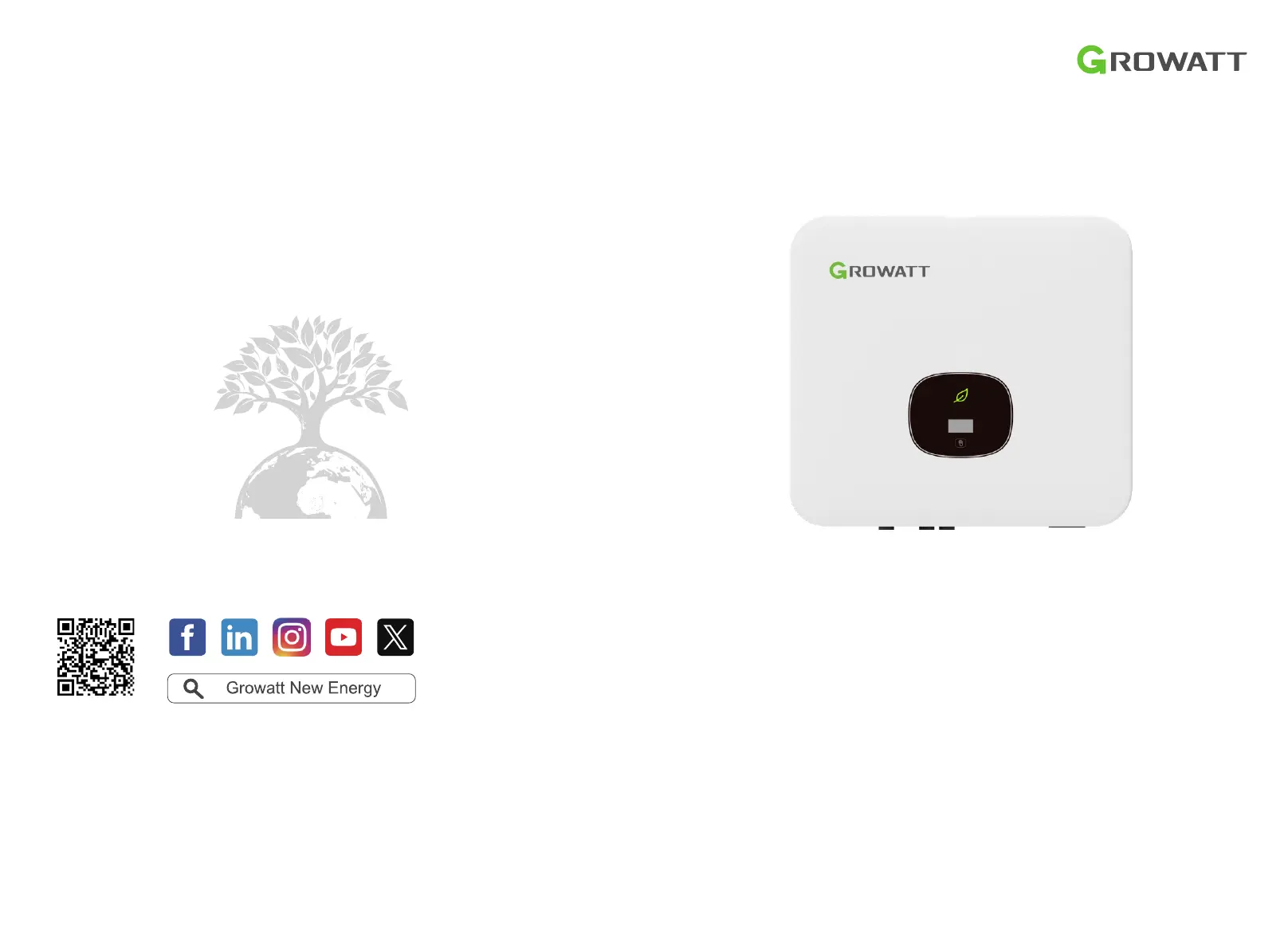

Side 1/58
Installation
&
Operation Manual
Shenzhen Growatt New Energy Co., Ltd.
4-13/F, Building A, Sino-German (Europe) Industrial Park,
Hangcheng Blvd, Bao’an District, Shenzhen, China
+86 755 2747 1942
www.ginverter.com
T
E
W
service@ginverter.com
GR-UM-292-A-01 (PN: 044.0112601)
Download
Manual
Index
1 Notes on this manual
2 Safety
3.1 TL-X2/X2(E) Overview
3.2 Type label
3.3 Size and weight
3.4 Storage of Inverter
3.5 The advantage of the unit
2.1 Intended Use
2.2 Qualification of skilled person
2.3 Safety instruction
2.4 Assembly Warnings
2.5 Electrical Connection Warnings
2.6 Operation Warnings
1.1 Validity
1.2 Target Group
1.3 Additional information
1.4 Symbols in this document
1.5 Glossary
3 Product description
4 Unpacking and inspection
5 Installation
5.1 Safety instructions
5.2 Selecting the installation location
5.3 Mounting the Inverter
6.1 Safety
6.2 Wiring AC Output
6.3 Connecting the second protective
conductor
6.4 Connecting the PV Array(DC input)
6.5 Connecting signal cable
6.6 Grounding the inverter
6.7 Active power control with smart
meter , CT or ripple control signal
receiver
6.8 Inverter demand response modes
(DRMS)
6.9 AFCI(Optional)
6.10 Earth Fault Alarm
13.1 Dismantling the Inverter
13.2 Packing the Inverter
13.3 Storing the Inverter
13.4 Disposing of the Inverter
14.1 Specification
14.2 DC connector and Isolator info
14.3 Torque
14.4 Accessories
6 Electrical connection
13 Decommissioning
7 Commissioning
14 Technical Data
7 1 Start the inverter.
7 2 General setting.
7 3 Advanced setting.
7 4 Communications.
8.1 Start-Up the inverter
8.2 Shut down the Inverter
9.1 Checking Heat Dissipation
9.2 Cleaning the Inverter
9.3 Checking the DC Isolator
11 1 Error Messages displayed on.
OLED
11 2 System fault.
11 3 Inverter warning.
11 4 Inverter fault.
8 Start-Up and shut down
the inverter
15 Compliance Certificates
16 Contact
9 Maintenance ,Repairand
Cleaning
11 Trouble shooting
10 EU Declaration of
Conformity
12 Manufacturer Warranty
