Side 1/35

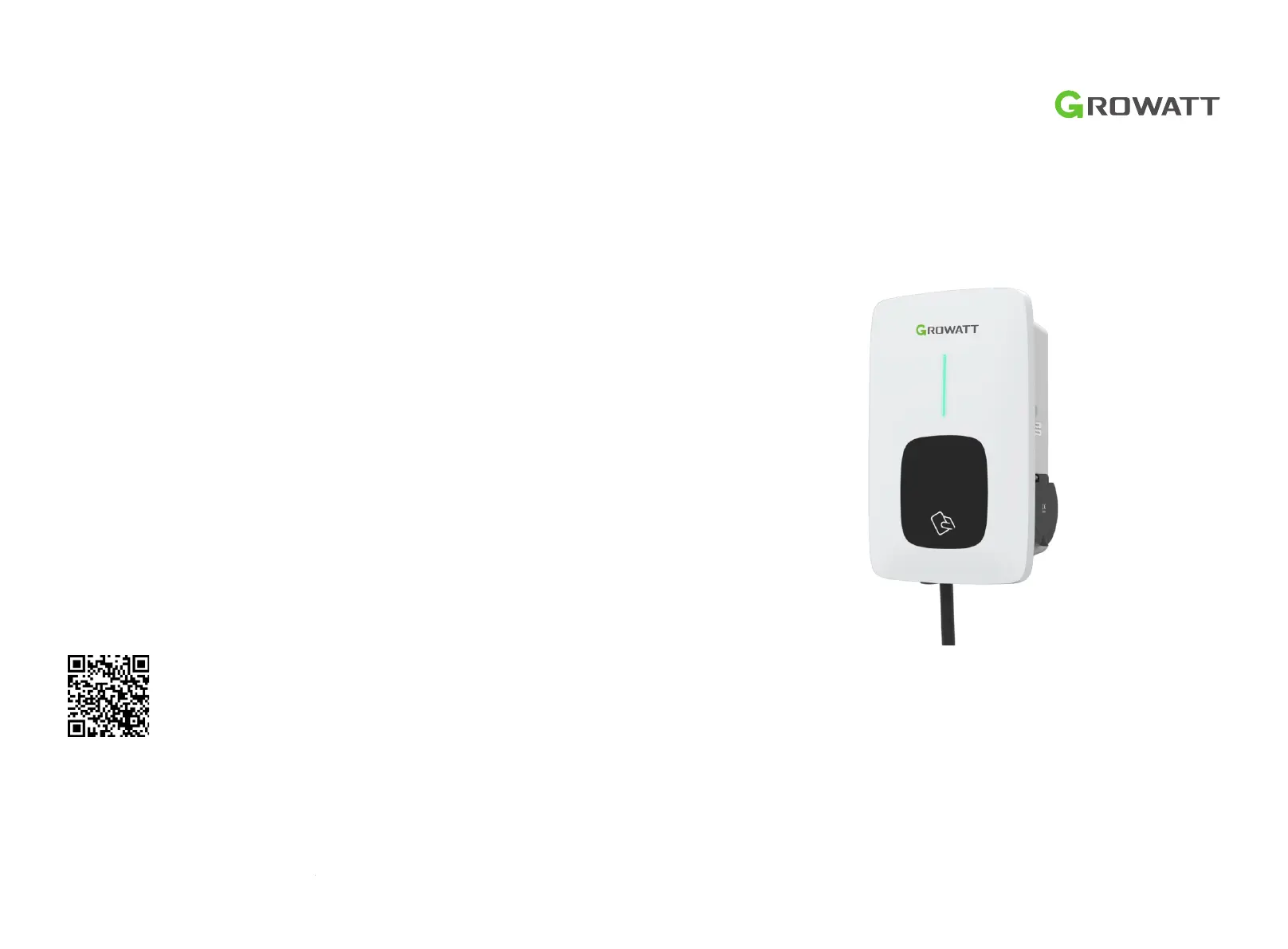

THOR11/22AS-S-V1
3-phase AC charger Quick installation guide
ShenzhenGrowattDynochargeEnergyTechnologyCo.,Ltd.
4th Floor, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street,
Baoan District, Shenzhen
+86 755 2747 1900
T
E
info@ginverter.com
W
www.ginverter.com
Revised date: 2024-01-25
THOR series intelligent three-phase AC charger is a power supply device that uses
professional and advanced technology to provide energy supply to electric
vehicles, it also has friendly man-machine interface and versatile functions of
control, billing, and communication. The charger can be connected to a back-office
server to realize the functions of reservation and payment via Mobile phone APP.
Diversified communication options, including wired Ethernet, WIFI, 4G is available
for back-office server connection.
ThankyouforusingGrowattTHOREVchargers!
This user manual is copyrighted by Shenzhen Growatt Dynocharge Energy
Technology Co., Ltd.(Hereinafter referred to as “Growatt”) No company or person
may extract or copy part or all of this user manual without the written permission of
Growatt. Content must not be transmitted in any form, including materials and
publications.
All rights reserved.
Growatt has the final right to interpret this user manual. The information in this
manual is subject to change without notice.
Disclaimer
Please read this document thoroughly before installing and using the THOR DC
charger. Failure to follow safety instructions may result in electric shock, fire,
serious injury or death.
This document contains important safety information about your THOR DC charger.
Please keep this file for future reference.
Ensure that the charger is in the working temperature. Do not touch the surface of
the charger in high temperature environment to avoid burns.
Do not expose any part of the equipment or cable to strong force, impact, or sharp
objects.
We recommend that the charger installation, inspection, etc. be carried out by
qualified electricians who have obtained relevant certificates, and the installation
should comply with local wiring regulations to ensure safe use.
Do not open, repair, tamper or modify the charger in any way without.
authorization.
You can clean the surface of the THOR charger with a soft, damp cloth without
using solvents or abrasives. Power must be off before cleaning.
There may be power left within 5 minutes after the charger is powered off. Please
ensure that it is completely disconnected before operating.
This symbol on products and accompanying items indicates that used electrical
appliances and other products should not be mixed with general domestic waste.
For proper handling, recovery and recycling, please take this product to the
designated collection point for disposal.
Safetyprecautions
Check the charger cable and case regularly for damage. If the product is defective
or damaged, suspend use and contact Growatt for advice.
Product Description
Packaging List
Installation and Wiring
Menu
1
2
3
APP Download, Register,
and Login
4
4.1 APP Download
4.2 Register
4.3 Sign in and Log Out
EV Charger Internet
Configuration
5
5.1 WiFi Configuration
5.2 Network Cable Connection
Configuration
5.3 4G Configuration
5.4 AP Mode Configuration
Operation Instruction
and LCD Description
6
EV Charger Workmodes
7
7.1 Fast Mode
7.2 PV Linkage Mode
7.3 Off-peak Modes
7.4 Load Balancing Function
3.1 Installation Conditions
3.2 Cable Connection
6.1 Charging Mode and Operation
6.2 LCD Interface Introduction
Other Settings
8
Record
9
Data
10
Configuration Through
Internal Web
(Service Tool)
11
Troubleshooting
12
Specification
13
Annex
14
Warranty
15
EUDeclarationof
Conformity
16
14.1 Electrical diagram
14.2 Contact technician
