GRUNDFOS INSTRUCTIONS
MAGNA3
AUTOADAPT
6.5 m
Control mode
Home
Status Settings Assist
Setpoint
Estimated flow rate Head
4.0 m
8 m
3
/h
MAGNA3
DISPLAY MENU
OVERVIEW
Valid from
model E
GB / DE
APPLICATION
WIZARD
INCLUDING
Place on cord
after installation
HOME
The home screen is
congured with the most
relevant settings (as shortcut)
and status parameters.
This screen can be customised
under general settings.
STATUS
SETTINGS
ASSIST
Operating status
» Operating mode, from
» Control mode
Pump performance
» Max. curve and duty point
» Resulting setpoint
» Liquid temperature
» Speed
» Operating hours
Power and energy consumption
» Power consumption
» Energy consumption
Warning and alarm
Heat energy monitor
Operating log
» Operating hours
» Trend data
Fitted modules
Date and time
Pump identication
Multipump system
» Operating status
» System performance
» Power and energy consumption
» Other pump 1, multipump sys.
Setpoint
Operating mode
» Normal
» Stop
» Min.
» Max.
Control mode
» AUTOADAPT
» FLOWADAPT
» Prop. pressure
» Const. pressure
» Const. temp.
» Di. temp.
» Constant ow rate
» Constant curve
Controller settings
FLOW
LIMIT
Automatic Night Setback
Analog input
» Di. pressure control
» Constant temperature control
» Di. temperature control
» Heat energy monitor
» External setpoint inuence
Relay outputs
» Relay output 1
» Relay output 2
Bus communication
» Pump number
» Forced local mode
General settings
» Enable/disable settings
» Alarm and warning settings
» Delete history
» Dene Home display
» Display brightness
» Return to factory settings
» Run start-up guide
Application wizard
» Boiler pump
» Radiator
» Fan coil unit
» Air handling unit
» Underoor/ceiling
» Hot water
» Ground source
» Chiller pump
Setting of date and time
Multipump setup
Setup, analog input
Description, control mode
» AUTOADAPT
» FLOWADAPT
» Prop. press.
» Const. press.
» Const. temp.
» Dierential temp.
» Constant curve
Assisted fault advice
» Blocked pump
» Pump communication fault
» Internal fault
» Internal sensor fault
» Forced pumping
» Undervoltage
» Overvoltage
» High motor temperature
» External sensor fault
» High liquid temperature
» Comm. fault, twin-head pump
» This overview only includes
operation-relevant submenus.
Wizard
*
*
Alarms and warnings
1
3
5
4
2
6

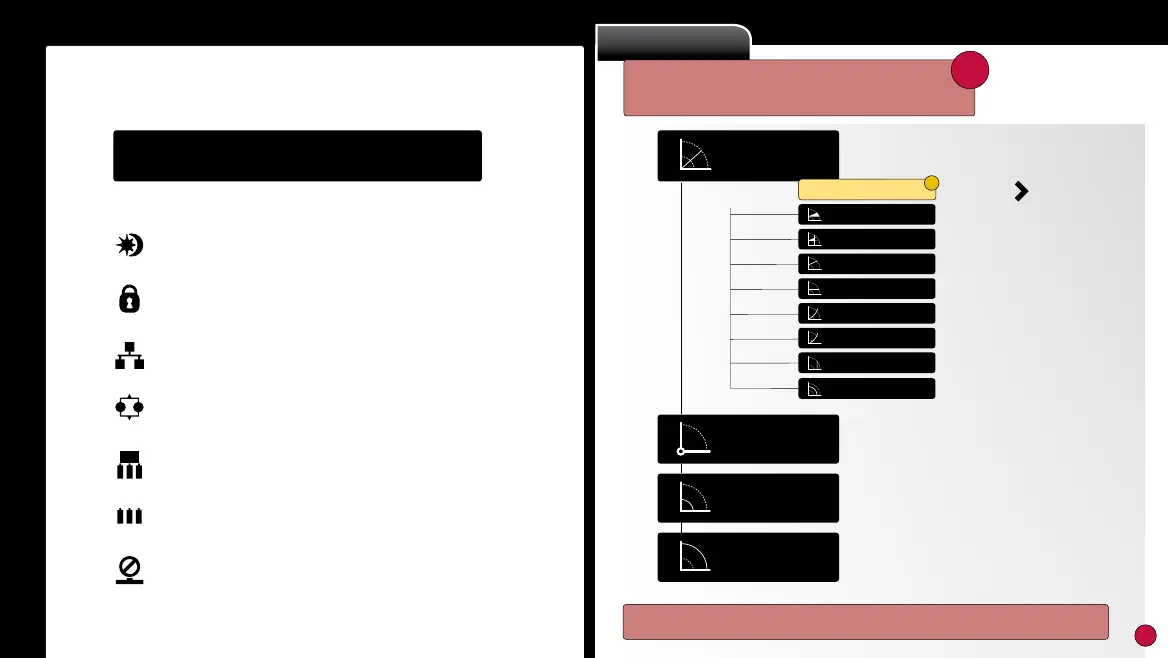

SETTINGS
Status icons in display footer
1
Operating mode
= Automatic night setback
= Change of settings - locked
= Connected to eldbus
= Multipump system
= Master pump (multipump system)
= Slave pump (multipump system)
= Forced local mode (eldbus is overridden)
Normal
Stop
Min.
Max.
The pump runs according to the selected control
mode. Operating mode overrules control mode.
See next page
The pump stops.
Minimum curve mode is used in periods
in which a minimum ow is required.
Maximum curve mode is used in periods
in which a maximum ow is required.
Control mode
2
AUTOADAPT
Prop. press.
Const. press.
FLOWADAPT
Const. temp.
Di. temp.
Constant ow
Constant curve
Δt
Δt
Δt
Δt
1
Δt
Δt
Δt
Operating mode can be externally controlled by digital input.
