Side 1/18

Kramer Electronics, Ltd.

USER MANUAL

Models:

VM-28HDMI, 2 Input 1:8 HDMI Distributor

VM-212HDMI, 2 Input 1:12 HDMI Distributor

VM-216HDMI, 2 Input 1:16 HDMI Distributor

Contents

1 Introduction 1

2 Getting Started 1

3 Overview 2

3.1 About HDMI 2

3.2 Defining EDID 3

3.3 Recommendations for Best Performance 4

4 Your VM-28HDMI / VM-212HDMI / VM-216HDMI 4

5 Using the VM-28HDMI / VM-212HDMI / VM-216HDMI 8

5.1 Connecting the VM-28HDMI / VM-212HDMI / VM-216HDMI 8

5.1.1 Connecting the VM-28HDMI 2 Input 1:8 HDMI Distributor 9

5.1.2 Connecting the VM-212HDMI 2 Input 1:12 HDMI Distributor 10

5.1.3 Connecting the VM-216HDMI 2 Input 1:16 HDMI Distributor 11

5.2 Operating the VM-28HDMI / VM-212HDMI / VM-216HDMI 12

5.2.1 Using the EDID Button 12

5.2.2 Acquiring / Changing the EDID 12

5.2.3 Resetting the Default EDID 12

6 Technical Specifications 13

Figures

Figure 1: VM-28HDMI 2 Input 1:8 HDMI Distributor 5

Figure 2: VM-212HDMI 2 Input 1:12 HDMI Distributor 6

Figure 3: VM-216HDMI 2 Input 1:16 HDMI Distributor 7

Figure 4: Connecting a VM-28HDMI 2 Input 1:8 HDMI Distributor 9

Figure 5: Connecting a VM-212HDMI 2 Input 1:12 HDMI Distributor 10

Figure 6: Connecting a VM-216HDMI 2 Input 1:16 HDMI Distributor 11

Tables

Table 1: VM-28HDMI / VM-212HDMI / VM-216HDMI Features 4

Table 2: VM-28HDMI / VM-212HDMI / VM-216HDMI Technical Specifications 13

P/N: 2900-0001851 A1

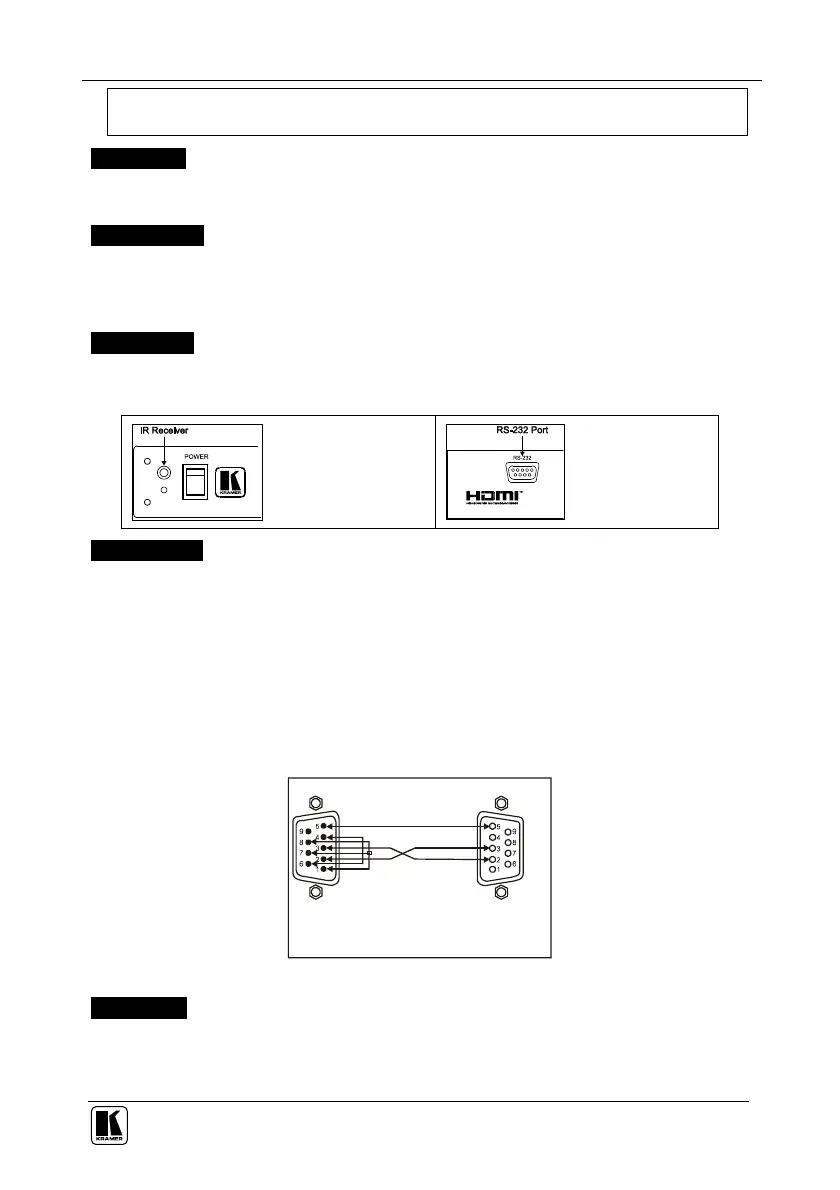

ADDENDUM: VM-28HDMI / VM-216HDMI

This addendum describes the new IR Receiver and RS-232 connector to the

VM-28HDMI and VM-216HDMI machines. The user manual is updated in five places.

First change - add at the end of section 1 on page 1:

@ Kramer RC-IR1 Infra-Red Remote Control Transmitter (including the required

battery and a separate user manual)

Second change - before section 3.1 on page 2:

Control the VM-28HDMI / VM-216HDMI using the front panel buttons, and/or via:

@ RS-232 serial commands transmitted by a PC or other serial controller

@ The Kramer infra-red remote control transmitter

Third change - add after Table 1 in section 4 on page 4:

Table A1 describes the additional IR Receiver and RS-232 connector:

Table A1: IR Receiver and the RS-232 Connector Features

IR Receiver (front panel)

The red LED lights when

receiving signals from the

Infra-red remote control

transmitter

RS-232 DB 9F Port

(rear panel)

Connects to the PC or

the RS-232 Remote

Controller

Fourth change - add before section 6 on page 13:

5.3 Controlling via RS-232 (for example, using a PC)

To connect a PC to the VM-28HDMI / VM-216HDMI, using the Null-modem adapter

provided with the machine (recommended):

@ Connect the RS-232 DB9 rear panel port on the VM-28HDMI / VM-216HDMI

unit to the Null-modem adapter and connect the Null-modem adapter with a 9-wire flat

cable to the RS-232 DB9 port on your PC

To connect a PC to the VM-28HDMI / VM-216HDMI, without using a Null-modem adapter:

@ Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel port on

the VM-28HDMI / VM-216HDMI unit, as Figure A1 illustrates

Female DB9 (From PC)

PIN 4 Connected to PIN 6

PINS 8, 7, 1 Connected together

If a Shielded cable is used, connect the shield to PIN 5

PIN 5 Connected to PIN 5 (Ground)

PIN 3 Connected to PIN 2

PIN 2 Connected to PIN 3

Male DB9

Figure A1: Connecting a PC without using a Null-modem Adapter

Fifth change - add after section 6 on page 13:

8 Kramer Protocol 2000

The VM-28HDMI / VM-216HDMI is compatible with Kramer’s Protocol 2000 (version

0.46). You can download it from our Web site at: http://www.kramerelectronics.com
