Audio/Video Receiver

AVR 1710, AVR 171/230, AVR 171/230C,

AVR 1610, AVR 161/230, AVR 161/230C,

AVR 1510, AVR 151/230, AVR 151/230C

Quick-Start Guide

AVR

Introduction, AVR Placement,

Speaker Placement and Connections

Introduction

Thank you for choosing a Harman Kardon

product!

This quick-start guide contains all the information you need to connect and set up your

new Harman Kardon audio/video receiver (AVR).

To conserve our natural resources, your AVR does not include a printed owner’s manual.

An owner’s manual containing complete information about operating all of your new

AVR’s features is available at our Web site. Go to www.harmankardon.com and download

the AVR 1710, AVR 171/230, AVR 171/230C, AVR 1610, AVR 161/230, AVR 161/230C

Owner’s Manual or the AVR 1510, AVR 151/230, AVR 151/230C Owner’s Manual.

Place the AVR

• Place the AVR on a rm and level surface. Be certain that the surface and any mounting

hardware can support the AVR’s weight.

• Provide proper space above, below, behind and to the sides of the AVR for ventilation. Maintain

a clearance of at least 12" (30cm) on each side of, above and behind the unit.

• If you install the AVR in a cabinet or other enclosed area, provide cooling air within the cabinet.

Under some circumstances, a fan may be required.

• Do not obstruct the ventilation slots on the top of the AVR or place objects directly over them.

• Do not place the AVR directly on a carpeted surface.

• Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas

near heaters or heat registers, or in direct sunlight.

Connections

CAUTION: Before making any connections to the AVR, ensure that the AVR’s AC cord is

unplugged from the AVR and the AC outlet. Making connections with the AVR plugged

in and turned on could damage the speakers.

Place Your Speakers

Determine the locations for your system’s speakers according to their manufacturer’s

directions and the layout of your listening room. Use the illustrations below as a guide for

7.1-channel and 5.1-channel systems.

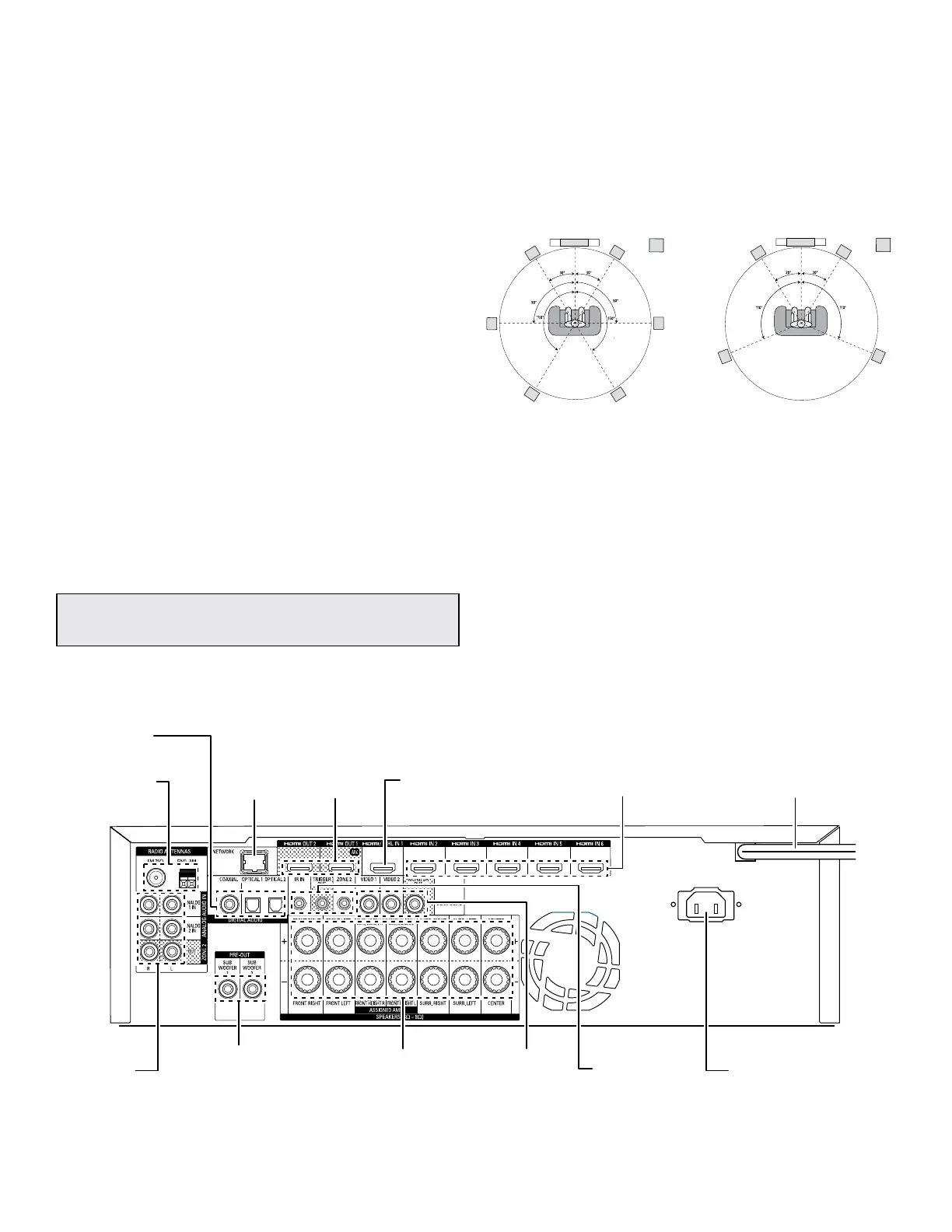

Speaker Positioning for

7.1-Channel Systems

SL SR

FRFL

SUB

SBL SBR

SL SR

FRFL

SUB

Speaker Positioning for

5.1-Channel Systems

For more detailed speaker placement information, including the use of front height speakers

with the Dolby

Pro Logic

IIz mode, download the complete AVR 1710, AVR 171/230,

AVR 171/230C, AVR 1610, AVR 161/230, AVR 161/230C Owner’s Manual or the AVR 1510,

AVR 151/230, AVR 151/230C Owner’s Manual from www.harmankardon.com.

Radio Antenna

Connectors

AVR 1710/AVR 171

HDMI

Output

Connectors

HDMI/MHL/

Input Connector

Power Cord

(AVR 1710)

HDMI Input

Connectors

Network

Connector

Analog Audio

Connectors

Subwoofer

Pre-Out

Connectors

Speaker

Connectors

Digital Audio

Connectors

Analog Video

Connectors

AC Input

Connector

(AVR 171)

IR and Trigger

Connectors

AVR

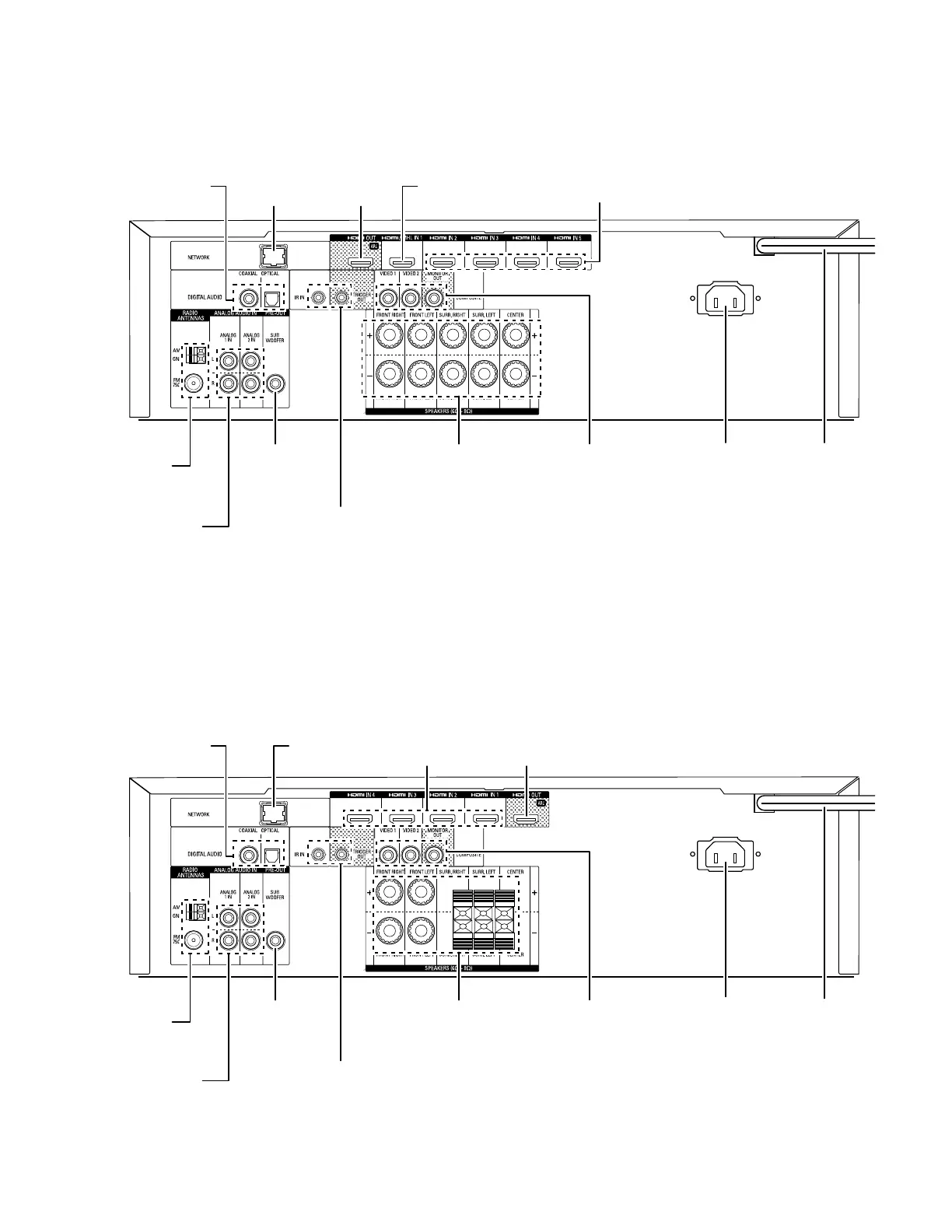

Connections

AVR 1610/AVR 161

Radio Antenna

Connectors

HDMI Output

Connector

HDMI/MHL/

Input Connector

Power Cord

(AVR 1610)

HDMI Input

Connectors

Network

Connector

Analog Audio

Connectors

Subwoofer

Pre-Out

Connector

Speaker

Connectors

Digital Audio

Connectors

Analog Video

Connectors

AC Input

Connector

(AVR 161)

IR and Trigger

Connectors

AVR 1510/AVR 151

Radio Antenna

Connectors

HDMI Output

Connector

HDMI Input

Connectors

Power Cord

(AVR 1510)

Network

Connector

Analog Audio

Connectors

Subwoofer

Pre-Out

Connector

Speaker

Connectors

Digital Audio

Connectors

Analog Video

Connectors

AC Input

Connector

(AVR 151)

IR and Trigger

Connectors
