Harman Kardon AVR 700 Bruksanvisning
Harman Kardon
Mottaker
AVR 700
Les nedenfor 📖 manual på norsk for Harman Kardon AVR 700 (26 sider) i kategorien Mottaker. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/26
Audio/video receiver
AVR 700/AVR 70/AVR 70C
Owner’s Manual
AVR 700/AVR 70/AVR 70C
2
IntroductIon 3
SupplIed AcceSSorIeS 3
ImportAnt SAfety InformAtIon 3
plAce the AVr 3
front-pAnel controlS 4
reAr-pAnel connectorS 5
SyStem remote control functIonS 6
IntroductIon to home theAter 8
typIcAl home theAter SyStem 8
multIchAnnel AudIo 8
Surround modeS 8
plAce your SpeAkerS 8
plAcIng the left, center And rIght SpeAkerS 8
plAcIng the Surround SpeAkerS 8
plAcIng the Subwoofer 8
typeS of home theAter SyStem connectIonS 9
SpeAker connectIonS 9
Subwoofer connectIonS 9
Source deVIce connectIonS 9
VIdeo connectIonS 10
rAdIo connectIonS 10
uSb port 10
mAkIng connectIonS 11
connect your SpeAkerS 11
connect your Subwoofer 11
connect your tV or VIdeo dISplAy 11
connect your Source deVIceS 11
connect the rAdIo AntennAS 13
connect to Ac power 13
InStAll bAtterIeS In the remote control 13
Set up the AVr 14
turn on the AVr 14
uSIng the on-Screen menu SyStem 14
confIgure the AVr for your SpeAkerS 15
AddItIonAl Setup menu ItemS 15
operAtIng your AVr 16
controllIng the Volume 16
mutIng the Sound 16
lIStenIng through heAdphoneS 16
SelectIng A Source 16
VIdeo troubleShootIng tIpS 16
lIStenIng to fm And Am rAdIo 16
lIStenIng to medIA on A uSb deVIce 16
SelectIng A Surround mode 17
AdVAnced functIonS 17
AudIo proceSSIng And Surround Sound 17
AdjuStIng the chAnnel VolumeS 17
recordIng 17
Sleep tImer 18
proceSSor reSet 18
memory 18
troubleShootIng 19
SpecIfIcAtIonS 20
AppendIx 21
Table of Contents
AVR 700/AVR 70/AVR 70C
3
Introduction, Supplied Accessories,
Important Safety Information and Place the AVR
Introduction
Thank you for choosing this Harman Kardon product!
For more than fifty years, the Harman Kardon mission has been to share a passion for music
and entertainment, using leading-edge technology to achieve premium performance.
Sidney Harman and Bernard Kardon invented the receiver, a single component designed
to simplify home entertainment without compromising performance. Over the years,
Harman Kardon products have become easier to use while offering more features and
sounding better than ever.
The AVR 70, AVR 700 and AVR 70C 5.1-channel digital audio/video receivers (AVRs)
continue this tradition with some of the most advanced audio and video processing
capabilities yet and a wealth of listening and viewing options.
To obtain the maximum enjoyment from your new AVR, please read this manual and refer
back to it as you become more familiar with its features and their operation.
If you have any questions about this product, its installation or its operation, please
contact your Harman Kardon retailer or custom installer, or visit our Web site at www.
harmankardon.com.

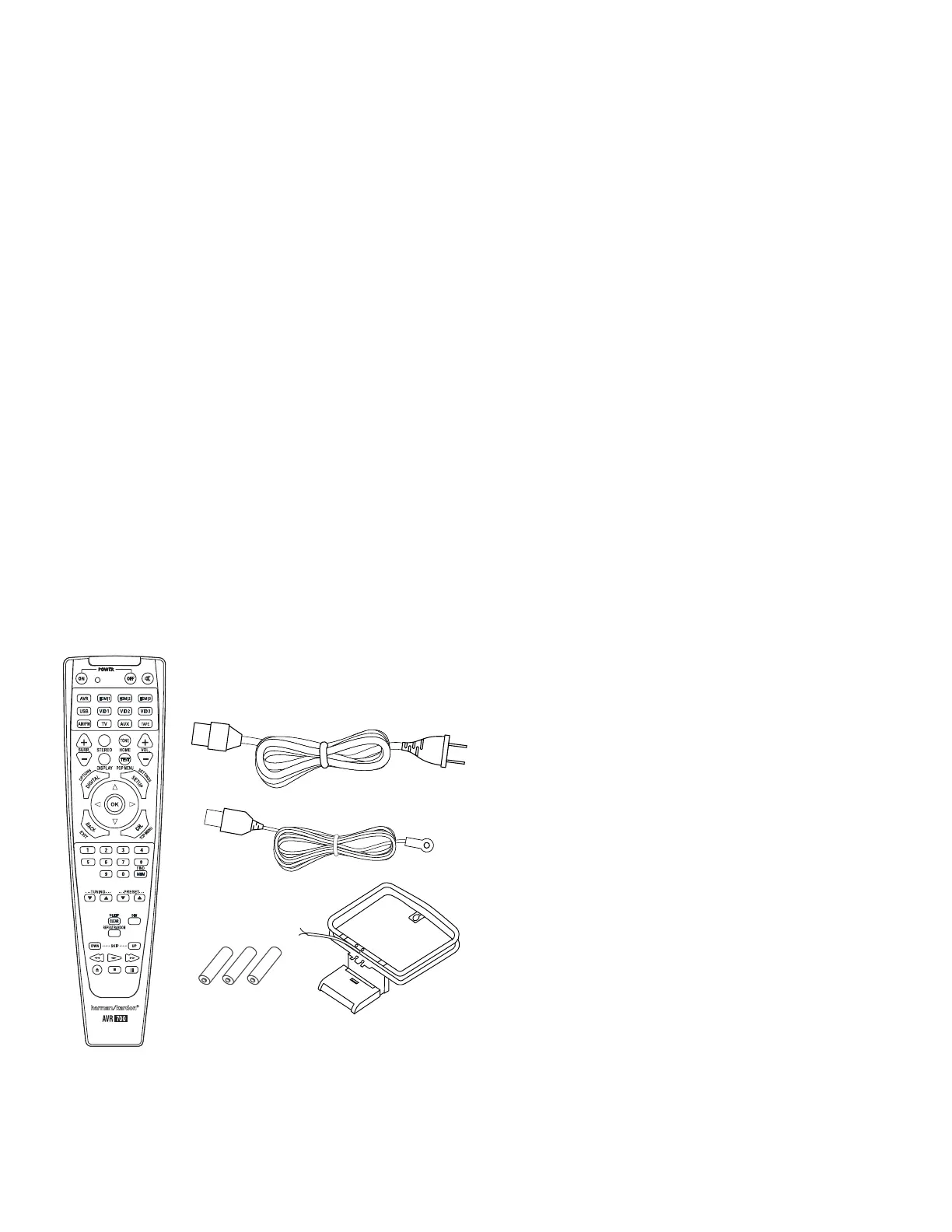

Supplied Accessories
The following accessory items are supplied with your AVR. If any of these items are
missing, please contact your Harman Kardon dealer, or Harman Kardon customer service
at www.harmankardon.com.
• IR remote control
• AM loop antenna
• FM wire antenna
• Three AAA batteries
• AC power cord
IMPORTANT SAFETY INFORMATION
Verify Line Voltage Before Use
The AVR 700 has been designed for use with 120-volt alternating current (AC). The
AVR 70 and AVR 70C have been designed for use with 220 – 240-volt AC. Connection
to a line voltage other than that for which your AVR is intended can create a safety
and fire hazard, and may damage the unit. If you have any questions about the voltage
requirements for your specific model or about the line voltage in your area, contact your
selling dealer before plugging the unit into a wall outlet.
Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied with your unit. We do not
recommend that extension cords be used with this product. As with all electrical devices,
do not run power cords under rugs or carpets, or place heavy objects on them. Damaged
power cords should be replaced immediately by an authorized service center with a cord
meeting factory specifications.
Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always pull the plug; never
pull the cord. If you do not intend to use your AVR for any considerable length of time,
disconnect the plug from the AC outlet.
Do Not Open the Cabinet
There are no user-serviceable components inside this product. Opening the cabinet may
present a shock hazard, and any modification to the product will void your warranty. If
water or any metal object such as a paper clip, wire or staple accidentally falls inside
the unit, disconnect it from the AC power source immediately, and consult an authorized
service center.
CATV or Antenna Grounding (AVR 700)
If an outside antenna or cable system is connected to this product, be certain that it is
grounded so as to provide some protection against voltage surges and static charges.
Section 810 of the United States National Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes and
requirements of the grounding electrode.
NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV (cable
TV) system installer’s attention to article 820-40 of the NEC, which provides guidelines
for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of cable entry as possible.
Place the AVR
• Place the AVR on a rm and level surface. Be certain that the surface and any
mounting hardware can support the AVR’s weight.
• Provide proper space above and below the AVR for ventilation. Recommended
clearance distances are 30cm above the unit, 10cm behind the unit and 20cm on
each side of the unit.
• If you install the AVR in a cabinet or other enclosed area, provide cooling air within the
cabinet. Under some circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly
over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations,
in areas near heaters or heat registers, or in direct sunlight.
Produkspesifikasjoner
| Merke: | Harman Kardon |
| Kategori: | Mottaker |
| Modell: | AVR 700 |
