Harman Kardon AVR-156 Bruksanvisning
Harman Kardon
Mottaker
AVR-156
Les nedenfor 📖 manual på norsk for Harman Kardon AVR-156 (42 sider) i kategorien Mottaker. Denne guiden var nyttig for 5 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/42

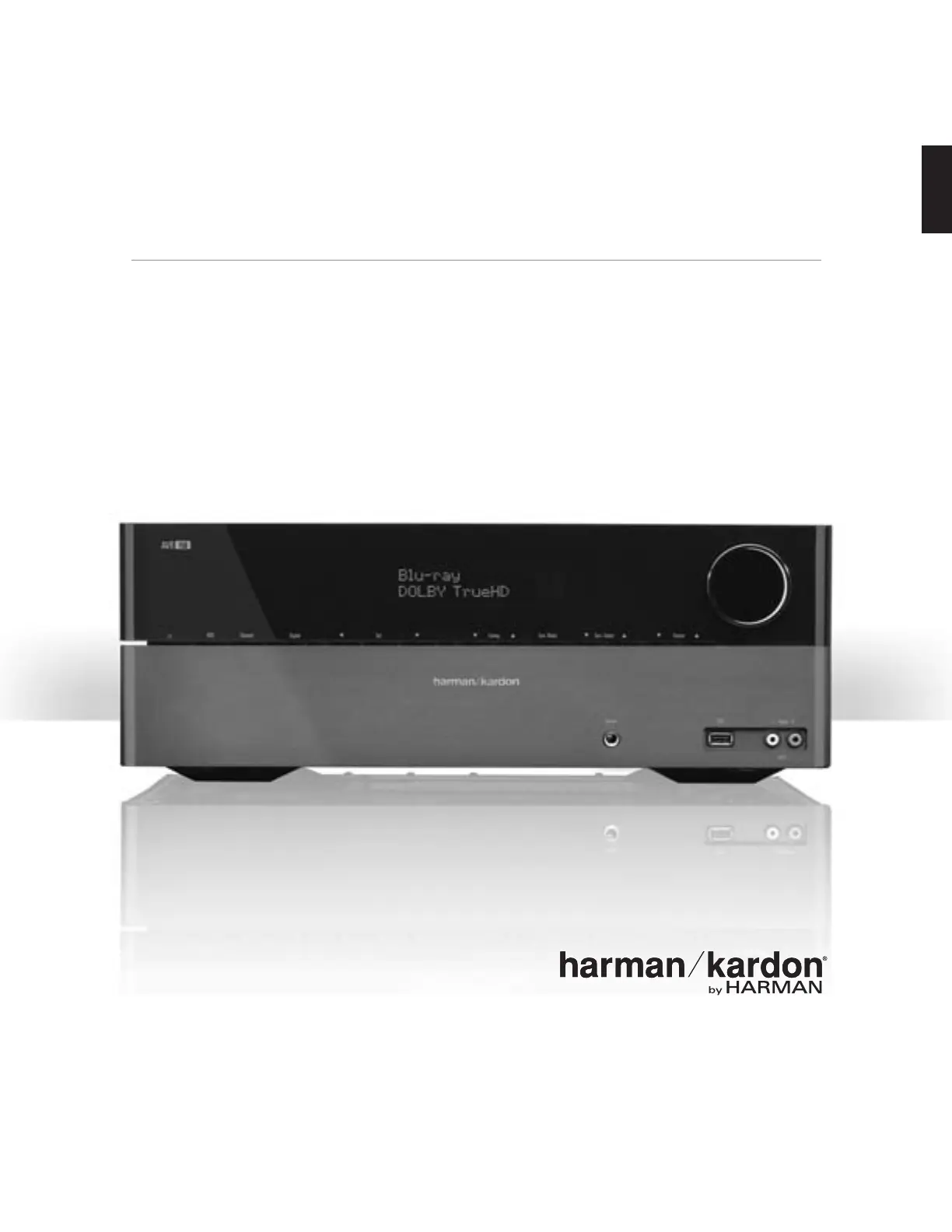

AVR 156
Audio/video receiver
Owner’s Manual
ENGLISH
0292CSK - HK (x65Series) AVR156-230 OM [HKP1991], WORK05.indd 1 30/06/11 12:41:52
2
AVR 156
Table of Contents
IntroductIon 3
SupplIed AcceSSorIeS 3
IMportAnt SAFetY InForMAtIon 3
plAce the AVr 3
Front-pAnel controlS 4
reAr-pAnel connectorS 6
SYSteM reMote control FunctIonS 8
IntroductIon to hoMe theAtre 10
tYpIcAl hoMe theAtre SYSteM 10
MultIchAnnel AudIo 10
Surround ModeS 10
plAce Your SpeAkerS 10
plAcIng the leFt, centre And rIght SpeAkerS 10
plAcIng the Surround SpeAkerS 10
plAcIng the SubwooFer 10
tYpeS oF hoMe theAtre SYSteM connectIonS 11
SpeAker connectIonS 11
SubwooFer connectIonS 11
Source deVIce connectIonS 11
VIdeo connectIonS 12
rAdIo connectIonS 12
uSb port 12
MAkIng connectIonS 13
connect Your SpeAkerS 13
connect Your SubwooFer 13
connect Your tV or VIdeo dISplAY 13
connect Your Source deVIceS 13
connect the rAdIo AerIAlS 15
connect the 12V trIgger output 15
connect to Ac power 15
Set up the reMote control 15
InStAll the bAtterIeS In the reMote control 15
progrAM the reMote to control Your Source
deVIceS And tV 16
Set up the AVr 16
turn on the AVr 16
uSIng the on-Screen Menu SYSteM 16
conFIgure the AVr For Your SpeAkerS 17
ASSIgn the dIgItAl AudIo connectorS 18
AddItIonAl Input Setup Menu IteMS 19
operAtIng Your AVr 19
controllIng the VoluMe 19
MutIng the Sound 19
lIStenIng through heAdphoneS 19
SelectIng A Source 19
VIdeo troubleShootIng tIpS 19
lIStenIng to FM And AM rAdIo 20
SelectIng A Surround Mode 20
AdVAnced FunctIonS 20
AudIo proceSSIng And Surround Sound 20
SYSteM Setup 22
AdVAnced reMote control progrAMMIng 22
recordIng 22
Sleep tIMer 23
reSettIng the reMote 23
proceSSor reSet 23
MeMorY 23
troubleShootIng 24
SpecIFIcAtIonS 25
AppendIx 26
0292CSK - HK (x65Series) AVR156-230 OM [HKP1991], WORK05.indd 2 30/06/11 12:41:52
3
AVR 156
ENGLISH
Introduction, Supplied Accessories,
Important Safety Information and Place the AVR
Introduction
Thank you for choosing this Harman Kardon product!
For more than fifty years, the Harman Kardon mission has been to share a passion for music
and entertainment, using leading-edge technology to achieve premium performance.
Sidney Harman and Bernard Kardon invented the receiver, a single component designed
to simplify home entertainment without compromising performance. Over the years,
Harman Kardon products have become easier to use while offering more features and
sounding better than ever.
The AVR 156 5.1-channel digital audio/video receiver (AVR) continues this tradition with
some of the most advanced audio and video processing capabilities yet and a wealth of
listening and viewing options.
To obtain the maximum enjoyment from your new AVR, please read this manual and
refer back to it as you become more familiar with its features and their operation.
If you have any questions about this product, its installation or its operation, please
contact your Harman Kardon retailer or custom installer, or visit our Web site at www.
harmankardon.com.
Supplied Accessories
The following accessory items are supplied with your AVR. If any of these items are
missing, please contact your Harman Kardon dealer, or Harman Kardon customer service
at www.harmankardon.com.
System remote control •
AM loop aerial •
FM wire aerial •
Three • AAA batteries
AC power cord •
IMPORTANT SAFETY INFORMATION
Verify Line Voltage Before Use
The AVR 156 has been designed for use with 220 – 240-volt alternating current (AC).
Connection to a line voltage other than that for which your AVR is intended can create
a safety and fire hazard, and may damage the unit. If you have any questions about
the voltage requirements for your specific model or about the line voltage in your area,
contact your selling dealer before plugging the unit into a wall outlet.
Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied with your unit. We do not
recommend that extension cords be used with this product. As with all electrical devices,
do not run power cords under rugs or carpets, or place heavy objects on them. Damaged
power cords should be replaced immediately by an authorised service centre with a cord
meeting factory specifications.
Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always pull the plug; never
pull the cord. If you do not intend to use your AVR for any considerable length of time,
disconnect the plug from the AC outlet.
Do Not Open the Cabinet
There are no user-serviceable components inside this product. Opening the cabinet may
present a shock hazard, and any modification to the product will void your warranty. If
water or any metal object such as a paper clip, wire or staple accidentally falls inside
the unit, disconnect it from the AC power source immediately, and consult an authorised
service centre.
Place the AVR
Place the AVR on a firm and level surface. Be certain that the surface and any mounting •
hardware can support the AVR’s weight.
Provide proper space above and below the AVR for ventilation. If you install the AVR in •
a cabinet or other enclosed area, provide cooling air within the cabinet. Under some
circumstances, a fan may be required.
Do not obstruct the ventilation slots on the top of the AVR or place objects directly •
over them.
Do not place the AVR directly on a carpeted surface. •
Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in •
areas near heaters or heat registers, or in direct sunlight.
0292CSK - HK (x65Series) AVR156-230 OM [HKP1991], WORK05.indd 3 30/06/11 12:41:52
