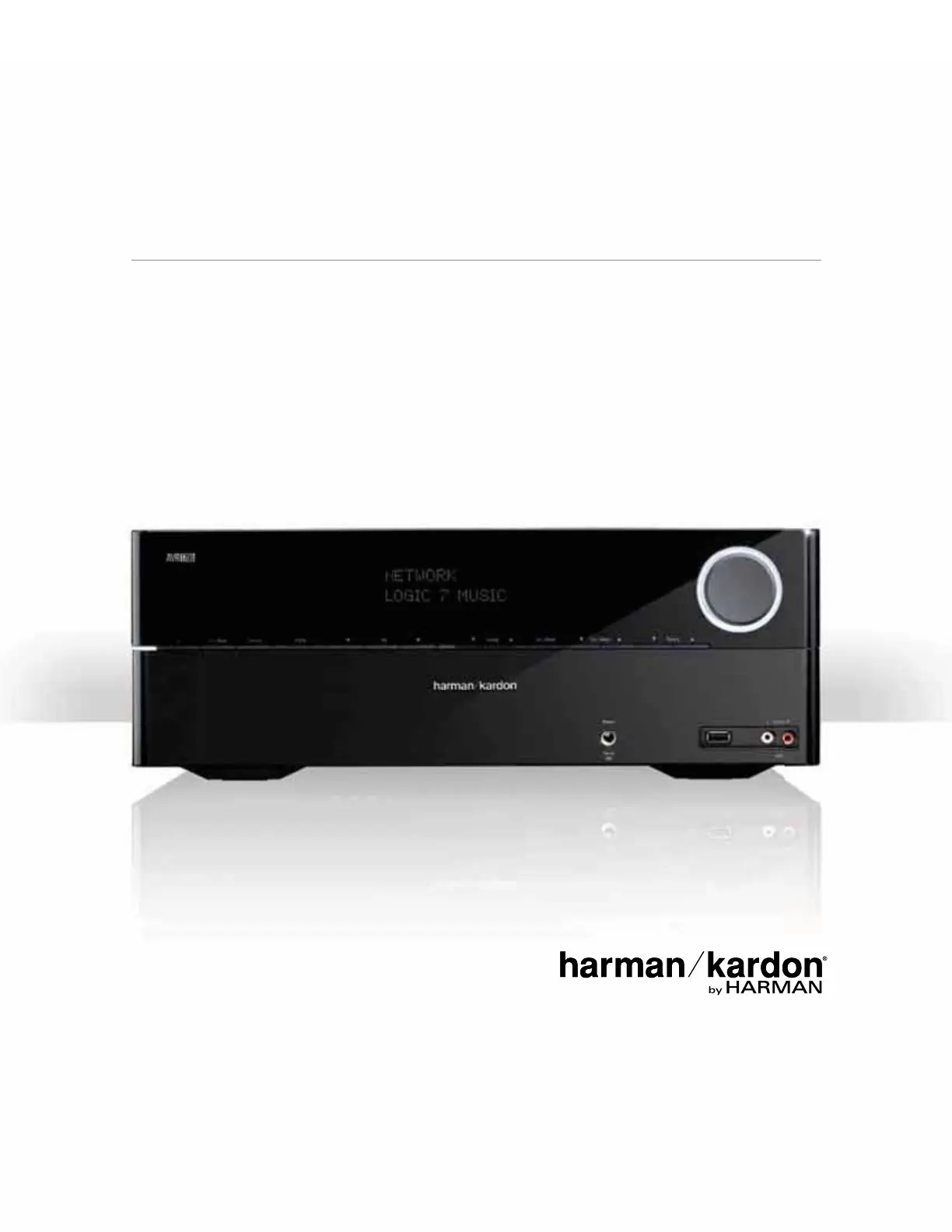

Audio/video receiver

AVR 1700, AVR 170, AVR 170/230C

Owner’s Manual

AVR

Table of Contents

INTRODUCTION 3

SUPPLIED ACCESSORIES 3

IMPORTANT SAFETY INFORMATION 3

PLACE THE AVR 3

FRONT-PANEL CONTROLS 4

REAR-PANEL CONNECTORS 6

SYSTEM REMOTE CONTROL FUNCTIONS 8

INTRODUCTION TO HOME THEATER 10

TYPICAL HOME THEATER SYSTEM 10

MULTICHANNEL AUDIO 10

SURROUND MODES 10

PLACE YOUR SPEAKERS 10

PLACING THE LEFT, CENTER AND RIGHT SPEAKERS 10

PLACING THE SURROUND SPEAKERS 10

PLACING THE SUBWOOFER 10

TYPES OF HOME THEATER SYSTEM CONNECTIONS 11

SPEAKER CONNECTIONS 11

SUBWOOFER CONNECTIONS 11

SOURCE DEVICE CONNECTIONS 11

VIDEO CONNECTIONS 12

RADIO CONNECTIONS 12

USB/iPod PORT 12

MAKING CONNECTIONS 13

CONNECT YOUR SPEAKERS 13

CONNECT YOUR SUBWOOFER 13

CONNECT YOUR TV OR VIDEO DISPLAY 13

CONNECT YOUR AUDIO AND VIDEO SOURCE DEVICES 13

CONNECT TO YOUR HOME NETWORK 15

CONNECT THE RADIO ANTENNAS 15

CONNECT IR EQUIPMENT 15

CONNECT THE TRIGGER OUTPUT 15

CONNECT TO AC POWER 16

SET UP THE REMOTE CONTROL 16

INSTALL THE BATTERIES IN THE REMOTE CONTROL 16

PROGRAM THE REMOTE TO CONTROL YOUR SOURCE

DEVICES AND TV 16

SET UP THE AVR 17

TURN ON THE AVR 17

USING THE ON-SCREEN MENU SYSTEM 17

CONFIGURE THE AVR FOR YOUR SPEAKERS 17

ASSIGN THE AVR INPUT CONNECTORS 18

SET UP THE NETWORK 18

ADDITIONAL SOURCE SETUP MENU ITEMS 19

OPERATING YOUR AVR 19

CONTROLLING THE VOLUME 19

MUTING THE SOUND 19

LISTENING THROUGH HEADPHONES 19

SELECTING A SOURCE 19

VIDEO TROUBLESHOOTING TIPS 19

LISTENING TO FM AND AM RADIO 20

LISTENING TO INTERNET RADIO (vTUNER) 20

LISTENING TO AN iPod/iPhone/iPad DEVICE 20

LISTENING TO MEDIA ON A USB DEVICE 20

LISTENING TO MEDIA VIA YOUR HOME NETWORK 21

LISTENING TO MEDIA VIA AIRPLAY 22

SELECTING A SURROUND MODE 22

ADVANCED FUNCTIONS 23

AUDIO PROCESSING AND SURROUND SOUND 23

MANUAL SPEAKER SETUP 24

SYSTEM SETUP 26

ADVANCED REMOTE CONTROL PROGRAMMING 26

RECORDING 27

SLEEP TIMER 27

RESETTING THE REMOTE 27

PROCESSOR RESET 27

MEMORY 27

TROUBLESHOOTING 28

SPECIFICATIONS 29

APPENDIX 30

AVR

ENGLISH

Introduction, Supplied Accessories, Important

Safety Information and Place the AVR

Introduction

Thank you for choosing this Harman Kardon

product!

For more than ﬁfty years, the Harman Kardon mission has been to share a passion for music

and entertainment, using leading-edge technology to achieve premium performance.

Sidney Harman and Bernard Kardon invented the receiver, a single component designed

to simplify home entertainment without compromising performance. Over the years,

Harman Kardon products have become easier to use while offering more features and

sounding better than ever.

The AVR 1700, AVR 170 and AVR 170/230C 5.1-channel digital audio/video receivers

(AVRs) continue this tradition with some of the most advanced audio and video processing

capabilities yet and a wealth of listening and viewing options.

To obtain the maximum enjoyment from your new AVR, please read this manual and refer

back to it as you become more familiar with its features and their operation.

If you have any questions about this product, its installation or its operation, please

contact your Harman Kardon retailer or custom installer, or visit our Web site at www.

harmankardon.com.

Supplied Accessories

The following accessory items are supplied with your AVR. If any of these items are

missing, please contact your Harman Kardon dealer, or Harman Kardon customer service

at www.harmankardon.com.

s3YSTEMREMOTECONTROL

s%Z3ET%1

™

microphone

s!-LOOPANTENNA

s&-WIREANTENNA

s4HREE!!!BATTERIES

s!#POWERCORD

IMPORTANT SAFETY INFORMATION

Verify Line Voltage Before Use

The AVR 1700 has been designed for use with 120-volt alternating current (AC). The

AVR 170 and AVR 170/230C have has been designed for use with 220 – 240-volt AC.

Connection to a line voltage other than that for which your AVR is intended can create

A SAFETY AND lRE HAZARD AND MAY DAMAGE THE UNIT )F YOU HAVE ANY QUESTIONS ABOUT

the voltage requirements for your speciﬁc model or about the line voltage in your area,

contact your selling dealer before plugging the unit into a wall outlet.

Do Not Use Extension Cords

4OAVOID SAFETY HAZARDS USE ONLY THE POWERCORDSUPPLIEDWITHYOURUNIT7E DO NOT

recommend that extension cords be used with this product. As with all electrical devices,

do not run power cords under rugs or carpets, or place heavy objects on them. Damaged

POWERCORDSSHOULDBEREPLACEDIMMEDIATELYBYANAUTHORIZEDSERVICECENTERWITHACORD

meeting factory speciﬁcations.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always pull the plug; never

pull the cord. If you do not intend to use your AVR for any considerable length of time,

disconnect the plug from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product. Opening the cabinet may

PRESENTASHOCKHAZARDANDANYMODIlCATIONTOTHEPRODUCTWILLVOIDYOURWARRANTY)F

water or any metal object such as a paper clip, wire or staple accidentally falls inside

THEUNITDISCONNECTITFROMTHE!#POWERSOURCEIMMEDIATELYANDCONSULTANAUTHORIZED

service center.

CATV or Antenna Grounding (AVR 1700)

If an outside antenna or cable system is connected to this product, be certain that it is

grounded so as to provide some protection against voltage surges and static charges.

Section 810 of the United States National Electrical Code, ANSI/NFPA No. 70-1984,

provides information with respect to proper grounding of the mast and supporting

STRUCTUREGROUNDINGOFTHELEADINWIRETOANANTENNADISCHARGEUNITSIZEOFGROUNDING

conductors, location of antenna discharge unit, connection to grounding electrodes and

requirements of the grounding electrode.

NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV (cable

TV) system installer’s attention to article 820-40 of the NEC, which provides guidelines

for proper grounding and, in particular, speciﬁes that the cable ground shall be connected

to the grounding system of the building, as close to the point of cable entry as possible.

Place the AVR

s0LACETHE!62ONAlRMANDLEVELSURFACE"ECERTAINTHATTHESURFACEANDANYMOUNTING

hardware can support the AVR’s weight.

s0ROVIDE PROPER SPACE ABOVE AND BELOW THE !62 FOR VENTILATION 2ECOMMENDED

clearance distances are 30cm above the unit, 30cm behind the unit and 30cm on each

side of the unit.

s)FYOUINSTALLTHE!62INACABINETOROTHERENCLOSEDAREAPROVIDECOOLINGAIRWITHINTHE

cabinet. Under some circumstances, a fan may be required.

s$ONOT OBSTRUCT THE VENTILATION SLOTS ON THETOPOF THE!62OR PLACE OBJECTS DIRECTLY

over them.

s$ONOTPLACETHE!62DIRECTLYONACARPETEDSURFACE

s$ONOTPLACETHE!62INMOISTORHUMIDLOCATIONSINEXTREMELYHOTORCOLDLOCATIONSIN

areas near heaters or heat registers, or in direct sunlight.

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Mottaker
Modell:	AVR 1700
Vekt:	5800 g
Bredde:	440 mm
Dybde:	350 mm
Høyde:	165 mm
Bruksanvisning:	Ja
Wi-Fi:	Nei
Garantikort:	Ja
Volumkontroll:	Rotasjon
3D:	Ja
Audio Return Channel (ARC):	Ja
HDMI inn:	6
FM-antenne:	Ja
Antall HDMI-utganger:	1
FM-bånd:	87.5 - 108 MHz
AirPlay:	Ja
Utgangsimpedans:	75 Ω
Produktfarge:	Sort
Analogt signalformatsystem:	NTSC
Fjernkontroll medfølger:	Ja
Ethernet/bredbåndsforbindelse:	Nei
Lyd-utgang kanaler:	- kanaler
Batterier medfølger:	Ja
Støttede radiobånd:	FM
Sertifisert av Digital Living Network Alliance (DLNA):	Ja
Innebygd lyddekoder:	Dolby Pro Logic, Dolby Pro Logic II, Dolby TrueHD, DTS-HD Master Audio
Frekvensrekkevidde:	10 - 100000 Hz
Effekt pr. kanal (20-20KHz@8 Ohm):	95 W
Effekt pr. kanal (1KHz@8 Ohm):	100 W
Støtter dype farger:	Ja
Effekt pr. kanal (1KHz@6 Ohm):	100 W
