Side 1/23

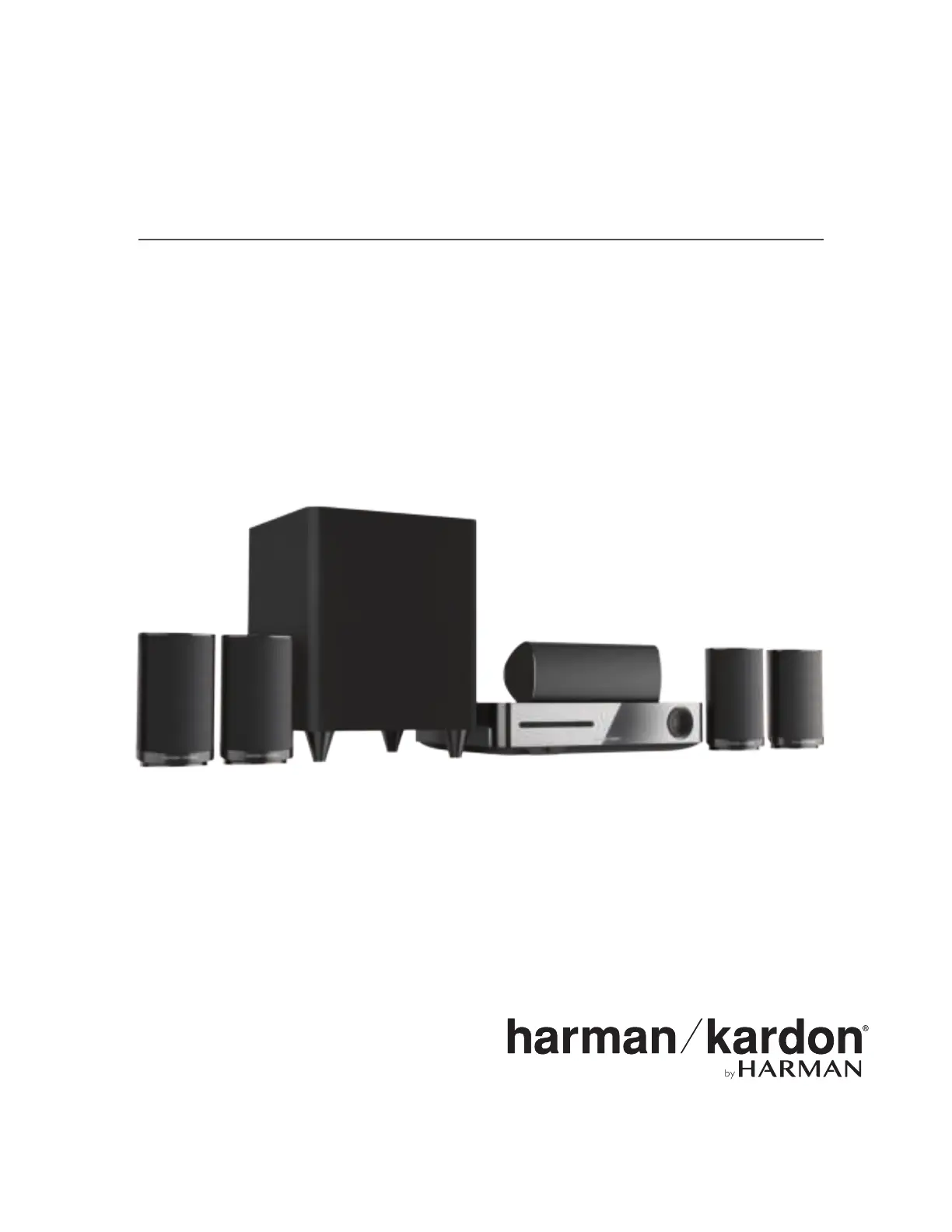

BDS 335/635 System

4K 3D Blu-Ray™ Disc System with Wifi® and Bluetooth®

Owner’s Manual

Table of Contents

BDS 335/635 System

INTRODUCTION 3

DESCRIPTION AND FEATURES 3

UNPACKING 3

INCLUDED ITEMS 3

INSTALLATION LOCATION 4

BDS FRONT PANEL CONTROLS AND CONNECTIONS 5

BDS REAR PANEL CONTROLS AND CONNECTIONS 6

REMOTE CONTROL FUNCTIONS 8

SPEAKER PLACEMENT 9

MOUNTING OPTIONS 10

CONNECTIONS 11

SETTING UP THE SYSTEM 15

USING THE BDS SYSTEM 16

USING THE DISC PLAYER 16

USING DLNA 17

PLAYING FILES FROM USB DEVICES AND DATA DISCS 17

LISTENING TO INTERNET RADIO 19

LISTENING TO AUDIO SOURCES 19

LISTENING TO FM RADIO 19

CONNECT BDS TO HARMAN KARDON WIRELESS OMNI SYSTEM 19

TROUBLESHOOTING 20

SPECIFICATIONS 22

Introduction

BDS 335/635 System

Introduction

Thank you for purchasing the Harman Kardon BDS 3D Blu-ray Disc™ system. The

Harman Kardon BDS systems are sleek, high-performance 2.1 (BDS 335) and 5.1 (BDS

635) channel 3D Blu-ray Disc™ system with high fidelity amplified sound.

In the years since Harman Kardon engineers have pioneered the high-fidelity

audio system, we have taken to heart the philosophy of bringing the joy of home

entertainment to as many people as possible, adding performance and ease-of-use

features that enhance the experience. The BDS series of home entertainment systems

offers a complete home entertainment solution with a wealth of listening and viewing

options in one sleek system.

To get the maximum enjoyment from your new BDS system, we urge you to read this

manual thoroughly, which:

• Contains a description of the system’s features

• Lists the items included in the box

• Describes the BDS system and its components

• Includes step-by-step instructions to help you set up and get started with

the BDS system

operation, please contact your retailer or custom installer, or visit our website at:

www.harmankardon.com

Description and Features

The BDS system features:

• 50 W per channel of powerful, clear audio

• Two HDMI inputs with 3D, UHD (4K) pass-through

• One HDMI output with Audio Return Channel (ARC)

• Wi-Fi connectivity, DLNA 1.5, vTuner, system updates and control, and

streaming Internet services

• High quality Bluetooth audio streaming

Unpacking

The carton and shipping material used to protect your new system during shipment are

specially designed to cushion it from shock and vibration. We suggest that you should

save the carton and packing material for use in shipping if you move or if the unit ever

needs repair.

To minimize the size of the carton in storage, you may have to flatten it. You can do it

by carefully slitting the tape seams on the carton’s bottom and collapsing it. You can

store cardboard inserts in the same manner. Packing materials that cannot be collapsed

should be saved along with the carton in a plastic bag.

If you do not wish to save the packaging material, note that the carton and other sections

of the shipping-protection materials are recyclable. Please respect the environment and

discard those materials at a local recycling center.

Remove the protective plastic film from the front-panel lens. Leaving the film in place

will affect the performance of your remote control.

Included Items

The following are the items provided in the BDS system complete package.

• One Remote Control

• One Power Cord

• One FM Antenna

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	hjemmekinoanlegg
Modell:	BDS 335
Innebygd skjerm:	Ja
Bluetooth:	Ja
Wi-Fi:	Ja
FM-radio:	Ja
Full HD:	Ja
USB-versjon:	2.0
3D:	Ja
Videooppskalering:	Ja
Karaoke:	Nei
HDMI inn:	2
FM-antenne:	Ja
Antall HDMI-utganger:	1
Trådløs subwoofer:	Nei
Antall satellitter:	2
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
AirPlay:	Nei
Strømforbruk (standby):	0.5 W
Støttede lydformater:	AAC, FLAC, MP3, PCM, WAV, WMA
Produktfarge:	Sort
Antall USB-porter:	2
Strømforbruk (vanlig bruk):	90 W
Lydinngang (V/H) inn:	2
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Satelitthøyttalerens dimensjoner (BxDxH):	100 x 92 x 167 mm
Antall optiske plater:	1 disker
Subwoofer-vekt:	7000 g
Ethernet/bredbåndsforbindelse:	Ja
Lyd-utgang kanaler:	2.1 kanaler
RMS-rangert strøm/utgangseffekt:	200 W
Optisk diskettspillertype:	Blue-Ray Spiller
Display:	LCD
Videoformat som støttes:	ISO (Blu-ray), MPEG1, MPEG2
Støttede disktyper:	BD
Antall forhåndsinnstallerte stasjoner:	30
Innebygd lyddekoder:	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Satelitthøyttalere RMS-strøm:	50 W
Subwoofer RMS-styrke:	100 W
Subwoofer-driverdiameter (imperisk):	8 "
Avspillingsplateformater:	Blu-Ray audio, Blu-Ray video, CD audio, CD video, DVD-Audio, DVD-Video
USB direkte-avspilling:	Ja
Digital optisk lydinngang:	1
Subwooferens dimensjoner (BxDxH):	267 x 267 x 353 mm
Optisk digital lydutgang:	1
Digital koaksialinngang for lyd:	1
Subwoofer-type:	Passiv
Satelitthøyttalervekt:	700 g
Trådløse satelitthøytalere:	Nei
