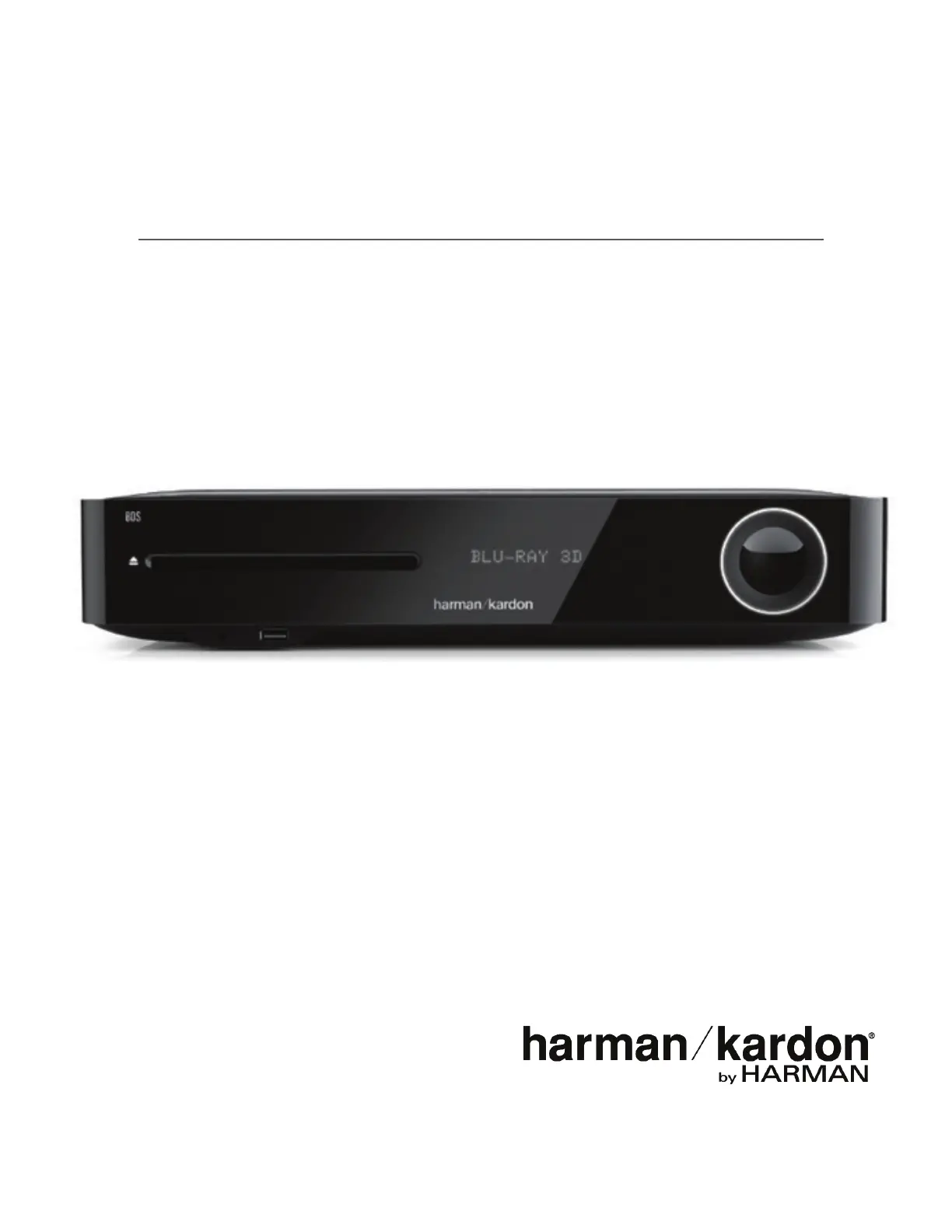

BDS 280/580

3D Blu-ray

Disc System

Owner’s Manual

BDS 280/580

InTrODucTIOn 3

DeScrIpTIOn anD FeaTureS 3

unpackIng 3

IncluDeD ITeMS 3

InSTallaTIOn lOcaTIOn 4

BDS FrOnT panel cOnTrOlS anD cOnnecTIOnS 5

BDS rear panel cOnTrOlS anD cOnnecTIOnS 6

reMOTe cOnTrOl FuncTIOnS 7

cOnnecTIOnS 9

preparIng The reMOTe cOnTrOl 12

SeTTIng up The SySTeM 14

uSIng The BDS SySTeM 15

uSIng The DISc player 15

uSIng Dlna 16

playIng FIleS FrOM uSB DevIceS anD DaTa DIScS 16

lISTenIng TO auDIO SOurceS 18

lISTenIng TO yOur IpOD/IphOne/IpaD 18

lISTenIng TO MeDIa vIa aIrplay® 18

lISTenIng TO FM raDIO 19

cOnFIgurIng BDS FOr Speaker SySTeM 19

TrOuBleShOOTIng 20

SpecIFIcaTIOnS 22

aux cOMpOnenT reMOTe-cOnTrOl cODe lIST 23

Introduction

BDS 280/580

Introduction

Thank you for purchasing the Harman Kardon BDS 3D Blu-ray Disc™ system.

The Harman Kardon BDS systems are sleek, high-performance 2.1 (BDS 280) and 5.1

(BDS 580) channel 3D Blu-ray Disc™ system with high fidelity amplified sound.

In the years since Harman Kardon engineers invented the high-fidelity system, we

have taken to heart the philosophy of bringing the joy of home entertainment to as

many people as possible, adding performance and ease-of-use features that enhance

the experience. The BDS series of home entertainment systems offer a complete home

entertainment solution with a wealth of listening and viewing options in one sleek

system.

To get the maximum enjoyment from your new BDS system, we urge you to read this

manual thoroughly, which:

• Contains a description of the system’s features

• Lists the items included in the box

• Describes the BDS system and its components

• Includes step-by-step instructions that will help you set up and get started

with the BDS system

operation, please contact your retailer or custom installer, or visit our website at:

www.harmankardon.com

Description and Features

The BDS system features:

• 65W per channel of powerful, clear audio

• Three HDMI inputs (one with MHL/Roku-ready) with 3D, UHD (4K) pass-

through

• One HDMI output with Audio Return Channel (ARC), 2D to 3D conversion,

and UHD upscaling

• Wi-Fi connectivity for Apple AirPlay®, DLNA 1.5, system updates and

control, and streaming Internet services

• High quality Bluetooth audio streaming

• NFC for quick Bluetooth® pairing

• Dolby® Volume to maintain consistent sound levels without distracting

changes

Connect the BDS system to online sources such as Picasa, AccuWeather, and Pandora®.

The Harman Kardon BDS system is the world’s first Blu-ray system with Dolby Volume.

Enjoy the detail and clarity of your favorite movies and music in high fidelity sound with

Dolby TrueHD® and DTS-HD® (BDS 580) and DTS Digital Surround (BDS 280).

Unpacking

The carton and shipping materials used to protect your new system during shipment

were specially designed to cushion it from shock and vibration. We suggest that you

save the carton and packing materials for use in shipping if you move or if the unit ever

needs repair.

To minimize the size of the carton in storage, you may wish to flatten it. You can do it

by carefully slitting the tape seams on the carton’s bottom and collapsing it. You can

store cardboard inserts in the same manner. Packing materials that cannot be collapsed

should be saved along with the carton in a plastic bag.

If you do not wish to save the packaging material, note that the carton and other sections

of the shipping-protection materials are recyclable. Please respect the environment and

discard those materials at a local recycling center.

Remove the protective plastic film from the front-panel lens. Leaving the film in place

will affect the performance of your remote control.

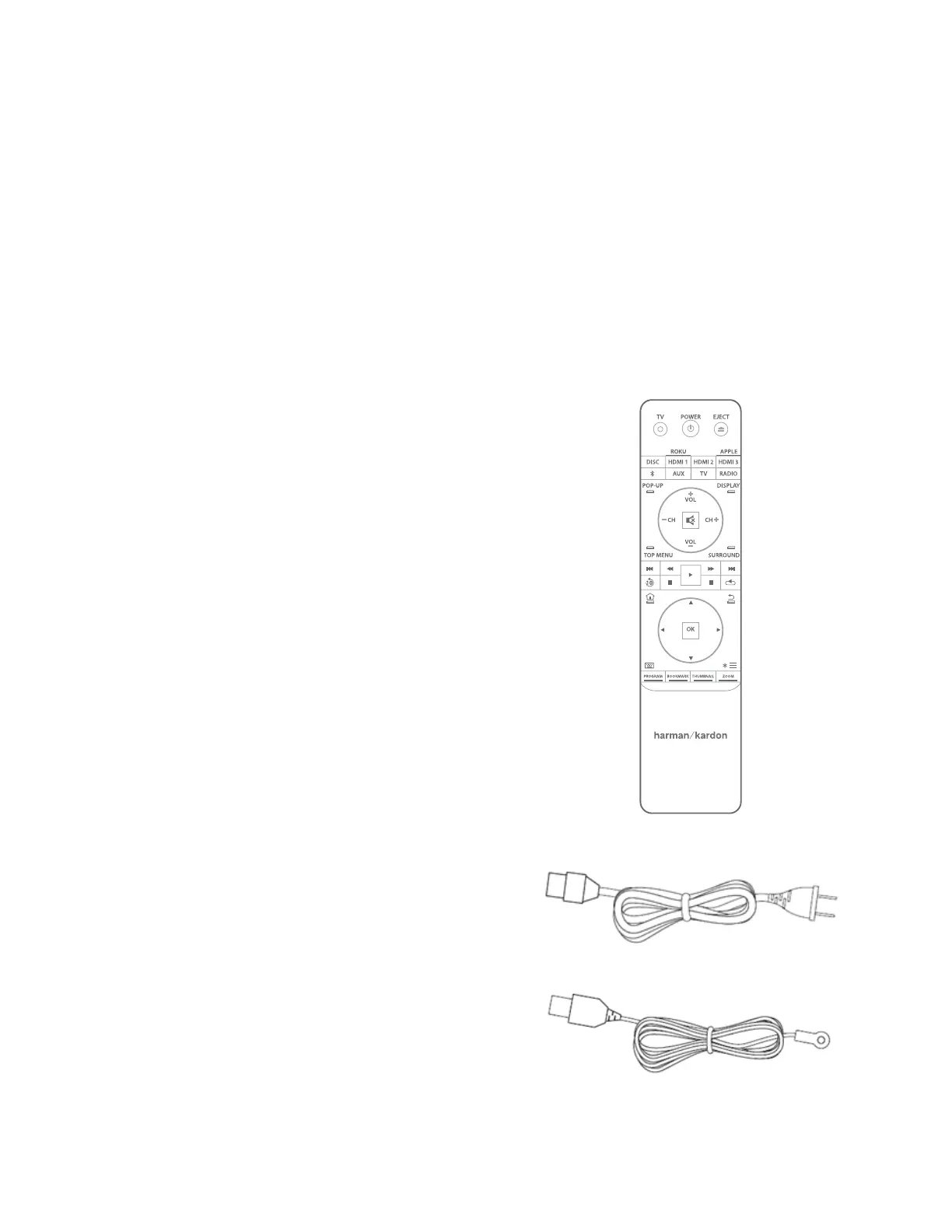

Included Items

The following are the items provided in the BDS system complete package.

• One Remote Control

• One Power Cord

• One FM Antenna

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Blu-ray-spiller
Modell:	BDS 580
Innebygd skjerm:	Ja
Bruksanvisning:	Ja
Bluetooth:	Ja
Wi-Fi:	Ja
Strømkildetype:	AC
FM-radio:	Ja
USB-versjon:	2.0
3D:	Ja
Karaoke:	Nei
HDMI inn:	3
FM-antenne:	Ja
Trådløs subwoofer:	Nei
FM-bånd:	87.5 - 108 MHz
Hovedenhetsvekt:	3720 g
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Batteritype:	AAA
Strømforbruk (standby):	1 W
Støttede bildeformater:	JPG
Støttede lydformater:	CBR, MP3, PCM, WMA
Produktfarge:	Sort
Antall USB-porter:	2
Antall støttede batterier:	2
Analogt signalformatsystem:	NTSC, PAL
Kabler inkludert:	AC, HDMI
MP3-avspilling:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Fjernkontroll medfølger:	Ja
Signal-til-støy-forhold (SNR):	90 dB
Innebygd harddisk:	Nei
Total Harmonic Distortion (THD):	1
Lyd-utgang kanaler:	5.1 kanaler
RMS-rangert strøm/utgangseffekt:	- W
Batterier medfølger:	Ja
Optisk diskettspillertype:	Blue-Ray Spiller
Display:	LCD
Innebygd TV-mottaker:	Nei
Støttede radiobånd:	FM
Støttede disktyper:	BD, BD-R, BD-R DL, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Sertifisert av Digital Living Network Alliance (DLNA):	Ja
Innebygd lyddekoder:	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS
Trådløse forbindelser:	Ja
Apple docking-kompabilitet:	Støttes ikke
USB direkte-avspilling:	Ja
Innlastingstype plate:	Spor
Dimensjoner på hovedenhet (BxDxH):	400.2 x 283.8 x 78.5 mm
Near Field Communication (NFC):	Ja
Frekvens (MHz):	20 - 20000
Trådløse satelitthøytalere:	Nei
MP3 bithastighet:	32 - 320 Kbit/s
