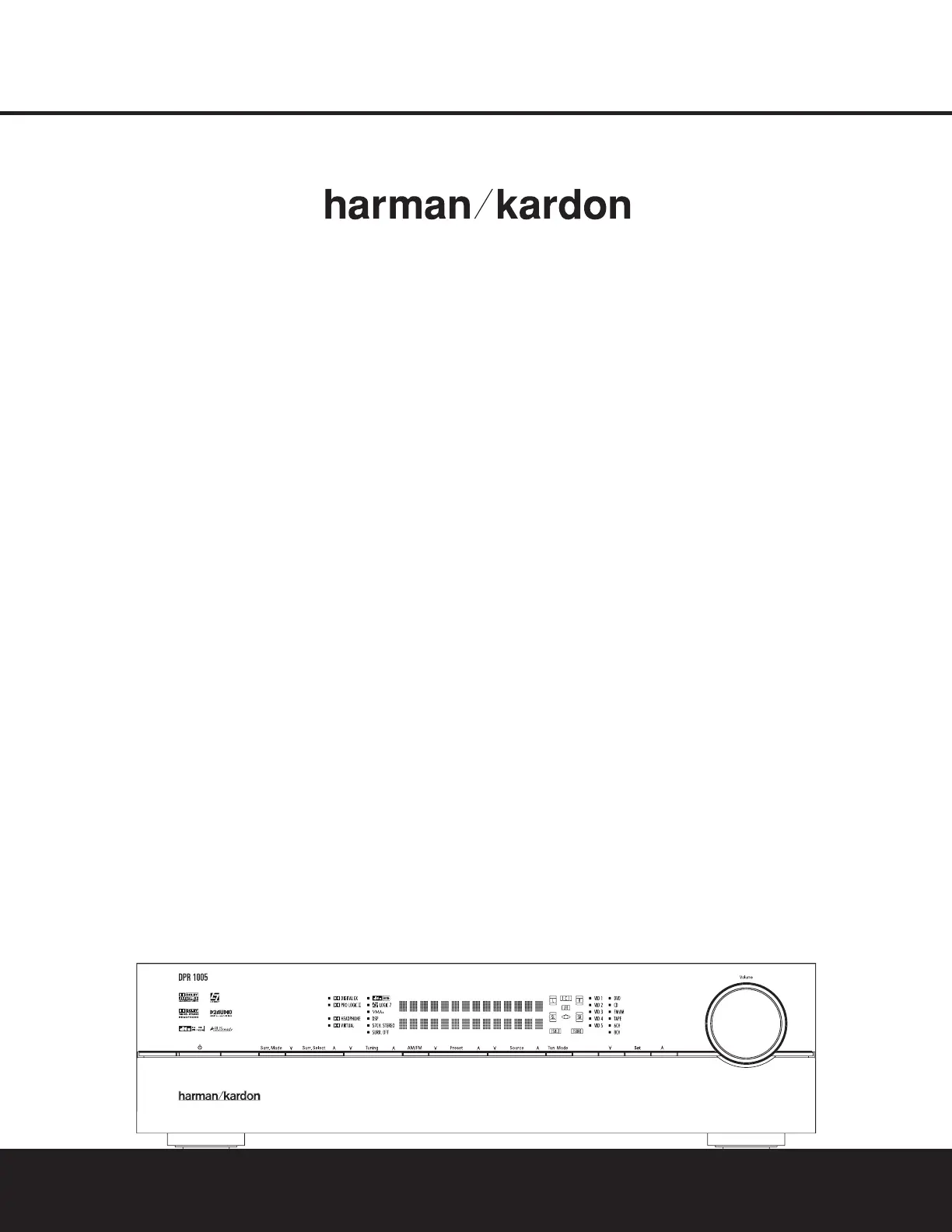

Side 1/52

DPR 1005

DIGITAL PATH RECEIVER

OWNER’S MANUAL

Power for the Digital Revolution.

DPR 1005 DIGITAL PATH RECEIVER

3 Introduction

4 Important Safety Information

4 Unpacking

5 Front-Panel Controls

8 Rear-Panel Connections

11 Main Remote Control Functions

15 Zone II Remote Control Functions

16 Installation and Connections

19 System Configuration

19 Speaker Placement

19 System Setup

20 Input Setup

22 Audio Setup

22 Surround Setup

24 Speaker Setup

26 Delay Settings

27 Output Level Adjustment

27 Using EzSet

28 Manual Output Level Adjustment

30 Operation

30 Basic Operation

30 Source Selection

30 6/8-Channel Direct Input

30 Volume and Tone Control

31 Surround Mode Selection

31 Digital Audio Playback

32 Surround Mode Chart

35 Tuner Operation

35 Tape Recording

35 Front-Panel Connections

36 Output Level Trim Adjustment

37 Advanced Features

37 Front-Panel Display Fade

37 Display Brightness

37 Turn-On Volume Level

37 Semi-OSD Settings

38 Full-OSD Time-Out Adjustment

39 Multiroom Operation

39 Multiroom Setup

39 Surround Amplifier Channel Assignment

40 Multiroom Operation

41 Configuring the Remote

41 Programming Remote Codes

41 Preprogrammed Code Entry

42 Automatic Code Entry

42 Learning Commands

43 Changing Devices

44 Macro Programming

46 Punch-Through Configuration

47 EzSet Configuration

48 Renaming

49 Resetting the Remote

51 Troubleshooting Guide

51 Processor Reset

52 Technical Specifications

See trademark acknowledgements on page 52.

2 TABLE OF CONTENTS

Typographical Conventions

In order to help you use this manual with the remote control, front-panel controls and rear-panel connections,

certain conventions have been used.

EXAMPLE – (bold type) indicates a specific remote control or front-panel button, or rear-panel

connection jack

EXAMPLE – (OCR type) indicates a message that is visible on-screen or on the front-panel

information display

EXAMPLE – (Synchro type) indicates a message that is displayed on the remote control’s LCD screen

1 – (number in a square) indicates a specific front-panel control

A – (letter in a square) indicates a front-panel control that is behind the drop-down door

¡ – (number in a circle) indicates a rear-panel connection

a – (number in an oval) indicates a button or indicator on the remote

– (letter in an oval) indicates a button on the Zone II remote

INTRODUCTION

Thank You for Choosing Harman Kardon

With the purchase of a Harman Kardon DPR 1005,

you are about to begin many years of listening enjoy-

ment. Thanks to its completely digital path system,

the

DPR 1005 is truly a receiver for the new millennium.

The DPR 1005 has a wide range of features and

options that accommodate virtually any combination

of speakers, room size and program sources. It is

as easy to operate as it is to set up, but in order to

take maximum advantage of the many advanced

technologies within your new DPR, it is strongly

recommended that you take a few minutes to read

this owner’s manual.

If you have any questions about this product, its instal-

lation or its operation, we recommend that you contact

your dealer or installer, as they are your best source

of local information. You may also access a wealth of

information and assistance by visiting our Web site

at www.harmankardon.com.

Description and Features

Harman Kardon’s breakthrough Digital Path Receiver

technology, of which the DPR 1005 is the second

generation, keeps signals in the digital domain from

the input to the output. Along with the newly designed

PWM digital amplifier, this not only reduces signal

degradation caused by digital-to-analog conversion

stages; the increased efficiency makes it possible to

reduce the DPR’s size and weight without sacrificing

performance.

The DPR 1005 is designed to serve as the hub of

your home entertainment system, providing a variety

of listening options. When playing movies or other pro-

gramming from digital formats such as DVD or HDTV,

the DPR decodes Dolby* Digital, Dolby Digital EX,

DTS

and DTS-ES.

Two-channel stereo and matrix

surround sources benefit from the new Pro Logic IIx

technology and DTS Neo:6.

A Harman Kardon exclu-

sive in receivers is the latest version of Logic 7

create a wider, more enveloping sound field and more

defined surround channel positioning, regardless of the

type of source material. Additional processing options

include MP3 decoding when connected to a compati-

ble computer and HDCD

for enhanced CD playback.

Advanced technology is also at work even when only

two speakers are used. Dolby Virtual Speaker modes

and Harman International’s proprietary VMAx

are both

available to create enveloping sound fields from the

front left and right speakers, while Dolby Headphone

circuitry creates an amazing sense of openness with

headphones.

Along with the many listening options, the DPR 1005

offers numerous settings that let you customize the

system. A Quadruple Crossover bass management

system configures each speaker group for a different

crossover setting, while the assignable, wide bandwidth

component video inputs may be linked to any video

source. To further enhance the viewing experience with

digital video sources or advanced digital video dis-

plays, the DPR 1005’s A/V Sync Delay feature allows

you to compensate for the loss of lip sync common in

many video processing systems by delaying the audio

signal independently for each input. An advanced ver-

sion of Harman Kardon’s patented EzSet remote com-

pletes the package, making it easier than ever to set

system output levels and to program the remote to

operate virtually any program source.

The DPR 1005’s multizone options and a standard

Zone II remote control make it possible to listen to a

separate source in one room while the main home

theater uses a different source. Thanks to assignable

rear surround channel amplifiers, you may create a

basic remote listening zone without any additional

equipment. The unit’s Multiroom outputs may also be

used to feed an optional, external power amplifier and

volume control. For one-wire multiroom connectivity,

the DPR 1005 is A-BUS Ready,

requiring only a sin-

gle Category 5/5e cable and an optional remote mod-

ule to power remote speakers while controlling volume

and enabling full control over the program source and

compatible IR-controlled devices.

Combining state-of-the-art circuitry, digital technology

and proven performance with an elegant design that

is compatible with the latest source components and

video displays, the DPR 1005 represents the culmina-

tion of Harman Kardon’s 50-year history of delivering

the finest sonic performance.

For Canadian model

Modèle pour les Canadien

■ All popular digital and matrix surround modes,

including Dolby* Digital, Dolby Digital EX,

Dolby Pro Logic* IIx, DTS,

DTS-ES

Discrete

and Matrix, DTS Neo:6

and DTS 96/24

■

Harman Kardon’s exclusive Logic 7

processing,

along with a choice of either Dolby Virtual

Speaker or VMAx

processing for use when

only two speakers are available

■ Dolby Headphone to create spacious, open

sound fields when using headphones

■ HDCD

decoding for enhanced CD playback,

and MP3 decoding for use with compatible

computers

■ High-bandwidth, HDTV-compatible component

video inputs may be assigned to any video input

■ Full bass management for all inputs, including

the analog direct inputs for DVD-Audio and

SACD players, including Quadruple Crossover

and individual settings for each input

■ A/V Sync delay adjustable for each input

delivers perfect lip sync with digital programs

or video displays

■ Front-panel analog audio/video jacks may

be used as either inputs or outputs for

connection to portable products or video

game consoles

■ Extensive Multiroom options, including a

standard Zone II remote, assignable rear-

channel amplifier channels and A-BUS Ready

capability for listening to a separate source in

a remote zone

■ Easy-to-program remote with two-

line LCD display automatically sets output

levels for optimal performance

Cet appareil numérique de la classe B est conforme

à la norme NMB-003 du Canada.

Sur les modèles dont la fiche est polarisee:

ATTENTION: Pour éviter les chocs électriques, introduire

la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

This class B digital apparatus complies with Canadian

ICES-003.

For models having a power cord with a polarized plug:

CAUTION: To prevent electric shock, match wide blade

of plug to wide slot, fully insert.

INTRODUCTION 3

, HDCD

, High Definition Compatible Digital

and Pacific Microsonics

™

are either registered trademarks

or trademarks of Pacific Microsonics, Inc., in the United States and/or other countries. HDCD system manufactured

under license from Pacific Microsonics, Inc.
