Side 1/20

HK 3700/3770

Stereo Receiver

Owner’s Manual

Table of Contents

HK 3700/3770

INTRODUCTION 3

DESCRIPTION AND FEATURES 3

IMPORTANT SAFETY INFORMATION 4

PLACING THE STEREO RECEIVER 4

HK 3700/3770 RECEIVER FRONT PANEL CONTROLS 5

HK 3700/3770 RECEIVER REAR PANEL CONNECTIONS 7

REMOTE CONTROL FUNCTIONS 9

PLACING YOUR SPEAKERS 10

CONNECTIONS 11

PREPARING THE REMOTE CONTROL 12

SETTING UP THE NETWORK 13

OPERATIONS 13

HARMAN REMOTE APP 16

SOFTWARE UPDATE 16

TROUBLESHOOTING 17

SPECIFICATIONS 18

Introduction

HK 3700/3770

Introduction

Thank you for purchasing the Harman Kardon® HK 3700/3770 stereo receiver, with

which you are about to begin many years of listening enjoyment. The HK 3700/3770

stereo receiver combines the powerful, detailed sound of Harman Kardon two-channel

audio with modern digital connectivity.

To obtain maximum enjoyment from your new receiver, we urge you to take a few

minutes to read through this manual, which:

• Contains a description of the features of HK 3700/3770 stereo receiver

• Lists the items included in the box

• Describes the HK 3700/3770 stereo receiver and its components

• Includes step-by-step instructions that will help you set up and get started

with the HK 3700/3770 stereo receiver

In addition, a few minutes spent learning the functions of various controls will allow

you to take advantage of all the power and refinement of the HK 3700/3770 stereo

receiver. Refer back to this manual as you become more familiar with its features and

operation.

or its operation, please contact your retailer or custom installer, or visit our website at:

www.harmankardon.com

Description and Features

Harman Kardon heritage and brand legacy has been its two-channel audio for many

years. As more and more audio content comes from multiple digital-based sources such

as a smart TV, smartphone or tablet, playback convenience becomes the driving factor

in entertainment while sound quality remains the foundation of Harman Kardon. The

new Harman Kardon HK stereo receivers try to bring the best of both worlds: beautiful

two-channel stereo sound and the latest digital-based source access.

The following are the features and benefits of the HK 3700/3770 stereo receivers:

• Harman Kardon sound — This has been the foundation of the brand for

many years. High power, high current capability with stable power output.

• Connectivity — HK stereo receivers feature the best of both worlds; classic

analog inputs including a phono preamplifier and FM/AM radio as well as

new digital connectivity with Bluetooth, network DLNA, vTuner internet

radio, USB file playback, iOS direct through USB, and coaxial and optical

digital inputs with a premium DAC.

• Distinctive and elegant design — The attractive design of the

HK 3700/3770 is a modern, sleek update to the classic Harman Kardon

receiver.

• Advanced remote control — The new stereo receivers also support

complete control from the Harman Kardon Remote app, available for both

Android and iOS.

Included Items

The complete package of HK 3700/3770 stereo receiver includes the following:

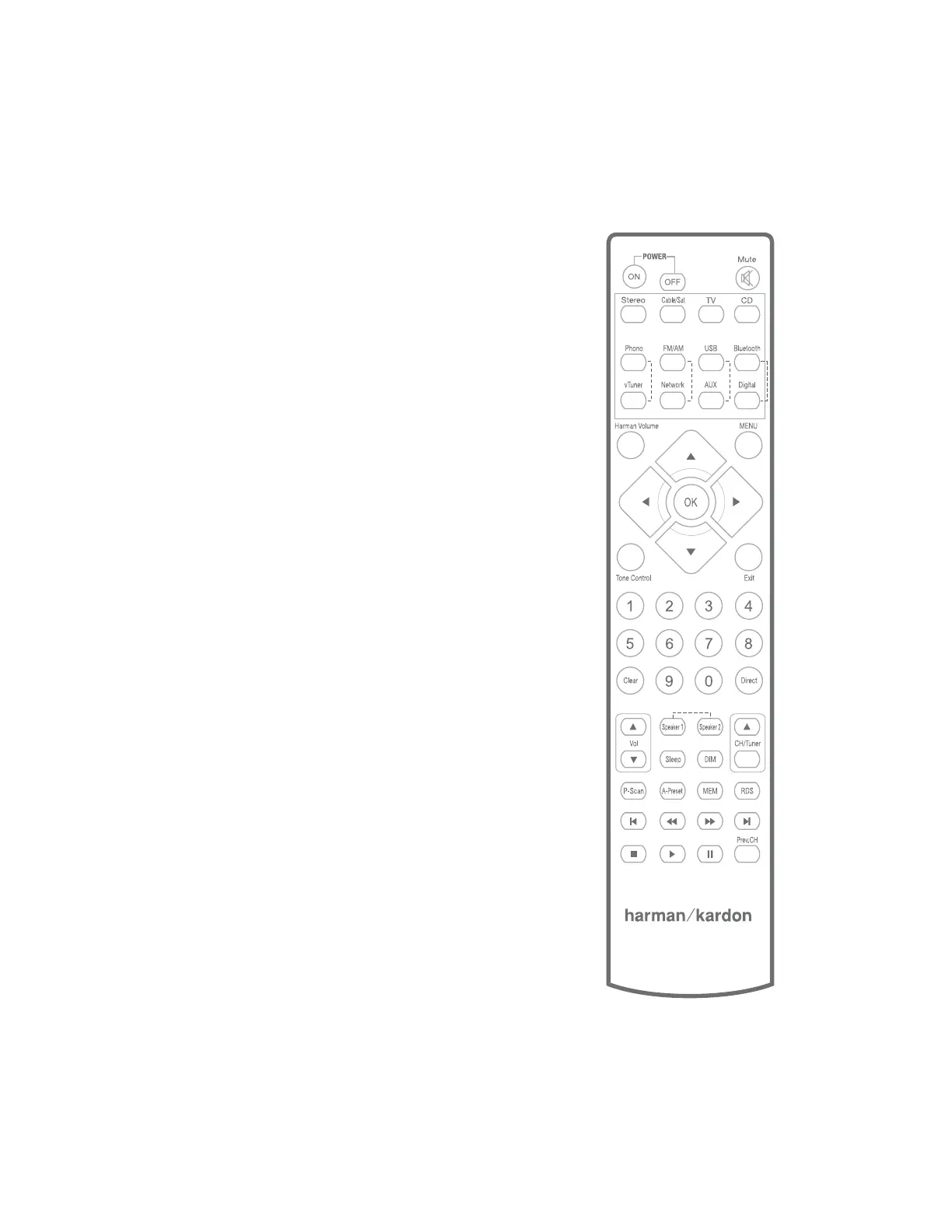

• System remote control

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Mottaker
Modell:	HK 3770
Vekt:	6000 g
Bredde:	440 mm
Dybde:	300 mm
Høyde:	121 mm
Bruksanvisning:	Ja
Bluetooth:	Ja
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Garantikort:	Ja
Hodetelefonutganger:	1
3D:	Nei
FM-antenne:	Ja
12V trigger:	Ja
AM-antenne:	Ja
AC-inngangsspenning:	220-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Strømforbruk (standby):	0.5 W
Produktfarge:	Sort
Antall USB-porter:	1
Strømforbruk (vanlig bruk):	480 W
Lydinngang (V/H) inn:	5
Strøminngang/AC (strøm) inn:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Signal-til-støy-forhold (SNR):	100 dB
Optisk stasjon inkludert:	Nei
Ethernet/bredbåndsforbindelse:	Ja
Lyd-utgang kanaler:	2.0 kanaler
Lydutgang (venstre/høyre):	2
Batterier medfølger:	Ja
Fjern (IR)-utgang:	1
Mottakertype:	Stereo
Støttede radiobånd:	AM, FM
Sertifisert av Digital Living Network Alliance (DLNA):	Ja
Frekvensrekkevidde:	10 - 130000 Hz
Phono-innganger (RCA):	1
Lyd D/A-konverterer (DAC):	24-bit/192kHz
Digital optisk lydinngang:	2
Effekt pr. kanal (20-20KHz@8 Ohm):	120 W
Digital koaksialinngang for lyd:	1
Tilkoblingstype høyttalere:	Banan kontakt
Fjerninngang (IR):	1
12V-utløserporter, antall:	1
AM antenneporter, antall:	1
