Side 1/18

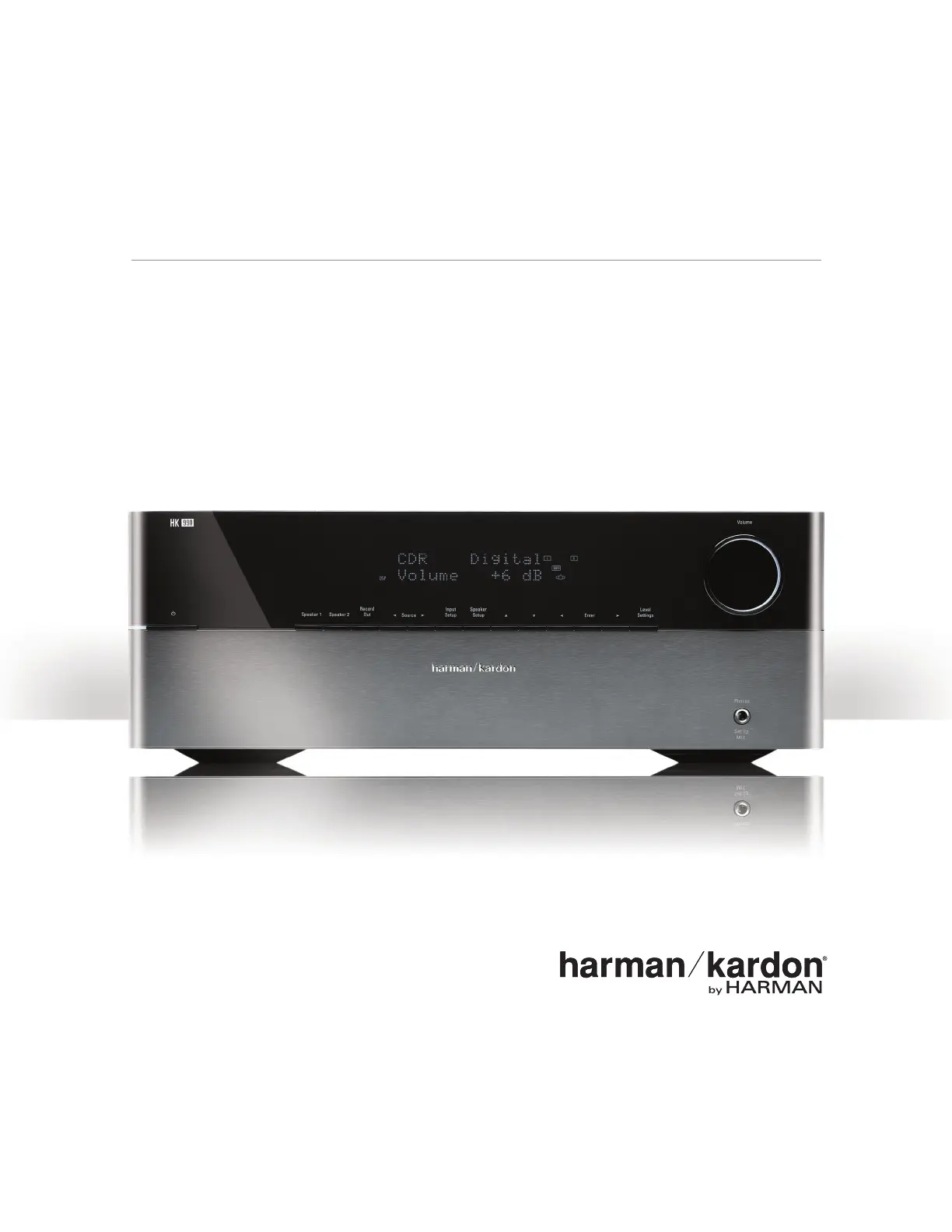

Integrated ampliﬁer

HK 990

Owner’s Manual

Table of Contents

HK 990

SAFETY INSTRUCTIONS 3

INTRODUCTION AND FEATURES 4

FRONT PANEL CONTROLS AND FUNCTIONS 5

REAR PANEL CONNECTIONS 6

REMOTE CONTROL 8

REMOTE CONTROL FUNCTION LIST 10

SETUP INSTRUCTIONS 11

Input Setup 11

Speaker Setup 12

EzSet/EQ Setup 12

Level Setup 13

OPERATING INSTRUCTIONS 14

Listening 14

Recording 14

TROUBLESHOOTING 15

SPECIFICATIONS 16

Safety Instructions

HK 990

Important Safety Instructions

Read these instructions.1.

Keep these instructions.2.

Heed all warnings.3.

Follow all instructions.4.

Do not use this apparatus near water.5.

Clean only with a dry cloth.6.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.7.

Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.8.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type 9.

plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.10.

Only use attachments/accessories specified by the manufacturer.11.

Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. 12.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time.13.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug 14.

is damaged, liquid has been spilled or objects have fallen into the apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally

or has been dropped.

Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.15.

To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.16.

The mains plug of the power supply cord shall remain readily operable.17.

Do not expose batteries to excessive heat such as sunshine, fire or the like.18.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be

authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is

prohibited.

In order to use the HRS-Link feature in this product, use only the cable provided by the manufacturer to connect this product to another product. This cable uses ferrite sleeves to

suppress radiated interference. Use of any cable not supplied by the manufacturer may void the user’s authority to operate the equipment.

CAUTION

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO

ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE

(SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE PRODUCT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE.

THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL

TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED

“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF

SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SEE MARKING ON BACK OF PRODUCT.

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Mottaker
Modell:	HK 990
Innebygd skjerm:	Ja
Vekt:	19600 g
Bredde:	440 mm
Dybde:	444 mm
Høyde:	116 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Hodetelefonutganger:	1
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 Hz
Strømforbruk (standby):	1 W
Produktfarge:	Sort
Strømforbruk (vanlig bruk):	1000 W
Fjernkontroll medfølger:	Ja
Signal-til-støy-forhold (SNR):	75 dB
Lyd-utgang kanaler:	2.2 kanaler
Formål:	Hjem
Utjevner/frekvenskorrigerer:	Ja
Frekvensrekkevidde:	20 - 100000 Hz
Digital optisk lydinngang:	2
Digital koaksialinngang for lyd:	2
Dynamisk effekt pr. kanal (4 Ohm):	440 W
Inngangssensitivitet:	350 mV
Linje innganger (RCA):	8
Peak effekt per kanal:	150 W
Dynamisk effekt pr. kanal (8 Ohm):	220 W
Dempningsfaktor:	200
Forutinnstilt utgående port:	Ja
