Side 1/8

HKTS30SAT-2

Designed to Entertain.

™

User Guide

English

Two Satellite Speakers

0209CSK - HK HKTS30SAT-2 Inlay.indb 1 09/04/10 8:55:57

2 3

Introduction

Thank you for purchasing the Harman Kardon

HKTS30SAT-2 speaker pair, with which

you’re about to begin many years of listening enjoyment. While state-of-the-art speaker

components are hard at work within the HKTS30SAT-2, hookup is simple. Color-coded

cables make the HKTS30SAT-2 easy to use.

To obtain maximum enjoyment from your new speaker system, we urge you to take a few

minutes to read through this manual. It will help ensure that the connections you make to

your receiver or amplifier are correct.

If you have any questions about this product, its installation or its operation, please

contact your dealer, the best local source of information.

Description and Features

The HKTS30SAT-2 is a pair of SAT- satellite speakers, each of which features:

Dual 3" (75mm) video-shielded midrange drivers

•

One 3/4" (19mm) video-shielded dome tweeter

•

A sealed enclosure

•

A built-in, removable base

•

A wall-mount bracket

•

Color-coded connecting cables

•

The speaker cables all use a color-coding system to conform to the Consumer Electronics

Association (CEA) standard. This color-coding system minimizes confusion when

connecting the speakers, especially when you are connecting them to a Harman Kardon

receiver.

Optional HTFS 3/E floor stands are available separately from your Harman Kardon dealer.

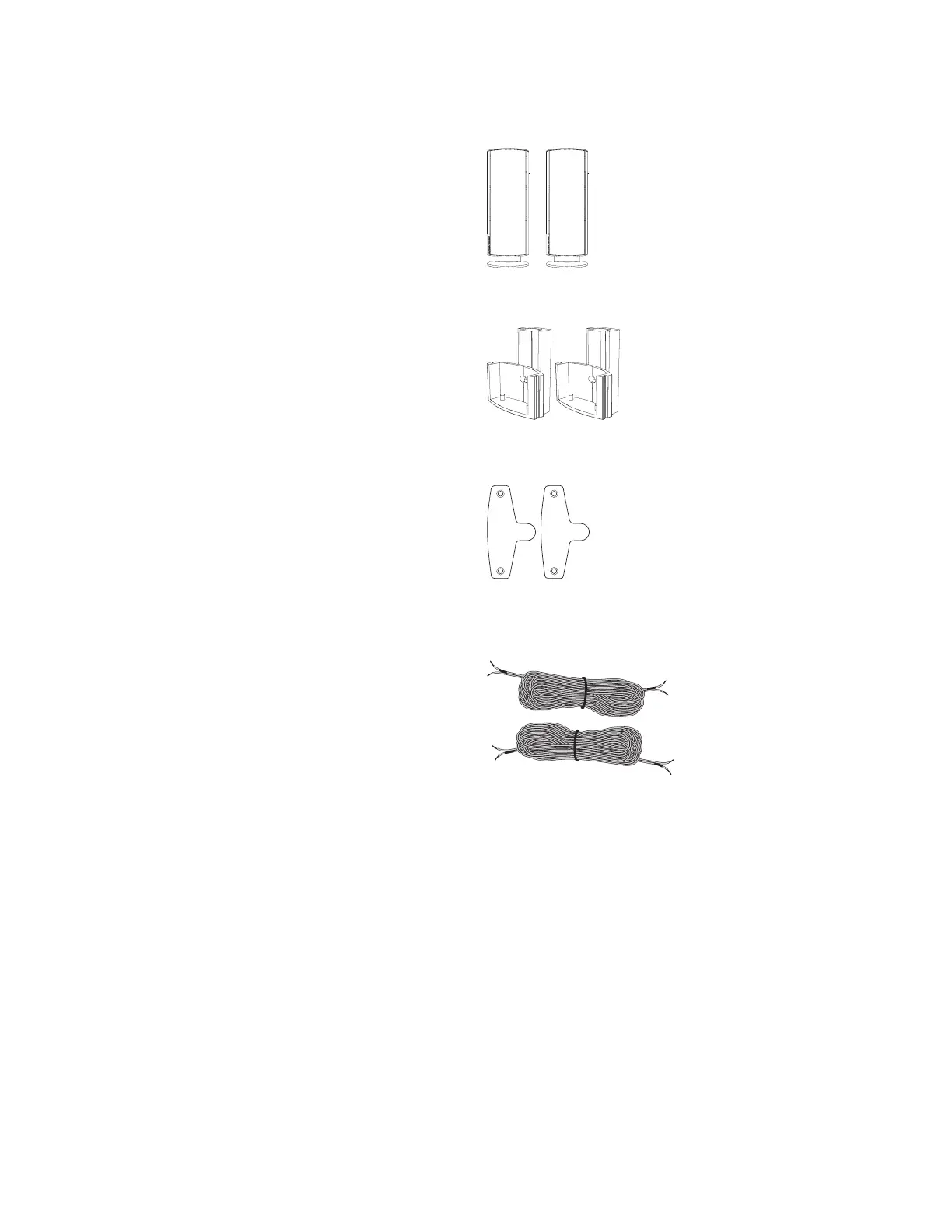

Two SAT-TS30 satellite speakers

Two wall-mount brackets

Two metal stop plates and screws

Two 10-meter (32.8-foot) speaker cable

(brown and tan color bands)

Harman Kardon®

HKTS30SAT-2

Included

0209CSK - HK HKTS30SAT-2 Inlay.indb 2 09/04/10 8:55:59

2 3

ENGLISH

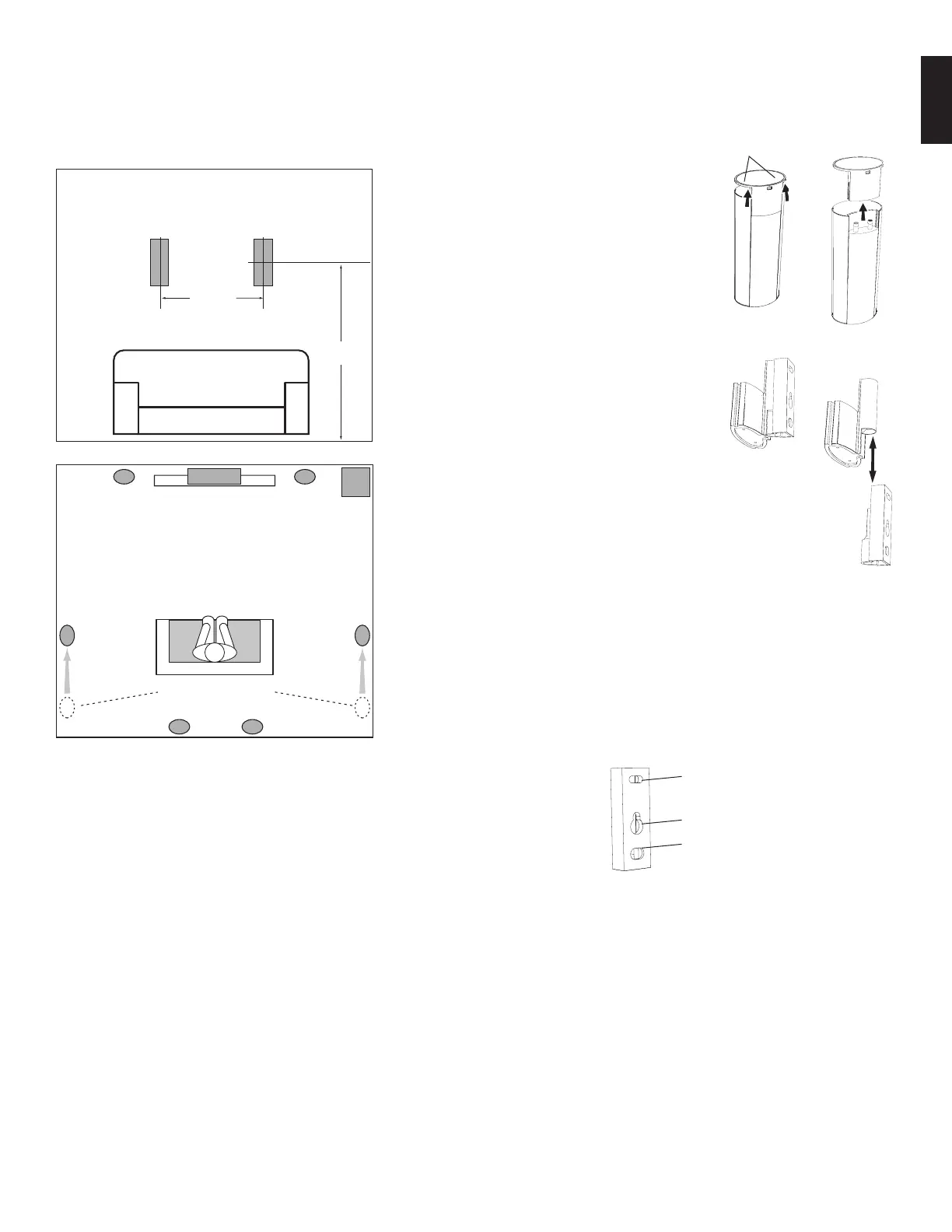

Speaker Placement

Expanding a 5.1-Channel System to a 7.1-Channel System

The surround back speakers should be placed against the rear wall directly behind the

listeners, 3–6 feet (0.9m–1.8m) apart, 5–6 feet (1.5m–1.8m) off the floor.

Surround Back

Right Speaker

3 - 6 ft

(0.9m - 1.8m)

5 - 6 ft

(1.5m - 1.8m)

Surround Back

Left Speaker

Center

Speaker

If original surround speakers are

behind listeners, move them to a point

to directly at listeners' sides

Front Left

Speaker

Surround Left

Speaker

Surround Right

Speaker

Surround Back

Right Speaker

Surround Back

Left Speaker

Front Right

Speaker

Subwoofer

NOTE: If your original surround speakers are located behind the listeners, you should move

them up so they are directly to the listeners’ sides.

If You’re Adding to an Existing HKTS 30 Speaker System:

Your HKTS30SAT-2 speakers are designed to expand an existing HKTS30 speaker system

from 5.1 channels to 7.1 channels. You can connect the HKTS30SAT-2 speakers to your

receiver’s or amplifier’s surround back left and surround back right outputs.

If You’re Adding to an Existing HKTS 20 Speaker System:

Your HKTS30SAT-2 speakers are designed to expand an existing HKTS20 speaker system

from 5.1 channels to 7.1 channels by replacing the existing front left and front right

speakers. You can then connect your existing HKTS20 front left and front right speakers to

your receiver’s or amplifier’s surround back left and surround back right outputs.

Mounting Options for HKTS30SAT-2 Speakers

Shelf Placement

You can place the HKTS30SAT-2 speakers on

shelves. The satellite speakers have built-in bases

for shelf placement. You can also remove the

bases if desired.

To remove a speaker’s base, pull it straight off the

speaker, as shown in the illustration. Applying

even pressure to both sides of the base will allow

it to slide off smoothly.

Wall-Mounting

IMPORTANT: Read the Speaker Connections

section, on page 5, before wall-mounting the

HKTS30SAT-2 speakers. You will need to insert

the speaker wires through the wall mounts and

connect the wires to the speakers during the

process of installing the wall-mounts.

NOTE: If you are using your own speaker wire, it must be no

thicker than the wire supplied with the speakers. Thicker wire will

prevent the wall-mount bracket from sliding onto the speaker.

Decide on the location for the speaker 1.

(see Speaker Placement, opposite).

Remove the speaker’s base as explained in 2. Shelf Placement, above.

Disassemble the wall-mount bracket by sliding the two sections apart, as shown in 3.

the illustration.

Attach the wall portion of the wall-mount onto the wall using hardware that is 4.

appropriate for the wall’s construction and materials. We recommend first anchoring

the mount using its keyhole, then attaching it with another anchor through its top

opening, as shown in the illustration. Note that the HKTS30SAT-2 speakers weigh

3.3 lb (1.5kg). Be sure to use hardware that can support this weight.

Top Opening

Keyhole Opening

Bottom Opening

Apply Pressure Evenly

to Both Sides of Base

Lift Base Straight

off Speaker

Pull Sections

Apart

0209CSK - HK HKTS30SAT-2 Inlay.indb 3 09/04/10 8:56:01

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Høyttaler
Modell:	HKTS 30SAT-2
Vekt:	1497 g
Dybde:	3.47 "
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	Støttes ikke
Anbefalt bruk:	Høyttalersett
Høyttalerplassering:	Tabletop/bookshelf, Wall-mountable
Forsterker:	Nei
Produktfarge:	Sort
Modell/Type:	Hjemmekinohøyttalere
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	- W
Antall drivere:	3
Høyttaler type:	3-veis
Frekvensrekkevidde:	120 - 20000 Hz
Høyde (imperial):	11.78 "
Bredde (imperial):	11.34 "
