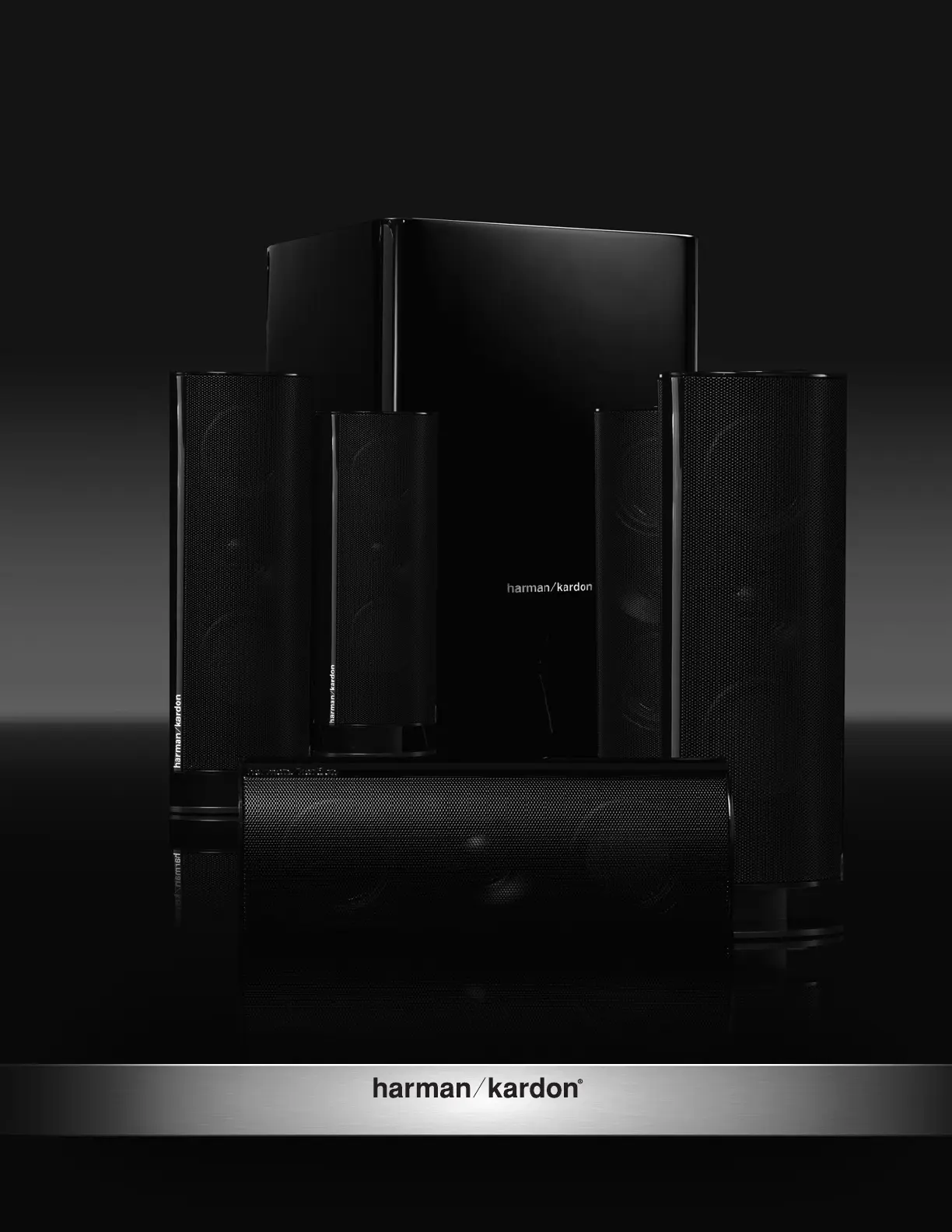

Designed to Entertain.

™

HKTS 60BQ/230

User Guide

English

Home Theater Speaker System

0176CSK - HK HKTS60BQ-230 v2 press.indd 1 13/11/09 11:24:25

2 3

Harman Kardon® HKTS 60

Typographical Conventions

We have employed certain conventions to help you use this manual:



– (number in a circle) – Indicates a rear-panel control or connection on the illustration of the HKTS200SUB subwoofer

Example (bold type) – Indicates the name of a specific control or rear-panel connection on the HKTS200SUB subwoofer

EXAMPLE (OCR type) – Indicates a control or switch setting on the HKTS200SUB subwoofer

Important Safety Instructions

Please read the following precautions before use:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding-type plug has two blades

and a third grounding prong. The wide blade or the third prong is provided for your safety. If

the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the

manufacturer or sold with the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled

with liquids, such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains, disconnect the power

supply cord plug from the AC receptacle.

17. The mains plug of the power supply cord shall remain readily operable.

18. Do not expose batteries to excessive heat such as sunshine, fire or the like.

Declaration of Conformity

We, Harman Consumer, Consumer Division

8500 Balboa Blvd.

Northridge, CA 91329

USA

As the manufacturer and through our representative within

the EU

Harman Consumer, Consumer Division

2, route de Tours

72500 Chateau du Loir

France

Do declare under our sole responsibility that the product listed

below conforms to the requirements of the Directive(s) and

Standards listed here in.

Model(s): HKTS60BQ/230

Directives to which Conformity is declared:

2004/108/EC – EMC Directive, as amended.

1999/5EC – R&TTE Directive, as amended.

2006/95/EC – Low Voltage Directive, as amended

2005/32/EC – Energy Using Products Directive, as amended

Harmonized Standards Applied to show Conformity:

EN 55013:2001+A1:2003+A2:2006

EN 55020:2007

EN 61000-3-2:2006

EN 61000-3-3:1995+A1:2001+A2:2005

EN 60065:2002+A11:2008

EN 60825-1:2007

ETSI EN 300 328 V1.7.1 (2006-10)

ETSI EN 301 489-1 V1.8.1 (2008-04)

Laurent Rault

Harman Consumer Group, Inc.

Château du Loir, France 10/09

CAUTION

The lighTning flash wiTh arrowhead symbol,

wiThin an equilaTeral Triangle, is inTended To

alerT The user To The presence of uninsulaTed

“dangerous volTage” wiThin The producT’s

enclosure ThaT may be of sufficienT magniTude To

consTiTuTe a risk of elecTric shock To persons.

warning: To reduce The risk of fire or elecTric

shock, do noT expose This apparaTus To rain or

moisTure.

The exclamaTion poinT wiThin an equilaTeral

Triangle is inTended To alerT The user To The

presence of imporTanT operaTing and mainTenance

(servicing) insTrucTions in The liTeraTure

accompanying The producT.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

see marking on back of producT.

0176CSK - HK HKTS60BQ-230 v2 press.indd 2 13/11/09 11:24:25

2 3

ENGLISH

Introduction

Thank you for purchasing the Harman Kardon

HKTS 60 speaker system, with which

you’re about to begin many years of listening enjoyment. The HKTS 60 has been custom

designed to provide all the excitement and power of the cinema experience in your own

living room.

While sophisticated electronics and state-of-the-art speaker components are hard at

work within the HKTS 60, hookup and operation are simple. Color-keyed cables and

connections, and simple controls make the HKTS 60 easy to use.

To obtain maximum enjoyment from your new home theater speaker system, we urge

you to take a few minutes to read through this manual. This will help ensure that the

connections you make to your receiver (or preamp/processor), amplifier and other devices

are correct. In addition, a few minutes spent learning the functions of the various controls

will enable you to take advantage of all the power and refinement the HKTS 60 is able to

deliver.

If you have any questions about this product, its installation or its operation, please

contact your dealer, the best local source of information.

Description and Features

The HKTS 60 is a complete six-piece home theater speaker system that includes:

An 8-inch, 200-watt powered subwoofer

•

Four identical two-way video-shielded dual-driver satellite speakers for the left and

•

right front, and left and right rear (surround) speaker positions

A dedicated, voice-matched, video-shielded, dual-driver center speaker

•

Removable bases and wall-mount brackets for the satellite speakers and a wall-

•

mount bracket for the center speaker

All of the cables you need to connect all of the speakers to your receiver or preamp/

•

processor and amplifier.

The speaker cables all use a color-coding system to conform to the Consumer Electronics

Association (CEA) standard. This color-coding system minimizes confusion when

connecting the speakers, especially when you are connecting them to a Harman Kardon

receiver.

The HKTS200SUB subwoofer is equipped with a special LFE input that simplifies

connection to receivers and preamp/processors with dedicated subwoofer outputs that

carry low-frequency signals. Other conveniences include a level control, a phase switch for

fine-tuning bass response to suit your listening environment and taste, and an efficient

switching system that senses the presence of an audio signal and automatically switches

the subwoofer from standby mode to on.

Wall-mount brackets are included for the satellite and center speakers, and shelf stands

are included for the satellite speakers. Optional HKFS3 floorstands are available separately

from your Harman Kardon dealer. Harman Kardon invented the high-fidelity receiver fifty

years ago. With state-of-the-art features and time-honored circuit designs, the HKTS 60 is

a perfect complement to a Harman Kardon receiver, or any home theater system.

Four satellite speakers for front left/right and surround left/right

One center speaker

One powered subwoofer

Four wall-mount brackets for satellite

speakers

One wall-mount bracket for

center speaker

Four metal stop plates and screws

(for satellite speaker wall-mount brackets)

One combination LFE and trigger cable for

connection to the subwoofer

(LFE cable has purple connectors)

One 4-meter (13.1-foot) speaker cable for

center speaker (green color bands)

Two 5-meter (16.4-foot) speaker cables for

front satellites (red and white color bands)

Two 10-meter (32.8-foot) speaker cables for

rear satellites

(gray and blue color bands)

Harman Kardon® HKTS 60 Included

0176CSK - HK HKTS60BQ-230 v2 press.indd 3 13/11/09 11:24:26

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Høyttaler
Modell:	HKTS 60BQ/230
Strømkilde:	AC
Anbefalt bruk:	Hjemmekino
Antall satellitter:	5
Produktfarge:	Sort
Satelitthøyttalerens dimensjoner (BxDxH):	110 x 88 x 299 mm
Subwoofer-vekt:	9000 g
Lyd-utgang kanaler:	5.1 kanaler
RMS-rangert strøm/utgangseffekt:	- W
Satelitthøyttalere RMS-strøm:	- W
Subwoofer RMS-styrke:	200 W
Frekvensomfang for satelitthøyttaler:	35 - 20000 Hz
Senterhøyttaler vekt:	1450 g
Subwooferens dimensjoner (BxDxH):	267 x 267 x 353 mm
Senterhøyttalerens dimensjoner (BxDxH):	272 x 88 x 110 mm
Impedans for senterhøyttaler:	8 Ω
Fasekontroll:	Ja
Forsterkerenhet medfølger:	Nei
Impedans for satellitthøyttaler:	8 Ω
Satelitthøyttalervekt:	1500 g
Fronthøyttalertype:	2-veis
Veggmonterbare satelitthøyttalere:	Ja
Veggmonterbar senterhøyttaler:	Ja
