Side 1/8

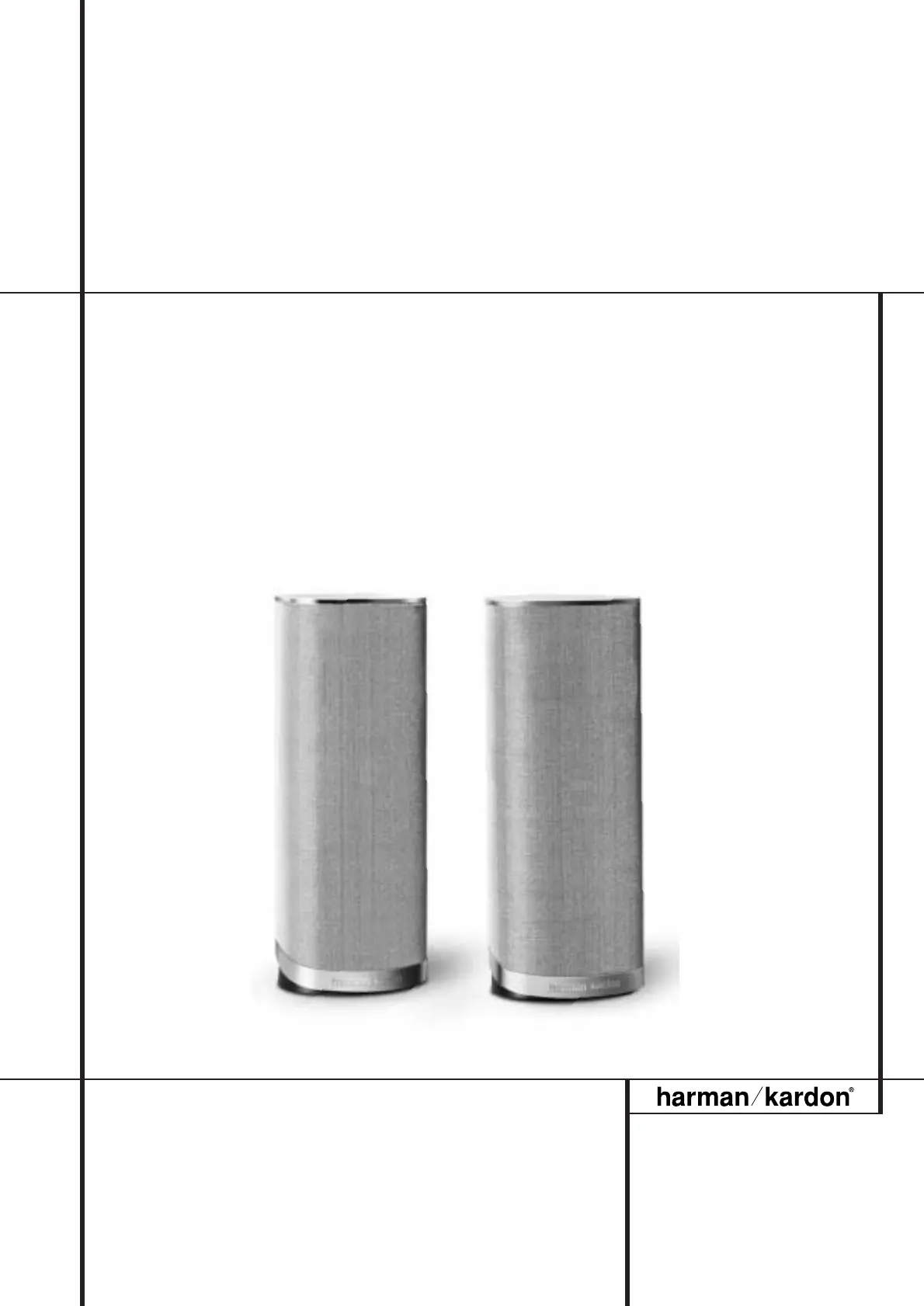

HKS 4 Surround Loudspeakers

OWNER’S MANUAL

Power for the Digital Revolution

2 TABLE OF CONTENTS

3 Introduction

4 Speaker Placement

5 Mounting Options

6 Speaker Connections

6 Connection Guide

6 Configuring your Receiver or Processor

7 Troubleshooting

8 Specifications

Table of Contents

Declaration of Conformity

We, Harman Consumer International

2, Route de Tours

72500 Château-du-Loir,

FRANCE

declare in own responsibility, that the product described in this

owner’s manual is in compliance with technical standards:

EN 60065:1998

EN 55013/A14:1999

EN 55020/A14:1999

EN 61000-3-2/A14:2000

EN 61000-3-3/1.1995

EN 50081-1:1992

EN 50082-1:1992

Carsten Olesen

Harman Kardon Europe

01/04

INTRODUCTION 3

Introduction

Thank you for purchasing the Harman Kardon

HKS 4, with which you’re about to begin many

years of listening enjoyment. The HKS 4 has

been custom-designed to provide all the excite-

ment and power of the cinema experience in

your own living room.

The HKS 4 loudspeakers are suitable for upgrad-

ing almost any 5.1 home theater system to 7.1

channels when used with a 7.1-channel receiver

or processor and any necessary additional ampli-

fiers.

To obtain maximum enjoyment from your new

speakers, we urge you to take a few minutes to

read through this manual. This will ensure that

connections to your receiver or preamp/proces-

sor and amplifier or other external devices are

made properly. In addition, a few minutes spent

learning the functions of understanding the

setup options will enable you to take advantage

of all the power and refinement the HKS 4 is

able to deliver.

If you have any questions about this product, its

installation or operation, please contact your

dealer, the best local source of information.

Description and Features

The HKS 4 is a pair of 2-way satellite speakers

for use in a home theater system. The HKS 4

speakers are identical to the satellites in the

Harman Kardon HKTS 11 system, and are

designed to be used with the HKTS 11 in a com-

plete 7.1-channel home theater. Color-coded

speaker cables are included to facilitate

installing the speakers in the surround back left

and right positions.

Shelf stands and wall-mount brackets are includ-

ed for the satellite speakers, and optional HTFS 2

floor stands are available separately from your

Harman Kardon dealer.

Harman Kardon invented the high-fidelity receiv-

er fifty years ago. With state-of-the-art features

and time-honored circuit designs, the HKS 4 is a

perfect complement to a Harman Kardon receiv-

er or any home theater system.

■ Matched Pair of Loudspeakers for Use

in Multichannel Applications

■ Speakers Are Magnetically Shielded

for Flexible Placement Near Video

Monitors

■ Three-Inch Driver

■ One-Half-Inch Balanced-Dome Tweeter

■ Metal-Wire-Mesh Grille

■ Elegant Cabinet

■ Shelf Stands, Wall-Mount Brackets and

Color-Coded Speaker Cables Are

Included

■ May Be Used With Optional Floor

Stands

Included

Two satellites for left, right and surrounds

(shown with included shelf stands attached)

Two wall-mount brackets

Two 12-meter speaker cables for connection

from receiver to speakers.

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Høyttaler
Modell:	HKTS16BQ/230
Vekt:	1000 g
Bredde:	100 mm
Dybde:	92 mm
Høyde:	243 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	AC
Anbefalt bruk:	Universell
Impedans:	8 Ω
Høyttalerplassering:	Bord bokhylle
Diskanthøyttaler:	Ja
Produktfarge:	Sort
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	10 W
Frekvensrekkevidde:	105 - 20000 Hz
Sensitivitet/følsomhet:	86 dB
Diskanthøyttalerens diameter:	0.75 "
