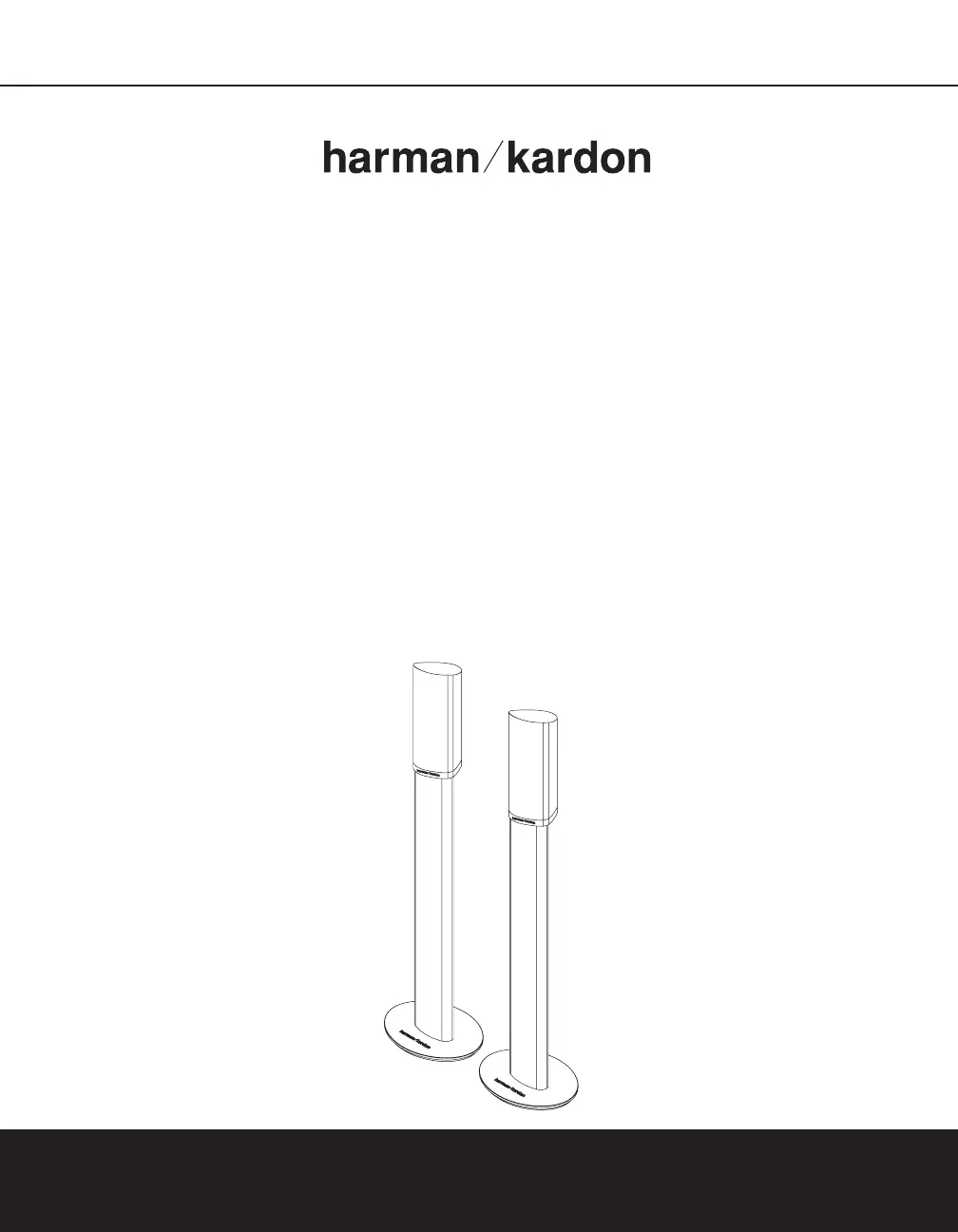

HTFS 2

FLOOR STANDS

OWNER’S MANUAL

Power for the Digital Revolution.

2 INTRODUCTION

INTRODUCTION

Introduction

Thank you for purchasing Harman Kardon

HTFS 2 floor stands. These stands are

designed to enhance your enjoyment

of a Harman Kardon HKTS 7 or HKTS 14

home cinema loudspeaker system by

expanding your speaker-placement options

to create the optimum audio presentation.

The HTFS 2 stands are also compatible

with Harman Kardon HKS 3 and HKS 4

loudspeakers.

To obtain maximum enjoyment of your

home theater system, we ask you to

spend a few minutes reading the speaker

placement and setup instructions in the

owner’s manual supplied with your loud-

speakers, and a few moments reviewing

the assembly instructions for your HTFS 2

floor stands. If you have any questions

about this product or its installation, or

about your loudspeakers, please contact

your Harman Kardon dealer, who is your

best local source of information.

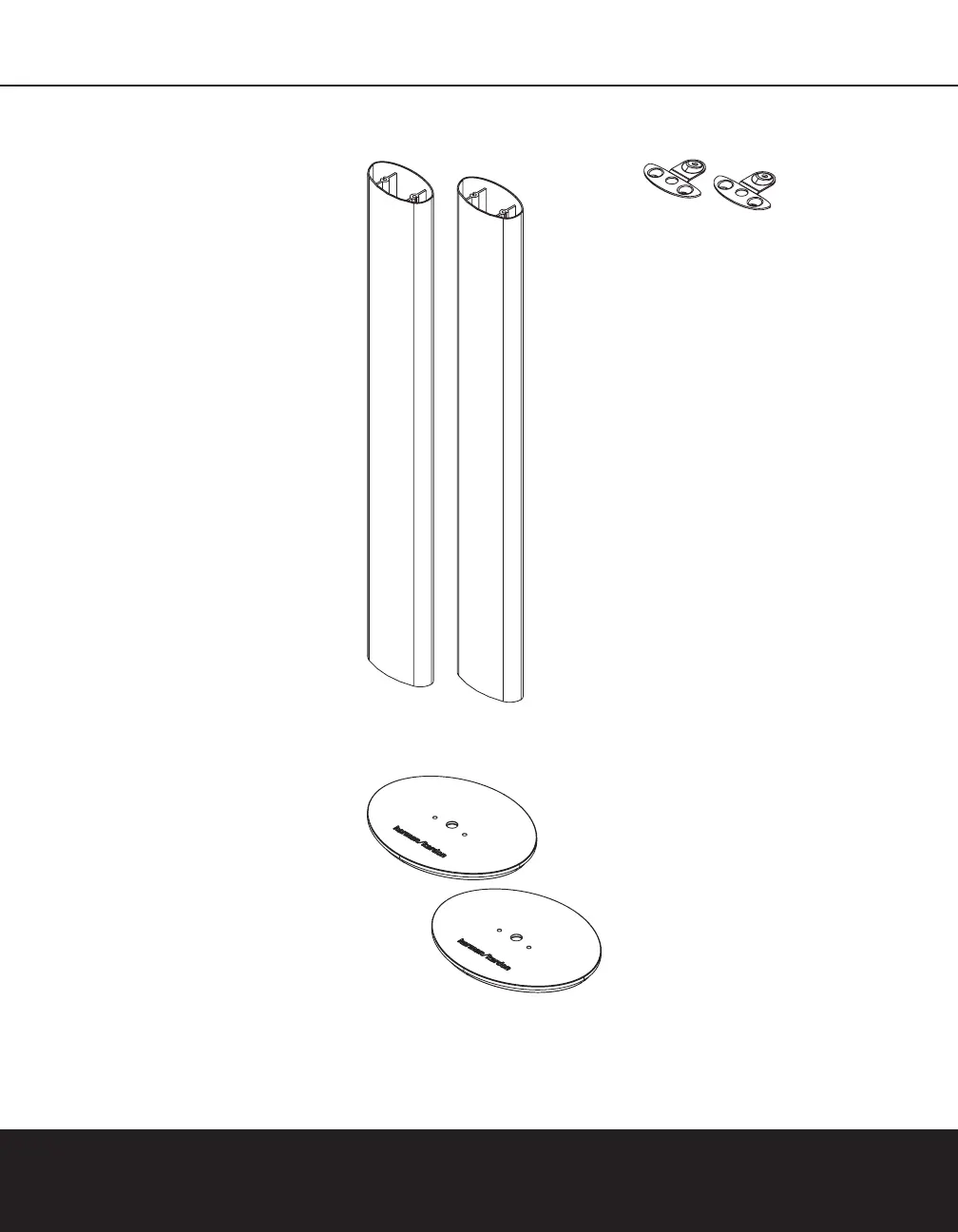

Included

Two floor stand columns

Two mounting plates

Eight rubber pads

Eight floor spikes

Eight round Phillips-head screws

for assembling the stands (M5-0.8P,

19mm or #10-32, 3/4" long)

Two weighted bases

ASSEMBLY 3

ASSEMBLY

Assembly

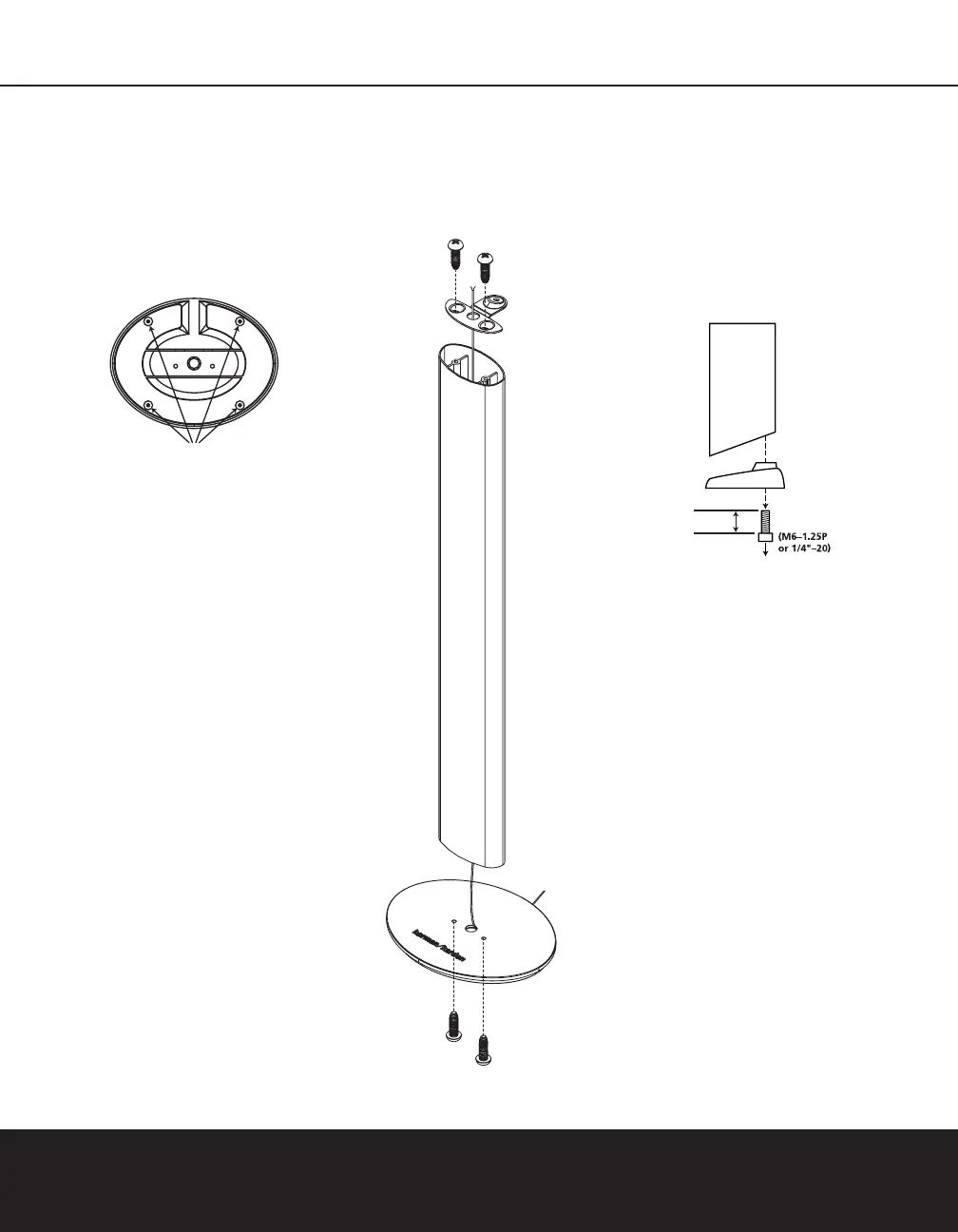

1. If you will be placing the HTFS 2 stands

on a hard surface, such as a wood or

tile floor, attach four of the supplied

self-adhesive rubber pads to the

underside of the base in the recesses

as indicated in the drawing.

Place rubber pads or floor spikes here

2. If you will be using the HTFS 2 stands

on a carpeted surface, screw four of the

supplied floor spikes into the base using

the threaded inserts in the recesses as

shown in the drawing.

3. Following the instructions on pages 9

through 12 of the owner’s manual

provided with your HKTS system, thread

the appropriate speaker cable through

the hole in the center of the base, being

careful to avoid the two screw holes.

Then feed the cable through the length

of the column from the bottom until it

comes out the top.

4. Attach the column to the base using two

of the supplied screws.

5. Thread the speaker cable through

the hole in the center of the mounting

plate, being careful to avoid the three

screw holes.

6. Attach the mounting plate to the top of

the column using two of the supplied

screws. The mounting plate tab with the

third screw hole should sit on the higher

rim of the column.

Attaching the Speaker

to the Stand

1. Unscrew the bolt that attaches the black

shelf stand to the bottom of the speaker.

Store the stand in a safe place in case it

is needed for a future installation. The bolt

will be used to attach the speaker to the

floor stand mounting plate.

2. Insert the speaker wires into the terminals

on the bottom of the speaker, being care-

ful to observe the correct polarity.

3. Place the speaker on top of the mounting

plate with the remaining screw hole lined

up with the threaded insert on the bottom

of the speaker.

4. Insert the bolt that was used for the shelf

stand up through the remaining screw

hole and into the speaker.

Repeat the assembly and speaker attach-

ment processes for each floor stand in your

system, and adjust the final speaker place-

ment as indicated in the owner’s manual

supplied with the speakers. You are now

ready to enjoy your home theater system!

Remove

Stand

15mm

or 1/2"

Produkspesifikasjoner

Merke:	Harman Kardon
Kategori:	Høyttaler
Modell:	HTFS 2
Vekt:	3800 g
Bredde:	229 mm
Dybde:	178 mm
Høyde:	886 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	AC
Pakkevekt:	7600 g
Anbefalt bruk:	Universell
Impedans:	- Ω
Høyttalerplassering:	Gulv
Basshøyttaler:	Nei
Diskanthøyttaler:	Nei
Produktfarge:	Sort
Strøminngang/AC (strøm) inn:	Ja
Kroppsmateriale:	Aluminium
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	- W
Frekvensrekkevidde:	- Hz
