HDMI to SDI Converter

User Manual

Safety Notes:

1). In order to avoid fire, electricity shock or product damage, please keep the product away

from rain, damp, any other liquid, and pressure.

2). Keep ventilation. Don’t put the product in any enclosed cabinet during it is working,

otherwise product damage or fire may be caused by high temperature.

3). Keep the product away from the electrostatic, strong magnetic or radiation operational

environment

4). Please keep the user manual for future reference.

Product Introduction

This HDMI to SDI converter allows you to seamlessly convert an HDMI or DVI signal to a

broadcast quality SD-SDI/ HD-SDI/3G-SDI signal. It’s not only widely applied to

post-production and broadcast applications, such as: broadcast room and non-linear editing,

but also to the field of optical transmission with HDMI ports on the equipments.

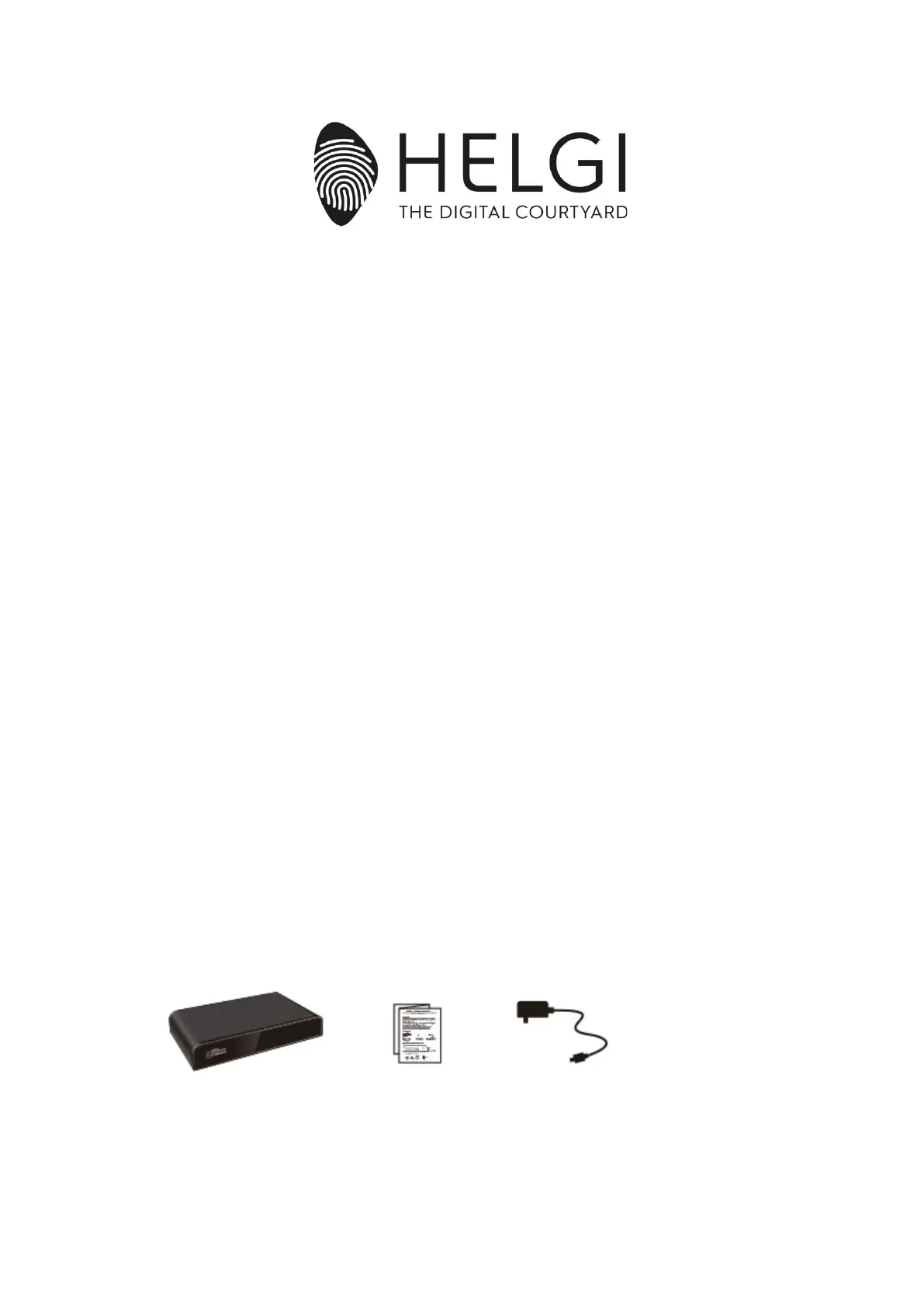

Box Content

HDMI to SDI converter user manual power adapter

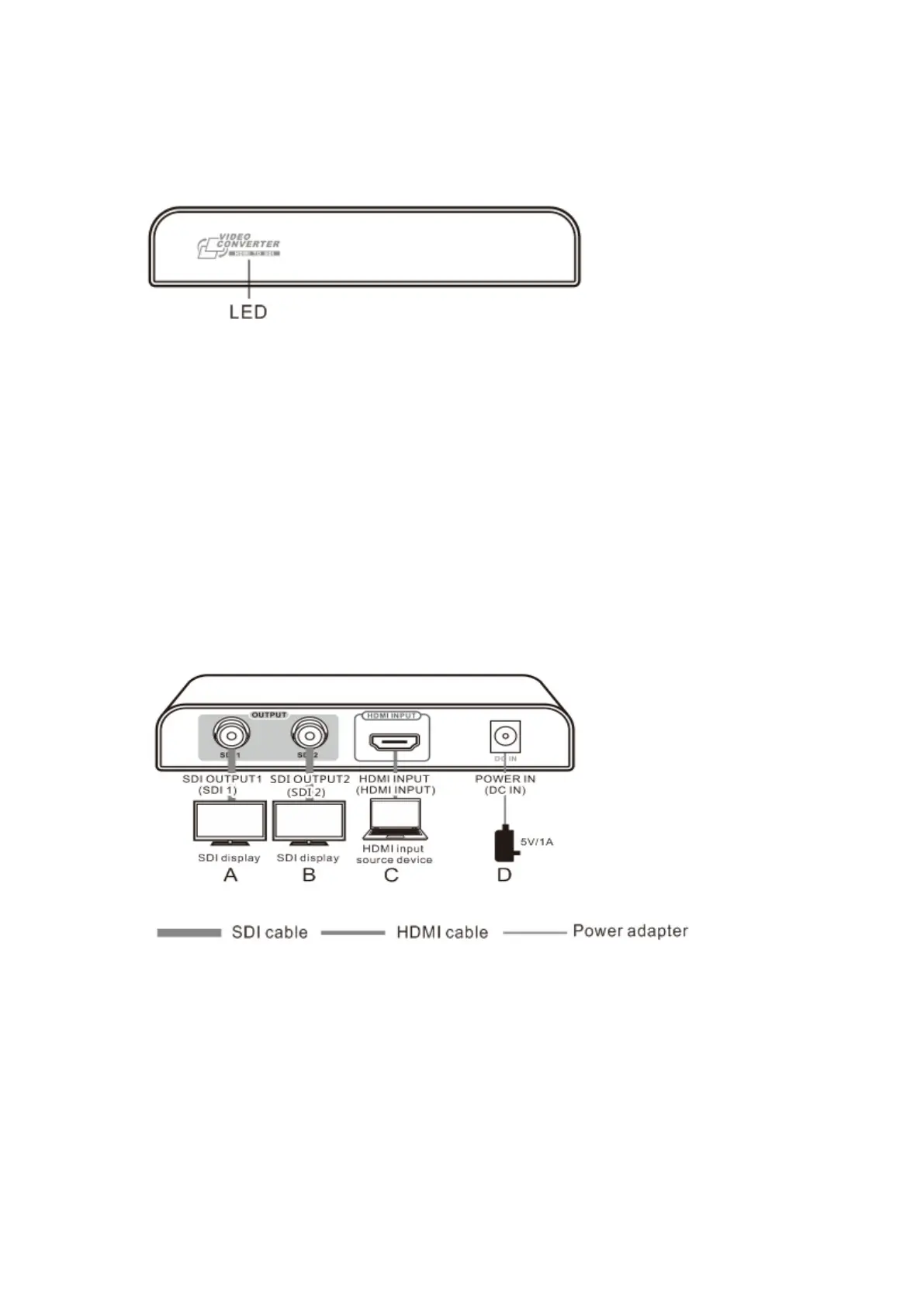

Operation controls and function

Front Panel

Rear Panel

A SDI OUTPUT (SDI 1) B SDI OUTPUT (SDI 2)

C HDMI INPUT (HDMI INPUT) D POWER IN (DC IN)

After devices connected, please operate as following:

1. Choose the HDMI input source devices output channel as HDMI.

2. Power on the converter. When it detects the correct HDMI signal, the LED will be blue,

otherwise, it will be red.

3. If the input source HDMI resolution is compliant to the resolutions SDI display supported,

SDI signal can be output via SDI port, and it can be split into two SDI signal to connect to

different SDI display simultaneously.

FAQ

Q1: No signal output after connecting as required.

A1: 1) Check if the HDMI input source devices output channel is HDMI.

2) Check if the HDMI resolution is compliant to the resolutions SDI display supported.

(For example: HDMI resolution 480p may not be identified by the SDI display or there may be

no SDI out.

3) Check whether the SDI ports of converter and SDI display are connected well.

Technical Parameter

Power adapter DC 5V1A, Applicable for voltage from 5V---

36V; DC 12V/1A is

recommended.

HDMI Input resolutions

480i@60Hz; 576i@50Hz; 720p@50Hz; 720p@60Hz; 1080i@50Hz;

1080i@60Hz; 1080p@50Hz; 1080p@ 60Hz

SDI Out resolutions

480i@60Hz; 576i@50Hz; 720p@50Hz; 720p@60Hz; 1080i@50Hz;

1080i@60Hz; 1080p@50Hz; 1080p@ 60Hz

SDI format SD-SDI/ HD-SDI/3G-SDI

Impedance 75Ω

Power Consumption <600mA (DC5V)

Dimension 130*80*23.5mm

Operating Temperature 0˚C ~ 60˚C

Disclaimer

The product name and brand name may be registered trade mark of related

manufacturers.TM and ® may be omitted on the user manual. The pictures on the user

manual are just for reference, and there may be some slight difference with the real products.

We reserve the rights to make changes without further notice to a product or system

described herein to improve reliability, function or design.

Produkspesifikasjoner

Merke:	HELGI
Kategori:	lyd / video konverterer
Modell:	HLG0389
Bredde:	130 mm
Dybde:	80 mm
Høyde:	23.5 mm
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Maksimal oppdateringshastighet:	60 Hz
Maksimal videooppløsning:	1920 x 1080 piksler
Videooppløsninger:	640 x 480,1280 x 720,1920 x 1080 piksler
Vertsgrensesnitt:	HDMI
Driftsspenning:	5 V
Utgangsgrensesnitt:	SDI
Produktfarge:	Sort
Støttede videofunksjoner:	480i, 576i, 720p, 1080i, 1080p
Driftstemperatur (T-T):	0 - 60 °C
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
AC-adapter bunt:	Ja
Antall:	1
Driftsstrøm:	1 A
