Projector

CP-S240/CP-X250

User's Manual – Operating Guide

Technical

Example of computer signal

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA SXGA (75Hz)

1280 x 960 60.0 60.0 VESA SXGA (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatically adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

Example of computer signal

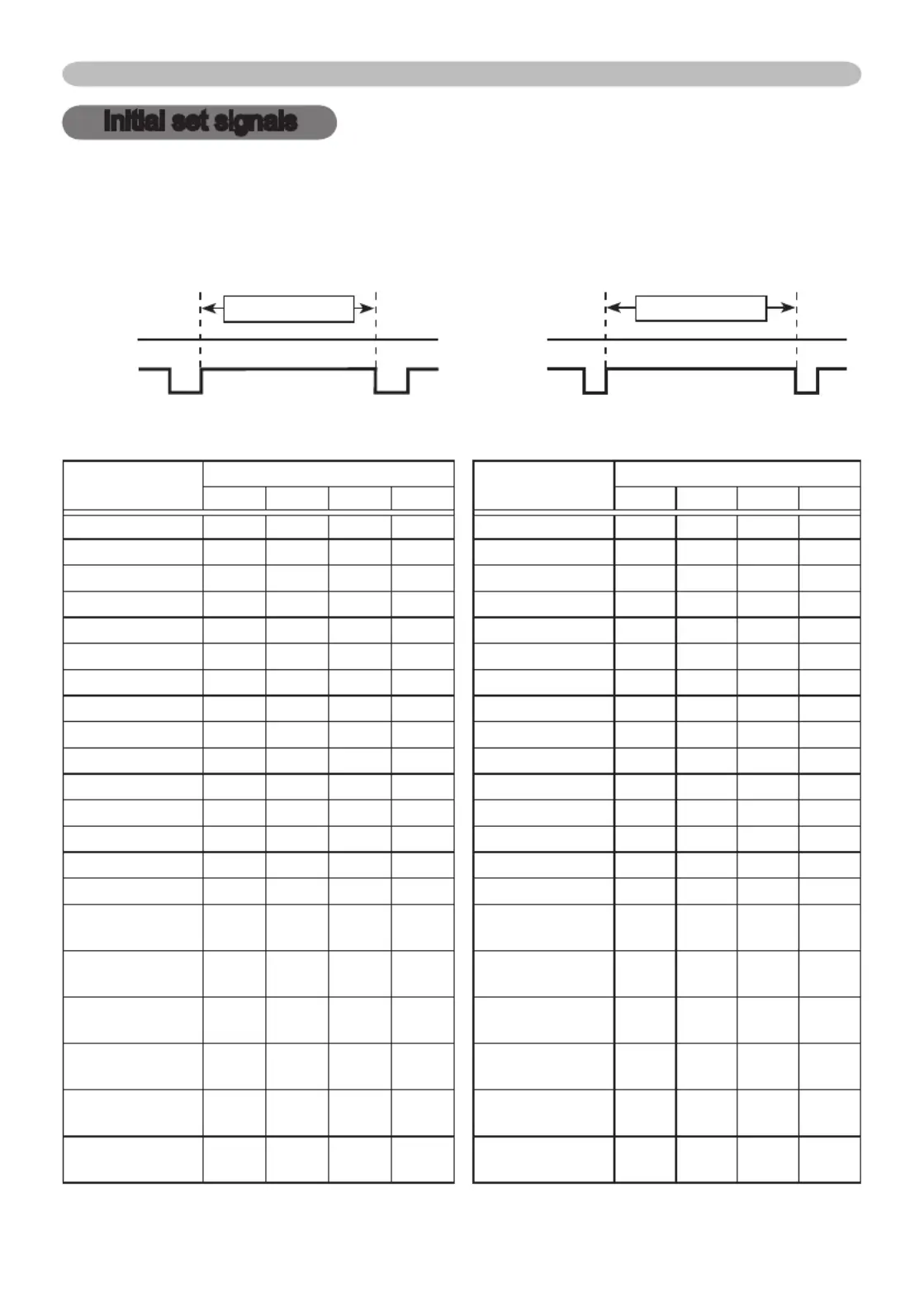

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Display interval (C)

Display interval (c)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Computer/

Signal

Horizontal signal timing (μs)

Computer/

Signal

Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz)

3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz)

1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz)

2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1 3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz)

1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz)

1.2 2.4 10.7 0.6

1152 x 864

(75Hz)

3 32 864 1

1280 x 960

(60Hz)

1.0 2.9 11.9 0.9

1280 x 960

(60Hz)

3 36 960 1

1280 x 1024

(60Hz)

1.0 2.3 11.9 0.4

1280 x 1024

(60Hz)

3 38 1024 1

1280 x 1024

(75Hz)

1.1 1.8 9.5 0.1

1280 x 1024

(75Hz)

3 38 1024 1

1280 x 1024

(85Hz)

1.0 1.4 8.1 0.4

1280 x 1024

(85Hz)

3 44 1024 1

1600 x 1200

(60Hz)

1.2 1.9 9.9 0.4

1600 x 1200

(60Hz)

3 46 1200 1

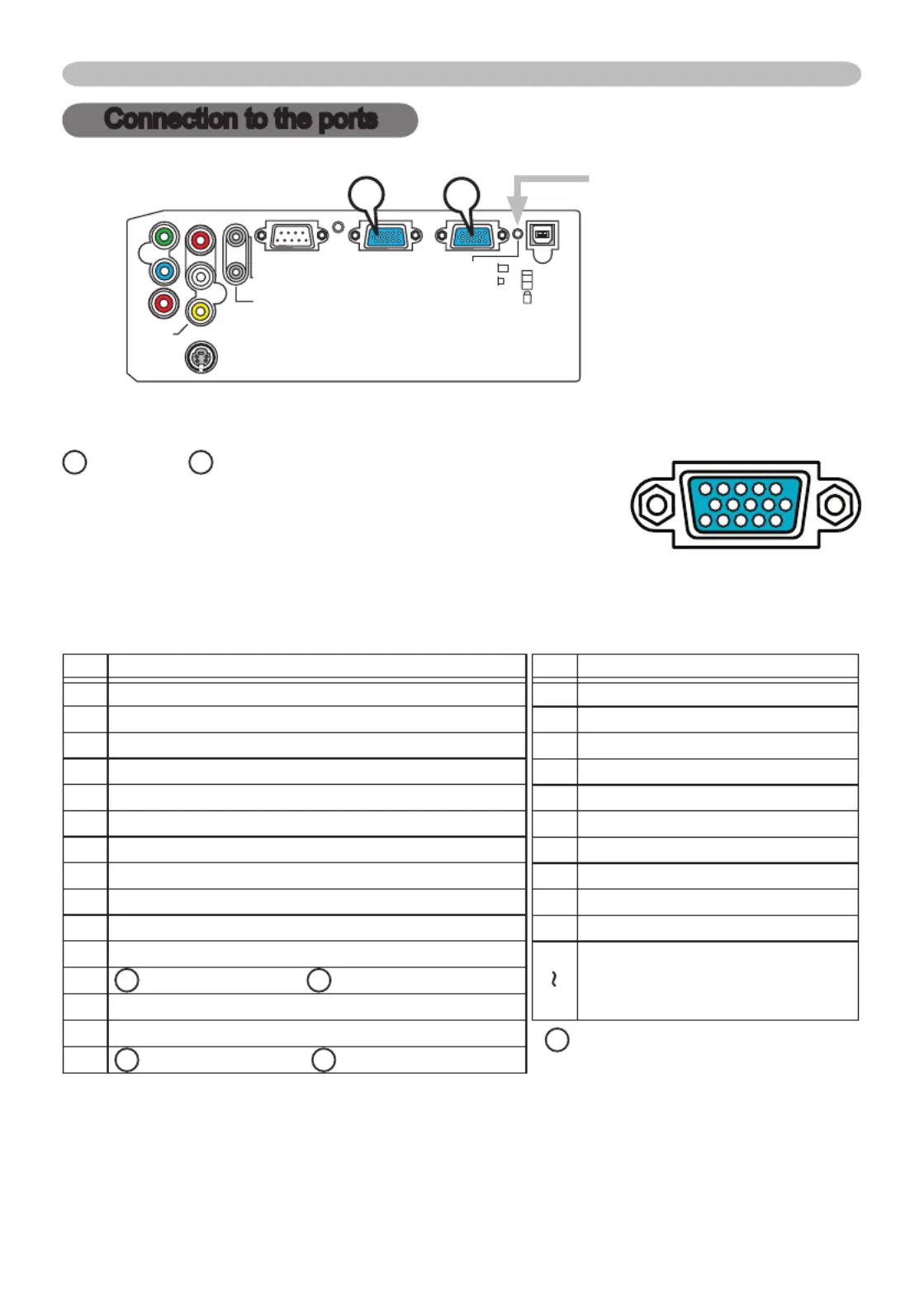

Connection to the ports

RGB IN1,

RGB IN2, RGB OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p,

75Ω terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

At RGB signal At component video signal

Pin Signal

Video Red

2 Video Green

3 Video Blue

4 (No connection)

5 Ground

6 Ground Red

7 Ground Green

8 Ground Blue

9 (No connection)

10 Ground

11 (No connection)

: SDA (DDC data),

H. sync / Composite sync.

V. sync.

: SCL (DDC clock),

Y R

AUDIO IN

AUDIO OU

CONTROL RGB IN

RGB IN

USB

RGB OU

AUDIO IN

VIDE

S-VIDEO

Connection to the ports

Pin Signal

(No connection)

Ground

Y Ground

Ground

(No connection)

Ground

(No connection)

Except when set to RGB

OUT

10 9 8 7 6

5 4 3 2 1

14 13 12 11

RGB IN OUT switch

When this switch is not pushed

in, RGB IN2 is selected.

When this switch is pushed in,

RGB OUT is selected.

Produkspesifikasjoner

Merke:	Hitachi
Kategori:	videoprosjektor
Modell:	CP-S240
Produkttype:	Standard stråleprojektor
Innebygd skjerm:	Nei
Vekt:	2812 g
Bredde:	304.8 mm
Dybde:	248.9 mm
Høyde:	86.3 mm
Støynivå:	38 dB
Antall lamper:	1 lamper
Strømkilde:	AC
Bruksanvisning:	Ja
Bluetooth:	Nei
Plassering:	Desktop
Wi-Fi:	Nei
Wi-Fi-standarder:	Støttes ikke
Antall farger:	16.78 million farger
Matrisestørrelse:	0.6 "
Antall USB 2.0-porter:	1
DVI-port:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	1
Full HD:	Nei
3D:	Nei
HDMI:	Nei
Horisontal synkronisering (min):	15 kHz
Vertikal synkronisering (min):	0.050 kHz
Kontrastforhold:	400:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Strømforbruk (standby):	- W
Projektorens lysstyrke:	2000 ANSI lumen
Projektoroppløsning:	SVGA (800x600)
Produktfarge:	Grå
Naturlig sideforhold:	4:3
Analogt signalformatsystem:	NTSC, PAL, SECAM
Kabler inkludert:	AC, RCA, VGA
Visningsteknologi:	3LCD
Skjermstørrelsekompabilitet:	- "
Projeksjonsavstand:	- m
Hjørnesteinsrettelse, horisontal:	15 °
Hjørnesteinsrettelse, vertikal:	15 °
Støynivå (økonomisk funksjon):	33 dB
Zoomfunksjon:	Ja
Brennviddeområde:	1.7 - 1.9 mm
Zoom-type:	Manuell
RS-232-port:	1
Lyskildens tjenestetid:	2000 timer
Lyskildetype:	Lampe
Strømforbruk (vanlig bruk):	290 W
Støttede videofunksjoner:	1080i, 480i, 480p, 576i, 720p
Antall VGA (D-Sub)-porter:	3
Lydinngang (V/H) inn:	1
Komponentvideo (YPbPr/YCbCr) inn:	1
Seriell grensesnittype:	RS-232
Driftstemperatur (T-T):	5 - 35 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Hurtigstartsguide:	Ja
Lampetype:	UHB
Antall S-Video-innganger:	1
Ethernet/bredbåndsforbindelse:	Nei
Komposittvideo inn/sammensatt video inn:	1
RMS-rangert strøm/utgangseffekt:	1 W
Batterier medfølger:	Ja
Horisontal synkronisering (maks):	106 kHz
Vertikal synkronisering (maks):	0.120 kHz
Lampens effekt:	180 W
Projeksjonsfaktor:	1.52 - 1.86:1
Bæretaske:	Ja
Zoom-forhold:	1.2:1
S-Video-port:	Ja
Støttede forhold:	4:3, 16:9
3D Ready:	Nei
Matrisetype:	3-panel (p-Si TFT aktiv)
