Side 1/32

Projector

CP-X2514WN/CP-X3014WN/

CP-X4014WN/CP-WX3014WN

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400

37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

*1 1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

*2 1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)

*3 1680 x 1050 65.3 60.0 VESA WSXGA+ (60Hz)

*1 1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

*1) Supported except for HDMI input.

*2) Only for CP-X2514WN, CP-X3014WN and CP-X4014WN. *3) Only for CP-WX3014WN.

Example of computer signal

NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a computer.

• Some computers may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some cases.

Refer to the number of display pixels above.

•

Although the projector can display signals with resolution up to UXGA (1600x1200), the signal

will be converted to the projector’s panel resolution before being displayed. The best display

performance will be achieved if the resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a composite

sync or a sync on G.

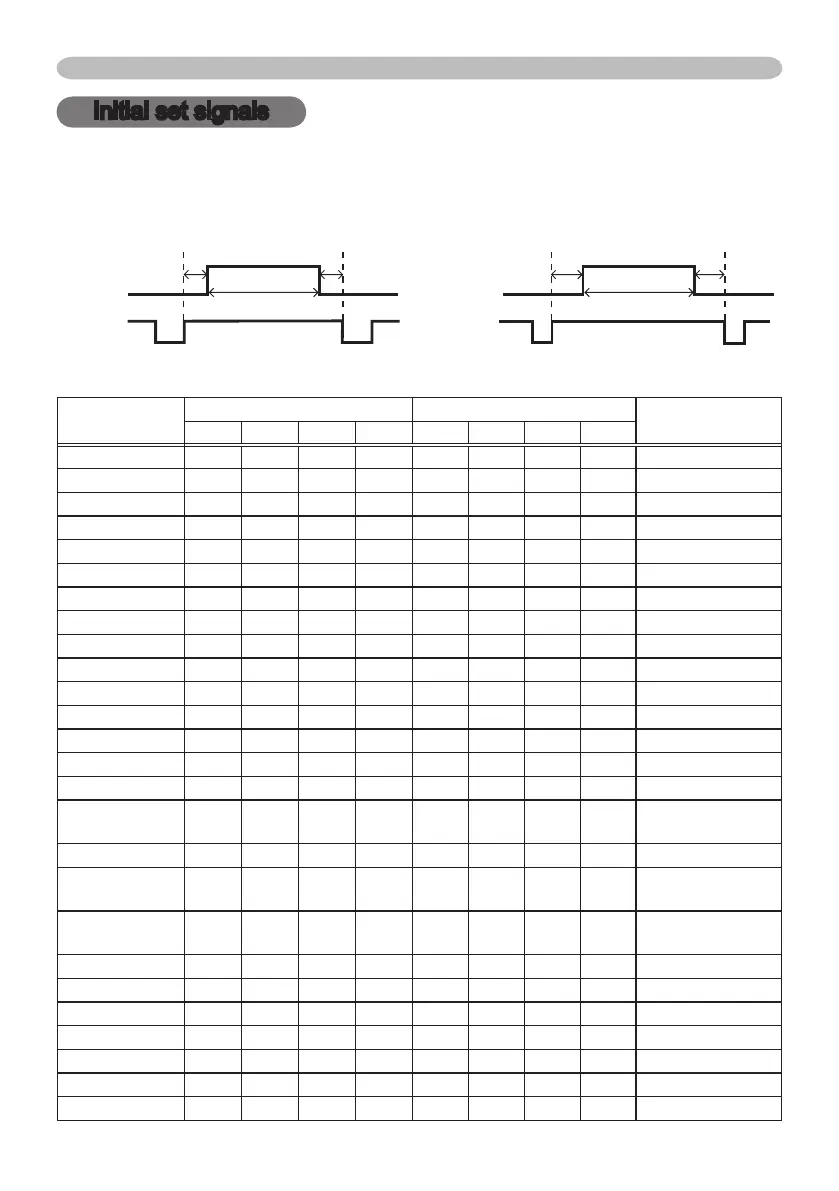

Initial set signals

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines)

Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400

2.0 3.0 20.3 1.0 3 42 400 1 TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1

1152 x 864

(75Hz)

1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1

1280 x 800

(60Hz)

1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1

1280 x 960

(60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)

1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)

1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3 WXGA+ (60Hz)

1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3 WSXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Initial set signals

COMPUTER IN1,

COMPUTER IN2,

MONITOR OUT

D-sub 15pin mini shrink jack

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

• Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Pin Signal Pin Signal

Video Red, Cr/Pr

(No connection)

2 Video Green, Y 10 Ground

3 Video Blue, Cb/Pb 11 (No connection)

4 (No connection)

: SDA (DDC data), (No connection)

5 Ground

: (No connection)

6 Ground Red, Ground Cr/Pr 13 H. sync / Composite sync., (No connection)

7 Ground Green, Ground Y 14 V. sync., (No connection)

8 Ground Blue, Ground Cb/Pb

: SCL (DDC clock), (No connection)

: (No connection)

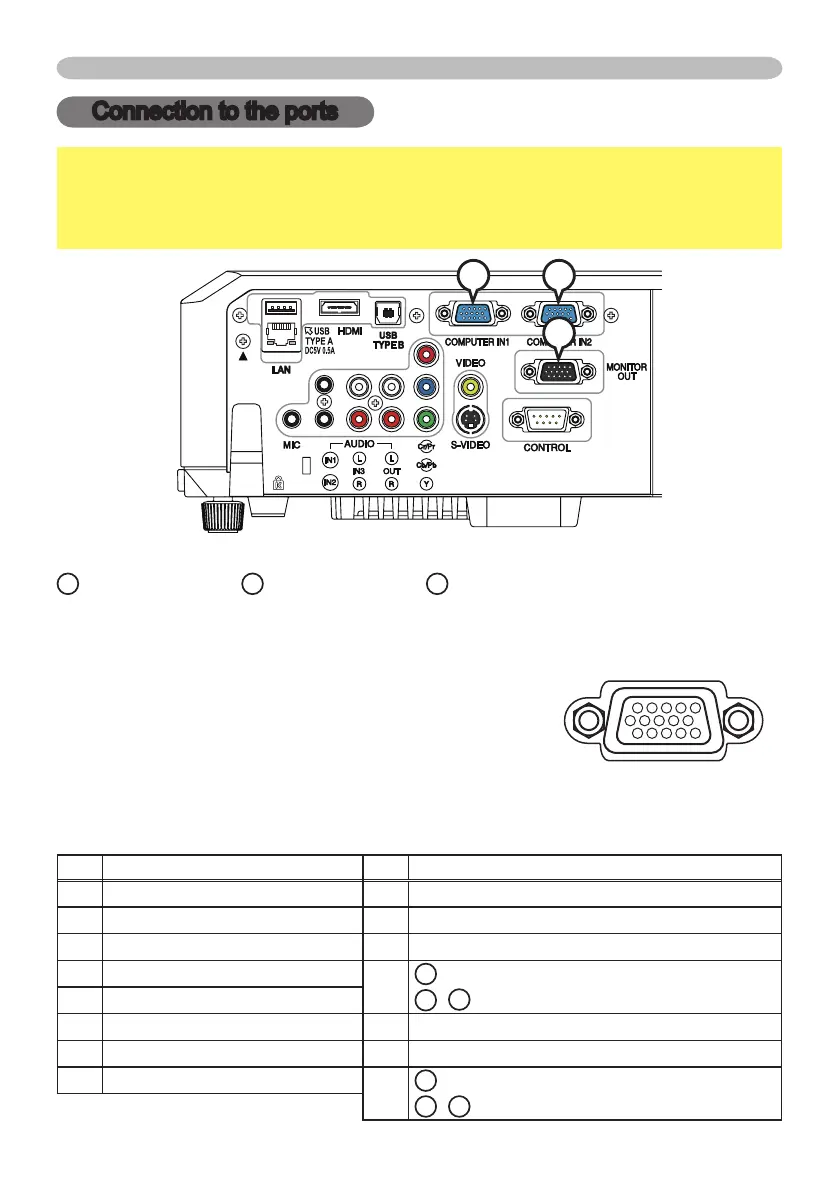

Connection to the ports

① ⑤④③②

⑥ ⑩⑨⑧⑦

⑪ ⑮⑭⑬⑫

①⑤ ④ ③ ②

⑥⑩ ⑨ ⑧ ⑦

⑪⑮ ⑭ ⑬ ⑫

Connection to the ports

NOTICE

►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

►Only the signal that is input from the COMPUTER IN1 or IN2 can be output

from the MONITOR OUT port.

Produkspesifikasjoner

Merke:	Hitachi
Kategori:	videoprosjektor
Modell:	CP-WX3014WN
Vekt:	3500 g
Bredde:	317 mm
Dybde:	288 mm
Høyde:	98 mm
Støynivå:	36 dB
Antall lamper:	1 lamper
LED-indikatorer:	Ja
Bluetooth:	Nei
Plassering:	Tak
USB-kontakttype:	USB Type-A, USB Type-B
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Antall farger:	16.78 million farger
Matrisestørrelse:	0.59 "
Antall USB 2.0-porter:	2
Antall HDMI-porter:	1
DVI-port:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
Sertifisering:	UL/C-UL, FCC, CE
Full HD:	Nei
Optisk zoom:	1.2 x
3D:	Nei
Luftfilter:	Ja
Støyreduksjon:	Ja
Dimensjoner (B x D x H):	317 x 288 x 98 mm
Kontrastforhold:	3000:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Digital gammakorreksjon:	Ja
Strømforbruk (standby):	1 W
Projektorens lysstyrke:	3000 ANSI lumen
Projektoroppløsning:	WXGA (1280x800)
Produktfarge:	Hvit
Støttede grafikkoppløsninger:	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Analogt signalformatsystem:	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Kabler inkludert:	AC, VGA
Visningsteknologi:	LCD
Skjermstørrelsekompabilitet:	30 - 300 "
Projeksjonsavstand:	1.5 - 1.8 m
Hjørnesteinsrettelse, vertikal:	±30 °
Støynivå (økonomisk funksjon):	29 dB
Zoomfunksjon:	Ja
Brennviddeområde:	- mm
Zoom-type:	Manuell
RS-232-port:	1
Lyskildens tjenestetid:	3000 timer
Lyskildetype:	Lampe
Strømforbruk (vanlig bruk):	310 W
Støttede videofunksjoner:	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Antall VGA (D-Sub)-porter:	2
Lydinngang (V/H) inn:	1
Komponentvideo (YPbPr/YCbCr) inn:	1
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	5 - 35 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Lampetype:	UHP
Antall S-Video-innganger:	1
Ethernet/bredbåndsforbindelse:	Ja
Komposittvideo inn/sammensatt video inn:	1
Lydutgang (venstre/høyre):	1
RMS-rangert strøm/utgangseffekt:	16 W
Batterier medfølger:	Ja
Lampens effekt:	210 W
Lyskildens tjenestetid (økonomisk modus):	6000 timer
Størrelseforhold:	16:10
Innebygd TV-mottaker:	Nei
Kabellåsport:	Ja
Kabellåstype:	Kensington
Lydkontakter:	2
Zoom-forhold:	1.2:1
Plugg inn og spill:	Ja
3D Ready:	Nei
Strøm-LED:	Ja
Matrisetype:	3-panel (p-Si TFT aktiv)
HD-Ready:	Ja
Projektor lysstyrke (økonomisk funksjon):	2000 ANSI lumen
Trapeskorreksjon:	Ja
Progressiv skanningsoutput:	Ja
