PROJECTION DISTANCE

• Tolerance 10% (for projection distance a)

DIMENSIONS TERMINALS

• Final specifications may vary slightly.

Wireless-ready networkable compact projectors

The new look of lessons

306mm (12.05")

221mm

(8.7")

83mm

(3.27")

77mm

(3.03")

Security Bar

Computer In 1

Computer In 2

Monitor Out

Control

(RS-232C)

S-Video

CompositeVideo

USB Type B

Audio In 2

Audio In 1

USB Type A

HDMI

Audio Out

Kensington

Lock

LAN

(top)

(bottom)

Screen Size (4:3 Screen)

30 type (inch), 0.8m

40 type (inch), 1.0m

50 type (inch), 1.3m

60 type (inch), 1.5m

70 type (inch), 1.8m

80 type (inch), 2.0m

90 type (inch), 2.3m

100 type (inch), 2.5m

120 type (inch), 3.0m

150 type (inch), 3.8m

200 type (inch), 5.1m

250 type (inch), 6.4m

300 type (inch), 7.6m

Min

0.9m (34")

1.2m (46")

1.5m (59")

1.8m (71")

2.1m (83")

2.4m (95")

2.7m (107")

3.0m (119")

3.6m (144")

4.6m (180")

6.1m (241")

7.6m (302")

9.2m (363")

Max

1.1m (42")

1.4m (56")

1.8m (71")

2.2m (86")

2.6m (101")

2.9m (115")

3.3m (130")

3.7m (145")

4.4m (174")

5.5m (218")

7.4m (291")

9.3m (365")

11.1m (438")

(top)

39cm (15")

52cm (21")

65cm (26")

78cm (31")

91cm (36")

105cm (41")

118cm (46")

131cm (51")

157cm (62")

196cm (77")

261cm (103")

327cm (129")

392cm (154")

(bottom)

7cm (3")

9cm (3")

11cm (4")

13cm (5")

15cm (6")

17cm (7")

20cm (8")

22cm (9")

26cm (10")

33cm (13")

44cm (17")

54cm (21")

65cm (26")

Screen Size (4:3 Screen)

30 type (inch), 0.8m

40 type (inch), 1.0m

50 type (inch), 1.3m

60 type (inch), 1.5m

70 type (inch), 1.8m

80 type (inch), 2.0m

90 type (inch), 2.3m

100 type (inch), 2.5m

120 type (inch), 3.0m

150 type (inch), 3.8m

200 type (inch), 5.1m

250 type (inch), 6.4m

300 type (inch), 7.6m

Min

0.9m (34")

1.2m (46")

1.5m (58")

1.8m (70")

2.1m (82")

2.4m (95")

2.7m (107")

3.0m (119")

3.6m (143")

4.6m (179")

6.1m (240")

7.6m (300")

9.2m (361")

Max

1.0m (40")

1.4m (54")

1.7m (68")

2.1m (83")

2.5m (97")

2.8m (111")

3.2m (125")

3.5m (139")

4.3m (167")

5.3m (210")

7.1m (280")

8.9m (351")

10.7m (422")

(top)

39cm (15")

52cm (21")

65cm (26")

78cm (31")

91cm (36")

105cm (41")

118cm (46")

131cm (51")

157cm (62")

196cm (77")

261cm (103")

327cm (129")

392cm (154")

(bottom)

7cm (3")

9cm (3")

11cm (4")

13cm (5")

15cm (6")

17cm (7")

20cm (8")

22cm (9")

26cm (10")

33cm (13")

44cm (17")

54cm (21")

65cm (26")

• The projected images and comparison photos in this catalog are simulations.

• LCD panels, polarizers and other optical components and cooling fans may need replacement after prolonged usage. For more details, please consult a Hitachi

sales representative.

• Do not use in places where there is a lot of water, dampness, steam, dust, soot or tobacco smoke. This may result in fire or malfunction.

• Optical components (lamp, LCD panel, polarizing plate, PBS [polarizer beam splitter] ) have limited service lives. They must be repaired or replaced if they are

used for a long period of time.

• These projectors use a mercury lamp with high internal pressure. Because of its properties, this lamp may burst with a loud noise or burn out if struck or after

it has been used for a period of time. The time until it bursts or burns out varies greatly according to differences between lamps and usage conditions. Turning the lamp’s

power on and off frequently shortens its service life.

• Optical components other than the lamp: If the projector is used for six hours or more per day, they may need to be replaced in less than a year.

• LCD panel: If the projector is used continuously for six hours or more, its replacement cycle may be shortened.

• Do not turn projector on again for ten minutes after shutdown. Neglect can shorten the lifetime of the lamp. During use and immediately after use, do not touch

anywhere near the lamp and the vents as these parts are extremely hot.

• Windows

, Windows Vista

and Internet Explorer

are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Pentium

is trademark of Intel Corporation in the U.S. and/or other countries.

• Crestron

and Crestron RoomView

are registered trademarks of Crestron Electronics, Inc. in the United States and other countries.

• HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• All other trademarks are the properties of their respective owners.

• Design and specifications are subject to change without notice.

Compliance with EU Directive RoHS*

Reduction of CO emissions2

Carton volume has been cut down to 71%*

, reducing CO emissions during transport.2

Power saving mode engaged during standby

Eco mode

Eco mode provides power saving.

Reduction of resin usage in production

Use of hot runners in molds for making upper housing

in order to reduce mill ends.

Consideration for the Environment

*2 Compared to Hitachi CP-X3011N network capable projector on the basis of one carton box.

*1 RoHS is the acronym of "DIRECTIVE 2002/95/EC OF THE EUROPEAN

PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on the restriction of

the use of certain hazardous substances in electrical and electronic equipment".

Printed in Japan

(

)

0811NM-E363

Remote control warning: Do not look into the laser beam. Class 2 laser product; maximum output 1mW; wavelength 650nm.

Hitachi America, Ltd., Digital Media Division, Business Solutions Group 900 Hitachi Way, Chula Vista, CA 91914-3556, U.S.A. and Canada

Tel: +1-800-HITACHI Fax: +1-619-591-5418 www.hitachi-america.us/digitalmedia

Hitachi Home Electronics Asia (S) Pte. Ltd. 438A Alexandra Road #01-01/02/03, Alexandra Technopark, Singapore 119967

Tel: +65-6536-2520 Fax: +65-6536-2521 www.hitachiconsumer.com.sg

Hitachi Sales (Malaysia) Sdn. Berhad (11543-V) Lot 12, Jalan Kemajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan, Malaysia.

Tel: +60-3-8926-4168 Fax: +60-3-8926-3013 www.hitachiconsumer.com.my

Hitachi Sales (Thailand), Ltd. 994 Soi Thonglor, Sukhumvit 55 Road, Klongtonnua, Vadhana Bangkok 10110, Thailand

Tel: +66-2381-8381-98 Fax: +66-2381-0210/2381-0021 www.hitachi-th.com

Hitachi (Hong Kong), Ltd. 18th Floor, Ever Gain Centre, 28 On Muk Street, Shatin, N.T., Hong Kong Tel: +852-2113-8883 Fax: +852-2783-4178 www.hitachi-hk.com.hk

Hitachi Sales Corp. of Taiwan 2nd Floor, No.65, Nanking East Road, Section 3, Taipei 104, Taiwan Tel: +886-2-2516-0500 Fax: +886-2-2516-1501 www.hsct.com.tw

Hitachi Australia Pty Ltd. Level 3, 82 Waterloo Road, North Ryde, NSW 2113, Australia Tel: +61-2-9888-4100 Fax: +61-2-9888-4188 www.hitachi.com.au

Hitachi Europe Ltd. Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire, SL6 8YA, UK Tel: +44-1628-585000 Fax: +44-1628-585163 www.hitachidigitalmedia.com

Model name

Liquid crystal panel

Number of pixels

Resolution

Manual zoom

Lamp

Light output (brightness)

Contrast ratio

Audio

Keystone correction

Power supply

Operating temperature

Input signals

Input/output

terminals

Agency certifications

Dimensions (WxHxD)

Weight

Standard accessories

Optional accessories

Computer input

Video input

Audio input

Computer input

HDMI input

Audio output

Monitor output

USB

Control

Wireless network

Wired network (LAN)

SPECIFICATIONS

CP-X3021WN

3,200 Lumens

CP-X2521WN

786,432 pixels (H1024 x V768)

1024 x 768 color pixels (XGA)

x1.2

215W UHP

2,700 Lumens

2,000:1 (Intelligent Eco mode)

1W mono

Auto Vertical Keystone

AC100-120V/AC220-240V

5-35°C (41-95°F)

VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA, MAC16"

NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, PAL (60Hz) 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

S-Video: Mini Din 4-pin x 1, Composite video: RCA jack x 1, Component video: via Dsub x 2

Stereo Mini jack x 2

Analog RGB: 15-pin Mini-Dsub x 2

HDMI x 1 (HDCP compliant)

Stereo Mini jack x 1

Analog RGB: 15-pin Mini-Dsub x 1

USB type A x 1 (for PC-less presentation or wireless adapter), USB type B x 1 (for USB display or USB mouse control)

9-pin Dsub x 1 for RS232C

Option

RJ-45 x 1

UL/cUL, FCC Part15 class B, AS/NZS CISPR22 class B, CE, GOST-R

306 x 77 x 221mm (12.05" x 3.03" x 8.7") [excluding protruding part]

Approximately 2.3kg (5.1 lbs.)

Remote control (Part#: HL02771) with two AA batteries, Power cord, Computer cable, Adapter cover, Lens cover, User’s manuals, Security label, Application CD

Lamp: DT01191, Filter set: UX36761, Laser remote control: HL02651 (RC-R008), USB wireless adapter: USB-WL-11N

CP-X2021WN

0.42 type (inch), 1.1cm polysilicon active-matrix TFT x 3

2,200 Lumens

CP-X3021WN/CP-X2521WN CP-X2021WN

a: LCD projector-to-screen distance

b: Screen height from lens center to top

c: Screen height from lens center to bottom

AC Inlet

CP-X2521WN

XGA 2,700 Lumens

CP-X2021WN

XGA 2,200 Lumens

CP-X3021WN

XGA 3,200 Lumens

LCD Projectors

0.63 type (inch), 1.6cm polysilicon active-matrix TFT x 3

The projectors are

equipped with

a security bar, PIN

Lock, MyScreen

Lock and Transition

Detector functions.

Versatile Security Functions

When in Normal mode at standby setting. It does not

function in Saving mode.

Typical. Tested in 23°C environmental conditions.

Template Function*

Black lines on

Black lines on Black lines on

a white grid

a white grida white grid

Black lines on

a white grid

Patent pending

You can use a wireless network by connecting the

projector to a computer using the optional USB wireless

adapter. The adapter supports IEEE802.11b/g/n.

Use the adapter cover to prevent the USB wireless

adapter from coming off easily.

Wireless Capability (Option)

Switching to Intelligent Eco mode automatically

changes the brightness of the lamp according to

the level of the input signal. The lamp becomes

brighter when the level is high and darker when

the level is low. Another significant viewing

benefit is the high contrast ratio of 2,000:1.

Intelligent Eco Mode and

2,000:1 Contrast Ratio

(Intelligent Eco Mode)

The projectors

are surprisingly

lightweight,

weighing

approximately

2.3kg (5.1 lbs.).

Approximately 2.3kg (5.1 lbs.)

Light Weight

CP-X3021WN

Projectors with a full complement

of network functions and superior

operability for use in a wide range

of classroom situations

3 LCD Panels with Inorganic

Alignment Layers

LCD (HTPS)

Prism

• Network Bridge • Audio Pass Through*

• Low Noise of 28dB*

(Eco Mode)

• Power Saving Mode • Input Source Naming

• Direct Power On/Off • My Button

• My Memory • Daytime Mode

• Blackboard or Whiteboard Modes at

Picture Setting • Closed Caption

• Auto Vertical Keystone Correction

• Compatible with AMX Device Discovery

• Compatible with Crestron RoomView

More Convenient Features

Serial number and MAC address are on

the side label, in both normal position and

upside-down.

Serial Number and MAC

Address on Side Label

CP-X2021WN

XGA 2,200 Lumens

CP-X2521WN

XGA 2,700 Lumens

CP-X3021WN

XGA 3,200 Lumens

OS: One of the following. Windows

XP Home Edition/Professional Edition (32 bit version only), Windows Vista

Home Basic/Home Premium/Business/

Ultimate/Enterprise (32 bit version only), Windows

7 Starter/Home Basic/Home Premium/Professional/Ultimate/Enterprise (32 bit version only) PentiumCPU:

(2.8 GHz or higher) 16 bit, XGA or higher (When using the “LiveViewer” it is recommended that the display resolution of your computer be Graphic card:

set to 1024 x 768.) 512 MB or higher 100 MB or higher Internet ExplorerMemory: Hard disk space: Web browser:

6.0 or higher CD-ROM drive

With two RGB inputs and one output, an HDMI input, a USB type A port (for PC-less

presentation or wireless adapter) and a USB type B port (for USB display or USB

mouse control), etc., the projectors give you a convenient choice of connections.

Extensive Connectivity

Moderator Control Mode*

computer 49

Moderator

computer 3computer 1 computer 2

1 Video transfer through network may not be supported depending on combination of computer hardware and software.

For projecting video sources, video/computer cable is preferable.

2 These functions will be provided later by software updates from the website http://www.hitachi-america.us/digitalmedia

3 To secure better performance, a wired network is preferable.

4 Video transfer speed may vary depending on number of projectors connected.

5 Video and audio transfer speed may vary depending on number of computers connected.

You can project the same image to up to

12*

projectors simultaneously. This is

useful for meetings and lectures in large

venues where a single screen would not

be sufficient.

Multi Projector*

projector 1 projector 2 projector 3 projector 12

•

This function is not intended or guaranteed for the distribution of warning messages created by security systems.

•

If many computers are connected to the network or the connected computer is under excessive load, higher specifications may be required.

Campus Notification System*

LAN

Administration

Room

Now with

Now with Now with

Preset Audio

Preset Audio Preset Audio

Alert!

Alert!Alert!

Now with

Preset Audio

Alert!

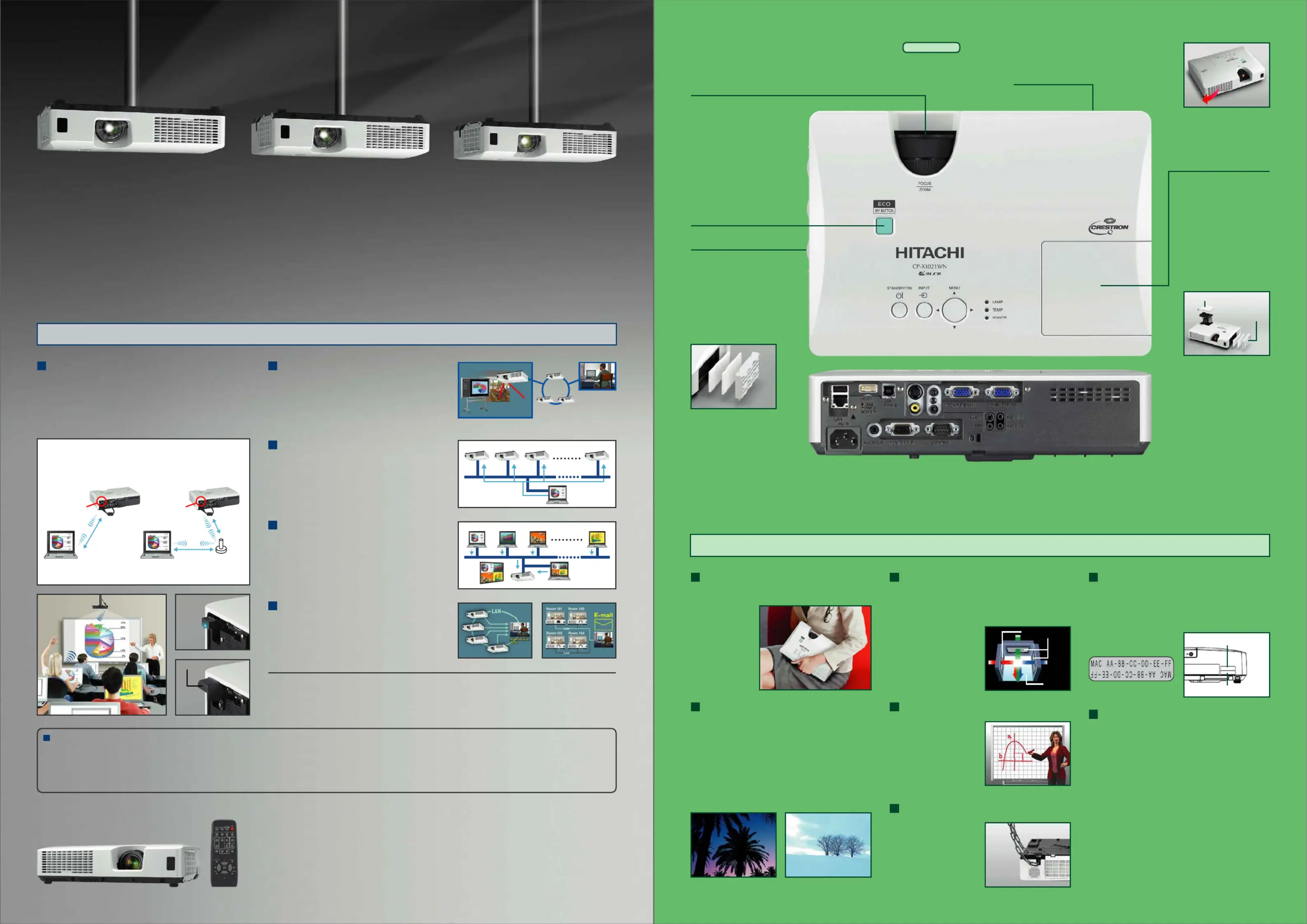

Embedded networking gives you the ability to

manage and control multiple projectors over

your LAN: Centralized Reporting, Scheduling,

E-mail Alerts, and My Image (Image Transfer).

Convenient Networking

E-mail AlertsCentralized Reporting

Hardware and software requirements for network capability

Wireless network functionality

Using the designated USB wireless adapter (option) enables

the projector and computer to communicate in both

the Ad-Hoc and Infrastructure modes.

Without access point

communication (Ad-Hoc).

With access point communication

(Infrastructure).

Access point

The Template function

provides four types

of lines, circles, and

a world map with

a center city that can be

moved in 24-hour steps.

This mode lets you network 50*

computers

to the projector, with one computer acting

as the moderator. The teacher can use

the moderator computer to select and project

images from the students’ computers.

Lamp becomes darker. Lamp becomes brighter.

Superior Convenient Features

Advanced Network Functions*

This function allows you to send text messages

and preset audio alert sounds simultaneously to

all projectors on the network. It is an easy and

efficient way to send campus-wide notifications.

These projectors incorporate three LCD

panels with inorganic alignment layers that

are extremely light

resistant, increasing

brightness and

contrast ratio. They

ensure smooth images

and high reliability.

MAC address label

Serial number label

Lamp Door on the top

Filter Cover

on the side

Hybrid Filter

Hybrid FilterHybrid FilterHybrid Filter

Adapter cover

These projectors are designed to

exhaust warm air from the front.

Built-in Front Air Exhaust

The CP-X3021WN projects images with a high brightness

of 3,200 lumens. (CP-X2521WN is 2,700 lumens and

CP-X2021WN is 2,200 lumens.)

High Brightness of 3,200 Lumens

The Hybrid Filter

requires less frequent

maintenance and

cleaning, making

longer operation

possible.

Hybrid Filter

The Eco button allows

you to switch quickly

from Normal mode

to Eco mode or

Intelligent Eco mode

to decrease power

consumption.

Eco Button

Easy

Maintenance

The lamp door is on

the top and the filter

cover on the side,

so maintenance and

replacement of

these parts can be

done easily.

Optional

USB wireless

adapter

Optional

USB wireless

adapter

Security bar

Security barSecurity barSecurity bar

Produkspesifikasjoner

Merke:	Hitachi
Kategori:	videoprosjektor
Modell:	CP-X2521WN
Produkttype:	Bærbar projektor
Innebygd skjerm:	Ja
Vekt:	2300 g
Bredde:	306 mm
Dybde:	211 mm
Høyde:	77 mm
Støynivå:	35 dB
Strømkilde:	AC
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Antall farger:	16.78 million farger
Antall USB 2.0-porter:	2
Antall HDMI-porter:	1
DVI-port:	Nei
Fokus:	Manuell
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	1
Sertifisering:	UL/C-UL, FCC 15 Class B, CE, AS/NZS CISPR22 ClassB, WEEE/ErP(lot6), DEMKO-GS
Full HD:	Ja
HDCP:	Ja
Digital zoom:	1.2 x
Lydutgang:	Ja
Luftfilter:	Ja
Støyreduksjon:	Ja
On Screen Display (OSD):	Ja
Kontrastforhold:	2000:1
AC-inngangsspenning:	100 - 240 V
Strømforbruk (standby):	0.4 W
Projektorens lysstyrke:	2700 ANSI lumen
Projektoroppløsning:	XGA (1024x768)
Produktfarge:	Hvit
Skjermdiagonal:	0.63 "
Støttede grafikkoppløsninger:	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Analogt signalformatsystem:	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Kabler inkludert:	AC, VGA
Visningsteknologi:	LCD
Skjermstørrelsekompabilitet:	30 - 300 "
Projeksjonsavstand:	- m
Hjørnesteinsrettelse, vertikal:	-30 - 30 °
Støynivå (økonomisk funksjon):	28 dB
Zoomfunksjon:	Ja
Brennviddeområde:	- mm
Zoom-type:	Manuell
RS-232-port:	1
Lyskildens tjenestetid:	3000 timer
Lyskildetype:	Lampe
Strømforbruk (vanlig bruk):	310 W
Støttede videofunksjoner:	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Antall VGA (D-Sub)-porter:	3
Strøminngang/AC (strøm) inn:	Ja
Seriell grensesnittype:	RS-232
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Bærekraftsertifikater:	RoHS
Fjernkontroll medfølger:	Ja
Lampetype:	UHP
Antall S-Video-innganger:	1
AV-utgang:	Ja
Ethernet/bredbåndsforbindelse:	Ja
Komposittvideo inn/sammensatt video inn:	1
RMS-rangert strøm/utgangseffekt:	1 W
Batterier medfølger:	Ja
Markedsplassering:	Bærbar
Lampens effekt:	215 W
Lyskildens tjenestetid (økonomisk modus):	5000 timer
Størrelseforhold:	4:3
Display:	LCD
Kabellåsport:	Ja
Kabellåstype:	Kensington
Lydkontakter:	Ja
