ENGLISH
Liquid Crystal Projector
USER'S MANUAL
ENGLISH-1
Thank you for purchasing this liquid crystal projector.
Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S
MANUAL” thoroughly to ensure correct usage through understanding. After reading,
store this instruction manual in a safe place for future reference.
CONTENTS
FEATURES....................................P.2
BEFORE USE................................P.2
Contents of Package...........................P.2
Part Names .........................................P.3
Loading the Battery.............................P.5
Fixing the Handle ................................P.5
INSTALLATION.............................P.6
Installation of the projector and Screen
.....P.6
Angle Adjustment................................P.6
Cabling................................................P.7
Power Connection...............................P.8
Example of System Setup...................P.8
Plug & Play..........................................P.8
OPERATIONS................................P.9
Switching the Power Supply ON/OFF
....P.9
Basic Operation.................................P.10
Setup Menu.......................................P.12
Input Menu ........................................P.13
Image Menu ......................................P.14
Options Menu....................................P.15
No Signal Menu.................................P.16
MAINTENANCE...........................P.17
Lamp .................................................P.17
Air Filter Maintenance .......................P.19
Other Maintenance............................P.19
TROUBLESHOOTING.................P.20
OSD Message...................................P.20
Indicators Message...........................P.21
Symptom...........................................P.22
SPECIFICATIONS .......................P.23
WARRANTY AND AFTER-SERVICE
...P.24
Tables:
Table 1. Installation Reference .............P.6
Table 2. Basic Operations...................P.10
Table 3. Setup Menu...........................P.12
Table 4. Input Menu ............................P.13
Table 5. Image Menu ..........................P.14
Table 6. Options Menu........................P.15
Table 7. No Signal Menu.....................P.16
Table 8. OSD Message.......................P.20
Table 9. Indicator Message.................P.21
Table 10. Symptom.............................P.22
Table 11. Specifications......................P.23
For "TECHNICAL" and "REGULATORY
NOTICE", see the end of this manual.
NOTE:
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without
express written authority.
TRADEMARK ACKNOWLEDGMENT:
• PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• Carefully observe the trademarks and registered trademarks of all companies, even when not
mentioned.
ENGLISH-2
FEATURES
This liquid crystal projector is used to project various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space is required for installation and large images can
easily be realized.
• Outstanding brightness
The UHB lamp and high-efficiency optical system assure a high level of brightness.
• Partial magnification function
Interesting parts of images can be magnified for closer viewing.
• Distortion correction function
Distortion-free images are quickly available.
BEFORE USE

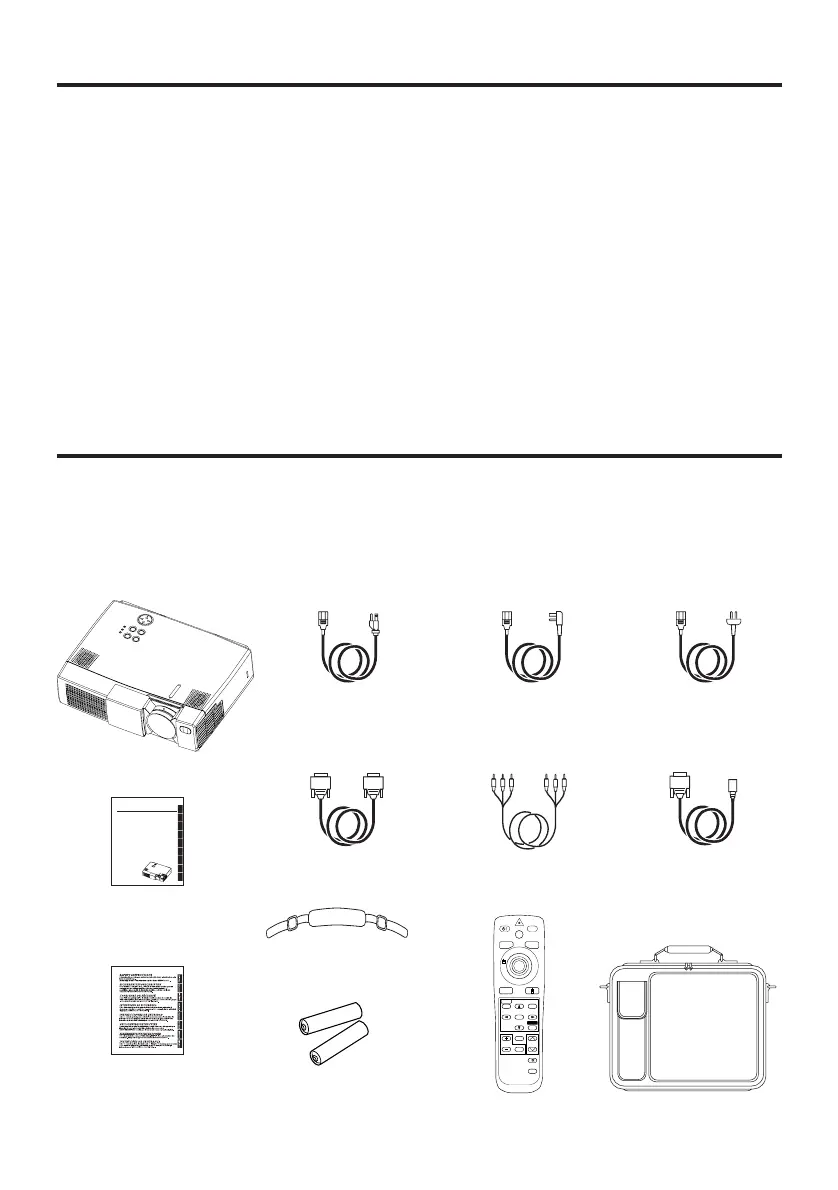

Contents of package
Make sure all of the following items are included in the package. If anything is missing, please
contact your dealer.
NOTE: Keep the original packing material for future reshipment.
Projector
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
NORSK
TECHNICAL
PORTGÊS
Liquid Crystal Projector
0000000000000
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce menuel pour bien assimiler le
fonctionnement de l'appareil.
MANUAL D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJZNG
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este
manual do usuário.
TECHNICAL
REGULATORY NOTICES
User’s Manual
(this manual)
Safety Instructions
Power Cord
US Type
Power Cord
UK Type
Power Cord
Europe Type
RGB Cable Video/Audio Cable Mouse cable
(PS/2)
STANDBY/ON
LASER
VIDEO
BLANK
RGB
AUTO
MENU
MENU SELECT
POSITION
RESET
FREEZE
MAGNIFY
OFF
VOLUM E
MUTE
TIMER
Remote Control
Transmitter
Batteries
for Remote Control
Transmitter
Handle
Carrying Bag
ENGLISH-3
BBEEFFOORREE UUSSEE ((ccoonnttiinnuueedd))
ENGLISH
Part Names
Control Panel (Refer to P.9 "OPERATIONS")
Power Switch
AC Inlet
(to the Power Cord)
Ventilation Openings
(Intake)
Zoom Knob
Focus Ring
Remote Control Sensor
Lens
Slide Lens Door
Foot Adjuster
FRONT/LEFT VIEW OF
THE PROJECTOR
Speaker
Handle Hook
STANDBY/ON Button
MUTE Button
Foot Adjuster Button
Air Filter and Intake
(for the Cooling Fan)
Rear Foot Adjuster
INPUT Button
LAMP Indicator
TEMP Indicator
POWER Indicator
RESET Button
MENU Button
Ventilation Openings
(exhaust)
REAR/RIGHT VIEW OF
THE PROJECTOR
Terminal Panel
(Refer below)
TERMINAL PANEL
S-VIDEO Terminal
VIDEO IN Terminal
AUDIO IN L
Terminal
AUDIO IN R
Terminal
AUDIO IN 1
Terminal
AUDIO IN 2
Terminal
AUDIO OUT
Terminal
Remote Control Sensor
RGB IN 1 Terminal
RGB IN 2 Terminal
CONTROL Terminal
RGB OUT Terminal
USB Terminal
AUDIO IN VIDEO IN S-VIDEO IN
AUDIO
IN
AUDIO OUT
1
12
2 USB
RGB IN
RGB OUT CONTROL
