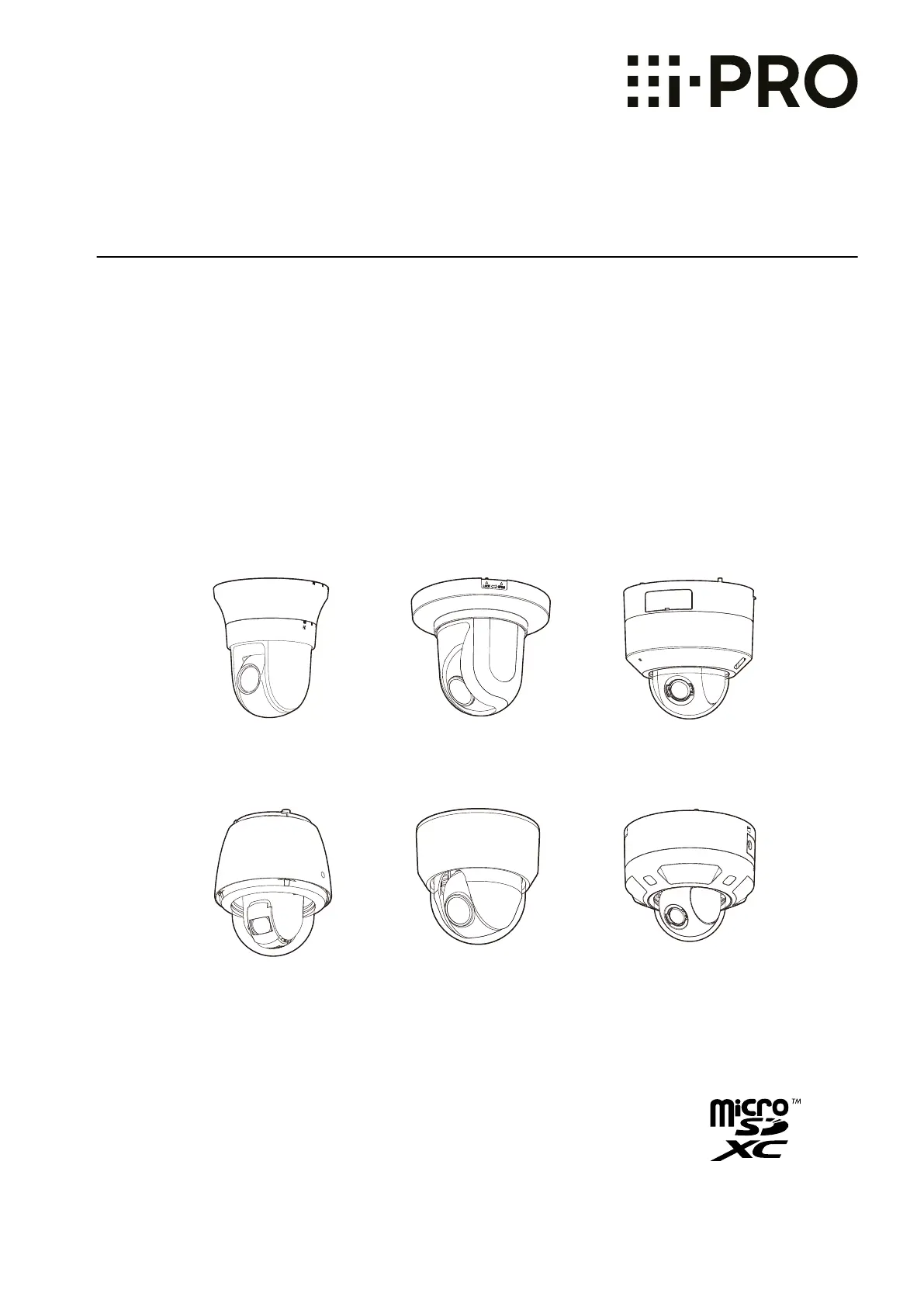

Operating Instructions
Network Camera
Model No. WV-S61300 Series
WV-S65300 Series
WV-U61300 Series
WV-U65300 Series
WV-S65501-Z1
WV-S61501-Z1
WV-S65340-Z4 WV-U65300-ZY
WV-U65302-Z2
WV-S61302-Z4 WV-S61301-Z2 WV-U61300-ZY
• This manual covers the models: WV-S61300 Series ( WV-S61302-Z4,
WV-S61301-Z2, WV-S61301-Z1, and WV-S61300-ZY), WV-S65300 Series
(WV-S65340-Z4, WV-S65340-Z2, WV-S65302-Z2, WV-S65301-Z1, and
WV-S65300-ZY), WV-U61300 Series (WV-U61301-Z2, WV-U61301-Z1, and
WV-U61300-ZY), WV-U65300 Series (WV-U65302-Z2, WV-U65301-Z1, and
WV-U65300-ZY), WV-S65501-Z1, WV-S61501-Z1.
• The model number is abbreviated in some descriptions in this manual.
Preface
About the user manuals
There are 3 sets of operating instructions as follows.
• Operating Instructions (this document): Explains how to perform the settings and how to operate this
camera.
• Basic Information: Provides information about “Precautions for use” , “Parts and functions” and “Detail
specifications”.
• Installation Guide: Provides information about “Precautions”, “Precautions for installation” and the
installation method.
The screens used in these operating instructions show the case of WV-S61301-Z2. Depending on the model
used, the screens shown in the explanations may differ to the actual camera screens.
This document provides how to operate and configure the camera using a web browser but it is recommended
to use the i-PRO Configuration Tool to configure the camera. The i-PRO Configuration Tool can configure up
to 1024 cameras at the same time so that the cameras can be configured efficiently.
For information about the i-PRO configuration tool (iCT), refer to our technical information website <Control
No.: C0133>.
Note
• “<Control No.: C****>” used in this document should be used to search for information on our technical
information website
(https://i-pro.com/global/en/surveillance/training-support/support/technical-information) and will guide
you to the right information.
• The captured screens are used based on the guideline by Microsoft Corporation.
• Operations using Google Chrome is described in this document. For information on the operation
verification of the supported web browsers, refer to our technical information website <Control
No.: C0132>.
• The default settings of some of the stream-related settings vary as follows depending on the language
setting of the browser selected at the time of administrator registration.
Setting items
Language of the browser
Languages other than
Japanese
Japanese
Transmission priority VBR Frame rate
Image quality 3 Normal
Stream(1)
-Max bit rate (per client)
<WV-S65300 series>
<WV-S61300 series>
<WV-U65300 series>
<WV-U61300 series>
6144kbps *
<WV-S65501-Z1>
<WV-S61501-Z1>
12288 kbps *
<WV-S65300 series>
<WV-S61300 series>
<WV-U65300 series>
<WV-U61300 series>
3072kbps *
<WV-S65501-Z1>
<WV-S61501-Z1>
6144 kbps *
Stream(1)
-Smart VIQS
On(Low) Off
2 Operating Instructions
Preface
Stream(2)
-Max bit rate (per client)
<WV-S65300 series>
<WV-S61300 series>
<WV-U65300 series>
<WV-U61300 series>
4096kbps *
<WV-S65501-Z1>
<WV-S61501-Z1>
6144 kbps *
<WV-S65300 series>
<WV-S61300 series>
<WV-U65300 series>
<WV-U61300 series>
2048kbps*
<WV-S65501-Z1>
<WV-S61501-Z1>
3072 kbps *
Stream(3)
-Max bit rate (per client)
<WV-S65300 series>
<WV-S61300 series>
<WV-U65300 series>
<WV-U61300 series>
1536kbps *
<WV-S65501-Z1>
<WV-S61501-Z1>
4096 kbps *
<WV-S65300 series>
<WV-S61300 series>
<WV-U65300 series>
<WV-U61300 series>
768kbps *
<WV-S65501-Z1>
<WV-S61501-Z1>
2048 kbps *
Stream(4)
-Max bit rate (per client)
1536kbps * 768kbps *
Stream(1) - Stream(4)
-Refresh interval
2s 1s
About notations
The following notations are used when describing the functions limited for specified models.
The functions without the notations are supported by all models.
Notation
Model Notation Model
S613xx
WV-S61302-Z4
WV-S61301-Z2
WV-S61301-Z1
WV-S61300-ZY
Z1
WV-S61301-Z1
WV-S65301-Z1
WV-U61301-Z1
WV-U65301-Z1
WV-S65501-Z1
WV-S61501-Z1
U613xx
WV-U61301-Z2
WV-U61301-Z1
WV-U61300-ZY
Z2
WV-S61301-Z2
WV-S65340-Z2
WV-S65302-Z2
WV-U61301-Z2
WV-U65302-Z2
S653xx
WV-S65340-Z4
WV-S65340-Z2
WV-S65302-Z2
WV-S65301-Z1
WV-S65300-ZY
Z4
WV-S61302-Z4
WV-S65340-Z4
U653xx
WV-U65302-Z2
WV-U65301-Z1
WV-U65300-ZY
ZY
WV-S61300-ZY
WV-S65300-ZY
WV-U61300-ZY
WV-U65300-ZY
Operating Instructions 3
Preface
