• Use appropriate personal protective equipment
such as safety glasses, face shields, insulating
gloves, insulating boots, and/or insulating
mats.
• Use the 3-Step Testing Method. Before each
use:
• Verify tester operation by measuring a
known voltage. Apply tester to circuit under
test. And, then test on the known live volt-
age again to ensure proper operation.
• Connect the black common lead to ground
before applying the red test lead to voltage.
Disconnect the red test lead from the volt-
age first.
• Always work with a partner.
• When using the probes, keep fingers as far
behind the probe tips as possible.
Features:
• Vibration Mode with indicator movement
• Independent solenoid and electronic circuitry
design provides back-up voltage indication
for added safety
• Low Impedance Measuring Device
• Replaceable Test Leads
• Shielded probe tips
• Ultrasonically welded for added durability
Accessories:
• 61-072 Resistor-fused test leads
• C-90 Soft-sided carrying case
• 61-010 Leather case
To Measure AC Voltage:
• Ensure that the plug for the test leads is fully
seated into the banana jacks.
• Connect the tester in parallel with the load or
circuit.
• The tester indicates both the voltage type and
the voltage level.
To Measure DC Voltage:
• Ensure that the plug for the test leads is fully
seated into the banana jacks.
• Connect the tester in parallel with the load or
circuit.
• The tester indicates the voltage type, polarity,
and the voltage level.
2
Voltage Tester
Instruction Manual
WARNING
Read First: Safety Information
Use the tester only as specified in this manual;
otherwise, the protection provided by the tester
may be impaired.
Warning
To avoid possible electric shock or personal
injury, follow these guidelines:
• Do not use tester if it is damaged. Visually
inspect tester to ensure case is not cracked.
• Inspect and replace leads if insulation is
damaged, metal is exposed, or probes are
cracked. Pay particular attention to the
insulation surrounding the connectors.
• Do not use tester if it operates abnormally as
protection maybe impaired.
• Do not use during electrical storms or in wet
weather.
• Do not use around explosive gas, dust, or vapor.
• Do not apply more than the rated voltage to
the tester. Voltage is not to exceed 600V.
• Always operate this solenoid-type tester
within the specified duty cycle on the front of
the tester. Duty cycle ratio is:
• 1:7 ON:OFF time for 240V or less
• 1:40 ON:OFF time for 240V or greater.
• Maximum ON time is 15 seconds.
Caution
To protect yourself, think "Safety First":
• Voltages exceeding 30VAC or 60VDC pose
a shock hazard so use caution.
• Never ground yourself when taking electrical
measurements.
#61-065
ND 5119-5 61-065 Vol-Con Ins 2/19/07 9:18 AM Page 1
Maintenance:
• Clean the case with a damp cloth and mild
detergent. Do not use abrasives or solvents.
Service, and Replacement Parts:
For replacement parts or to inquire about
service information contact
IDEAL INDUSTRIES, INC.
Attn: Repair Department
1000 Park Avenue
Sycamore, IL 60178
Technical Support: 1-877-201-9005 or visit
our website at www.testersandmeters.com.
Specifications:
VAC Ranges: 120V, 240V, 480V, 600V AC.
VAC Accuracy: Relative indication only
VDC Ranges: 120V, 240V, 600V DC
VDC Accuracy: Relative indication only
Neon bulb lights from 100-600V AC/DC
Operating Frequency: 25-60 Hz
Input Impedance: Low
Overload protection: 1000VDC/750VAC rms.
Operating Environment: 32° F to 122° F
(<70% humidity)
Storage Temp.: -4° F to 140° F
(<80% humidity)
Accessories included: Test Leads, operating
instructions
Dimensions: 7.2" (H), 2.4" (W), 1.5" (D)
Weight: 8.0 oz
Safety:
4
Applications:

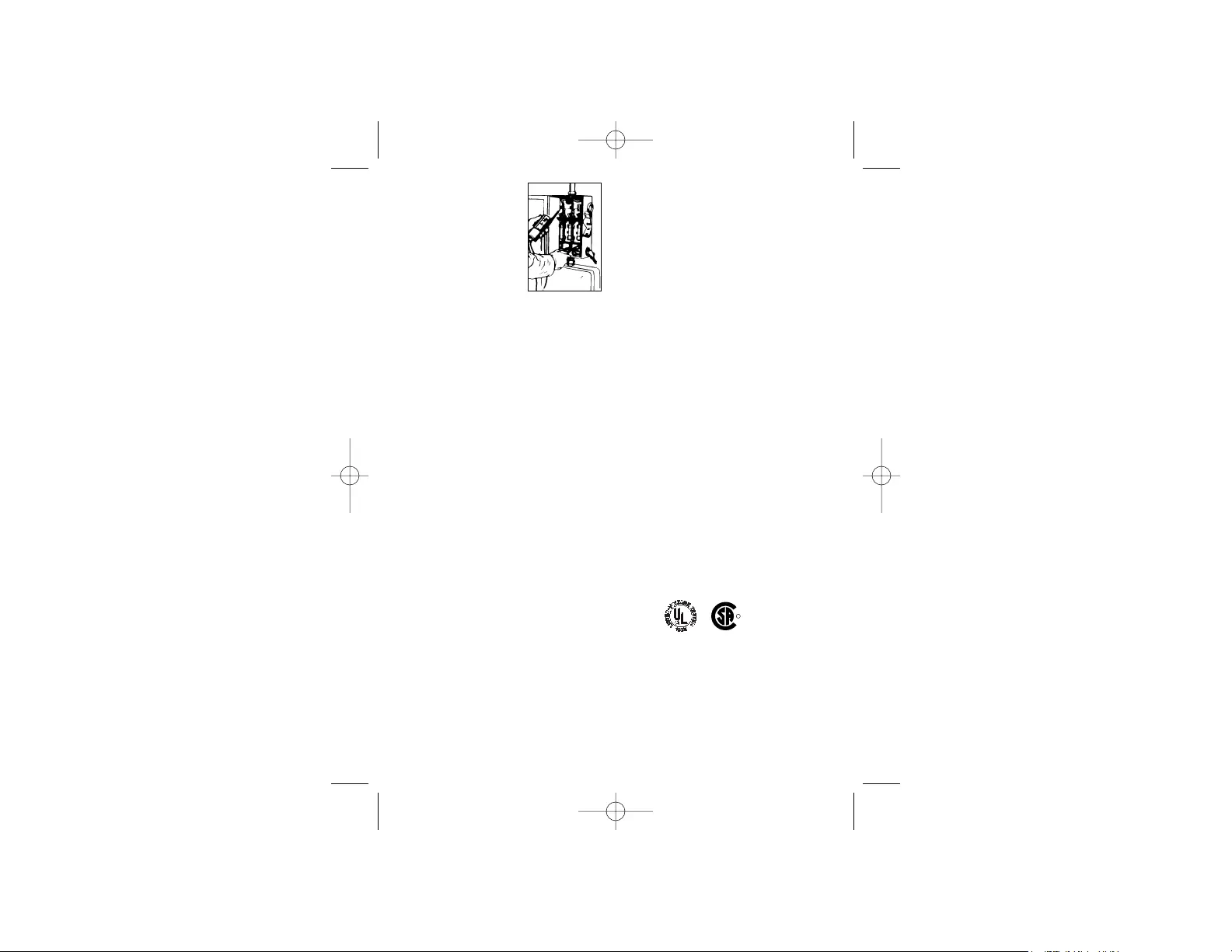

• Locating Blown Fuses
With power on: Place
tester across the “source”
side of one fuse and the
load side of an adjoining
fuse. If no voltage is
indicated, the fuse next to
the load side prod is blown.
If voltage is indicated, the fuse next to the
load side prod is OK. Repeat the same test
with the prods on the opposite side of the
same two fuses to check the other fuse.
On a three phase circuit, repeat the same test
as above. An indication of no voltage or
lower than normal line voltage indicates the
blown fuse.
• Testing for 25 to 60 Cycle Frequency
Place tester between each side of AC line. A
low frequency hum and slow vibrations indi-
cate 25 cycle current. 60 cycle current is
indicated by a higher frequency hum and
more rapid vibrations.
Test Lead Replacement:
• Replace leads only with IDEAL test leads
below.
• # 61-070 Standard Test Leads with
Shielded Probe Tips
• # 61-072 Resistor-fused Test Leads with
Shielded Probe Tips. Each probe tip con-
tains a special, current-limiting resistor
which acts like a fuse to limit short-circuit
current and prevents dangerous arcing
during a shorted condition. The resistors
are rated to 140Ω +/- 10%. Fusing cur-
rent is 1A at 125V. Fusing time is 30-
60ms at 125V, without causing dangerous
conditions during opening of the fuse ele-
ment. Leads need to be replaced when
fuse has opened.
3
R
ND 5119-5 61-065 Vol-Con Ins 2/19/07 9:18 AM Page 3
Warranty Statement:
This tester is warranted to the original purchaser
against defects in material and workmanship for
five years after purchase. During this warranty
period, IDEAL INDUSTRIES, INC. will, at it’s
option, replace or repair the defective unit, sub-
ject to verification of the defect or malfunction.
This warranty does not apply to defects resulting
from abuse, neglect, accident, unauthorized
repair, alteration, or unreasonable use of the
instrument.
Any implied warranties arising out of the sale of
an IDEAL product, including but not limited to
implied warranties of merchantability and fitness
for a particular purpose, are limited to the above.
The manufacturer shall not be liable for loss of
use of the instrument or other incidental or con-
sequential damages, expenses, or economic
loss, or for any claim or claims for such dam-
age, expenses or economic loss. State laws
vary, so the above limitations or exclusions mat
not apply to you. This warranty gives you spe-
cific legal rights, and you may also have other
rights which vary form state to state.
5
#61-065
Probador de voltaje test
Manual de instrucciones
ADVERTENCIA
Lea primero: Información de
seguridad
Use el probador sólo según se especifica en este
manual; de lo contrario, se puede deteriorar la
protección proporcionada por el probador.
Advertencia
Siga estas instrucciones para evitar una posible
descarga eléctrica o lesiones personales:
• No use el probador si está dañado.
Inspeccione visualmente el probador para
asegurarse de que la caja no esté agrietada
y que la tapa de las pilas esté colocada.
• Inspeccione y reemplace los cables si el
aislamiento está dañado, el metal está
expuesto o las sondas están agrietadas.
Preste atención especial al aislamiento que
rodea los conductores.
• No use el probador si funciona de forma
anormal, p3-ya que la protección puede haber
disminuido.
• No lo use durante tormentas eléctricas o
cuando llueva.
• No lo use con gases, polvo o vapores
explosivos.
• No aplique más del voltaje nominal al probador.
El voltaje no debe ser mayor que 600 V.
• Opere siempre este probador de tipo sole-
noide dentro del ciclo de servicio especificado
en la parte delantera del probador
• Tiempo de encendido:apagado 1:7 para
240 V o menos.
• Tiempo de encendido:apagado 1:40 para
240 V o más.
• El tiempo de encendido máximo es de 15
segundos.
6
