Side 1/90
Instrucciones en español adentro / Instructions en français à l’intérieur

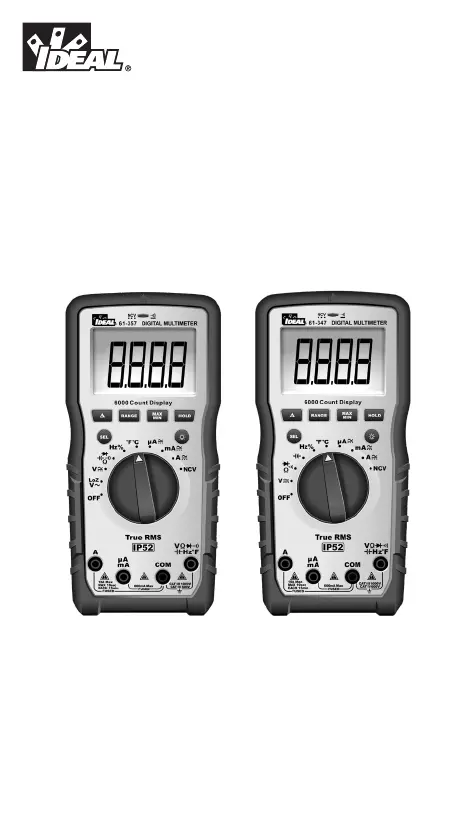

61-357 Multimeter
61-347 Multimeter
Operation and Safety Manual
IDEAL
®
Test and Measurement
Introduction ......................................................................3
Contacting IDEAL INDUSTRIES, INC .........................................3
Safety Information ..............................................................4
Warnings .................................................................................................. 4-5
Cautions .......................................................................................................5
Symbols ................................................................................................... 6-7
Operation.....................................................................8-25
Identification and description of operating controls and
functions ................................................................................................. 8-9
Operating Features ............................................................................... 10-11
Using Test Leads ........................................................................................12
Meter Operation ..................................................................................13-19
Non-Contact Voltage Testing..........................................................13
Lead Warning .................................................................................14
Fuse Warning .................................................................................14
SEL Button .....................................................................................14
Measuring Voltage .........................................................................15
Measuring Continuity ....................................................................16
Measuring Resistance ....................................................................16
Measuring Capacitance ..................................................................17
Measuring Diodes ..........................................................................17
Measuring Frequency ....................................................................18
Measuring Temperature .................................................................18
Measuring Micro Amps .................................................................19
Measuring Milli Amps ...................................................................19
Measuring Amps ............................................................................19
Functions Operation Table ....................................................................20-21
Functions Indication Table ...................................................................22-23
Electrical Specifications .......................................................................24-25
Environmental Specifications ............................................... 26
Mechanical Specifications .................................................. 26
EMC / EMI ...................................................................... 26
FCC ........................................................................... 27
Safety ........................................................................... 27
Maintenance and Service ............................................... 27-28
Table of Contents
2
Introduction
The IDEAL
®
61-357 and 61-347 Digital Multimeters are auto ranging true root
mean square (TRMS) meters that measure AC and DC current (amps) in series via
test leads in the designated terminals, measures voltage, frequency, resistance,
continuity, capacitance, diodes via test-leads in the designated terminal and
measures temperature via a K-Type thermocouple. They also detect the presence
of voltage between 40V to 600V AC via a non-contact sensor in the top center of
the meter.
Contacting IDEAL INDUSTRIES, INC.
To contact IDEAL INDUSTRIES, INC., call one of the following telephone numbers:
IDEAL Industries USA Customer Service
• Phone Number: 800-435-0705
• Email: contactus@idealindustries.com
IDEAL Industries Canada Customer Service
• Phone Number: 905-683-3400
• Email: ideal_Canada@idealindustries.com
IDEAL Industries EMEA
• Phone Number: +44 (0)1925 444 446
• Email: eur.sales@idealindustries.com
IDEAL Industries Australia
• Phone Number: +61 3 9562 0175
• Email: InfoAUS@idealindustries.com
Or visit the IDEAL Electrical Website at www.idealind.com
To register your product, find manuals, watch videos, simply scan this QR code.
3
Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures,
wear proper PPE in accordance to NFPA 70E. Read and fully understand the
instruction manual prior to using this product. Failure to comply can result in
serious injury or death.
