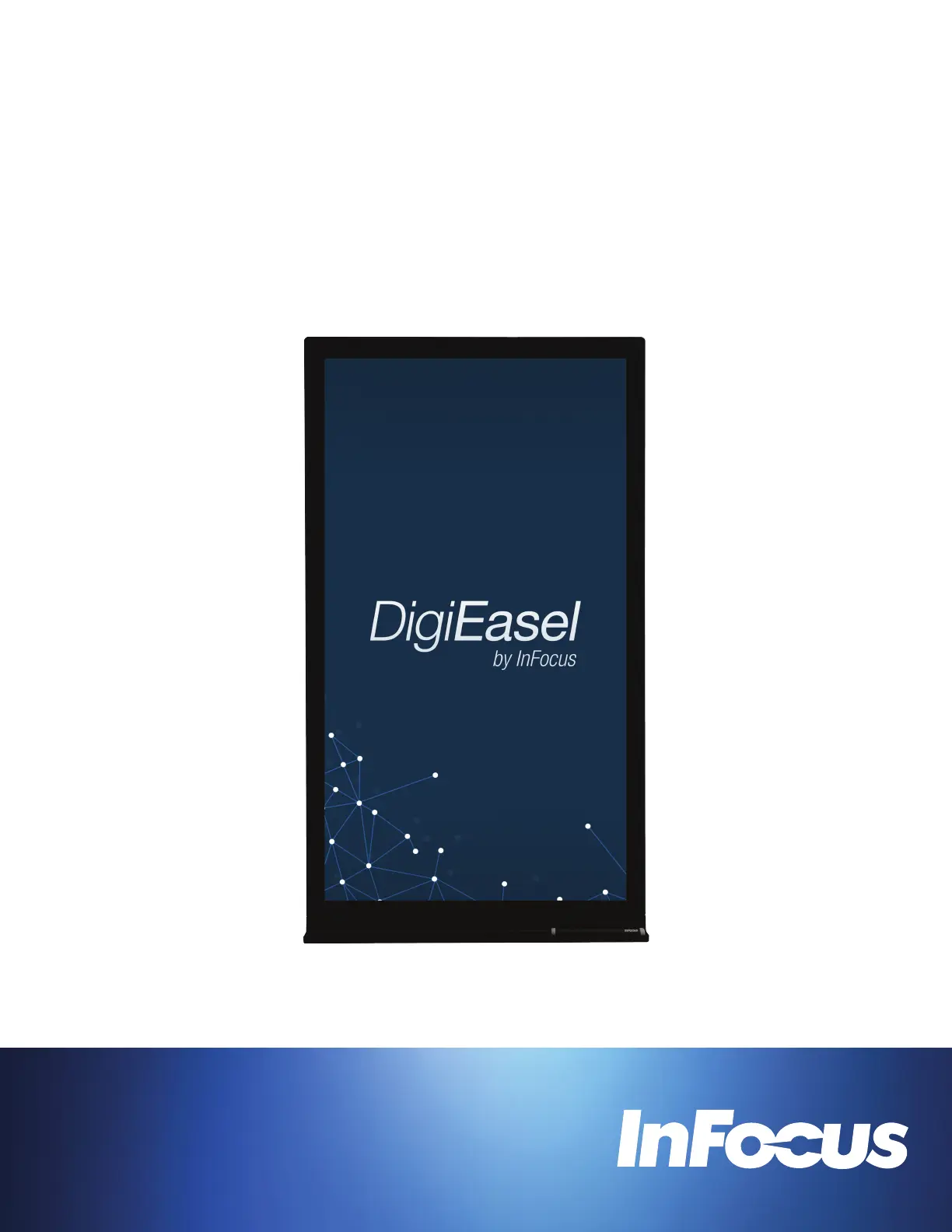

INF4030

009-1599-05

DigiEasel User Guide

Contents

Declaraon of Conformity ...................................................................................................................................................................... 3

Safety Consideraons ............................................................................................................................................................................. 4

What’s Included...................................................................................................................................................................................... 7

Setup ...................................................................................................................................................................................................... 8

Mounng ........................................................................................................................................................................................ 8

Aach tray ....................................................................................................................................................................................... 8

Aach stylus .................................................................................................................................................................................... 9

Orienng the monitor in Portrait or Landscape mode .................................................................................................................... 9

Connect to other devices ............................................................................................................................................................... 10

Connect AC power ......................................................................................................................................................................... 12

Turn the Monitor On/O ...................................................................................................................................................................... 12

Use the Keypad..................................................................................................................................................................................... 13

Whiteboard .......................................................................................................................................................................................... 14

Create a drawing object ................................................................................................................................................................. 14

Import an image ............................................................................................................................................................................ 15

Modify whiteboard canvas objects ................................................................................................................................................ 18

Save the whiteboard canvas .......................................................................................................................................................... 19

Save the whiteboard canvas to a USB thumb drive ....................................................................................................................... 20

Open a new whiteboard canvas .................................................................................................................................................... 20

Open a whiteboard le .................................................................................................................................................................. 21

Open a whiteboard le from a USB thumb drive .......................................................................................................................... 22

Navigaon ...................................................................................................................................................................................... 22

Whiteboard Tools ................................................................................................................................................................................. 23

Signage Mode ....................................................................................................................................................................................... 26

Acvate Signage mode .................................................................................................................................................................. 26

Exit Signage mode ......................................................................................................................................................................... 26

Update a Monitor ................................................................................................................................................................................ 27

OSD (On-Screen Display) Menu System ............................................................................................................................................... 28

Picture menu ................................................................................................................................................................................. 29

Screen menu .................................................................................................................................................................................. 30

Audio menu ................................................................................................................................................................................... 31

PIP menu........................................................................................................................................................................................ 32

Conguraon 1 menu .................................................................................................................................................................... 33

Conguraon 2 menu .................................................................................................................................................................... 34

Advanced Opon menu ................................................................................................................................................................. 35

Troubleshoong ................................................................................................................................................................................... 36

Limited Warranty .................................................................................................................................................................................. 38

Page 3

INF4030 DigiEasel User Guide

Declaration of Conformity

Manufacturer: InFocus Corporaon, 13190 SW 68th Parkway, Suite 200, Portland, Oregon 97223-8368 USA

Trademarks

Apple, Mac and Faceme are trademarks or registered trademarks of Apple, Inc. Microso, Windows, PowerPoint, Excel and Word

are trademarks or registered trademarks of Microso Corporaon. Adobe and Acrobat are trademarks or registered trademarks of

Adobe Systems Incorporated. HDMI logo and “High Denion Mulmedia Interface” are registered trademarks of HDMI Licensing

LLC. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. SRS

TruSurround HD and SRS TruVolume are trademarks of SRS Labs, Inc. TruSurround HD and TruVolume technologies are incorporated

under license from SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, Mondopad, BigTouch, and JTouch are either

registered trademarks or trademarks of InFocus Corporaon in the United States and other countries. All other trademarks are the

property of their respecve owners. Any other trademarks, service marks, personal names or product names are assumed to be the

property of their respecve owners and are used only for reference. There is no implied sponsorship, aliaon, cercaon, ap-

proval or endorsement if we use one of these terms.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in

a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instrucon manual, may cause harmful interference to radio communicaons.

Operaon of the equipment in a residenal area is likely to cause harmful interference in which case the user will be required to cor-

rect the interference at his own expense. Changes or modicaons not expressly approved by InFocus Corporaon may void author-

ity to operate the equipment.

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions: (1) This device may not

cause harmful interference and (2) this device must accept any interference received, including interference that may cause unde-

sired operaon.

NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICA-

TIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

FCC Radiaon Exposure Statement

This equipment complies with FCC RF radiaon exposure limits set forth for an uncontrolled environment. This device and its an-

tenna must not be co-located or operang in conjuncon with any other antenna or transmier. To comply with FCC RF exposure

compliance requirements, this grant is applicable to only Mobile Conguraons. The antennas used for this transmier must be

installed to provide a separaon distance of at least 20 cm from all persons and must not be co-located or operang in conjuncon

with any other antenna or transmier.

Produkspesifikasjoner

Merke:	InFocus
Kategori:	Fjernsyn
Modell:	INF4032
Vekt:	20000 g
Bredde:	974 mm
Dybde:	113 mm
Høyde:	533 mm
Bruksanvisning:	Ja
Berøringsskjerm:	Ja
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
USB-kontakttype:	USB Type-A, USB Type-B
Synsvinkel, horisontal:	176 °
Pakkevekt:	25600 g
Antall HDMI-porter:	4
DVI-port:	Nei
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
USB-versjon:	2.0
Skjermteknologi:	LED
Datasystem:	Nei
Antall samtidige berøringspunkter:	10
Berøringsskjermteknologi:	Kapasitiv
Kontrastforhold:	5000:1
Produktdesign:	Digital skiltingstavle (flatskjerm)
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Skjermoppløsning:	1920 x 1080 piksler
Lydinngang (mini-jack):	Ja
Produktfarge:	Sort
Antall USB-porter:	5
HD-type:	Full HD
Pakkedybde:	200 mm
Pakkehøyde:	715 mm
Pakkebredde:	1063 mm
Skjermdiagonal:	40 "
Naturlig sideforhold:	16:9
Støttede grafikkoppløsninger:	1920 x 1080 (HD 1080)
Kabler inkludert:	AC, USB, VGA
Støttede videofunksjoner:	1080p
Komponentvideo (YPbPr/YCbCr) inn:	1
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
VESA-montering:	Ja
Synsvinkel, vertikal:	176 °
Driftshøyde:	0 - 3048 m
PC-lydinngang:	Ja
Bilde i bilde:	Nei
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Støttede Windows operativsystemer:	Ja
Ethernet/bredbåndsforbindelse:	Ja
Lysstyrke for skjerm:	300 cd/m²
Oppdateringsresponstid:	8.5 ms
Pikselbredde:	0.15 x 0.45 mm
Inngangsporter for VGA (D-Sub):	1
Komposittvideo inn/sammensatt video inn:	1
Lydutgang (venstre/høyre):	1
RS-232-tilkobling:	Ja
Panelmonterbart grensesnitt:	200 x 200 mm
RMS-rangert strøm/utgangseffekt:	20 W
Innebygd TV-mottaker:	Nei
Lydkontakter:	1
Støttede Mac operativsystemer:	Ja
LED-baklystype:	Kantbelyst LED
Portrett modus:	Ja
