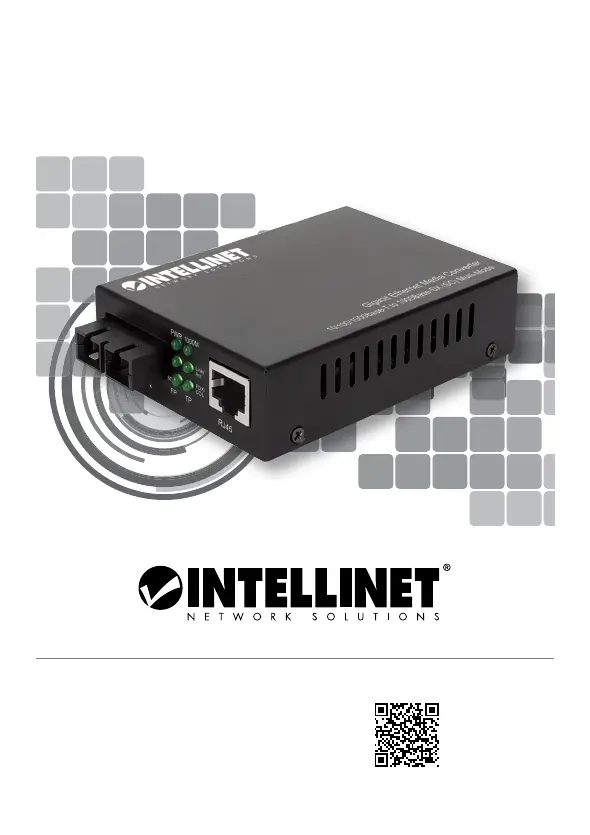

Side 1/16

Important: Read before use. • Importante: Leer antes de usar.

For additional benets:

Gigabit Ethernet Media

Conver ter Instructions

Models 508544

(

IMC-MMSCG550M

)

or go to: register.intellinet-network.com/r/508544

Scan to

product warranty

Instructions Gigabit Ethernet Media Converter

English

Media converters connect two Ethernet networks over

a longer distance using fiber optic cable.

For specifications, visit intellinetnetwork.com. Register your product at

Features

• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)

• One 1000Base-SX fiber SC multi-mode port supporting

a maximum distance of 550 m (1,800 ft.)

• Supports full-duplex and half-duplex modes with autonegotiation

Twisted Pair – RJ45

Connect the UTP port of the media converter to an RJ45 port on the network

(e.g., to an Ethernet switch). Cat5e or better cabling is recommended.

Fiber Optic

As shown above, two fiber optic cables need to be connected between two ideally

identical media converters. Make a connection from Media Converter 1 TX to

Media Converter 2 RX, and from Media Converter 1 RX to Media Converter 2 TX.

Maximum length and fiber cable specification depend on the model. (See Models.)

Connections

MEDIA CONVERTER 1

MEDIA CONVERTER 2

RJ45

OPTICAL FIBER

ETHERNET 1

ETHERNET 2

TWISTED PAIR

InstructionsGigabit Ethernet Media Converter

English

Power

Plug the power adapter into the 5 V DC input jack on the media converter,

then connect it to a regular power outlet. Only use the included power adapter

or one with matching specifications (output of 5 V DC, at least 1 A).

DIP Switch

Front panel

LED Description

PWR The power adapter is connected when lit.

1000M

1000 Mbps link on the twisted

pair connection when lit.

LINK/ACT

(TP = RJ45; FP = FIBER)

– Active link when lit;

– Data traffic when flashing;

– No active network link when unlit.

FDX/COL (FOR TP/RJ45)

– Full duplex connection when lit;

– Data collisions when flashing;

– Half duplex when unlit.

SD (FOR FP/FIBER)

– Fiber optic signal is detected when lit;

– No signal when unlit.

Rear Panel

Switch Position Description

On Link Fault Pass-through (LFP) on

Off LFP off

On Cut-through switching

Off Store-and-forward switching

3 & 4 Blank

Produkspesifikasjoner

Merke:	Intellinet
Kategori:	Audio/video-konverter
Modell:	508544
Bredde:	94 mm
Dybde:	70 mm
Høyde:	26 mm
LED-indikatorer:	LAN, Link, Power, Signal strength
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Sertifisering:	FCC Class B, CE, RoHS, UKCA, NDAA
Nettverksstandard:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Støttede nettverksprotokoller:	UTP/STP
Bølgelengde:	850 nm
Maksimal dataoverføringshastighet:	- Mbit/s
Auto-forhandling:	Ja
Jumbo rammer:	9.2
Fiberoptisk kontakt:	SC
Garantiperiode:	3 år
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	-10 - 55 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 70 °C
Quality of Service (QoS) støtte:	Ja
Kroppsmateriale:	Metall
Ekstern strømadapter:	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Link Fault Pass-through (LFP):	Ja
Ethernet-grensesnittype:	Fast Ethernet, Gigabit Ethernet
Relativ luftfuktighet under drift (H-H):	5 - 90
Intern:	Nei
AC-adapter bunt:	Ja
Guide for hurtiginstallering:	Ja
Jumbo Frames-støtte:	Ja
Fibre Channel-porter:	2
Maksimal overføring avstand:	550 m
Kabeltyper som støttes:	Cat5e
Tosidig system:	Full, Half
VLAN støtte:	Ja
Fiberkabeldiametere som støttes:	50/125, 62.5/125 µm
Fibermodusstruktur:	Multi-modus
Tx effekt (min.):	-9 dBmW
Tx effekt (maks.):	-3 dBmW
