(173IO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 09/21/2017
173
IO

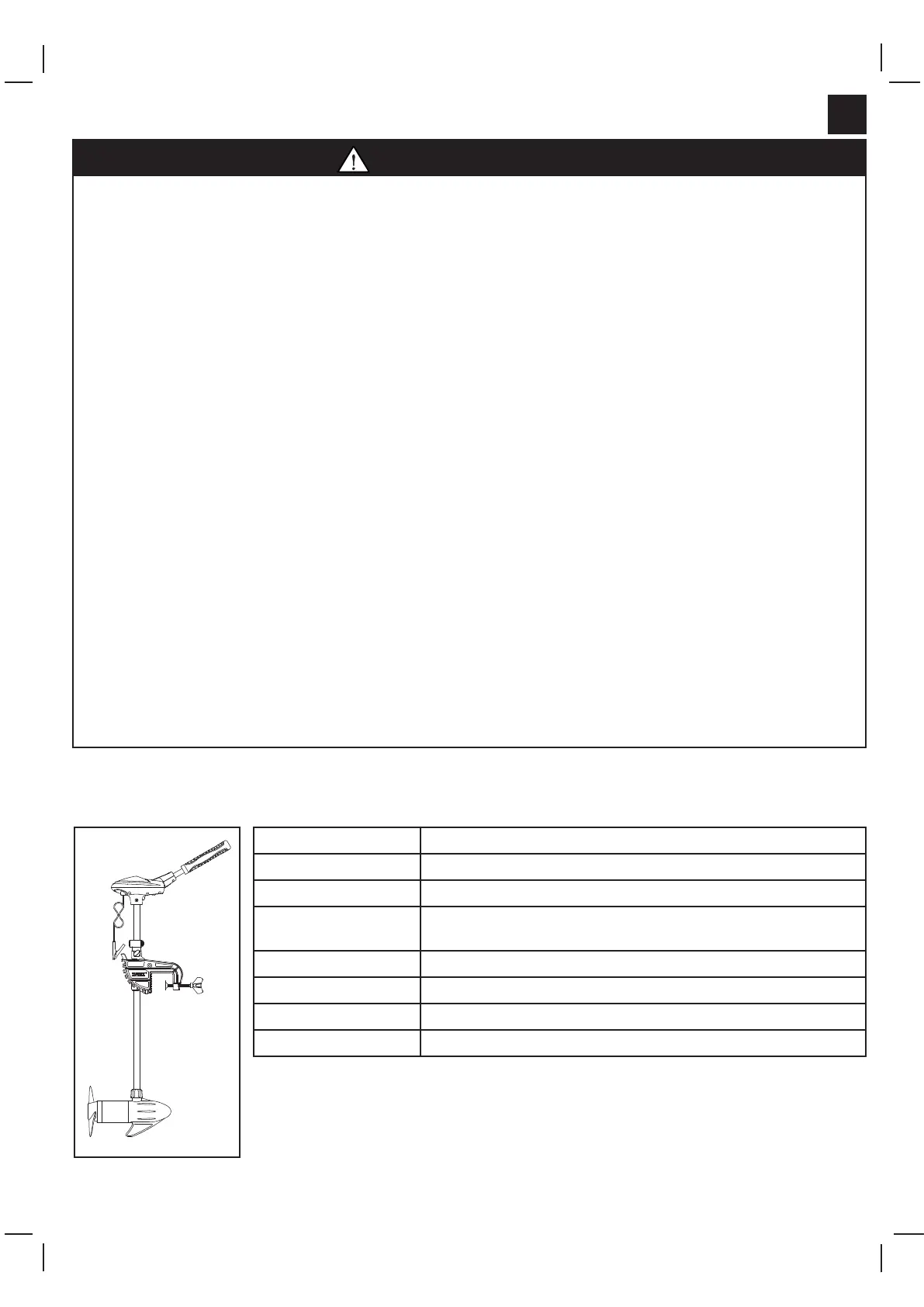

WARNING
SAVE THESE INSTRUCTIONS
Page 1
173
IO
12 VOLT TROLLING MOTOR
Model BM4212
173-*IO-R0-1809
These product warnings, instructions and safety rules provided with the product represent some
common risks of water recreation devices and do not cover all instances of risk and danger.
Please use common sense and good judgement when enjoying any water activity.
Voltage:
12V DC
Max. current:
35A
Max. power:
420W
Thrust:
40 Lbs (180N)
Maximum loaded boat weight: 2000Lbs (909kg)
Speeds:
5-forward / 3-reverse
Shaft length:
36” (91.4cm)
Suitable for:
Freshwater and saltwater
Mounting type:
Transom mounting only
Requirement:
a deep cycle marine 12volt battery with at least 60 ampere
hours rating.
Note:
All drawings for illustration purpose only. May not reect actual
product. Not to scale. Boat and battery are not included.
The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
•
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Always operate the motor at a safe distance away from swimmers, objects and obstructions. Never approach the motor when the propeller
is running. Contact with a spinning propeller may cause serious injury or death.
Always exercise safe practices when using your motor; stay clear of other watercraft, and all oating objects. Always obey water regulations
applicable to your area of operation.
Stop the motor immediately whenever anyone in the water is near the boat.
Never operate the motor while under the inuence of alcohol, drugs, medication, or other substances which may impair your ability to safely
operate equipment.
This motor is not suitable for use in strong currents and winds exceeding the thrust level of the motor.
Never run your motor in any mode with the propeller outside of the water: contact with rotating propeller may result in serious injuries or death.
When operating the motor in “weed escape” mode do not reach with your hand into the water or try to assist the weed removal. Always assure
the motor is switched off and disconnected from the battery(s) before attempting any manual weed removal.
Always set the speed selector to zero and place the motor in the deployed position before connecting power cables to the battery. Disconnect
the power cables rst prior to stowing. Disconnect the negative cable rst and connect it last.
Always ensure the power cables are not twisted or kinked and are securely routed to avoid tripping or a safety hazard. Ensure cables are
unobstructed to avoid damaging the wire insulation. Damage to the insulation could result in failure, electric shock, or other injury.
Always inspect the insulation of the power cables prior to use to ensure they are not damaged.
Always disconnect the motor from the battery(s) before cleaning, servicing or checking the propeller.
Never submerge the complete unit as water may enter the motor chamber through control box and shaft. Water in the motor may cause an
electrical short circuit and void the warranty.
Keep ngers clear of all hinges, pivot points and all moving parts when stowing, deploying, adjusting, raising or lowering the motor.
Firmly grasp the motor shaft when adjusting the motor depth to prevent motor from falling.
Regularly inspect and maintain the trolling motor according to these instructions. If you are not familiar with the correct procedures and safety
precautions for servicing the motor, do not perform this service.
Read and follow all instructions from the manufacturer of your battery and battery charger.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, FIRE, ELECTRIC SHOCK, DROWNING, OR OTHER
SERIOUS INJURY OR DEATH.
(173IO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 09/21/2017
173
IO
SAVE THESE INSTRUCTIONS
Page 2
173
IO
SETUP INSTRUCTIONS
Mounting
Install the motor mounting bracket on the transom / stern of the boat and tighten the clamp screws securely.
CAUTION:
Over-tightening the clamp screws can damage the motor mounting bracket.
Due to a policy of continuous product improvement, Intex reserves the right to change specications and
appearance, which may result in updates to the instruction manual, without notice.
Tilt / twist / tiller
extension handle
Battery meter & Weed
escape control button
Control box
Clamp screws
Composite Shaft
Motor
Propeller
Tilt lock lever
Multi-position
mounting bracket
Quick release depth collar /
steering tension knob

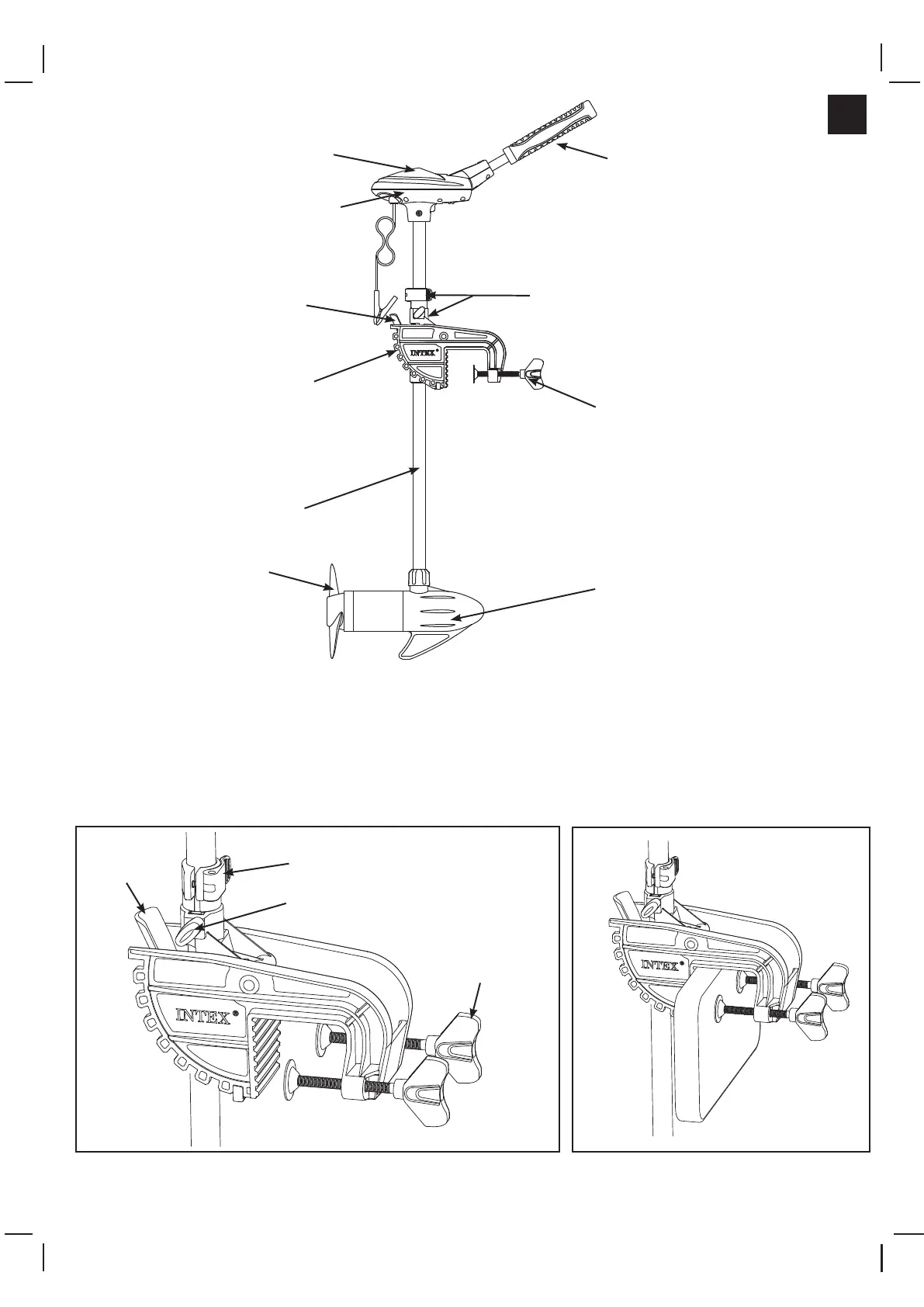

Overview:
Tilt Lock lever
Steering tension knob
Clamp screws
Quick release depth collar / lever arm

Produkspesifikasjoner

Merke: Intex
Kategori: påhengsmotor
Modell: BM4212
Produkttype: Påhengsmotor
Pakkevekt: 11080 g
Antall propellblader: 2
Anbefalt båtvekt: 909 kg
Produktfarge: Sort
Pakkedybde: 460 mm
Pakkehøyde: 230 mm
Pakkebredde: 1200 mm
Batterispenning: 12 V
Skaftlengde: 914 mm
Maksimal motorkraft: 420 W
Antall gir forover: 5
Antall gir akterover: 3
Maksimum skyvekraft: 180 N
Nåværende forbruk (maks.): 35 A
