STAINLESS STEEL TUB DISHWASHER OWNER’S
MANUAL
GUIDE D’UTILISATION DU LAVE-VAISSELLE AVEC
CUVE EN ACIER INOXYDABLE
Table of Contents/Table des matières
DISHWASHER SAFETY ....................................................2
Dishwasher Safety .........................................................2
DISHWASHER MAINTENANCE AND CARE .........................4
User-Maintenance Instructions .........................................4
INSTALLATION REQUIREMENTS.......................................7
Tools and Parts .............................................................7
Location Requirements ................................................. 10
Cabinet Opening Dimensions ......................................... 10
Drain Requirements ..................................................... 11
Water Supply Requirements........................................... 11
Electrical Requirements ................................................ 11
INSTALLATION INSTRUCTIONS ...................................... 12
Before You Begin......................................................... 12
Prepare Cabinet Opening – New Utilities........................... 12
Install Moisture Barrier (Recommended for Wood
Countertops)............................................................... 13
Prepare Dishwasher..................................................... 14
Remove Access and Toe Panels ..................................... 14
Connect Water Line to Fill Valve...................................... 14
If a Drain Hose Extension is Required .............................. 15
Install Door Handle (on some models) .............................. 15
Place Dishwasher in Cabinet.......................................... 16
Custom Panel Installation (on some models)...................... 17
Electrical Connection.................................................... 18
Direct Wire Connection ................................................. 19
Power Cord Connection ................................................ 19
Junction Box Assembly ................................................. 19
Final Installation Check ................................................. 21
Secure Dishwasher in Cabinet Opening............................ 22
Choose Anchor Attachment Method................................. 24
Connect Water Line to House Shutoff Valve....................... 25
Connect Drain Hose ..................................................... 25
Complete Installation .................................................... 27
Install Access Panel ..................................................... 27
T-Gasket Installation (on some models) ............................ 28
Check Operation.......................................................... 28
If Dishwasher Does Not Operate ..................................... 28
Additional Tips............................................................. 28
SÉCURITÉ DU LAVE-VAISSELLE..................................... 29
Sécurité du lave-vaisselle .............................................. 29
ENTRETIEN ET RÉPARATION DU LAVE-VAISSELLE .......... 31
Instructions d’entretien par l’utilisateur.............................. 31
Codes d’anomalies/témoins qui clignotent............................... 33
EXIGENCES D’INSTALLATION ........................................ 35
Outils et pièces............................................................ 35
Exigences d’emplacement ............................................. 38
Dimensions de l’ouverture de l’armoire ............................. 39
Exigences d’évacuation................................................. 39
Spécifications de l’alimentation en eau ............................. 39
Spécifications électriques .............................................. 39
INSTRUCTIONS D’INSTALLATION ................................... 40
Avant de commencer.................................................... 41
Préparation de l’emplacement – nouveaux appareils ........... 41
Installation de la barrière anti-humidité (recommandée pour
les comptoirs en bois) ................................................... 42
Préparation du lave-vaisselle.......................................... 43
Retrait du panneau d’accès et de la plinthe........................ 43
Branchement de l’arrivée d’eau à la valve de distribution ...... 43
Si une rallonge de tuyau de vidange est nécessaire............. 44
Installation de la poignée de porte (sur certains modèles) ..... 44
Placer le lave-vaisselle dans l’armoire .............................. 45
Installation du panneau personnalisé (sur certains
modèles).................................................................... 46
Raccordement électrique............................................... 47
Méthode de raccordement direct ..................................... 48
Branchement du câble d’alimentation............................... 48
Boîtier de raccordement électrique .................................. 48
Vérification finale de l’installation..................................... 51
Fixation du lave-vaisselle dans l’ouverture d’encastrement
de l’armoire ................................................................ 51
Choix de l’option de fixation............................................ 53
Branchement de l’arrivée d’eau au robinet d’arrêt de la
maison ...................................................................... 54
Raccordement du tuyau de vidange ................................. 54
Achever l’installation..................................................... 56
Installation du panneau d’accès ...................................... 57
Installation du joint en T (sur certains modèles) .................. 57
Vérification du fonctionnement........................................ 58
Si le lave-vaisselle ne fonctionne pas ............................... 58
Conseils supplémentaires.............................................. 58
Error Codes/Blinking Lights.......................................................6
2
DISHWASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These
words mean:
DANGER
You can be killed or seriously injured if you don't
immediately follow instructions.
WARNING
You can be killed or seriously injured if you don’t follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using your dishwasher, follow basic precautions, including the following:
� Read all instructions before using the dishwasher.
� Use the dishwasher only for its intended function.
� Use only detergents or wetting agents recommended for
use in a dishwasher and keep them out the reach of
children.
� When loading items to be washed:
1. Locate sharp items so that they are not likely to damage
the door seal; and
2. Load sharp knives with the handles up to reduce the
risk of cut-type injuries.
� Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent. For plastic items not so
marked, check the manufacturer’s recommendations.
� Do not touch the heating element during or immediately
after use.
� Do not operate your dishwasher unless all enclosure
panels are properly in place.
� Do not tamper with controls.
� Do not abuse, sit on, or stand on the door or dish racks of
the dishwasher.
� To reduce the risk of injury, do not allow children to play in
or on a dishwasher.
� Under certain conditions, hydrogen gas may be produced
in a hot-water system that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLOSIVE. If the
hot-water system has not been used for such a period,
before using the dishwasher, turn on all hot-water faucets
and let the water flow from each for several minutes. This
will release any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during this
time.
� Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
� Do not use replacement parts that have not been
recommended by the manufacturer (e.g. parts made at
home using a 3D printer).
SAVE THESE INSTRUCTIONS
3
GROUNDING INSTRUCTIONS
For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. The appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance
with all local codes and ordinance.
WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance — If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be
run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.
SAVE THESE INSTRUCTIONS

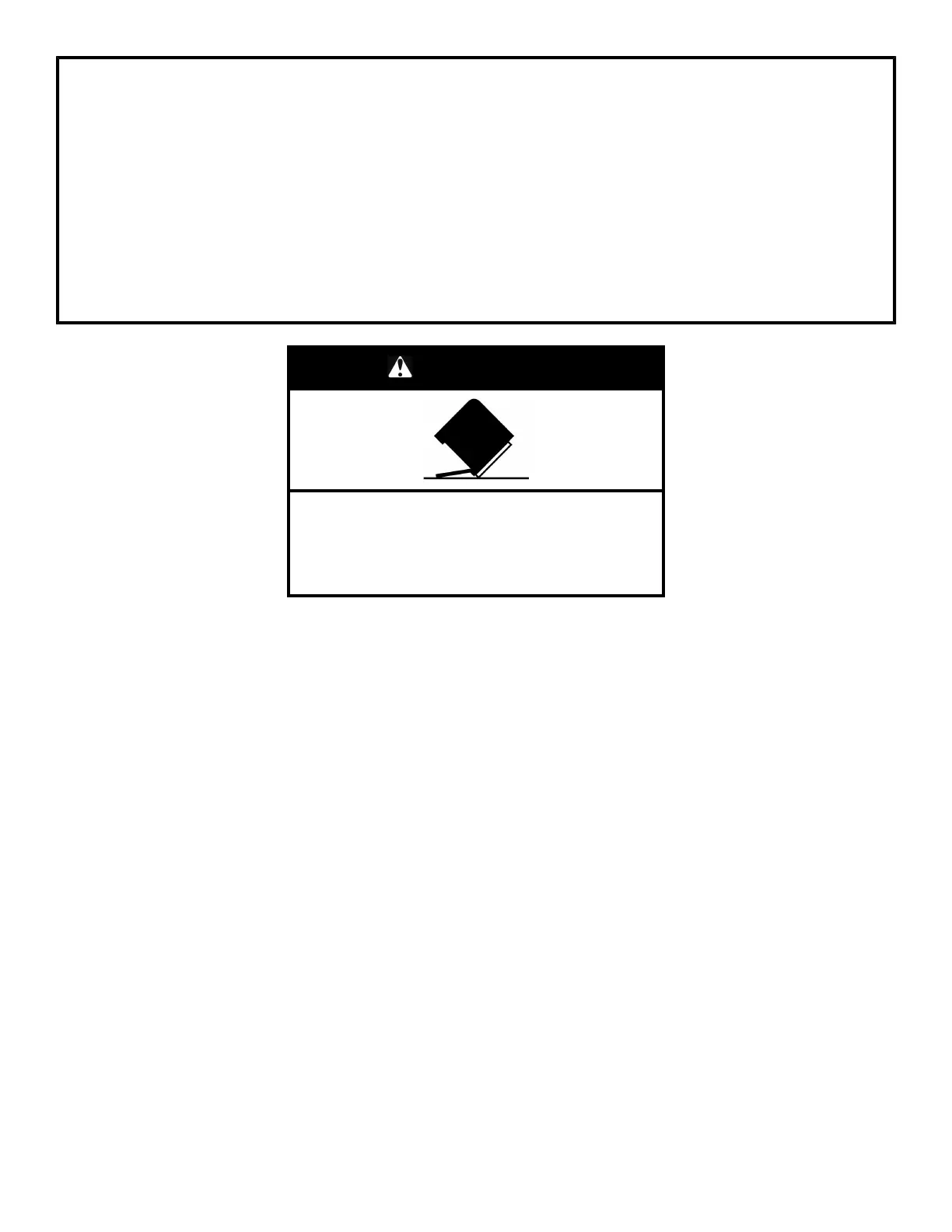

WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
