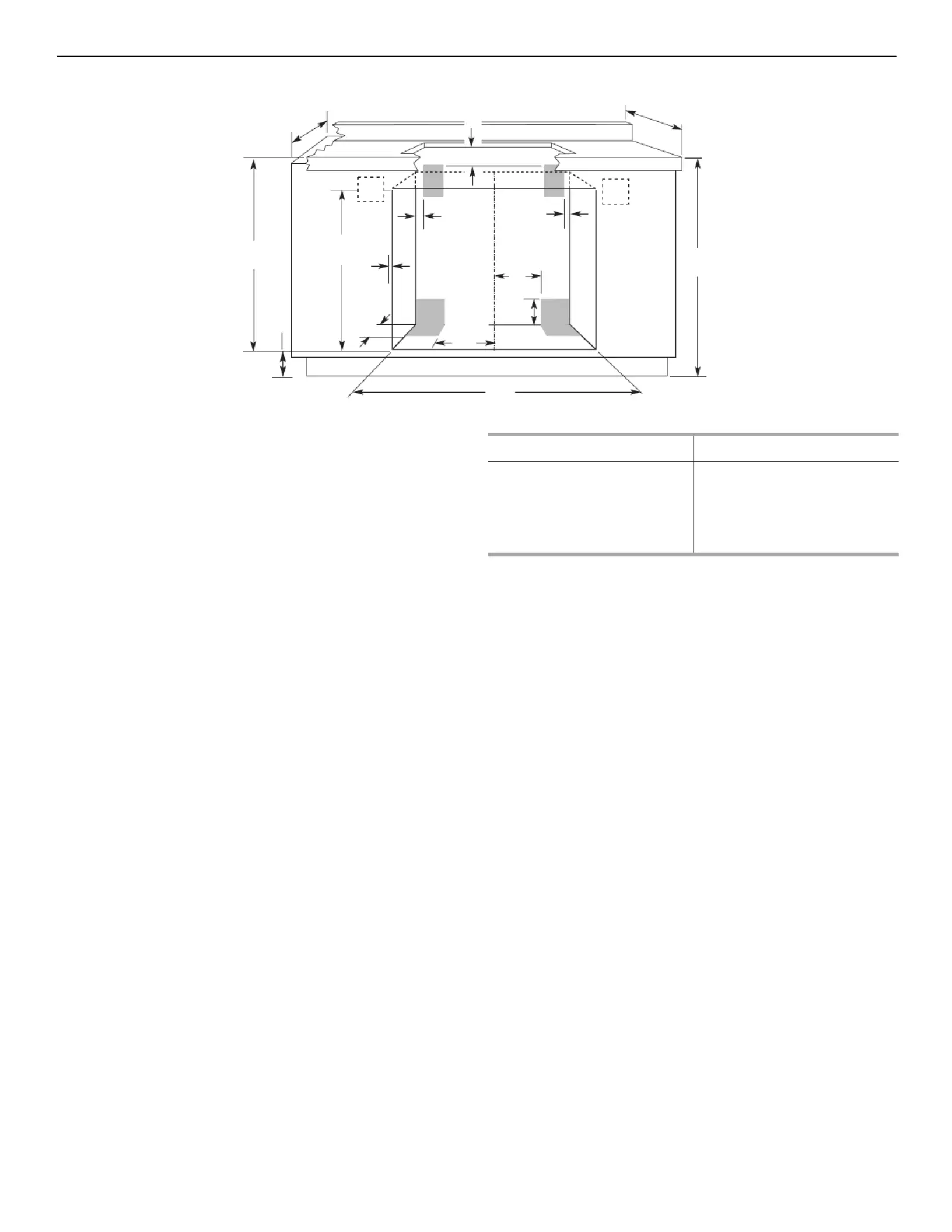

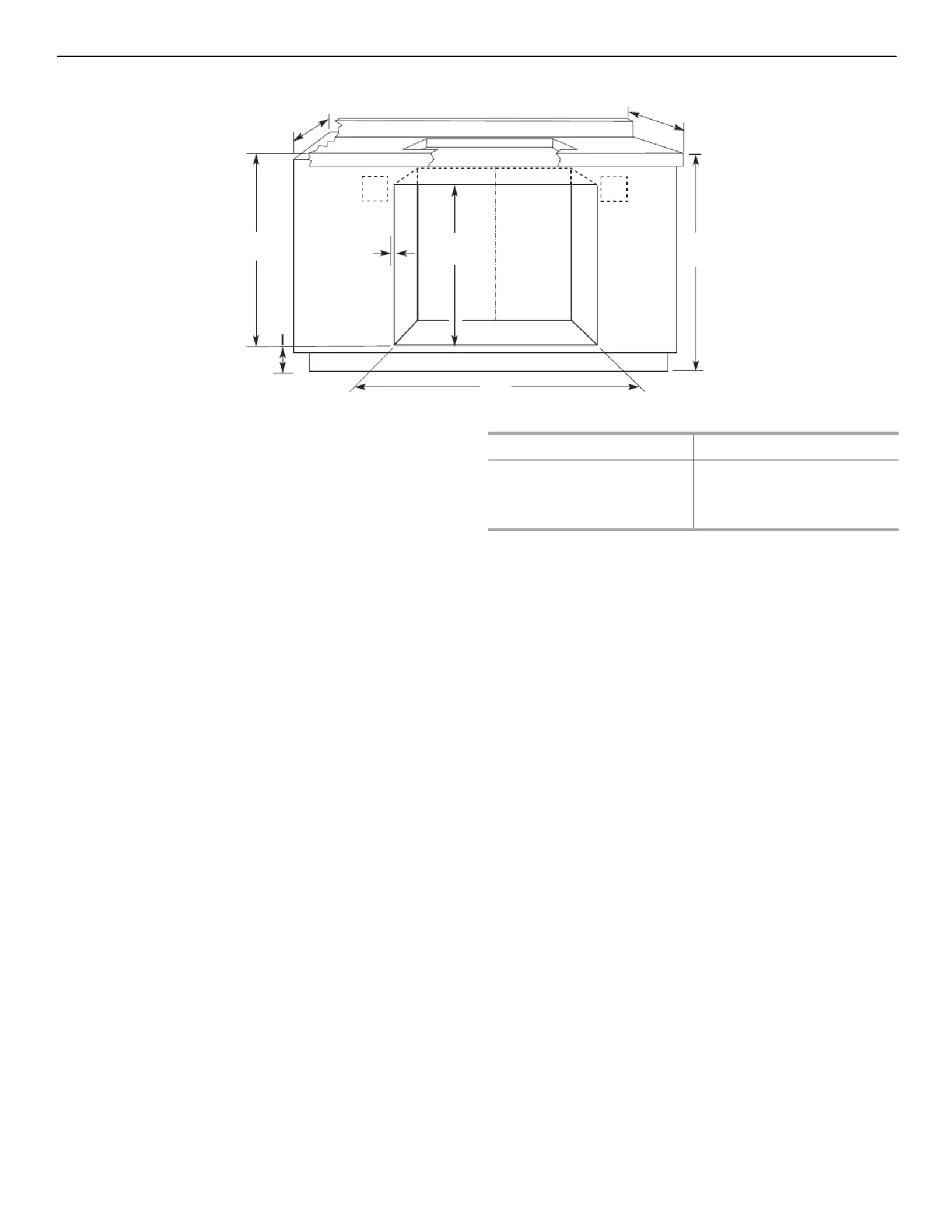

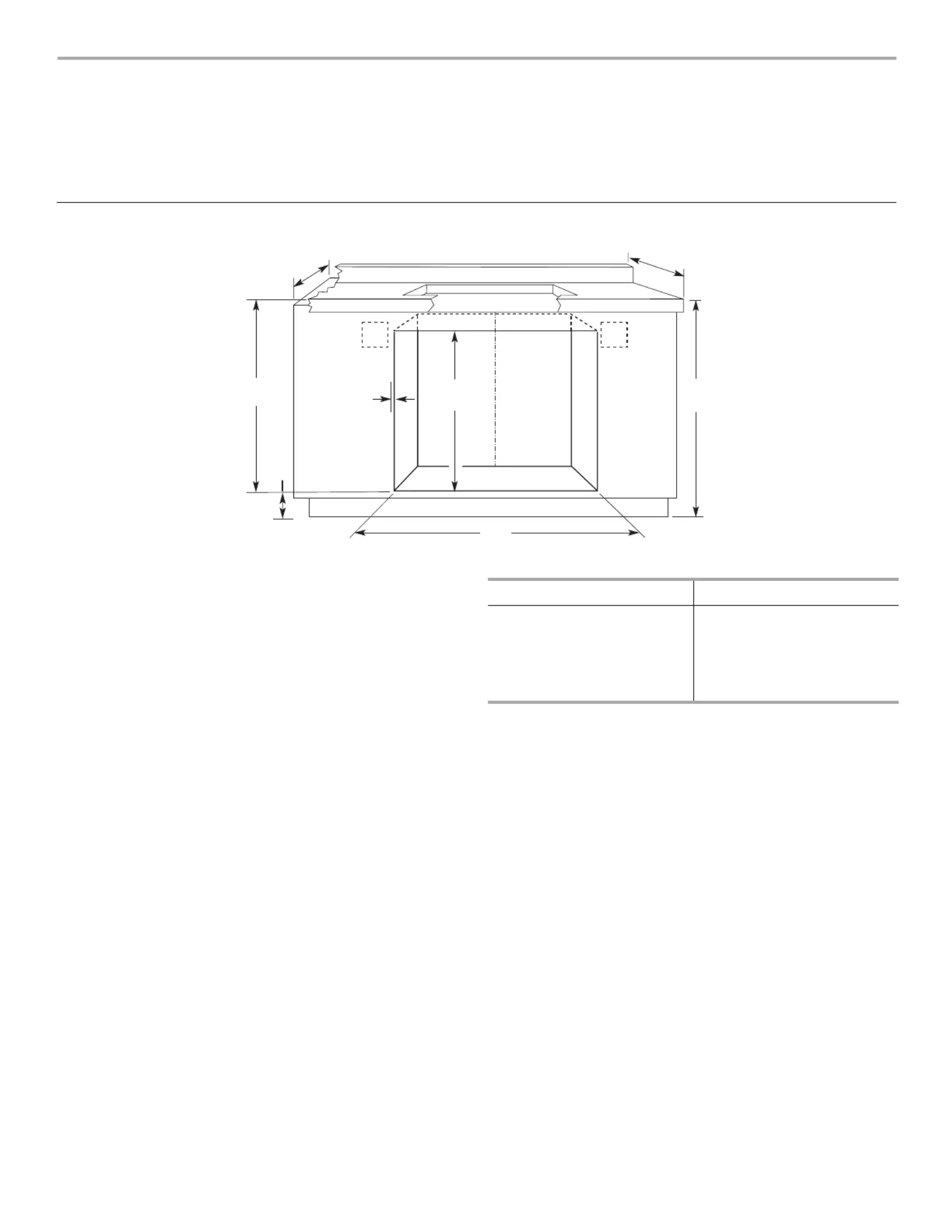

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP
IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See cooktop Installation
Instructions for cutout dimensions. Center the cooktop cutout over oven cutout.
To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor,
delaminate or sustain other damage. This oven has been designed in accordance with UL and CSA International and complies with the
maximum allowable wood cabinet temperatures of 194°F (90°C).
Approved Built-In Oven and Electric Radiant/Coil Cooktop Combinations
For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the
bottom of the cooktop burner box.
NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or
left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface
to pass the appliance cable through to the junction box.
A. 24" (61 cm) cabinet depth
B. 25" (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow ⁵⁄₈" (1.6 cm) for oven trim to overlap on each side.
E. 27¾" (70.5 cm) minimum cutout height
F. 36" (91.4 cm) from cabinet base to countertop
G. 4⁵⁄₈" (11.7 cm) maximum from cabinet base
H. See Cutout Dimensions chart.
I. 31
³⁄₈
" (79.7 cm) from top of countertop to bottom of cutout
CUTOUT DIMENSIONS
Oven Size Oven Cutout Dimension
24" (61 cm) 22¹⁄₂" (57.2 cm)
27" (68.6 cm) 25¹⁄₂" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34¹⁄₂" (87.6 cm)
A
EF
G
H
B
C
C
D
I
W10351318A
