INSTALLATION GUIDE
for the
SB-T-TACCAB/10W3v3
SKU# 94307 - 94308
2005 - 2015 Toyota Tacoma Access Cab
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
STEP 1
Remove the cup holders from the console.
Remove the pair of screws that are exposed.
Continued on Next Page
STEP 2
Remove the pair of screws that are at the bottom of the
storage bucket.
Remove the console out of the truck.
STEP 3
Remove the three bolts located on the transmission tunnel
that secures the mounting bracket for the AC power inverter.
(If equipped with the AC power inverter)
Unplug the wiring harness from the AC power inverter and
remove out of truck.
If the AC power is to kept, this is up to the installer for proper
relocation, JL Audio® is not responsible.
SB-T-TACCAB/10W3v3_INSTR_SKU#011230
INSTALLATION
DIFFICULTY:
2
5
OUT
OF
ESTIMATED TIME:
12 HOUR
Continued on Next Page
SB-T-TACCAB/10W3v3_INSTR_SKU#011230

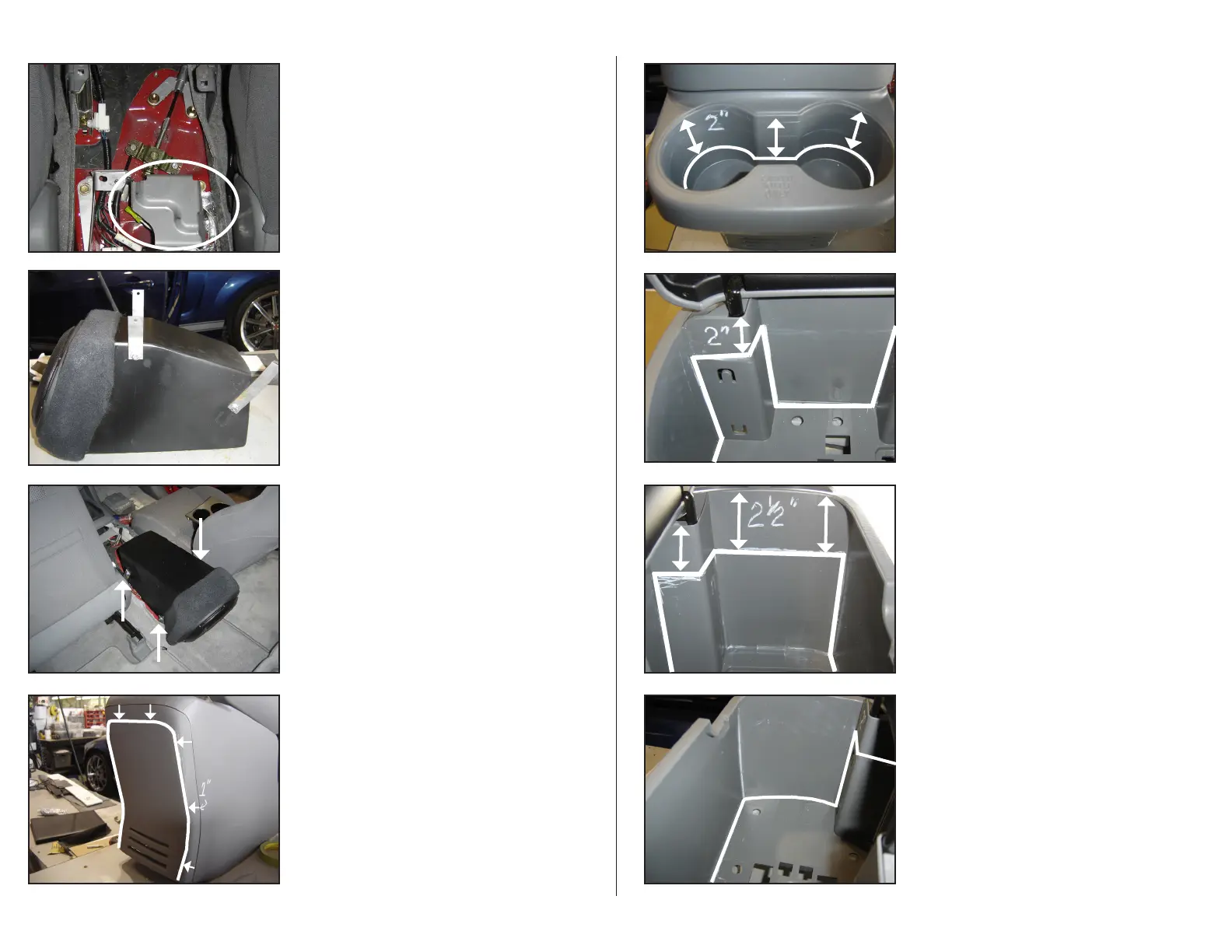

STEP 7
Measure and mark 1-inch from the rear panel’s edge to the
middle of the rear panel. The mark is on both sides and the
top.
Cut on the marked line and remove the center section.
STEP 6
Run speaker wire form the amplifier’s location to the
Stealthbox®. Wire to the terminal and check the woofer for
proper operation.
Place the Stealthbox® into the mounting location.
Using the three factory bolts that where removed in
STEP 3, secure the bottom of each mounting bracket to the
transmission tunnel.
Tighten all six mounting bolt assemblies.
STEP 5
Place a supplied lock washer, flat washer and mounting
bracket onto three of the supplied bolts.
The two shorter length brackets mount close to the woofer.
Make sure that all three mounting brackets tapper out from
the enclosure, not tapper in.
Only hand tighten the mounting assembly at this time.
STEP 4
Cut off this portion of the bracket as close to the
transmission tunnel as possible.
Page 2 • JL Audio, Inc 2016
STEP 9
*IMPORTANT*
This picture is looking inside the center console with the lid
open. The front of the console it to the left.
Measure and mark 2 inches from the top of the center
console down. Follow the lines in the picture.
STEP 11
*IMPORTANT*
This picture is looking inside the center console with the lid
open. The picture is facing the front of the console.
Cut on the complete marked line. Do not cut into the outer
walls, these are not double layered. Only cut into the floor
and into the stand outs for the legs of the lid.
STEP 10
*IMPORTANT*
This picture is looking inside the center console with the lid
open. The picture is facing the rear of the console.
Measure and mark 2 1/2 inches from the top of the center
console down. Follow the lines in the picture.
STEP 8
Measure and mark 2 inches from the top of the
cup holders down. The mark goes all the way around the
cup holder section.
Cut on the marked line and remove the bottom of the
cup holders.
