KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VP-482
HDMI to 3G HD-SDI
Scaler
P/N: 2900-000763 Rev 2


VP-482 – Contents i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
3 Overview 3
4 Defining the VP-482 HDMI to 3G HD-SDI Scaler 4
5 Connecting the VP-482 5
6 Operating the VP-482 HDMI to 3G HD-SDI Scaler 7
6.1 Using the Front Panel Buttons 7
6.2 Using the OSD 7
7 Technical Specifications 11
Figures
Figure 1: VP-482 HDMI to 3G HD-SDI Scaler 4
Figure 2: Connecting the VP-482 HDMI to 3G HD-SDI Scaler 5

VP-482 - Introduction 1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products
Congratulations on purchasing your Kramer VP-482 HDMI to 3G HD-SDI Scaler,
which is ideal for the following typical applications:
• Projection systems in conference rooms, boardrooms, hotels and churches
• Home theater up-scaling

VP-482 - Overview 3
3
3 Overview
The Kramer VP-482 HDMI to 3G HD-SDI Scaler is a high-performance digital
scaler for signals up to 3G HD-SDI. It up-scales and down-scales 3G HD-SDI
signals to resolutions up to WUXGA and 1080p. The following output resolutions
are supported:
• SDTV: 480i and 576i
• HDTV: 720p @60, 1080p SF30/29/25, 1080p 30/29/25/24/23, 1080p @59,
1080i @59, 720p @59, 480i @59, 576i, 1080p @50, 1080i @50, 720p @50,
1080p @60, 1080i @60
The VP-482 features:
• A data rate of up to 3Gbps
• An HDMI/DVI input (non-HDCP)
• Two SDI outputs (up to 3G HD-SDI)
• Multi-standard operation: SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and
3G HD-SDI (SMPTE 424M)
• An OSD (On Screen Display) accessible via the front panel buttons for easy
setup and adjustment
• A built-in ProcAmp for convenient signal adjustment
• A non-volatile memory that retains the last settings used
• A freeze button
• An external 5V DC power supply

4 VP-482 - Defining the VP-482 HDMI to 3G HD-SDI Scaler
4 Defining the VP-482 HDMI to 3G HD-SDI
Scaler
This section defines the VP-482.

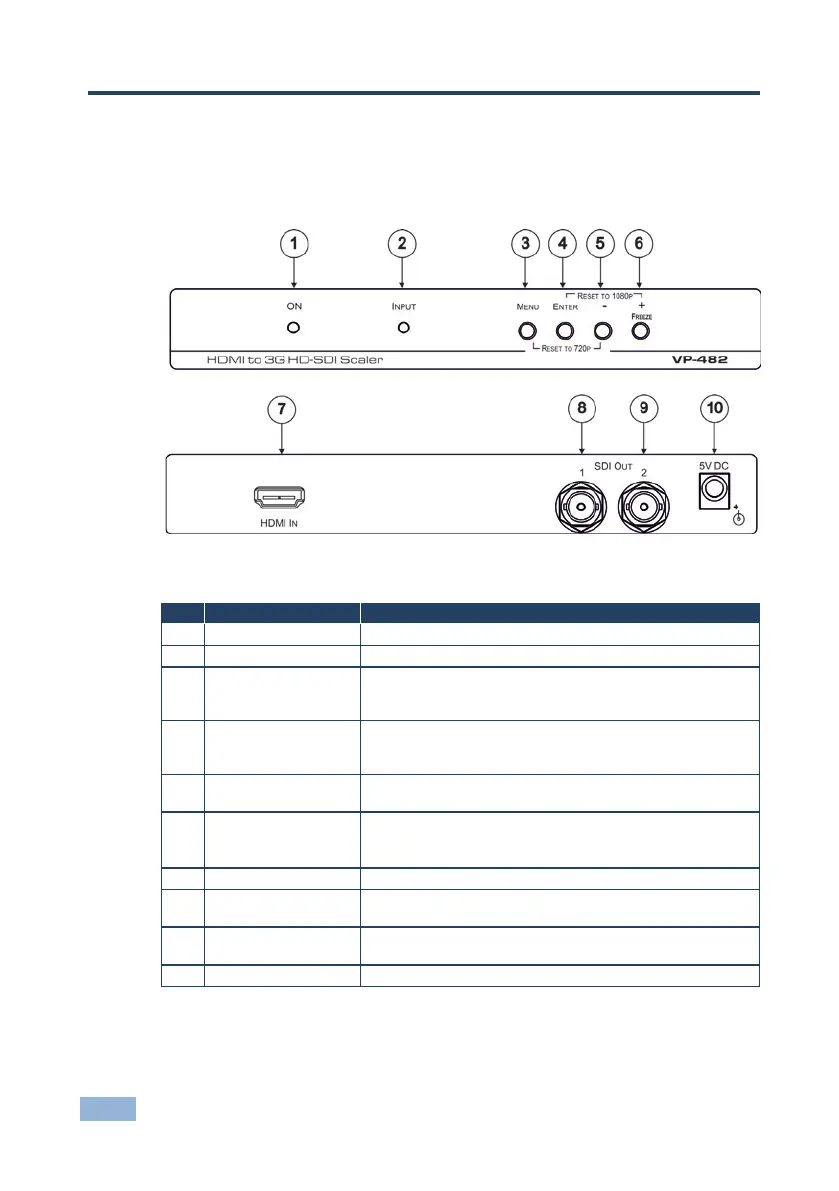

Figure 1: VP-482 HDMI to 3G HD-SDI Scaler
#
Feature Function
1
ON LED Lights green when the unit is powered on
2
INPUT LED Lights green when an HDMI signal is detected on the input
3
MENU Button Press to display the OSD (On-screen Display) Main menu.
When the OSD is not displayed, press together with the –
button to set the output resolution to 720p (1280x720)
4
ENTER Button In the OSD, press to select the highlighted menu item.
When the OSD is not displayed, press together with the +
button to set the output resolution to 1080p (1920x1080)
5
– Button In the OSD, press to step up through the options or to
decrement the parameter value
6
+ / FREEZE Button In the OSD, press to step down through the options or to
increment the parameter value.
When the OSD is not displayed, press to freeze the display
7
HDMI IN Connector Connect to the non-HDCP HDMI source
8
SDI OUT 1 BNC
Connector
Connect to the SDI acceptor 1. The signal is reclocked and
equalized
9
SDI OUT 2 BNC
Connector
Connect to the SDI acceptor 2. The signal is reclocked and
equalized
10
5V DC Connect to the +5V DC power adapter, center pin positive

VP-482 - Connecting the VP-482 5
5
5 Connecting the VP-482
Always switch off the power to each device before connecting it to your
VP-482. After connecting your VP-482, connect its power and then
switch on the power to each device.

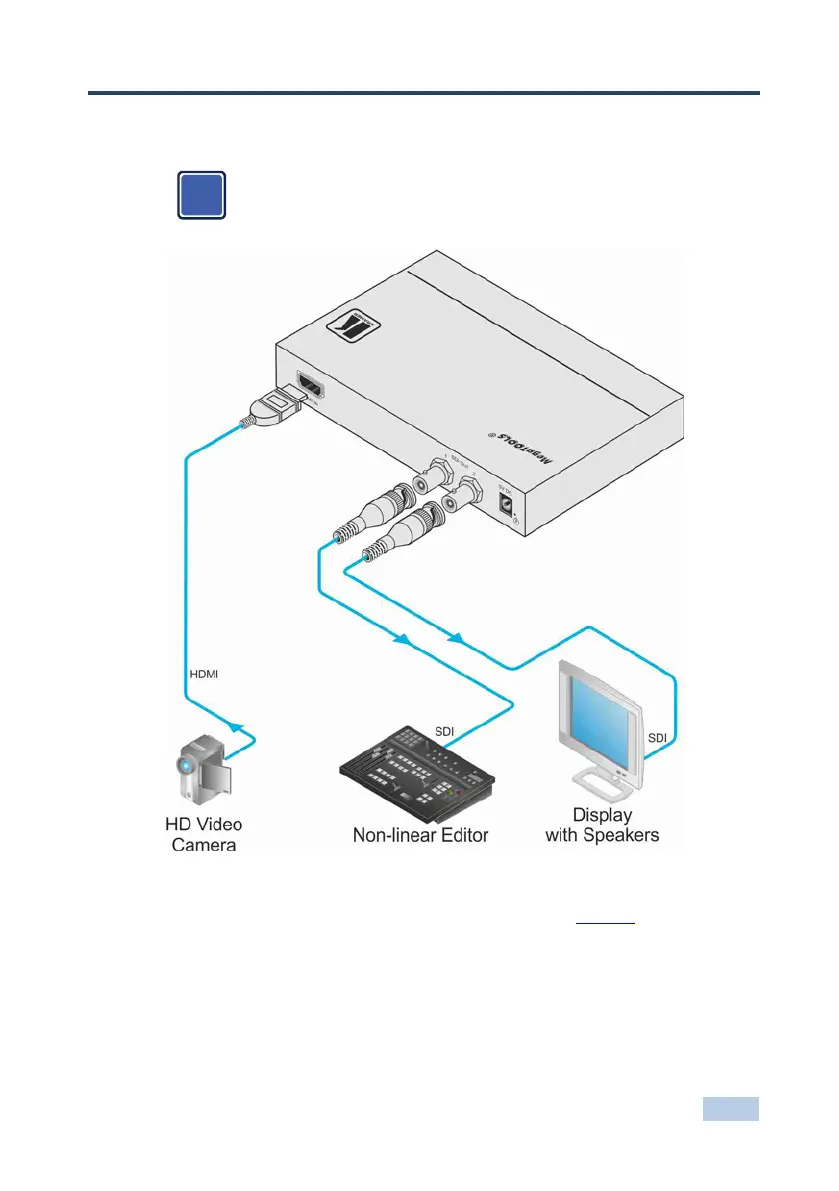

Figure 2: Connecting the VP-482 HDMI to 3G HD-SDI Scaler
To connect the VP-482 as illustrated in the example in Figure 2:
1. Connect an HDMI source (for example, an HD video camera) to the HDMI
connector.
Note: If the HDMI signal is HDCP protected, it cannot be displayed on a non-HDCP
compliant display and therefore the VP-482 will not output the picture.
i

6 VP-482 - Connecting the VP-482
2. Connect the SDI OUT 1 BNC connector to an SDI acceptor (for example, a
non-linear editor).
3. Connect the SDI OUT 2 BNC connector to an SDI acceptor (for example, a
display with speakers).
4. Connect the 5V DC power adapter to the 5V DC power socket and to the
mains electricity (not shown in the illustration).
