Side 1/4

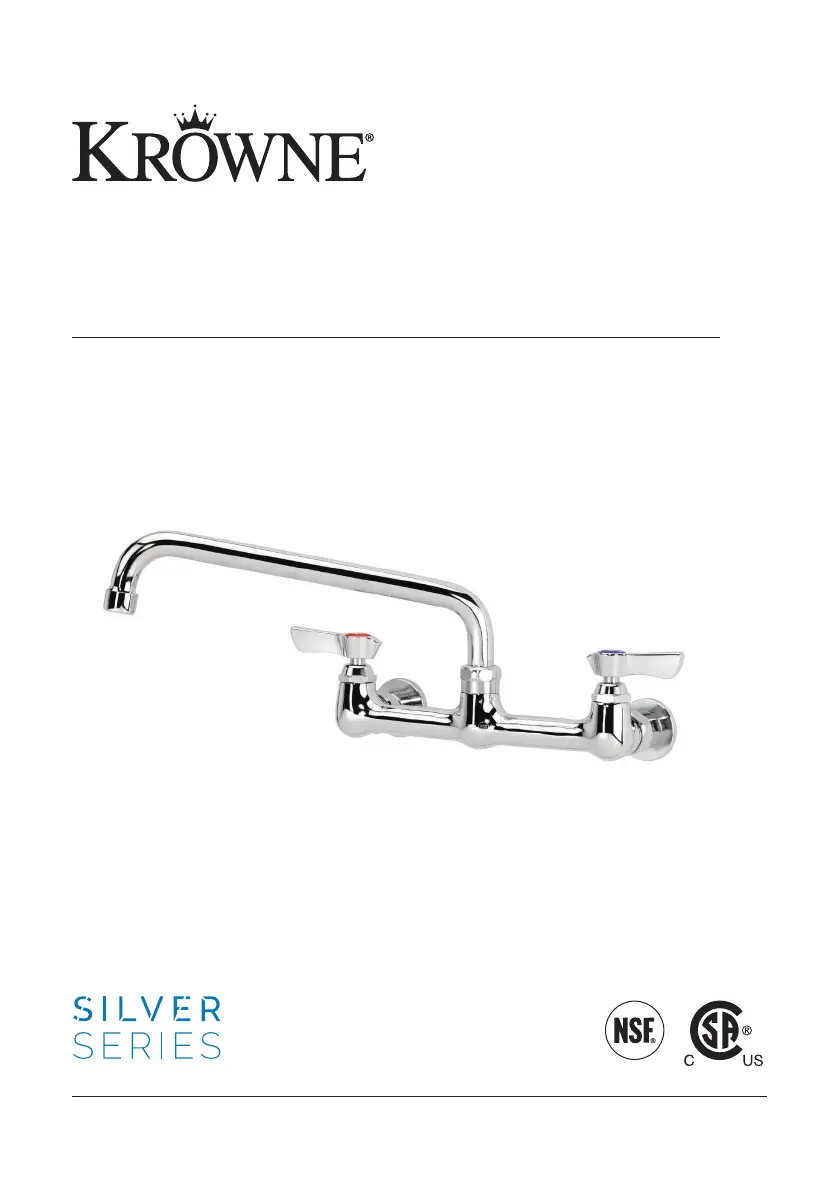

8” Center Wall Mount Faucet
Installation Manual
12-8 Faucets
Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com
Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com
12-8 Faucets Installation Manual
Installation Instructions
1. Turn off water supply at main source before proceeding with installation.
2. Remove the two 1/2” threaded nipples (A) from the wall mount kit (not included).
3. Apply thread sealant tape or pipe joint compound to one side of each of the two threaded
nipples (you will apply to the other side after step #5 is completed).
4. Install the threaded nipples with the sealant into the two 1/2” female threaded coupling
anges (B) and tighten properly. It is important to know that the coupling anges have
eccentric centers. This means that if the holes for the threaded nipples are not exactly
8” on center, it allows you to adjust the center distance.
5. From the front of the sink, insert the threaded nipples into the faucet holes in the sink. Make
sure the coupling anges are turned so the brass nipples are at the 12 o’clock position. This
is necessary to make sure the faucet is level.
6. Apply thread sealant tape or pipe joint compound to the other side of each of the two
threaded nipples. This step is not necessary if you are using the Krowne E-Z install exible
water line kit, as these use compression ttings.
7. From the back of the sink, place the black rubber washer, rosette, and ange nut from the
mounting kit onto the threaded nipples and tighten with a wrench.
8. From the front of the sink, insert the rubber washers (C) into the coupling anges (B).
9. Install the faucet body (D) onto the coupling anges and tighten properly with a wrench. If
the faucet does not t on the coupling anges, rotate the anges to t the faucet per step 5.
10. From the front of the sink, install the spout (E) and tighten properly.
11. From the back of the sink, install the water supply lines and tighten properly.
Note: Before starting installation, it is necessary to purchase a mounting kit. We recommend the
Krowne’s Mounting Kit for Wall Mount Faucets (model 21-194L). For a mounting kit with water
lines, we recommend Krowne’s E-Z Install Flexible Water Line Kit (model 21-445L). These kits do
not use thread sealant tape or pipe joint compound. Kits come with 1/2” compression 90° ttings
on one side and 3/8” compression ttings that secure directly onto the supply stops. These are
available in 22”, 24” and 30” lengths.
WARNING: Plumbing connections should be made by qualified personnel
who will observe all applicable plumbing, sanitary and safety codes.
NOTE: This is NOT INCLUDED with Silver
Series 8” Wall Mount Plumbing products
(Model 21-194L)
E
D
C
B
Sink/Mounting
Surface
A
Black Rubber Washer
Rosette
Lock Nut
Krowne • 100 Haul Rd. Wayne, NJ 07470 krowne.com
12-8 Faucets Installation Manual
Scan to view
aerator options
Parts Guide
Accessories
No. Model Description
1 19-220L 6” Swing Spout
1 19-221L 8” Swing Spout
1 19-222L 10” Swing Spout
1 19-223L 12” Swing Spout
1 19-224L 14” Swing Spout
No. Model Description
1 19-225L 16” Swing Spout
1 19-226L 18” Jointed Spout
1 19-227L 3-1/2”W Gooseneck Spout
1 19-228L 6”W Gooseneck Spout
1 19-229L 8-1/2”W Gooseneck Spout
No. Model Description
2 21-300L Silver Series 1/4 Turn Ceramic Valves (full hot & cold valves with handles)
3 21-305 Lever Handle Kit (hot & cold handles only)
4 21-400L Coupling Flanges (includes 2 each)
5 21-194L Wall Mounting Kit (includes 2 each: nipples, lock nut, rosette, washer)
Model Description
21-312 Wrist Blade Handle Kit (includes hot & cold handles)
21-445L E-Z Install Flexible Water Line Kit
25-150 Thread Sealant Tape
20-302 Replacement Washer Set
NOTE: This is NOT
INCLUDED with Silver
Series 8” Wall Mount
Plumbing products
(Model 21-194L)
1
5
4
2
3
