LC-Power LC-CC-124-ARGB-TB Bruksanvisning

LC-Power CPU kjøler LC-CC-124-ARGB-TB

Les nedenfor 📖 manual på norsk for LC-Power LC-CC-124-ARGB-TB (1 sider) i kategorien CPU kjøler. Denne guiden var nyttig for 5 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/1

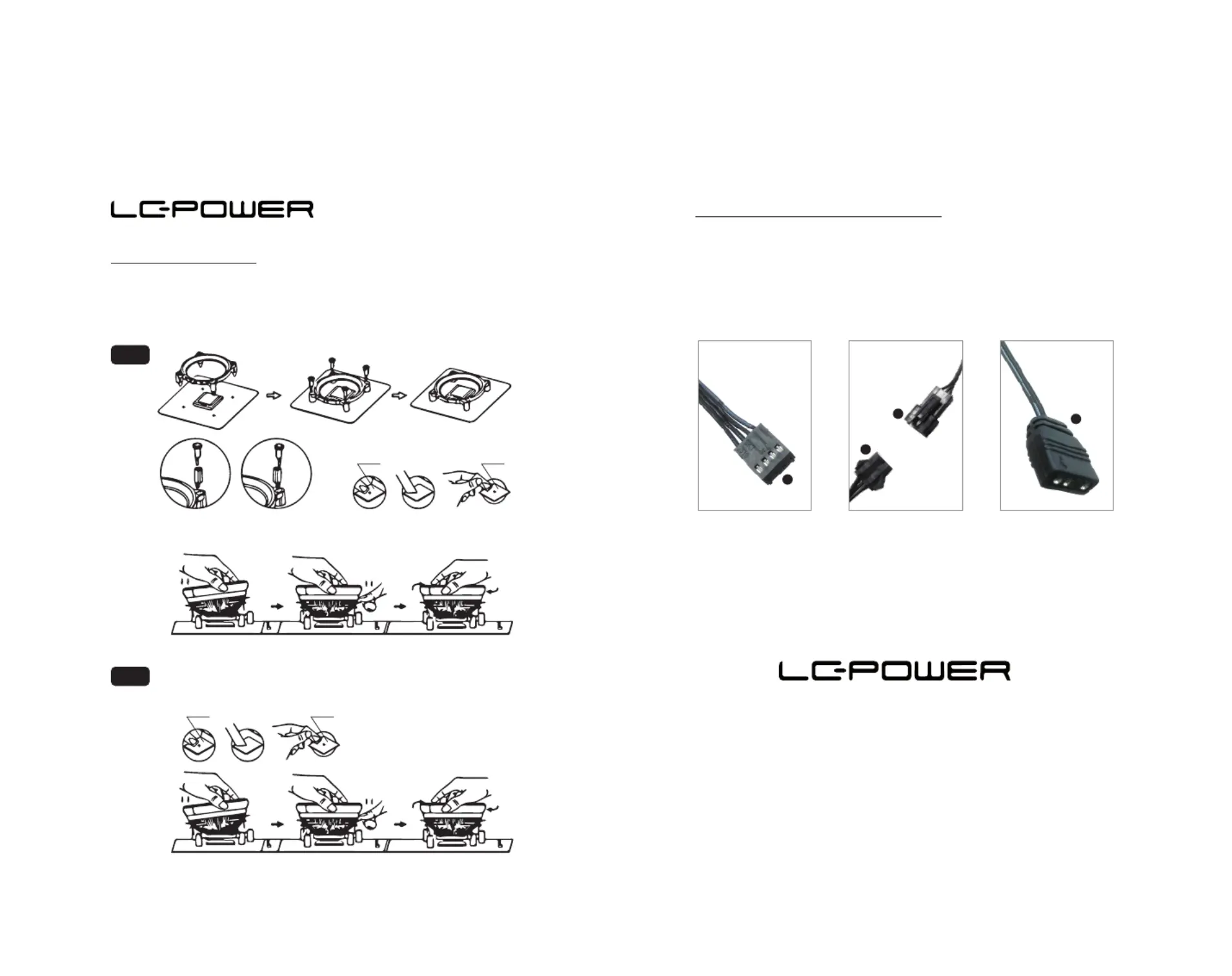

Step 1- Installation

1. Remove the transparent sheet from the cooler and the CPU bottom.

Now spread some thermal paste evenly on the CPU.

2. Clip two sides to each corresponding bracket.

3. Connect the cooler fan and the illuminated outer ring to the mainboard.

Step 2- Fan and wire connection

1. Connect the 4pin PWM connector to the mainboard -> “CPU FAN”

2. Connect the 3 pin digital RGB fan cable (B) with the mainboard.

Consult your mainboard manual to locate the position of the RGB connector on

your mainboard. Colours and modes can be controlled via the mainboard's RGB

software (digital RGB/ARGB).

LGA775 LGA115X

CPU

thermal paste

CPU

Intel

AMD

AMD AM2/AM2+/AM3/AM3+/AM4 FM1/FM2/

Silent Power Electronics GmbH,

Formerweg 8, 47877 Willich,

Germany, www.lc-power.com,

Email: support@lc-power.com

LC-CC-124-ARGB-TB

thermal paste

3. Some mainboards need the digital RGB adapter cable (D) which must be connected

between the 3 pin RGB fan cable (B) and the mainboard itself.

So connect the adapter (C) to the 3 pin digital RGB fan cable (B). And now (D) to

the mainboard.

Produkspesifikasjoner

Merke:	LC-Power
Kategori:	CPU kjøler
Modell:	LC-CC-124-ARGB-TB
Vekt:	331 g
Bredde:	124 mm
Dybde:	68 mm
Høyde:	124 mm
Støynivå (lav hastighet):	17.5 dB
Pakkevekt:	397 g
Sertifisering:	CE
Maksimal luftstrøm:	49 cfm
Rotasjonshastighet (min):	900 RPM
Spenning:	12 V
Egnet plassering:	Prosessor
Maksimalt lufttrykk:	1.5 mmH2O
Minimum lufttrykk:	0.3 mmH2O
Lagertype:	Fluid Dynamic Bearing (FDB)
Produktfarge:	Black, Grey
Pakketype:	Boks
Harmonisert system (HS)-kode:	84733080
Modell/Type:	Kjøler
Belysningsfarge:	Multi
Viftetilkobling:	3-pin + 4-pin
Viftediameter:	100 mm
Støynivå (høy hastighet):	33 dB
Antall vifter:	1 vifter
Belysningsdiode:	Ja
Støttede prosessorkontakter:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2
Viftedimensjoner (BxDxH):	100 x 15 x 100 mm
Rotasjonshasrighet (max):	2200 RPM
Nominell linjestrøm:	0.45 A
Minimum luftstrøm:	13.42 cfm
Thermal Design Power (TDP):	95 W
