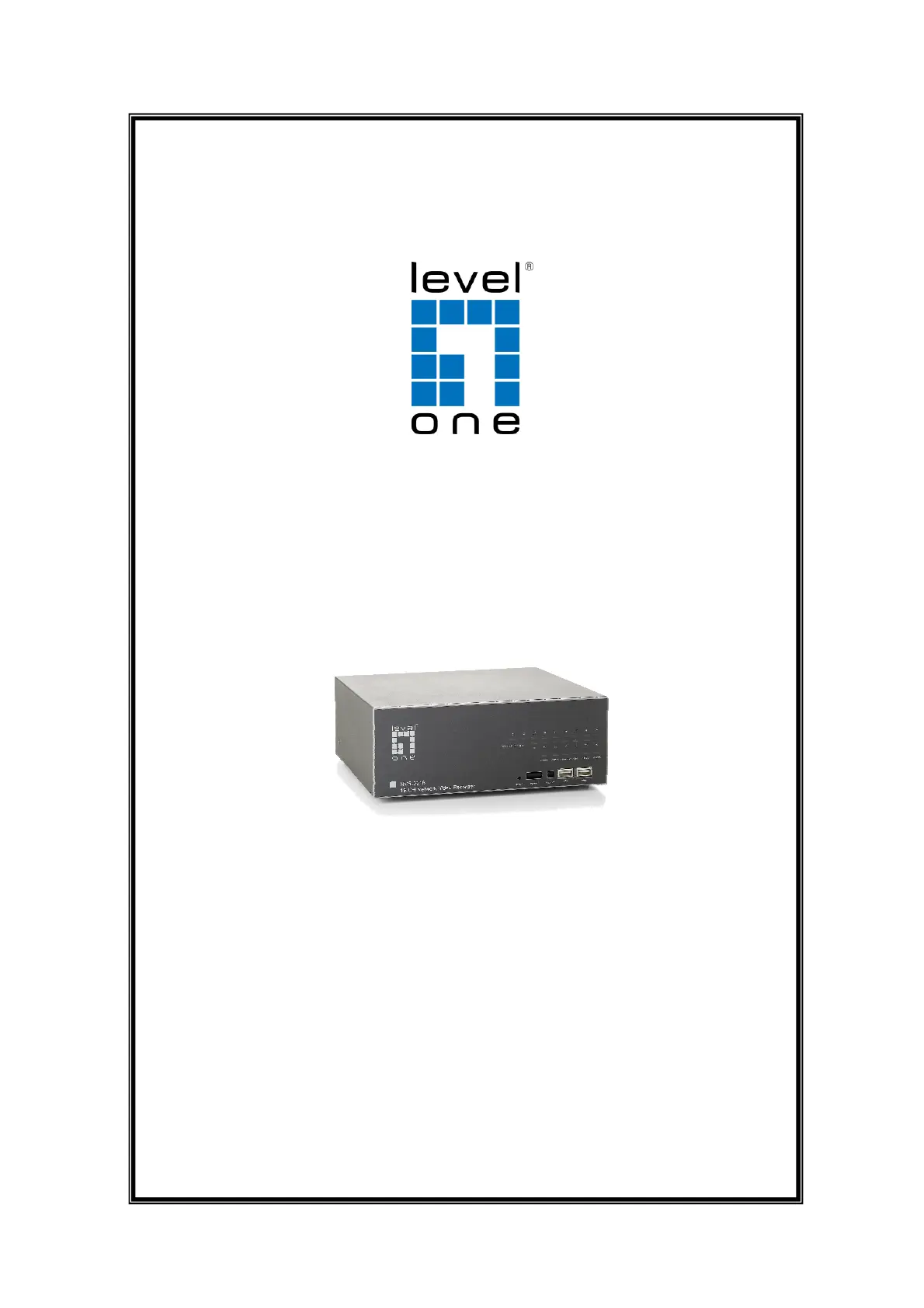

User Manual

Ver. 1.1

NVR-0204/0208/0216

4-CH/8-CH/16-CH Network Video Recorder

English

Use

’

s Manual

English

Use

’

s Manual

LevelOne

Network Video Recorder

Table of Contents

Copyrights, Trademarks & GPL 3

System Requirements 4

Product Description 5

Hardware Illustration 6

I/O Ports and RS-485 7

LEDs Definition 8

Install Hard Disk 9

Connect to the NVR 12

1. Live View 16

1.1 Retrieve camera’s video stream 18

1.2 Retrieve camera’s status 18

1.3 Perform Sequence Viewing 19

1.4 PTZ Control 20

1.5 Perform PTZ Preset Viewing 21

1.6 Live Video Control Buttons 23

1.7 Change Web UI Display Language 26

2. Playback 27

2.1 Methods to Search Playback Videos 28

2.2 Export Playback Videos to AVI Files 34

3. System Setup 36

3.1 System Configurations 36

3.1.1 Network Settings 36

3.1.2 Time and Date 38

3.1.3 User Account 39

3.1.4 Group Privilege 40

3.1.5 Disk Setup 42

3.2 Channel Configurations 43

3.2.1 Add a Camera 43

3.2.2 OSD Settings 46

3.2.3 PTZ Preset Settings 47

3.2.4 PTZ Preset Sequence 48

3.2.5 E-Map Monitor 49

3.3 Event Configurations 51

3.3.1 General Settings 51

3.3.2 I/O Settings 52

3.3.3 Event Servers 54

3.3.4 Event Triggers 58

3.4 Recording Configurations 60

3.4.1 General Settings 60

3.4.2 Schedule Recording 62

3.5 System Options 64

3.5.1 Device Information 64

3.5.2 Logs and Reports 65

3.5.3 Maintenance 65

Reboot the NVR 66

Reset the NVR to Factory Default 67

Hardware reset procedure 67

3.5.4 DO Status 68

3.5.5 Disk Status 68

3.5.6 UPS Configuration 69

3.6 NVR Recording time for reference 70

LevelOne NVR Series

Network Video Recorder

English

Use

’

s Manual

LevelOne

Network Video Recorder

Copyrights , Trademarks & GPL

Trademarks

LevelOne NVR-0204/0208/0216 Network Video Recorder (NVR) is a registered

trademark of Digital Data Communications GmbH.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

All other trademarks mentioned in this document are trademarks of their

respective owners.

Disclaimer

This document is intended for general information purposes only, and due care

has been taken in its preparation.

Any risk arising from the use of this information rests with the recipient, and

nothing herein should be construed as constituting any kind of warranty.

Digital Data Communications GmbH reserves the right to make adjustments

without prior

notification.

All names of people and organizations used in these documents examples

are fictitious. Any resemblance to any actual organization or person, living or

dead, is purely coincidental and unintended.

General Public License

This product incorporates open source code into the software and therefore falls

under the guidelines governed by the General Public License (GPL) agreement.

Adhering to the GPL requirements, the open source code and open source license

for the source code are available for free download at http://global.level1.com.

If you would like a copy of the GPL or other open source code in this software on a

physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD

to you upon request, for a price of US$9.99 plus the cost of shipping.

LevelOne NVR Series

Network Video Recorder

Produkspesifikasjoner

Merke:	LevelOne
Kategori:	Stemmeopptaker
Modell:	NVR-0216
Vekt:	2670 g
Bredde:	220 mm
Dybde:	215 mm
Høyde:	81 mm
Støttede mobile operativsystemer:	BlackBerry OS, Symbian, Windows Mobile, iOS
LED-indikatorer:	Ja
Pakkevekt:	3495 g
Antall USB 2.0-porter:	1
Støttede nettverksprotokoller:	HTTP, SMTP, DHCP, ARP, NTP, DNS, UPnP, FTP
Utgangsstrøm:	1.4 A
HDD-grensesnitt:	Serial ATA, Serial ATA II
Støttet nettleser:	Internet Explorer 7
HDD-størrelse:	3.5 "
Maksimal lagringskapasitet:	6 TB
AC-inngangsspenning:	110 - 240 V
Pakkedybde:	195 mm
Pakkehøyde:	318 mm
Pakkebredde:	322 mm
Strømforbruk (vanlig bruk):	90 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	5 - 45 °C
DC-inngangskontakt:	Ja
Språkstøtte:	CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, POL, POR, RUS, SLK, SLV, TUR
Relativ luftfuktighet under drift (H-H):	5 - 95
RS-232-tilkobling:	Ja
Videoformat som støttes:	H.264, M-JPEG, MPEG4
Alarm inngang-kanaler:	8
Alarm utgang-kanaler:	4
Video inngang-kanaler:	16 kanaler
Lydkodekser:	G.711 / G.726
Antall støttede HDDer:	2
Totalt installert lagerkapasitet:	0 GB
