OWNER’S MANUAL

MICROWAVE OVEN

PLEASE READ THIS OWNER’S MANUAL THOROUGHLY

BEFORE OPERATING.

MFL51830806

TABLE OF CONTENTS

SAFETY................................................................................................................................................................. 3-5

Precautions to Avoid Possible Exposure to Excessive Microwave Energy............................................................3

Grounding Instructions............................................................................................................................................ 3

Important Safety Instructions .............................................................................................................................. 4-5

UNDERSTANDING YOUR MICROWAVE OVEN .............................................................................................. 6-10

Specifications.......................................................................................................................................................... 6

Installation............................................................................................................................................................... 6

Parts and Accessories ............................................................................................................................................ 7

Control Panel ......................................................................................................................................................... 8

Tips for Microwave Cooking ................................................................................................................................... 9

Precautions........................................................................................................................................................... 10

Cleaning................................................................................................................................................................ 10

USING YOUR MICROWAVE OVEN ................................................................................................................. 11-18

Please record the model number and serial

number of this unit for future reference. We also

suggest you record the details of your contact

with LG (LG Electronics U.S.A., Inc.)

concerning this unit.

Staple your receipt here for proof of purchase.

Model No:

Serial No:

Dealer:

Dealer Phone No:

Customer Relations

LG Electronics U.S.A., Inc.

Service Division Bldg. #3

201 James Record Rd.

Huntsville, AL 35824-0126

Thank you for purchasing a GoldStar microwave oven.

HEATING/REHEATING GUIDE.............................................................................................................................. 19

FRESH VEGETABLE GUIDE ................................................................................................................................

TROUBLESHOOTING ...................................................................................................................................... 21-23

Questions and Answers................................................................................................................................... 21-22

Before Calling for Service..................................................................................................................................... 23

WARRANTY.................................................................................................................................

...........................

Setting Time of Day ................................................................................................................................................ 11

EO ...................................................................................................................................................................

Timed Cooking .....................................................................................................................................................

 ........................................................................................................................................................

1

$"% ............................................................................................................................................

.........................................................................................................................................................

One Touch Control...............................................................................................................................................

One Touch Control Chart ..................................................................................................................................

Microwave Power levels .....................................................................................................................................

Auto Defrost .........................................................................................................................................................

Q-Defrost..............................................................................................................................................................

Auto Defrost Guide...........................................................................................................

&'%...........................................................................................................................................

17-18

SAFETY

• Do not attempt to operate this oven with

the door open, since open-door operation can

result in harmful exposure to microwave

energy. It is important not to defeat or tamper

with the safety interlocks.

• Do not place any object between the oven

front face and the door, or allow soil or

cleaner residue to accumulate on sealing

surfaces.

• Do not operate the oven if it is damaged.

It is particularly important that the oven door

close properly and that there is no damage to

the:

- door (bent),

- hinges and latches (broken or loosened),

- door seals and sealing surfaces.

• The oven should not be adjusted or

repaired by anyone except properly qualified

service personnel.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event

of an electrical short circuit, grounding reduces

the risk of electric shock by providing an escape

wire for the electric current. This appliance is

equipped with a cord having a grounding wire

and a grounding plug. The plug must be plugged

into an outlet that is properly installed and

grounded.

WARNING

Improper grounding can result in a risk of electric

shock. Consult a qualified electrician if the

grounding instructions are not completely

understood, or if doubt exists as to whether the

appliance is properly grounded, and either:

1. If it is necessary to use an extension cord,

use only a 3-wire extension cord that has a

3-blade grounding plug and a 3-slot recepta-

cle that will accept the plug on the appliance.

The marked rating of the extension cord shall

be equal to or greater than the electrical

rating of the appliance, or . . .

2. Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician or serviceman install an outlet near

the appliance.

NOTES:

1. A short power-supply cord is provided to

reduce the risks resulting from becoming

entangled in or tripping over a longer cord.

2. Longer cord sets or extension cords are

available and may be used if care is exercised

in their use.

3. If a long cord or extension cord is used, (1)

the marked electrical rating of the cord set or

extension cord should be at least as great as

the electrical rating of the appliance, (2) the

extension cord must be a grounding-type

3-wire cord, and (3) the longer cord should be

arranged so that it will not drape over the

countertop or tabletop where it can be pulled

on by children or tripped over accidentally.

Ensure proper ground

exists before use

IMPORTANT SAFETY INSTRUCTIONS

3. This appliance must be grounded. Connect only to properly grounded outlet.

See

GROUNDING INSTRUCTIONS found on page 3 of this manual.

4. Install or locate this appliance only in accordance with the provided installation instructions.

5. Some products, such as whole eggs and sealed containers – for example, closed glass jars are able to

explode and should not be heated in this oven.

6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals

or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not

designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary when used by children.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has

been damaged or dropped.

9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized

service facility for examination, repair, or adjustment.

10. Do not cover or block any openings on the appliance.

11. Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink,

in a wet basement, near a swimming pool, or similar location.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over the edge of a table or counter.

15. When cleaning surfaces of door and oven that come together on closing the door, use only mild,

nonabrasive soaps or detergents applied with a sponge or soft cloth.

16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are

placed inside the oven to facilitate cooking.

b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.

c. If materials inside the oven ignite, KEEP OVEN DOOR CLOSED, turn oven off, and disconnect the

power cord or shut off power at the fuse or circuit breaker panel.

d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in

the cavity when not in use.

SAFETY

POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY found on page 3 of this manual.

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons, or

exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specific

PRECAUTIONS TO AVOID

The safety instructions below will tell you how to use your oven to avoid harm to yourself or damage to your

oven.

UNDERSTANDING YOUR MICROWAVE OVEN

SPECIFICATIONS

*IEC 60705 RATING STANDARD

Specifications subject to change without prior notice.

MODEL

GS0713ST / GS0713SB / GS0713SW

Power Supply

120 V AC, 60 Hz

Rated Power Consumption

1000 W

Microwave Output

700 W

Frequency

2450 MHz

Rated Current

9.0

Overall Dimensions(WxHxD)

/16" 10

/4 13

Oven Cavity Dimensions(WxHxD)

3 3

/4 12

16 16"

Effective Capacity of Oven Cavity

0.7 Cu.ft.

"/ "7

INSTALLATION

A. Circuits

For safety purposes this oven must be plugged into a

20 Amp circuit. No other electrical appliances or light-

ing circuits should be on this line. If in doubt, consult a

licensed electrician.

B. Voltage Warning

The voltage used at the wall receptacle must be the

same as specified on the oven name plate located on

the back or on the side of the control panel of the oven.

Use of a higher voltage is dangerous and may result in

a fire or other type of accident causing oven damage.

Low voltage will cause slow cooking. In case your

microwave oven does not perform normally in spite of

proper voltage, remove and reinsert the plug.

C. Placement of the Oven

Your microwave oven can be placed easily in your

kitchen, family room, or anywhere else in your home.

Place the oven on a flat surface such as a kitchen

countertop or a specially designed microwave oven

cart at least 100cm (39.4 inches) from floor. Do not

place oven above a gas range. Free air flow around

the oven is important. Allow at least 4 inches

of space at the top, sides, and back of the oven for

proper ventilation.

NOTES:

• Never place the turntable in the oven upside down.

D. Do not block the air vents

All air vents should be kept clear during cooking. If air

vents are covered during oven operation the oven may

overheat. In this case, a sensitive thermal safety device

automatically turns the oven off. The oven will be

inoperable until it has cooled sufficiently.

E. Radio interference

1. Microwave oven operation may interfere with TV

or radio reception.

2. When there is interference, it may be reduced or

eliminated by taking the following measures:

a. Clean the door and the sealing surfaces of the

oven.

b. Reorient the receiving antenna of radio or TV.

c. Relocate the microwave oven in relation to the

TV or radio.

d. Move the microwave oven away from the

receiver.

e. Plug the microwave oven into a different outlet

so that microwave oven and receiver are on

different branch circuits

sehcni

inches

sehcni

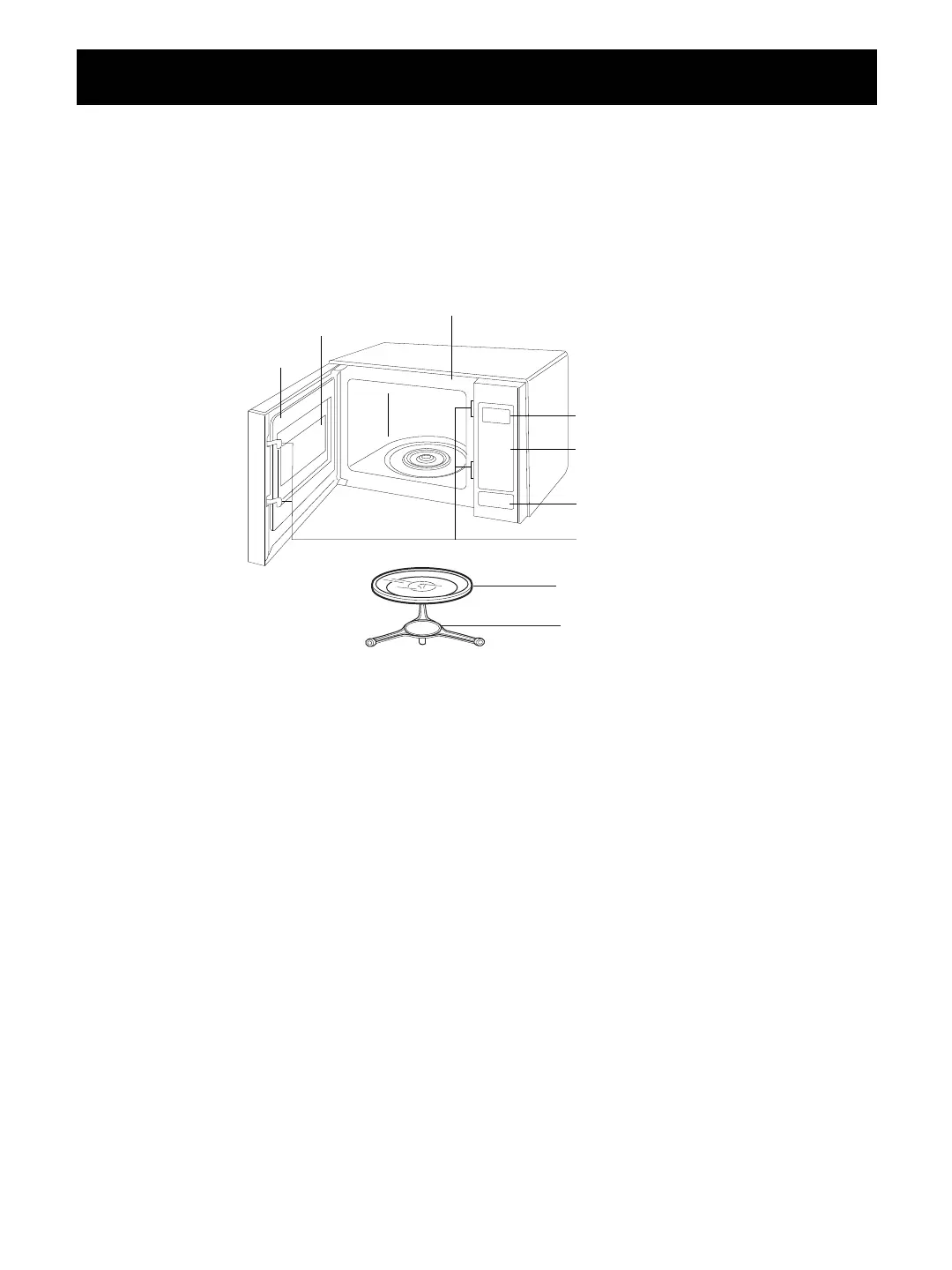

PARTS AND ACCESSORIES

Your oven comes with the following accessories:

• Owner’s Manual and Cooking Guide : 1 each

• Glass Turntable : 1 each

• Rotating Ring : 1 each

NOTE: This microwave oven is designed for household use only.

It is not recommended for commercial use.

Turntable

Rotating Ring

Door Seal

Display Window

Oven Front Plate

Window Door Screen

Control Panel

Door Open Button

Safety Door Lock System

WARNING:

Do not operate the oven when empty or without the glass tray. It is best to

leave a glass water in the oven when not in use. The water will safly absorb

all microwave energy, if the oven is accidentally started.

UNDERSTANDING YOUR MICROWAVE OVEN

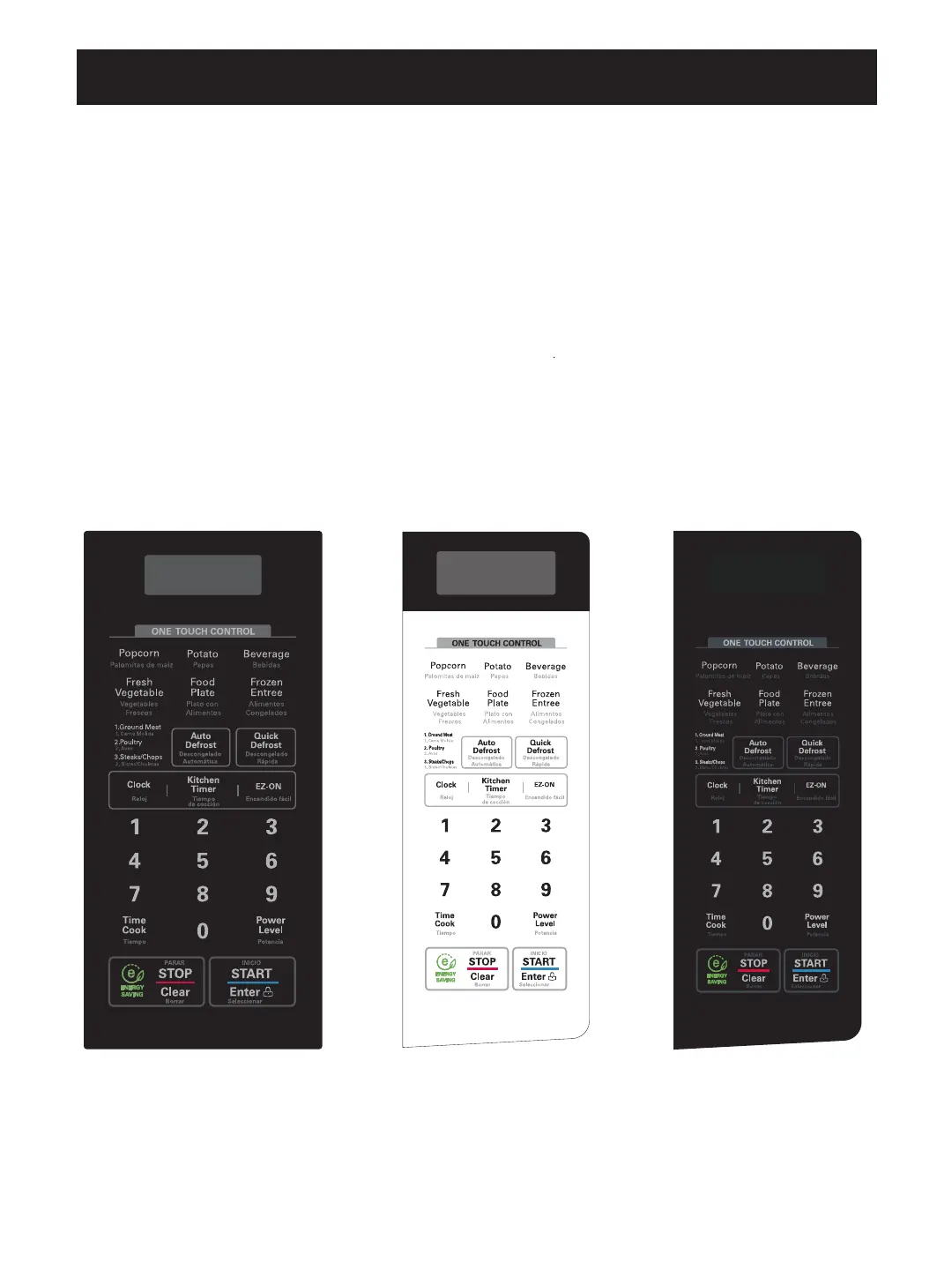

CONTROL PANEL

1. DISPLAY: The display includes a clock and

indicators that tell you the time of day, cook time

settings, and cooking functions selected.

13. START : This feature allows oven to begin

CLOCK : Touch this pad to set time of day.

6. KITCHEN TIMER : Touch this pad to set timer.

Touch this pad to energy

2. ONE TOUCH CONTROL: Touch this pad to cook

without entering a cook time or power.

3. AUTO DEFROST: Touch this pad to defrost foods

by entering weight.

4. QUICK DEFROST: Touch this pad to defrost foods

quickly.

8. NUMBER PADS : Touch number pads to enter

cook time, power level, quantities, or weights.

9. TIME COOK : Touch this pad to set a cook time.

10. POWER LEVEL : Touch this pad to set a cook

11. STOP/CLEAR : It used to stop oven and clear all

entries except time day.

EZ-ON :

You can extend cooking time in multiples

of 30 seconds by repeatedly touching this pad

during cooking.

ENERGY SAVING :

power.

functioning.

saving

GS0713SB

GS0713SW

GS0713ST

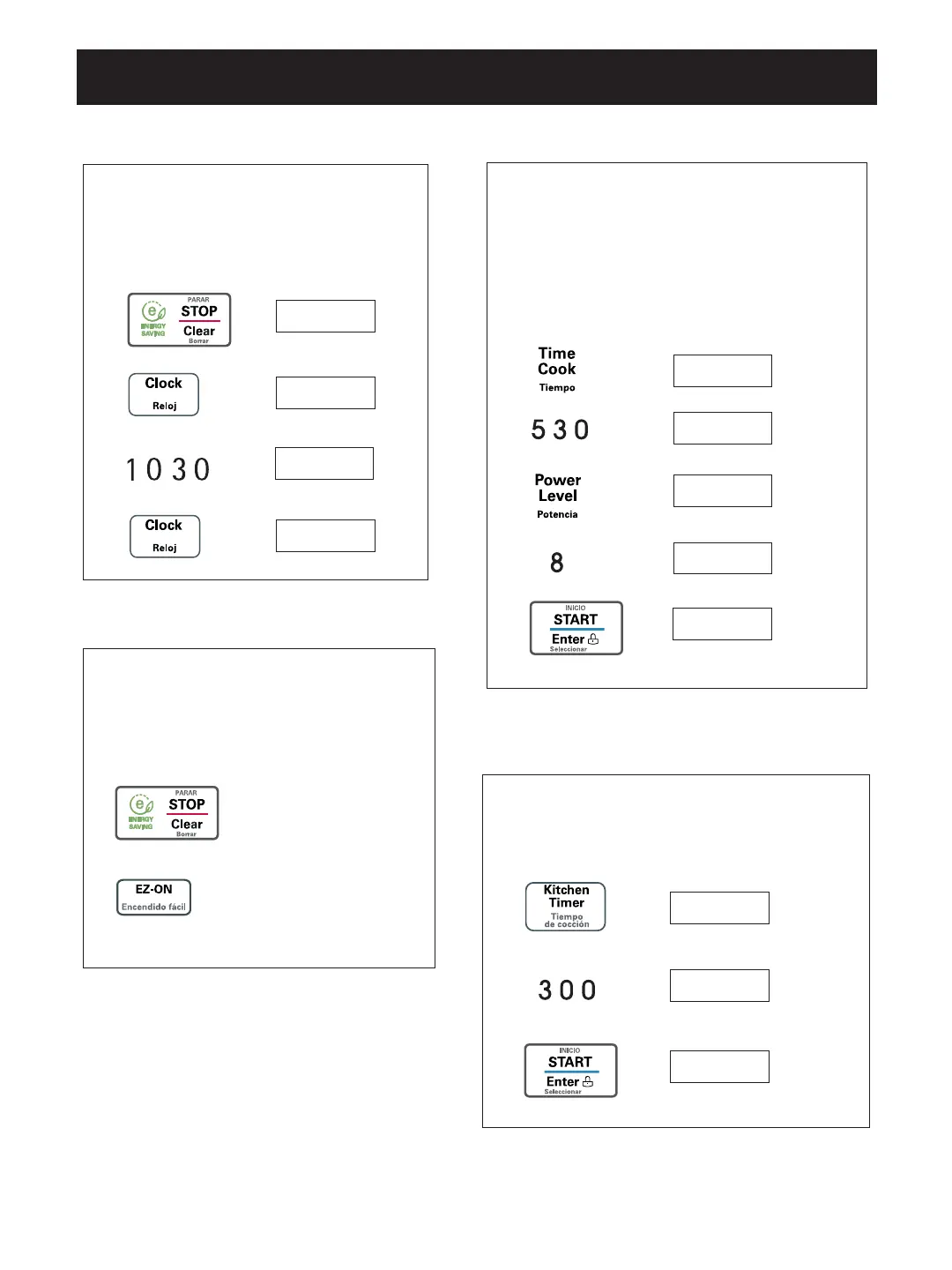

SETTING TIME OF DAY

when power resumes after a power interruption,

Example : To set the clock for 10:30.

When your oven is plugged in for the first time or

the numbers in the display reset to '0'.

EZ-ON

A time-saving pad, this simplified control lets you

quickly set and start microwave cooking at 100%

power without the need to set the time and press

START.

NOTE:

If you touch EZ-ON, it will add 30 seconds up to

3 minutes 30 seconds; after 3 minutes 30 seconds,

every touch will add 1 minute up to 99 min 59

seconds.

Example: To cook for 1 minute.

Time of day

Twice.

Time counting down

Touch: Display Shows:

TIMED COOKING

This feature lets you program a specific cook time and

power level. For best results, there are 10 power level

settings in addition to HIGH (100%) power. Refer to

the “Microwave Power Levels Table on page 1 for

more information.

Example: To cook for 5 minutes, 30 seconds

at 80% power.

NOTE: If you do not select a power level, the oven

will automatically cook at 100% power.

Touch: Display Shows:

12:00

10:30

p-h

p-80

5:30

Time counting down

KITCHEN TIMER

You can use your microwave oven as a timer.Use

the Timer for timing up to 99 minutes, 99 seconds.

Example: To count 3 minutes.

Touch: Display Shows:

3:00

.

Time of day



Time counting down

USING YOUR MICROWAVE OVEN

Touch and hold until “L”disappears from the display.

(approximately 4 seconds)

CHILD LOCK

Use this safety feature to lock the control panel

when you are cleaning it, or to prevent children

from using the oven when you do not want them

to.

To set C.

To cancel CHILD LOCK.

Touch and hold until “L” appears in the display.

(approximately 4 seconds)

Touch:

Touch: Display shows

ONE TOUCH CONTROL

Use this function to cook food without entering a

cook time or power. Refer to the One Touch Control

Chart below for more information.



Example: To cook a 3.5 oz. bag of

microwave popcorn.

Touch: Display Shows:

Time of day

once.

The oven will start Time counting down.

automatically.

10.

When the first stage is over, you will hear two

short tones as the oven begins the second

cook stage.

For best results, some recipes call for different

cooking power levels during different stages of a

cook cycle. You can program your oven to switch

from one power level to another for up to 3 stages.

Example: To set a 2-stage cook cycle.

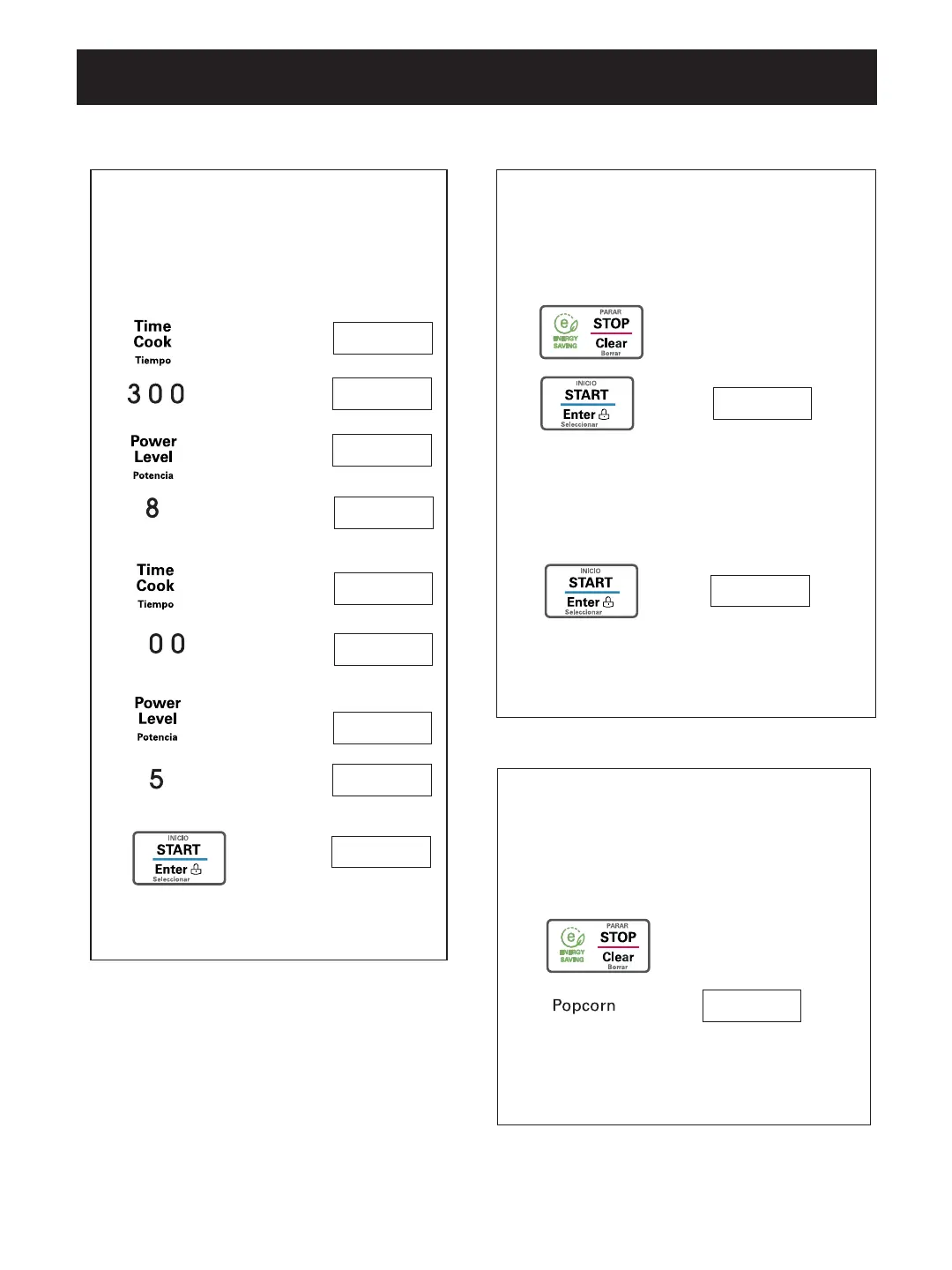

MULTISTAGE COOKING

to set a

3-minute cook

time for the

first stage.

to set an 80%

cook power

for the first

stage.

to set a

7-minute cook

time for the

second stage.

7:00

to set a 50%

cook power

for the second

stage.

3:00

p-h

p-80

p-h

p- 0

3:00

Time of day

Display shows

USING YOUR MICROWAVE OVEN

ONE TOUCH CONTROL CHART

Category

Touch

Serving

size

Directions

POPCORN

• Follow package instructions.

• Use popcorn package which is made especially

for microwave cooking.

•

Do not try to pop unpopped kernels.

• Heat only 1 package at a time.

• Do not leave the microwave oven unattended

while popping popcorn.

• 8-10 oz.

POTATO

One Time

Two Times

• Place in center of the turntable tray on paper towel.

Three Times

• Pierce potato several times with fork.

Four Times

• After cooking, let stand for 5 minutes.

BEVERAGE

One Time 1 cup

• 240ml per cup.

Two Times 2 cups

• Use mug or microwave-safe cup.

• Stir after reheating.

One Time 1 serving

• Arrange food on turntable tray.

FOOD PLATE

Two Times 2 servings

• Place meaty portions and bulky vegetable

to the outside of the plate.

• Cover with plastic wrap and vent.

• After cooking, let stand for 2 minutes.

FROZEN

One Time

10 oz.

• Follow the package instructions.

ENTREE

• Example of one frozen entree is Lasagna

with Meat Sauce, Chicken with Rice, Sliced

Turkey Breast with Rice and Vegetable.

FRESH

One Time 1 cup

•

Prepare vegetable(wash and cut into 1/2-inch pieces).

VEGETABLE

Two Times 2 cups

• Cover with plastic wrap and vent.

Three Times 3 cups

• Most vegetables need 2 to 3 minutes

Four Times 4 cups

standing time to finish cooking.

1 & 2 cups - Add 2 tablespoon water.

3 & 4 cups - Add 4 tablespoon water.

One Time 3.5 oz.

Two Times 1.75 oz.

USING YOUR MICROWAVE OVEN

MICROWAVE POWER LEVELS

Your microwave oven is equipped with ten power levels (11 steps including 0) to give you maximum

flexibility and control over cooking. When your cooking program is completed, a beep automatically

sounds. The table below will give you some idea of which foods are prepared at each of the various

power levels.

MICROWAVE POWER LEVEL CHART

Power Level Use

●

Boil water.

●

Brown ground beef.

100%

●

Cook fresh fruits & vegetables.

(High)

●

Make candy.

●

Cook fish, meat & poultry.

●

Preheat browning dish.

9 90%

●

Heat precooked food.

●

Saute onions, celery & green pepper.

8 80%

●

All reheating

●

Roast meat & poultry.

7 70%

●

Cook mushrooms & shellfish.

●

Cook foods which contain cheese & eggs.

6 60%

●

Bake cakes, muffins.

●

Prepare eggs.

●

Cook meat, poultry.

5 50%

●

Cook custard

●

Prepare rice, soup.

4 40%

●

Melt butter & chocolate.

●

Cook less tender cuts of meat.

3 30%

●

All defrosting

2 20%

●

Soften butter & cheese.

1 10%

●

Soften ice cream.

●

Raise yeast dough.

●

Standing time.

●

Independent timer.

Output

(of watts)

USING YOUR MICROWAVE OVEN

AUTO DEFROST GUIDE

SEQUENCE

TOUCH

FOOD MIN./MAX.

AUTO DEFROST

• BEEF ..................Ground beef, Cubes for stew,

...............................Pot roast, Rib roast, Rump roast,

GROUND one time ...............................Chuck roast, Hamburger patty.

MEAT • LAMB .................Rolled roast 0.1/6.0 lbs.

• PORK .................Hot dogs, Spareribs,

...............................Country-style ribs,

...............................Rolled roast, Sausage.

• VEAL ..................Cutlets (1lb.,

-inch thick)

• POULTRY ...........Whole (under 4 lbs), Cut up

POULTRY two times ...............................Breasts (boneless) 0.1/6.0 lbs.

•

CORNISH HENS

...

Whole

• TURKEY ..............Breast (under 6 lbs.)

• STEAKS ..............Round steak, Tenderloin steak.

STEAKS/CHOPS

three times • CHOPS ................Lamb chops (1-inch thick),

Pork chops (

-inch thick). 0.1/6.0 lbs.

• FISH.....................Fillets, Steaks, Whole.

• SHELLFISH.........Crab meat, Lobster tails, Shrimp,

...............................Scallops

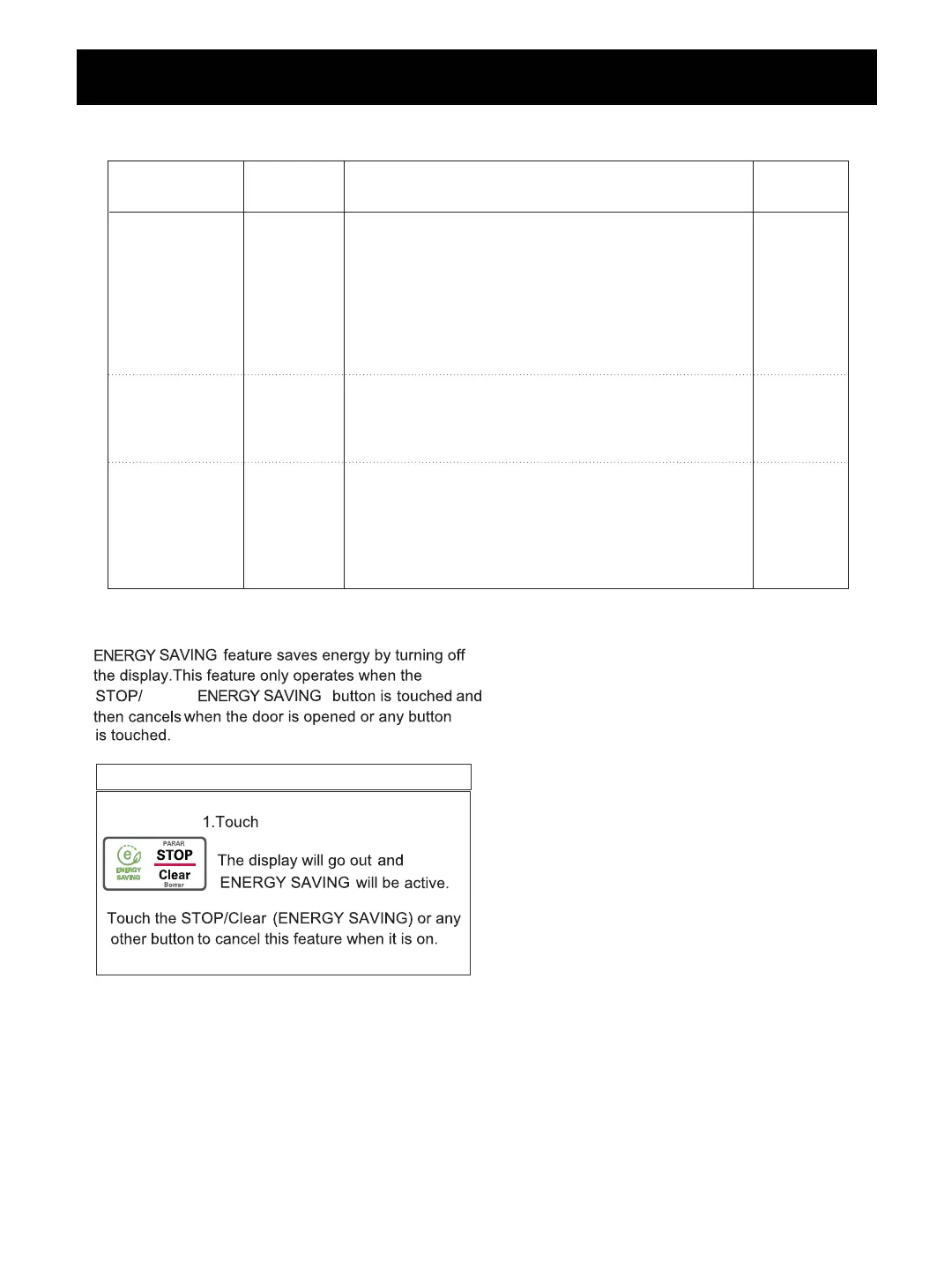

ENERGY SAVING

To set the ENERGY SAVING

STOP/Clear

(ENERGY SAVING)

Clear

)

(

HEATING/REHEATING GUIDE

To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure

the amount of food in order to determine the time needed to reheat. Arrange the food in a circular

pattern for best results. Room temperature food will heat faster than refrigerated food. Canned foods

should be taken out of the can and placed in a microwavable container. The food will be heated

more evenly if covered with a microwavable lid or plastic wrap and vented. Remove cover carefully

to prevent steam burns. Use the following chart as a guide for reheating cooked food.

3 slices (

-inch thick)

Chicken pieces

1 breast

1 leg and thigh

Fish fillet

(6-8 oz.)

Lasagna

1 serving (10

oz.)

Casserole

1 cup

4 cups

Casserole –

cream or cheese

1 cup

4 cups

Sloppy Joe or

Barbecued beef

1 sandwich

(

/2 cup meat filling)

without bun

Mashed potatoes

1 cup

4 cups

Baked beans

1 cup

Ravioli or pasta in sauce

1 cup

4 cups

Rice

1 cup

4 cups

Sandwich roll or bun

1 roll

Vegetables

1 cup

4 cups

Soup

1 serving (8 oz.)

1-2 minutes

2-3

minutes

-3 minutes

4-6 minutes

1-3

minutes

5-8 minutes

-3 minutes

-5

minutes

1-2

minutes

1-3 minutes

5-8 minutes

-3 minutes

-4 minutes

11 minutes

-3

minutes

4-6

minutes

15-30 seconds

minutes

4-6 minutes

Cover with plastic wrap and vent.

* Note: Gravy or sauce helps to keep meat juicy

Place chicken pieces on microwavable plate.

Place fish on microwavable plate.

Cover with plastic wrap and vent.

Place lasagna on microwavable plate.

Cover with plastic wrap and vent.
