ENGLISH
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure that
may be of sucient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturers
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturers
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owners manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owners manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. The
Power Plug is the disconnecting device. In case of
an emergency, the Power Plug must remain readily
accessible.
Getting Started 3
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
POWER: This unit operates on a mains supply of
200-240V~, 50/60Hz.
Wiring: This unit is supplied with a BS 1363
approved main plug. When replacing the fuse,
always use of the same rating approved to BS 1362.
Never use this plug with the fuse cover omitted.
To obtain a replacement fuse cover contact your
dealer. If the type of plug supplied is not suitable
for the mains sockets in your home, then the plug
should be removed and a suitable type tted.
Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains
lead of this unit must be destroyed. A mains plug
with bared wires is hazardous if inserted in a mains
socket. Do not connect either wire to the earth pin,
marked with the letter E or with the earth symbol 6
or coloured green or green and yellow. If any other
plug is tted, use same rating of fuse in the plug.
Important: The wires in this mains lead are
coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE: As the colours
of the wires in the mains lead of this unit may not
correspond with the coloured marking identifying
the terminals in your plug, proceed as follows: The
wire which is coloured blue must be connected
to the terminal which is marked with the letter
N or coloured black. The wire which is coloured
brown must be connected to the terminal which is
marked with the letter L or coloured red.
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 Portable In
6 USB Direct Recording
6 Full HD up-scaling
6 Home Theater Speaker ez Setup
6 – Bluetooth®
6 LG Sound Sync
6 Accessories
7 Introduction
7 Playable Discs
7 About the “7” Symbol Display
7 Symbols Used in this Manual
7 Regional Codes
8 Playable file Requirement
9 Remote control
10 Front panel
11 Rear panel
2 Connecting
12 Attaching the speakers to the unit
13 Positioning the system
14 Connections to Your TV
14 HDMI Out Connection
15 What is SIMPLINK?
15 Video Connection
16 Resolution Setting
16 Video Output Resolution
16 Optional Equipment Connection
16 AUX (L/R) INPUT Connection
17 PORT. IN (Portable Input) Connection
17 Listening to music from your portable
player or external device
17 USB Connection
18 OPTICAL IN connection
18 Home theater speaker ez setup
19 Antenna Connection
3 System Setting
20 Adjust the setup settings
20 OSD Initial language settings -
Optional
20 To display and exit the Setup menu
Table of Contents 5
1
2
3
4
5
6
4 Operating
21 Using the Home Menu
21 Basic Operations
22 Other Operations
22 Displaying Disc Information on-screen
23 Sleep Timer Setting
23 – Dimmer
23 Turn off the sound temporarily
23 Last Scene Memory
23 Power Resume - Optional
23 System Select - Optional
23 Adjust the speaker level settings
23 VOCAL FADER
23 Auto power down
23 How to disconnect the wireless
network connection or the wireless
device.
24 Radio Operations
24 Listening to the radio
24 Presetting the Radio Stations
24 Deleting all the saved stations
24 Deleting a saved station
24 Improving poor FM reception
25 Sound adjustment
25 Setting the surround mode
25 Setting the USER EQ
26 Advanced Operations
26 Recording to USB
27 Using a Bluetooth wireless technology
27 Listening to music of a Bluetooth
device
28 LG Sound Sync
29 Auto function change
30 AUTO POWER On/Off
5 Troubleshooting
31 Troubleshooting
6 Appendix
32 Maintenance
32 Handling the Unit
32 Notes on Discs
33 Trademarks and Licenses
34 Specifications
Getting Started6
Getting Started
1
Unique Features
Portable In
Listen to music from your portable device. (MP3,
Notebook, etc.)
USB Direct Recording
Records music from CD to your USB device.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Home Theater Speaker ez
Setup
Listen to sounds from TV, DVD and Digital device
with vivid 5.1 (2.1 or 2.0) ch mode.
Bluetooth®
Listens to music stored on your bluetooth device.
LG Sound Sync
Controls volume level of this unit by the remote
control of your LG TV that is compatible with LG
Sound Sync.
Accessories
Please check and identify the supplied accessories.

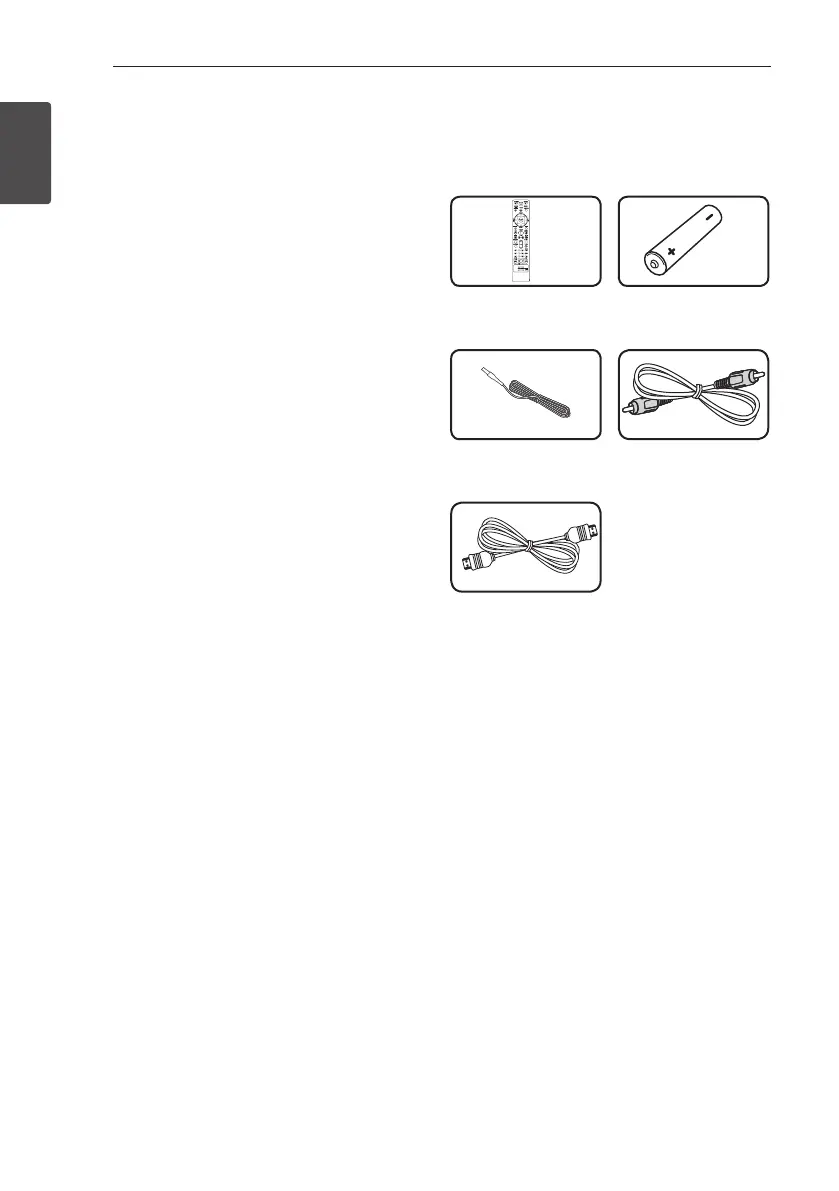

Remote control (1) Battery (1)
FM antenna (1) Video cable (1)
HDMI cable (1)
Getting Started8
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Support Version : v2, v7, v8, v9
y
Maximum les : Under 999
y
File extensions : “.mp3”/ “.wma
y
CD-ROM le format : ISO9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO9660 le system.
y
You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system
for Windows Vista)
The DTS is not supported. In case of DTS audio
format, audio is not output.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
y
Max pixel in width : 2760 x 2048 pixel
y
Maximum les : Under 999
y
Some discs may not operate due to a dierent
recording format or the condition of disc.
y
File extensions: “.jpg
y
CD-ROM le format : ISO9660/ JOLIET
Video file requirement
Video le compatibility with this unit is limited as
follows:
y
Available resolution: within 720 x 576 (W x H)
pixels.
y
The le name of the Video subtitle should be
entered within 45 characters.
y
If there is impossible code to express in the
Video le, it may be displayed as “ _ “ mark on the
display.
y
Frame rate : less than 30 fps.
y
If the video and audio structure of recorded
les is not interleaved, either video or audio is
outputted.
y
Playable Video le : “.avi”, “.mpg, “.mpeg
y
Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
y
Playable Codec format :
“Xvid”, “MPEG-1”, “MPEG-2”
y
Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA,
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
y
For Discs formatted in Live le system, you can
not it on this unit.
y
If the name of movie le is dierent from that of
the subtitle le, during playback of a Video le,
subtitle may not be display.
y
If you play a Xvid le dier from Xvid spec, it
may not operate normally.
y
If you play GMC video le which is more than
1-warp point, video playback screen will not
smooth.
Getting Started 9
Getting Started
1
Battery Installation
Remove the battery cover on the
rear of the remote control, and
insert one (size AAA) battery with
4
and
5
matched correctly.
• • • • • •
a
P
RADIO&INPUT : Changes
input sources.
MARKER : Marks play list.
1
POWER : Switches the unit ON
or OFF.
B
OPEN/CLOSE : Opens and
closes the disc tray.
SLEEP : Sets the System to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)
m
INFO/DISPLAY : Accesses On-
Screen Display.
n
HOME : Displays the [Home
Menu].
DISC MENU : Accesses the menu
on a DVD disc.
• • • • • •
b
W/S/A/D
(up/ down/ left/
right) : Used to navigate on-screen
displays.
PRESET +/- : Selects programme
of Radio.
TUNING +/- : Tunes in the desired
radio station.
b
ENTER : Acknowledges menu
selection.
Presetting the radio stations.
x
RETURN : Moves backwards
in the menu or exits the setup
menu.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • •
c
Z
STOP : Stops playback.
d
PLAY, MONO/STEREO : Starts
playback. Selects Mono/ Stereo.
M
PAUSE/STEP : Pauses playback.
C/V
SKIP : Goes to the
next or previous chapter / track /
le.
c/v
SCAN : Searches
backward or forward.
• • • • • •
d
SPEAKER LEVEL : Sets the sound
level of desired speaker.
SOUND EFFECT : Selects a sound
eect mode.
VOL -/+ (Volume) : Adjusts
speaker volume.
OPTICAL : Changes input source
to optical directly.
MUTE : Mutes the sound.
• • • • • •
e
0-9 numerical buttons : Selects
numbered options in a menu.
h
REPEAT : Selects a play
mode. (Repeat/ Random)
CLEAR : Removes a number when
setting the password.
• • • • • •
f
TV Control buttons : Controls the
TV. (LG TV only)
-
You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (TV) and press PR/
CH (
W/S
) button repeatedly
until the TV turns on or o.
X
REC : USB Direct Recording.
?
: This button is not available.
MIC VOL -/+ : Adjusts microphone
volume.
ECHO VOL -/+ : Adjusts echo
volume.
VOCAL FADER: You can enjoy the
function as karaoke, by reducing
singer vocal of music in the
various source.
Remote control
Getting Started10
Getting Started
1
Front panel
a
Disc Tray
b
Display window
Shows the current status of the unit.
c
Microphone jacks 1/2
d
PORT. IN
Connects to a portable player with audio
outputs.
e
USB Port
Connects a USB device.
f
R
(OPEN/CLOSE)
Opens or closes the disc tray.
g
T
(PLAY/PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
h
I
(STOP)
Stops playback.
i
F (FUNCTION)
Changes the input source or function.
j
-/+(Volume)
Adjusts speaker volume.
k
1/!
(POWER)
Switches the unit ON or OFF.
Getting Started 11
Getting Started
1

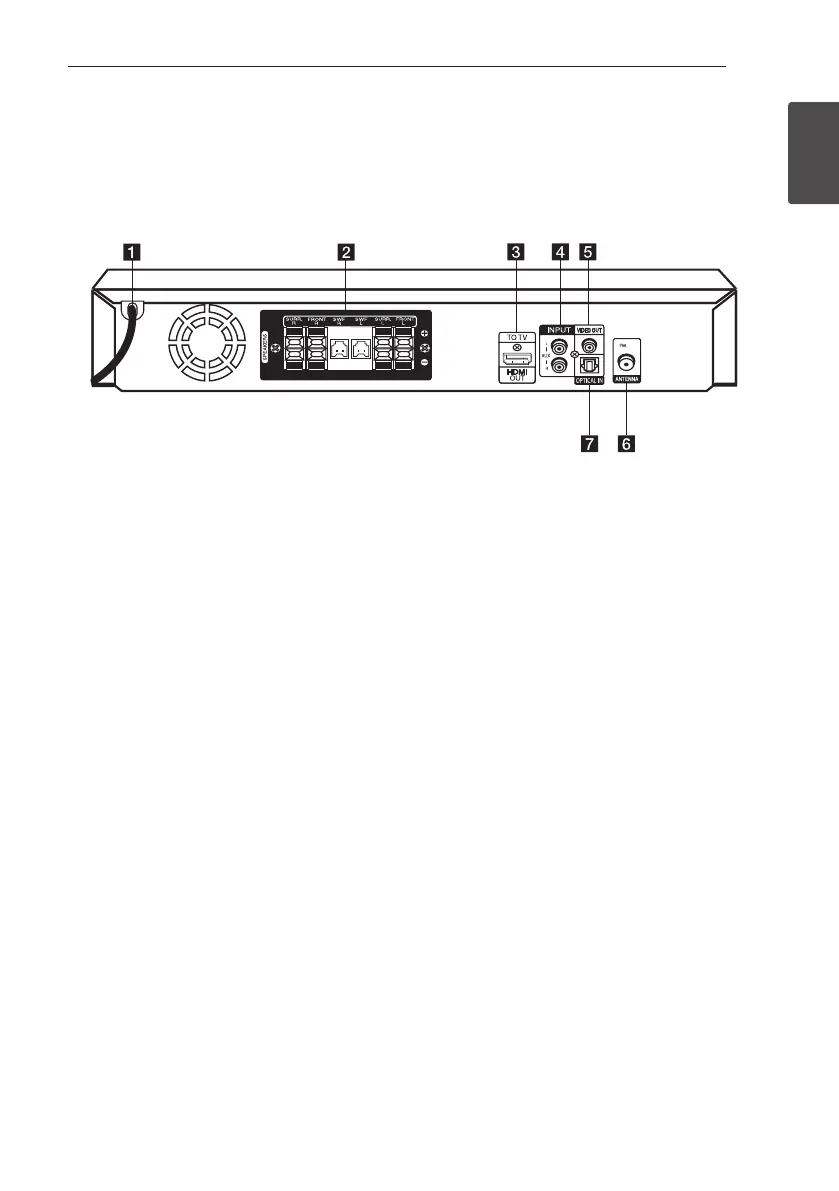

a
Power cord
b
Speaker connectors
Connects the speaker cables.
c
HDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
d
AUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.
e
VIDEO OUT
Connects to a TV with video inputs.
f
ANTENNA
FM- Connects the FM wired antenna
g
OPTICAL IN
Connects to optical audio equipment.
Rear panel
Connecting14
Connecting
2
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
y
Depending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
y
Please refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
,
Note
y
Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel.
y
Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
>
Caution

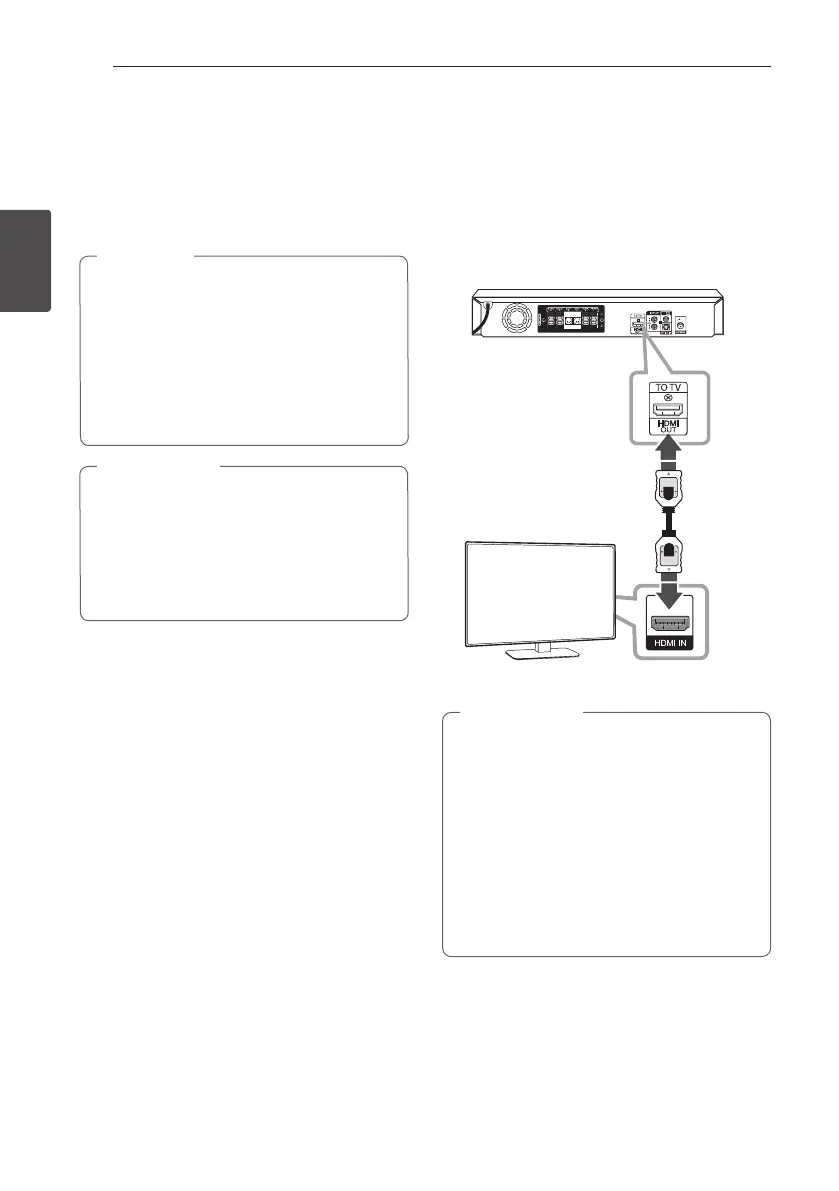

HDMI Out Connection
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TVs source to HDMI (refer to TVs Owners
manual).
Unit
TV
y
Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the unit and then turn it
on again.
y
When the HDMI connection with HDCP is
not veried, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
HDMI connection, or disconnect the HDMI
cable.
>
Caution
Connecting 15
Connecting
2
y
If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
y
When you connect a HDMI or DVI
compatible device make sure of the
following:
- Try switching off the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
y
Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
y
If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™
Cable.
,
Note
What is SIMPLINK?
Some functions of this unit are controlled by the
TVs remote control when this unit and LG TV’s with
SIMPLINK are connected through HDMI connection.
Controllable functions by LG TVs remote control;
Power on/o, volume up/down, mute, etc.
Refer to the TV owner’s manual for the details of
SIMPLINK function.
LG TVs with SIMPLINK function has the logo as
shown above.
y
Depending on the disc type or playing
status, some SIMPLINK operation may dier
from your purpose or not work.
y
The function is automatically changed
to optical when you change the speaker
setting of simplink to external, no matter
what kind of the function you are using.
,
Note

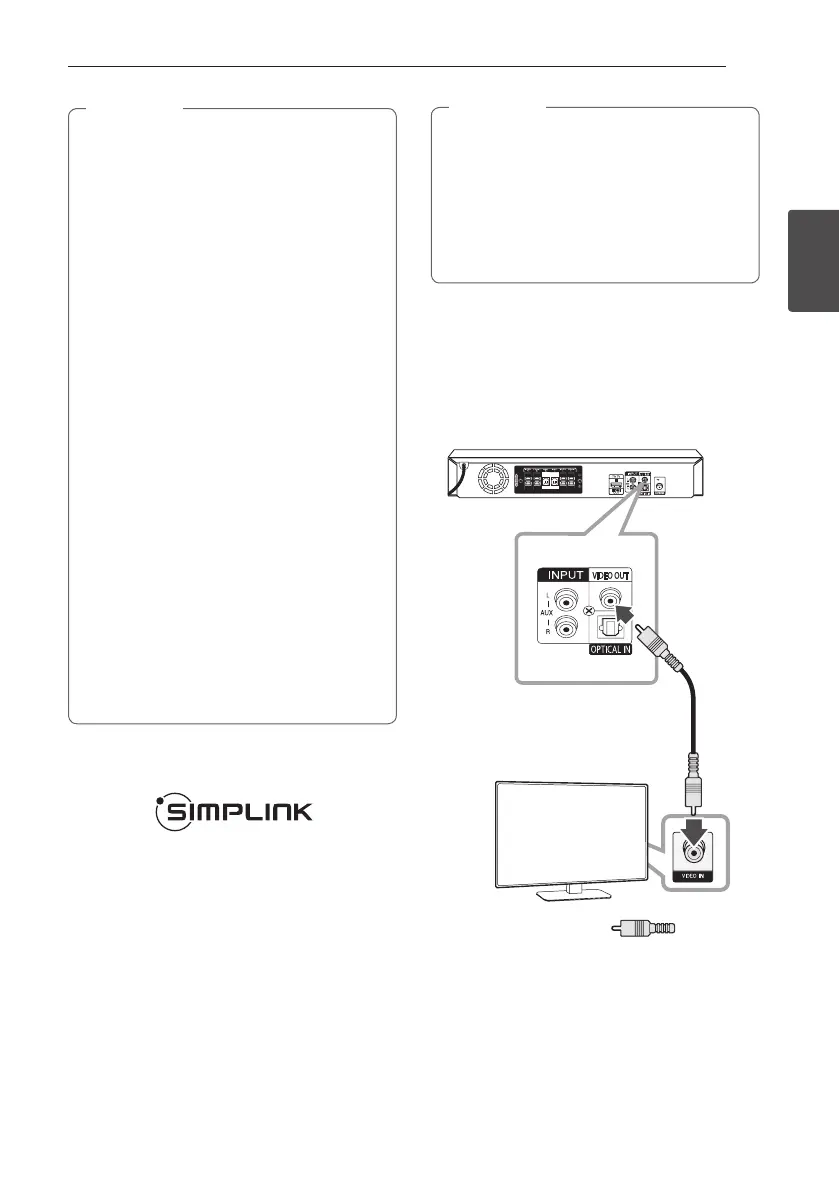

Video Connection
Connect the VIDEO OUT jack on the unit to the
video in jack on the TV using a video cable.
You can hear the sound through the systems
speakers.
Unit
TV
Yellow
16
Connecting
2
Connecting
Resolution Setting
The unit provides several output resolutions for
HDMI OUT.
You can change the resolution using [Setup] menu.
1. Press
n
HOME.
2. Use
A/D
to select the [Setup] and press
b
ENTER. The [Setup] menu appears.
3. Use
W/S
to select [Display] option then press
D
to move to the second level.
4. Use
W/S
to select the [Resolution] option
then press
D
to move to the third level.
5. Use
W/S
to select the desired resolution then
press
b
ENTER to confirm your selection.
If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:
Press
Z
STOP for more than 5 seconds.
,
Note
Video Output
Resolution
Displayed resolution in display window and
outputted resolution may dierent according to
connection type.
[HDMI OUT] : 1080p, 1080i, 720p and 480p (or
576p) and 480i (or 576i)
[VIDEO OUT] : 480i (or 576i)
Optional Equipment
Connection
AUX (L/R) INPUT Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
Unit
Red
White
To the audio output jacks
of your component
(TV, VCR, etc.)
If your TV has only one output for audio
(mono), connect it to the left (white) audio jack
on the unit.
,
Note
Connecting 17
Connecting
2

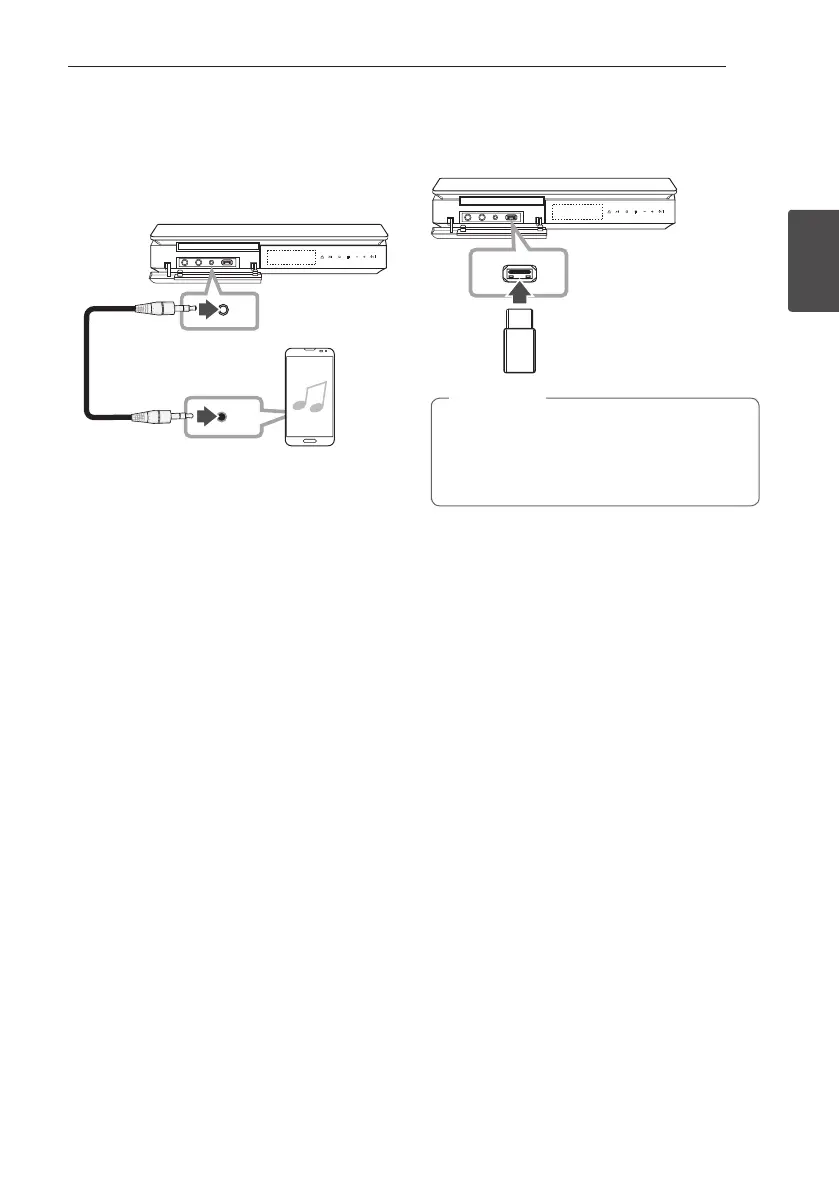

PORT. IN (Portable Input)
Connection
Connect an output of portable device (MP3 or PMP
etc.) to the PORT. IN connector.
MP3 player, etc
...
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX (L/R)
INPUT connector of the unit.
2. Turn the power on by pressing
1/!
(POWER).
3. Select the PORTABLE or AUX function by
pressing
P
RADIO&INPUT.
4. Turn on the portable player or external device
and start it playing.
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit.
1. Choose a different function mode or press
Z
STOP twice in a row.
2. Remove the USB device from the unit.
,
Note
