Side 1/32

Electric Breaker Instruction Manual

Marteau-piqueur Manuel d’instructions

Aufbruchhammer Betriebsanleitung

Demolitore elettrico Istruzioni per l’uso

Electrisch breekhamer Gebruiksaanwijzing

Demoledor eléctrico Manual de instrucciones

Martelo demolidor Manual de instruções

Opbrydningshammer Brugsanvisning

GR Ηλεκτρικός θραύστης Οδηγίες χρήσεως

HM1400

1 2

3 4

5 6

ENGLISH (Original instructions)

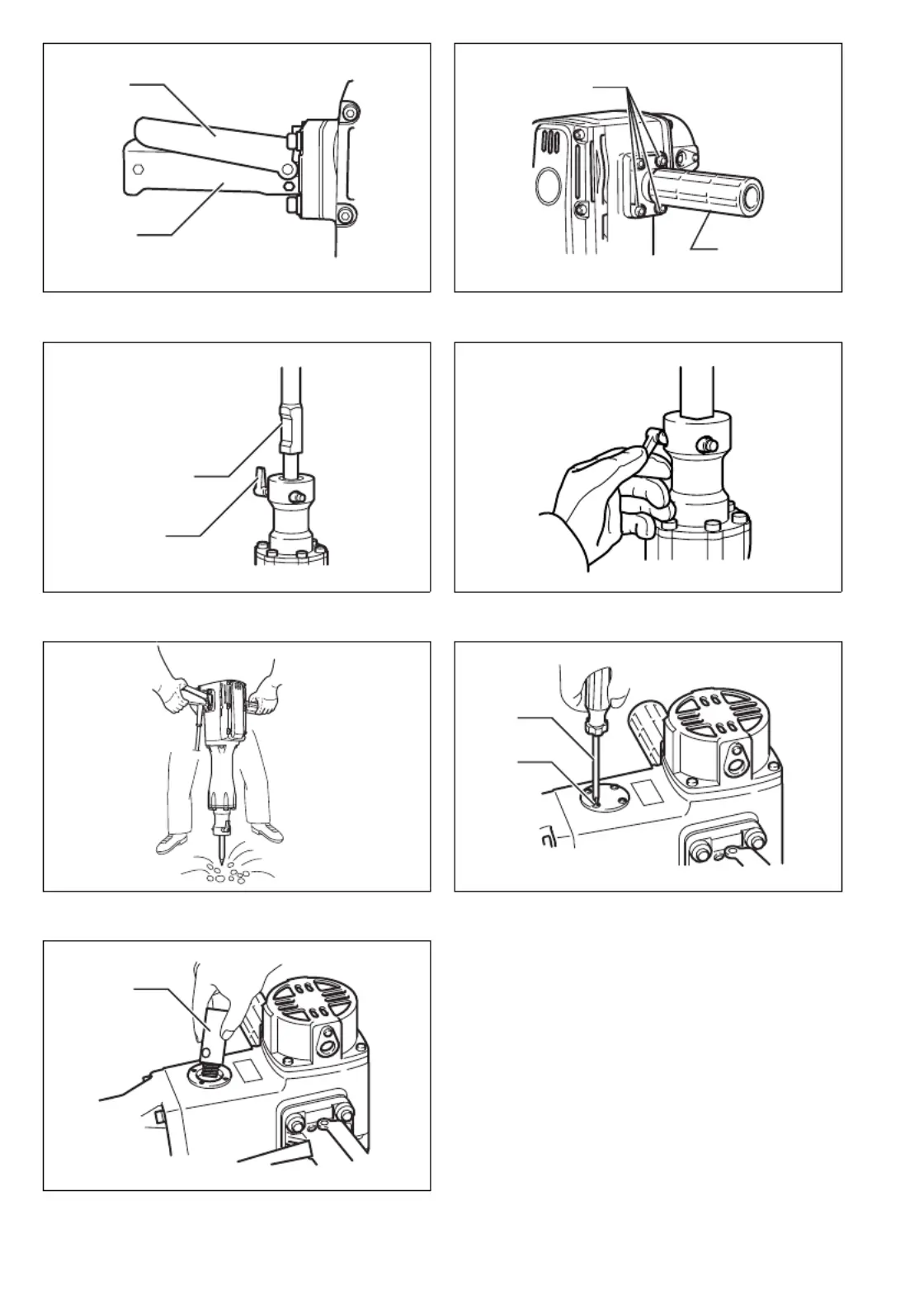

Explanation of general view

1 Switch lever

2 Handle

3 Bolts

4 Grip

5 Notched portion

6 Tool retainer

7 Screwdriver

8 Plate 50

9 Hammer grease

SPECIFICATIONS

Model HM1400

Blows per minute (min

-1

) ............................... 1,200

Overall length ................................................ 613 mm

Net weight ...................................................... 18.1 kg

Safety class .................................................... /II

• Due to our continuing program of research and devel-

opment, the specifications herein are subject to change

without notice.

• Specifications may differ from country to country.

• Weight according to EPTA-Procedure 01/2014

ENE046-1

Intended use

The tool is intended for heavy chiselling and demolition

work as well as for driving and compacting with appropri-

ate accessories.

ENF002-2

Power supply

The tool should be connected only to a power supply of

the same voltage as indicated on the nameplate, and can

only be operated on single-phase AC supply. They are

double-insulated and can, therefore, also be used from

sockets without earth wire.

GEA010-2

General power tool safety warnings

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this

power tool. Failure to follow all instructions listed below

may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future refer-

ence.

The term “power tool” in the warnings refers to your

mains-operated (corded) power tool or battery-operated

(cordless) power tool.

GEB239-1

Electric Breaker safety warnings

Safety instructions for all operations

1. Wear ear protectors. Exposure to noise can cause

hearing loss.

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold the power tool by insulated gripping sur-

faces, when performing an operation where the

cutting accessory may contact hidden wiring or

its own cord. Cutting accessory contacting a “live”

wire may make exposed metal parts of the power

tool “live” and could give the operator an electric

shock.

Additional safety warnings

1. Wear a hard hat (safety helmet), safety glasses

and/or face shield. Ordinary eye or sun glasses

are NOT safety glasses. It is also highly recom-

mended that you wear a dust mask and thickly

padded gloves.

2. Be sure the bit is secured in place before opera-

tion.

3. Under normal operation, the tool is designed to

produce vibration. The screws can come loose

easily, causing a breakdown or accident. Check

tightness of screws carefully before operation.

4. In cold weather or when the tool has not been

used for a long time, let the tool warm up for a

while by operating it under no load. This will

loosen up the lubrication. Without proper warm-

up, hammering operation is difficult.

5. Always be sure you have a firm footing. Be sure

no one is below when using the tool in high loca-

tions.

6. Hold the tool firmly with both hands.

7. Keep hands away from moving parts.

8. Do not leave the tool running. Operate the tool

only when hand-held.

9. Do not point the tool at any one in the area when

operating. The bit could fly out and injure some-

one seriously.

10. Do not touch the bit, parts close to the bit, or

workpiece immediately after operation; they may

be extremely hot and could burn your skin.

11. Some material contains chemicals which may be

toxic. Take caution to prevent dust inhalation

and skin contact. Follow material supplier safety

data.

12. Do not touch the power plug with wet hands.

13. Before operation, make sure that there is no bur-

ied object such as electric pipe, water pipe or

gas pipe in the working area. Otherwise, the bit

may touch them, resulting an electric shock, electri-

cal leakage or gas leak.

14. Do not operate the tool at no-load unnecessarily.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product

(gained from repeated use) replace strict adherence

to safety rules for the subject product. MISUSE or

failure to follow the safety rules stated in this instruc-

tion manual may cause serious personal injury.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and

unplugged before adjusting or checking function on the

tool.

Switch action (Fig. 1)

CAUTION:

• Before plugging in the tool, always check to see that

the switch lever actuates properly and returns to the

“OFF” position when released.

• Do not tape, tie or otherwise secure the switch lever in

the “ON” position.

To start the tool, simply squeeze the switch lever.

Release the switch lever to stop.

Produkspesifikasjoner

Merke:	Makita
Kategori:	drill
Modell:	HM1400
Vekt:	18100 g
Bredde:	223 mm
Dybde:	613 mm
Høyde:	510 mm
Strømkilde:	AC
Inngangseffekt:	12 W
Lydtrykknivå:	103 dB
Slagenergi:	29.5 J
Usikkerhetsavvik (betong):	1.5 m/s²
