DASHBOARD
DISASSEMBLY INSTRUCTIONS
for Polaris
®
RZR
®
Vehicles
Instruction Manual
MBQR-RAD-2
2
©2020 Maxxsonics USA, Inc.
THANK YOU!
Congratulations for choosing the MBQR-RAD-2, an AM/FM/WB, USB and Bluetooth
Multimedia Controller by MB Quart. The unit and housing are engineered to t 2013 and
newer Polaris
®
RZR
®
vehicles. For more detailed information about the product, the
operator/install manual* and a video tutorial, please visit MBQuart.com.
*Wiring information, installation steps and operation of the MBQR-RAD-2 source unit are in the
Operator's Guide and Installation Instructions pictured at right.
INSTALLATION TIME
About 1.5 hours are required to complete this installation, not including other system
components. These instructions are for dashboard disassembly only.
TOOLS AND SUPPLIES NEEDED
● Wire Strippers and Crimpers ● Flush Cut Wire Cutters (for trimming zip-ties)
● Bojo Tools (Pry Tools) ● T40 Torx Driver
● Ratchet w/ 10mm Socket ● T25 Torx Driver
● (Optional) Soldering iron, solder and heat shrink tubing or high-quality electrical tape
SAFETY PRECAUTIONS
Safely prepare your machine for the MBQR-RAD-2 installation before proceeding.
● Turn the ignition off and remove the key
● Use a packing blanket other soft material to protect your machine
● Safety Glasses - always wear eye protection
PREPARATION FOR INSTALLATION
Before dismantling your vehicle, we suggest you prepare your tools, the MBQR-RAD-2 and its wiring as
increases efciency to have everything ready when each component is installed.

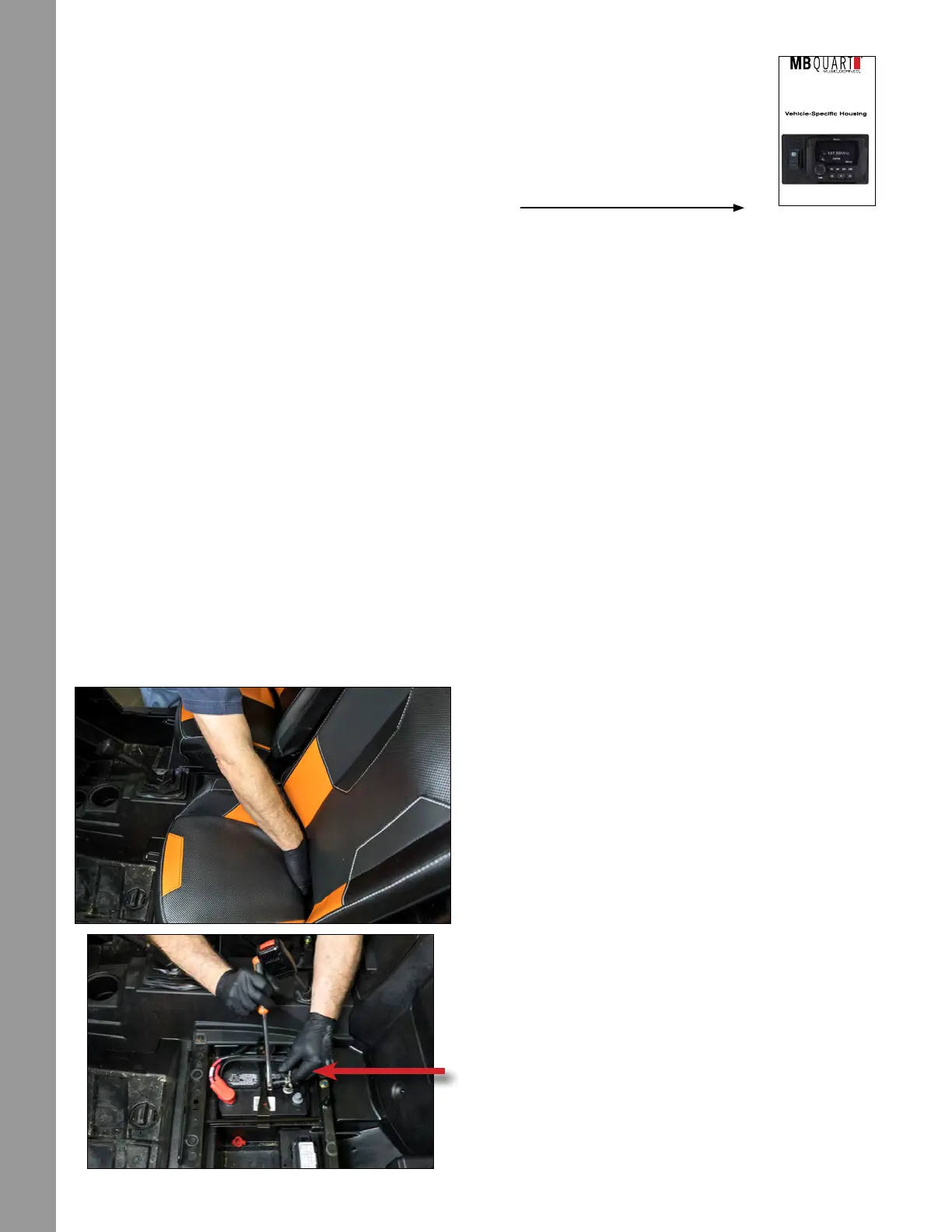

STEP 1 – REMOVE SEATS
Remove driver and passenger seats by pulling on the
lock clip shown in Figure 1-1 This lock clip is located
between the bottom and upright portion of the seat.
Removing both seats will give you the room to work in
the kick panel areas, in addition to getting access to the
battery for Step 2.
STEP 2 – REMOVE NEGATIVE BATTERY CABLE
Using a 10mm socket and ratchet, remove the negative
battery terminal and set aside as shown in Figure 1-2.
This safety measure ensures you do not have any
accessories powered during the installation, as well as
keeps the battery from unnecessarily draining.
Figure 1-1
Figure 1-2
PRE-INSTALLATION
Operator’s Guide and
Installation Instructions
MBQR-RAD-2
AM/FM/USB/Bluetooth
®
Multimedia Controller and
for Polaris
®
RZR
®
Vehicles
MBQR-RAD-2
Operator's Guide and
Installation Instructions
