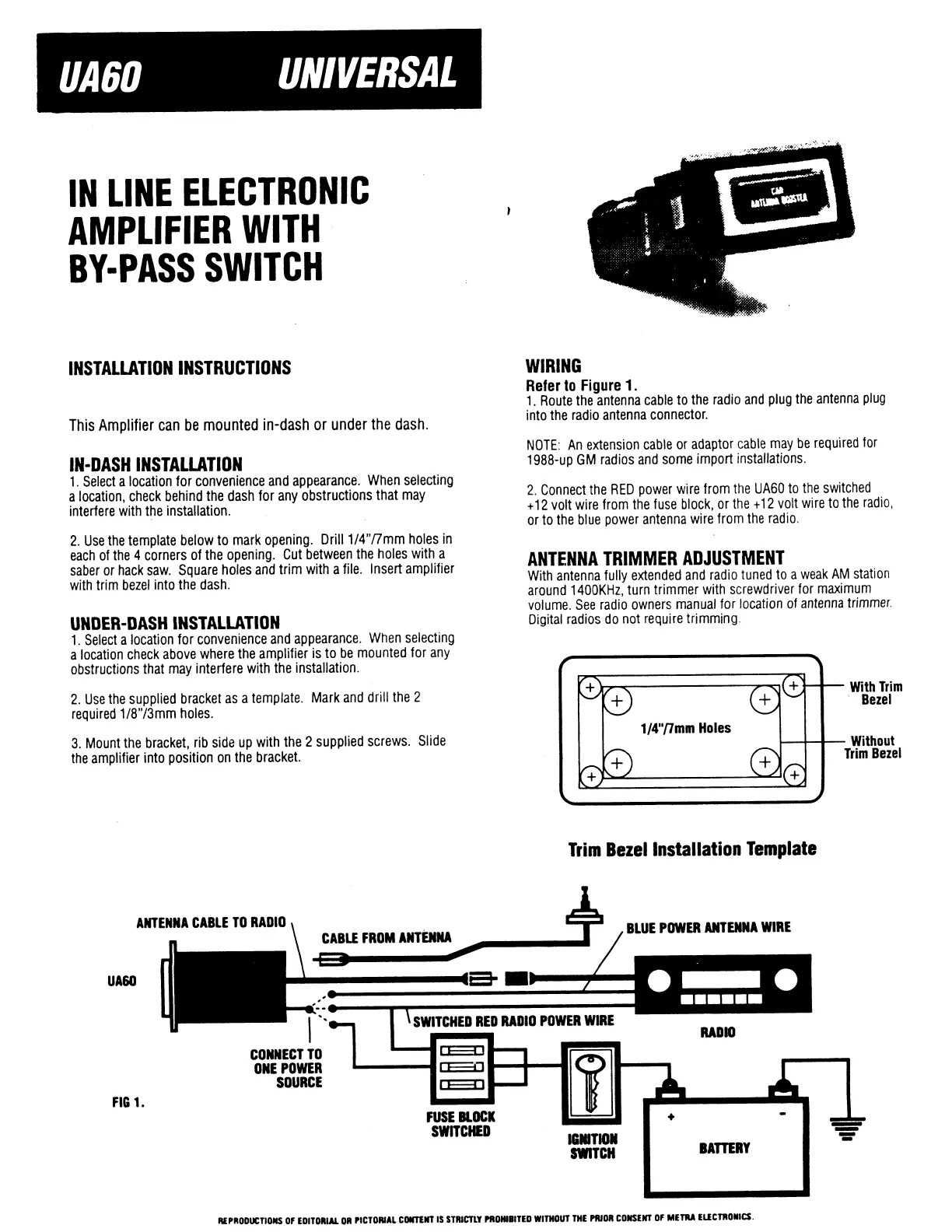

UA60
UNIVERSAL
IN
LINE
ELECTRONIC
AMPLIFIER
WITH
BY-PASS
SWITCH
INSTALLATION
INSTRUCTIONS
This
Amplifier
can
be
mounted
in-dash
or
under
the
dash.
WIRING
Refer
to
Figure
1.
1.
Route
the
antenna
cable
to
the
radio
and
plug
the
antenna
plug
into
the
radio
antenna
connector.
IN-DASH
INSTALLATION
1.
Select
a
location
for
convenience
and
appearance.
When
selecting
a
location,
check
behind
the
dash
for
any
obstructions
that
may
interfere
with
the
installation.
NOTE:
An
extension
cable
or
adaptor
cable
may
be
required
for
1988-up
GM
radios
and
some
import
installations.
2.
Connect
the
RED
power
wire
from
the
UA60
to
the
switched
+
12
volt
wire
from
the
fuse
block,
or
the
+
12
volt
wire
to
the
radio,
or
to
the
blue
power
antenna
wire
from
the
radio.
2.
Use
the
template
below
to
mark
opening.
DrilI1/4"flmm
holes
in
each
of
the
4
corners
of
the
opening.
Cut
between
the
holes
with
a
saber
or
hack
saw.
Square
holes
and
trim
with
a
file.
Insert
amplifier
with
trim
bezel
into
the
dash.
UNDER-DASH
INSTALLATION
1.
Select
a
location
for
convenience
and
appearance.
When
selecting
a
location
check
above
where
the
amplifier
is
to
be
mounted
for
any
obstructions
that
may
interfere
with
the
installation.
2.
Use
the
supplied
bracket
as
a
template.
Mark
and
drill
the
2
required
1/8"/3mm
holes.
3.
Mount
the
bracket,
rib
side
up
with
the
2
supplied
screws.
Slide
the
amplifier
into
position
on
the
bracket.
ANTENNA
TRIMMER
ADJUSTMENT
With
antenna
fully
extended
and
radio
tuned
to
a
weak
AM
station
around
1400KHz,
turn
trimmer
with
screwdriver
for
maximum
volume.
See
radio
owners
manual
for
location
of
antenna
trimmer
Digital
radios
do
not
require
trimming
With
Trim
Bezel
1/4"nmm
Holes
I--+--+--
Without
Trim
Bezel
Trim
Bezel
Installation
Template
'=="
-
-
RADIO
IATTERY
+
BLUE
POWER
ANTENNA
WIRE
ISlino.
SWITCH
FUSE
BlOCK
SWITCHED
CABLE
FROM
ANTENNA
~
.....
-----
...
e
.~~~-
I
--
CONNECT
TO
ONE
POWER
SOURCE
FIG
1.
UA60
ANTENNA
CABLE
TO
RADIO
1Il,,,ooucnollS
Of
EOITOlIW.
011
'ICTOIllAL
COIfTlIIT
IS
STRleny
",O
••
ITED
WITNOUT
THE
"'JOR
COIISEIIT
Of
METllA
EUCTIlOMICS.
